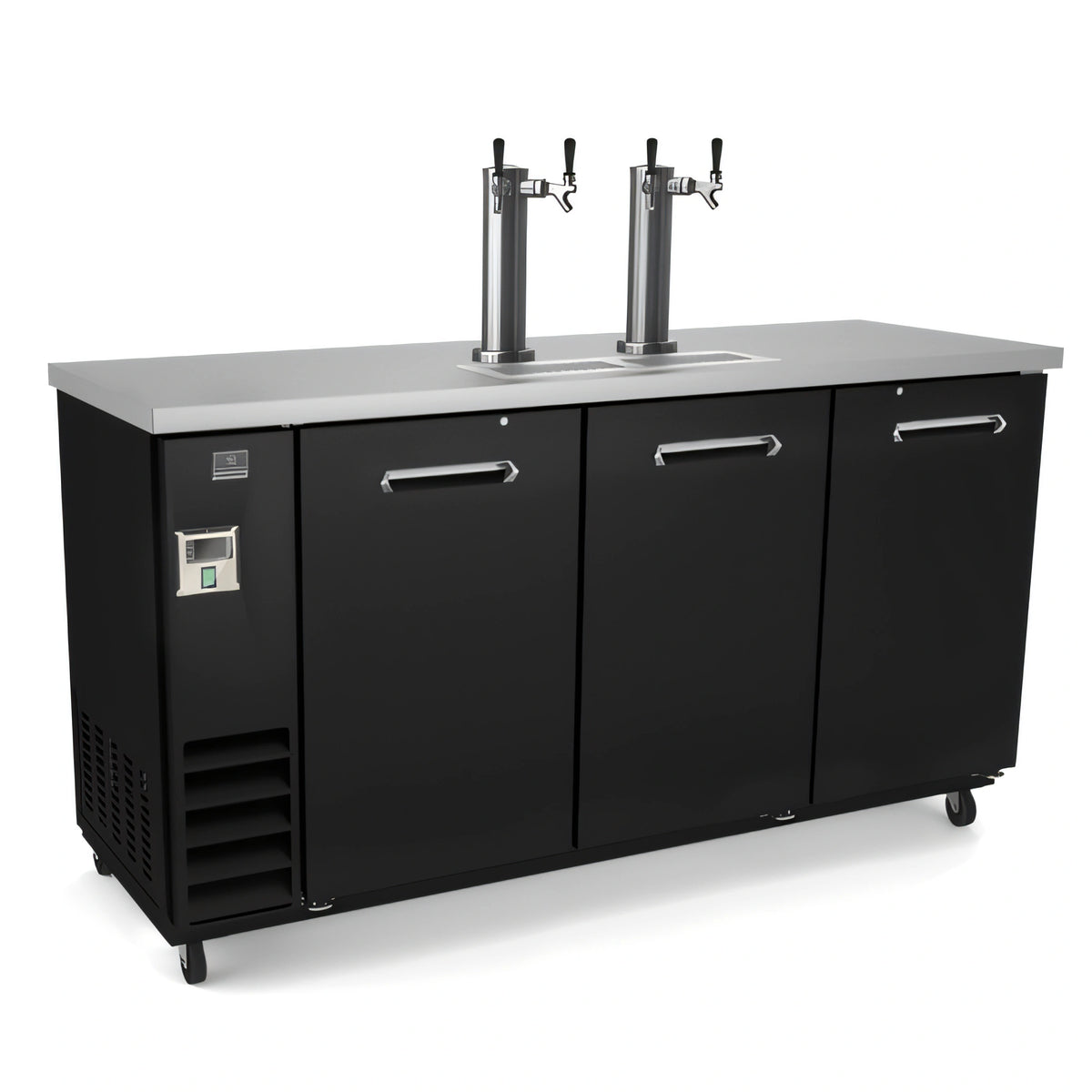

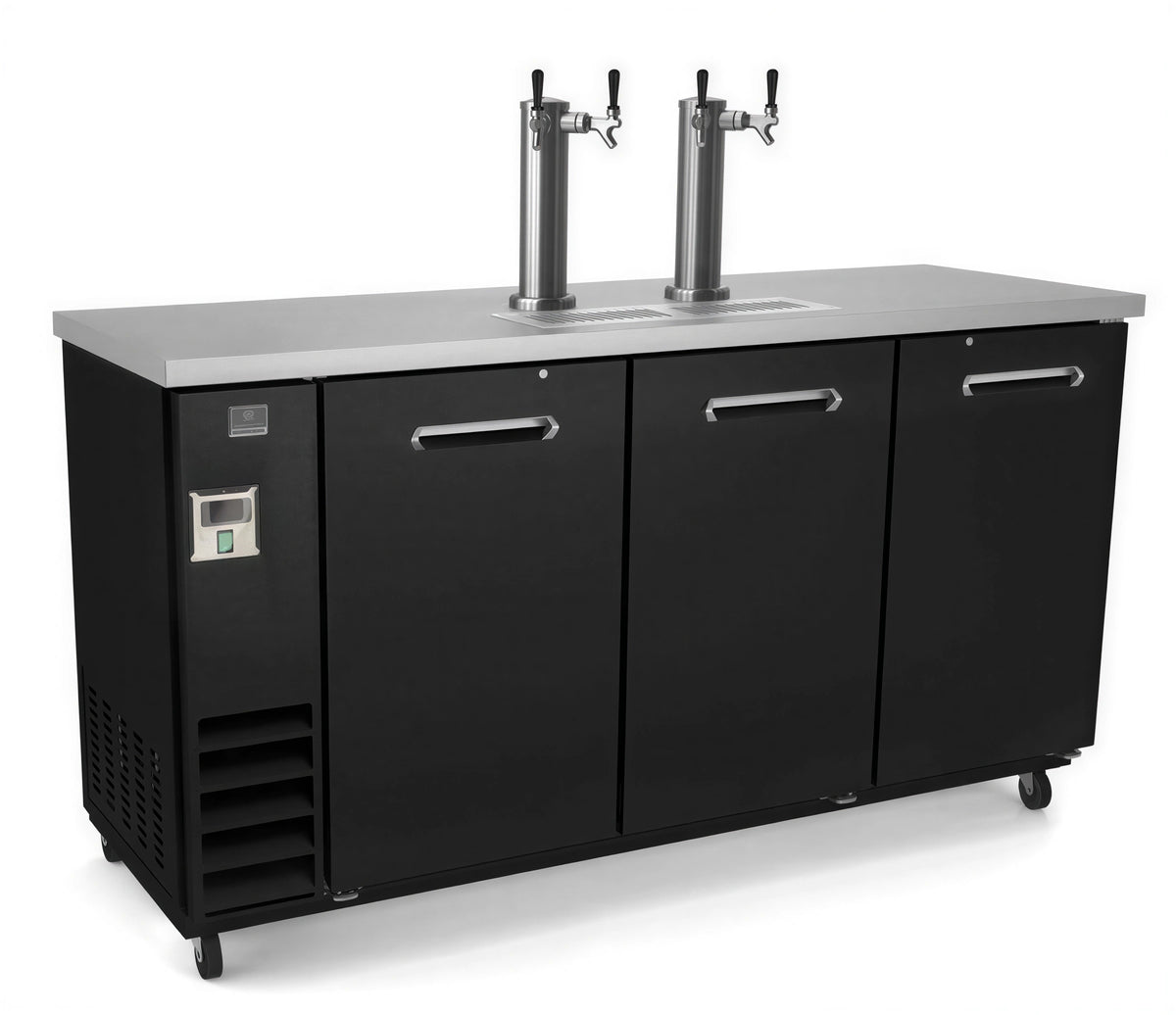

Kelvinator Commercial KCHBBD3D2T Draft Beer Cooler, 73-Inch, 3-Door, 2 Refrigerated Double-Faucet Columns
- Product type
- Draft beer cooler
- Gross capacity
- 20.8 cu. ft.
- Keg accommodation
- 3 half-barrel, 6 slim quarter-barrel, 6 quarter-barrel, or 12 sixth-barrel kegs
- Refrigeration configuration
- Self-contained, side-mounted refrigeration
- Temperature range
- 33°F to 41°F
- Defrost type
- Automatic defrost
Specifications
Description
The Kelvinator Commercial KCHBBD3D2T is a draft beer cooler with a 73.07-inch-wide cabinet, three full doors, and two refrigerated double-faucet columns.
- 20.8 cu. ft. capacity with space for three half-barrel, six slim quarter-barrel, six quarter-barrel, or twelve sixth-barrel kegs.
- External digital temperature controller, automatic defrost, and a listed temperature range of 33°F to 41°F.
- Stainless steel top and interior with a galvanized and black painted steel exterior and reinforced steel bottom panel.
- Self-closing doors with locks, a 90-degree stay-open feature, and removable magnetic gaskets.
- Self-contained side-mounted refrigeration with R290 hydrocarbon refrigerant and a fin-and-tube condenser.
- Heavy-duty casters support mobility, while four vinyl-coated steel grids are included.
The unit operates on 115 V, 60 Hz, single-phase power and uses a NEMA 5-15P plug.
Overall Dimensions:
73.07"W x 24.41"D x 56.95"HProduct Weight:

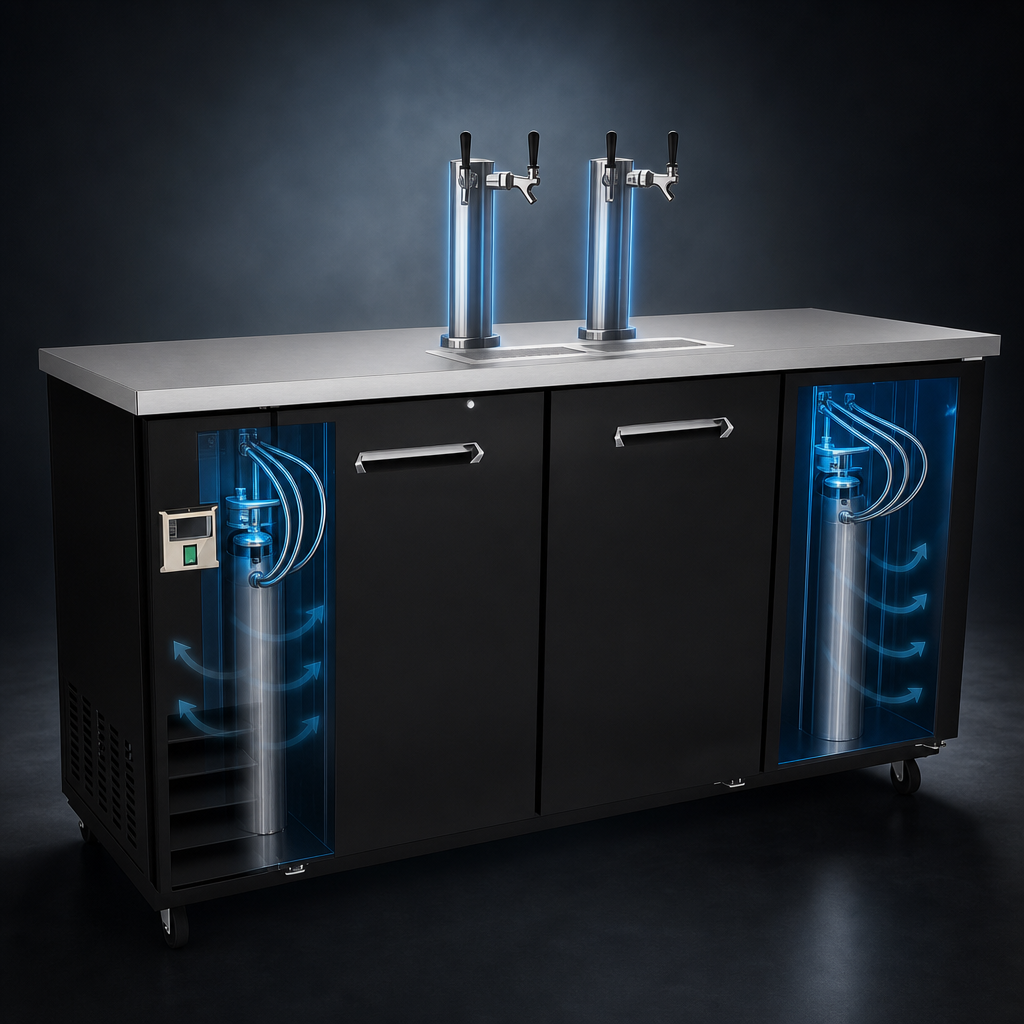

375.0 lbRefrigerated double-faucet columns
Includes two refrigerated columns, each configured with two faucets.

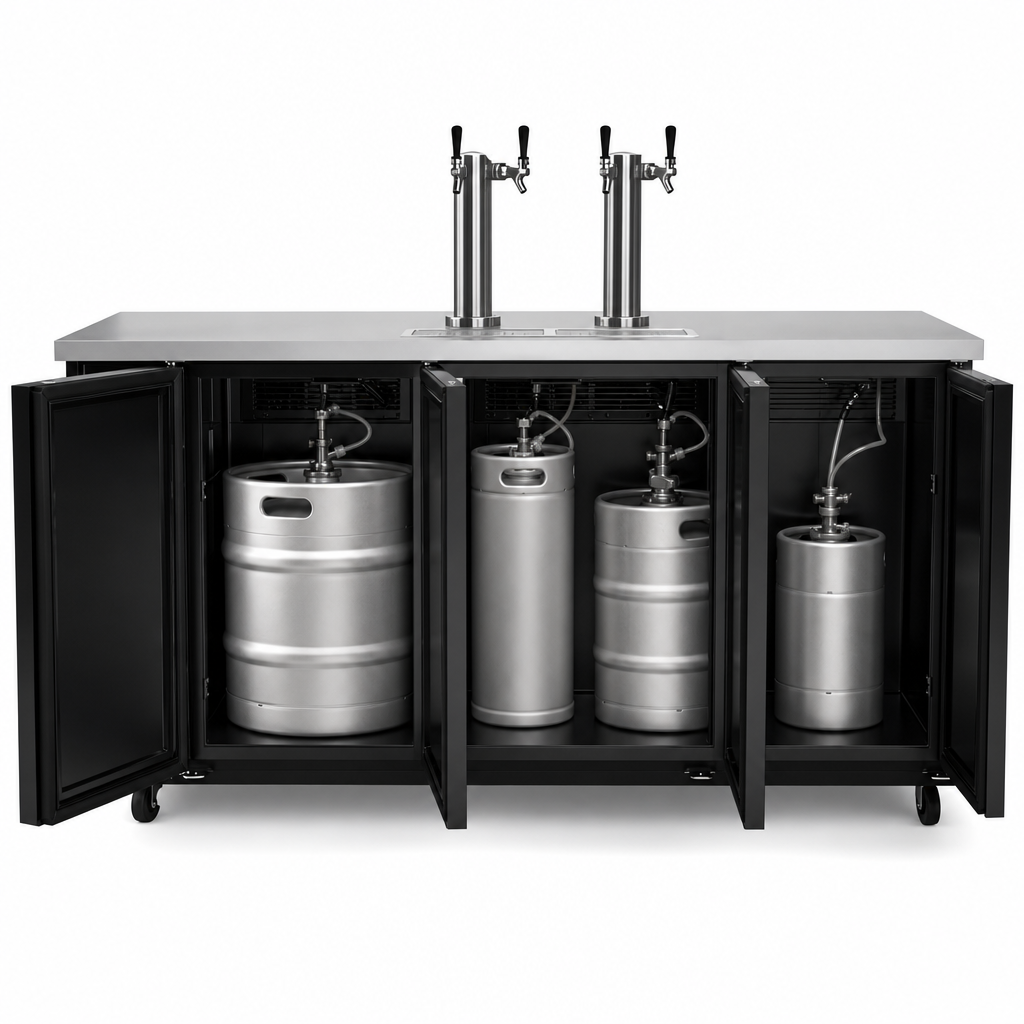

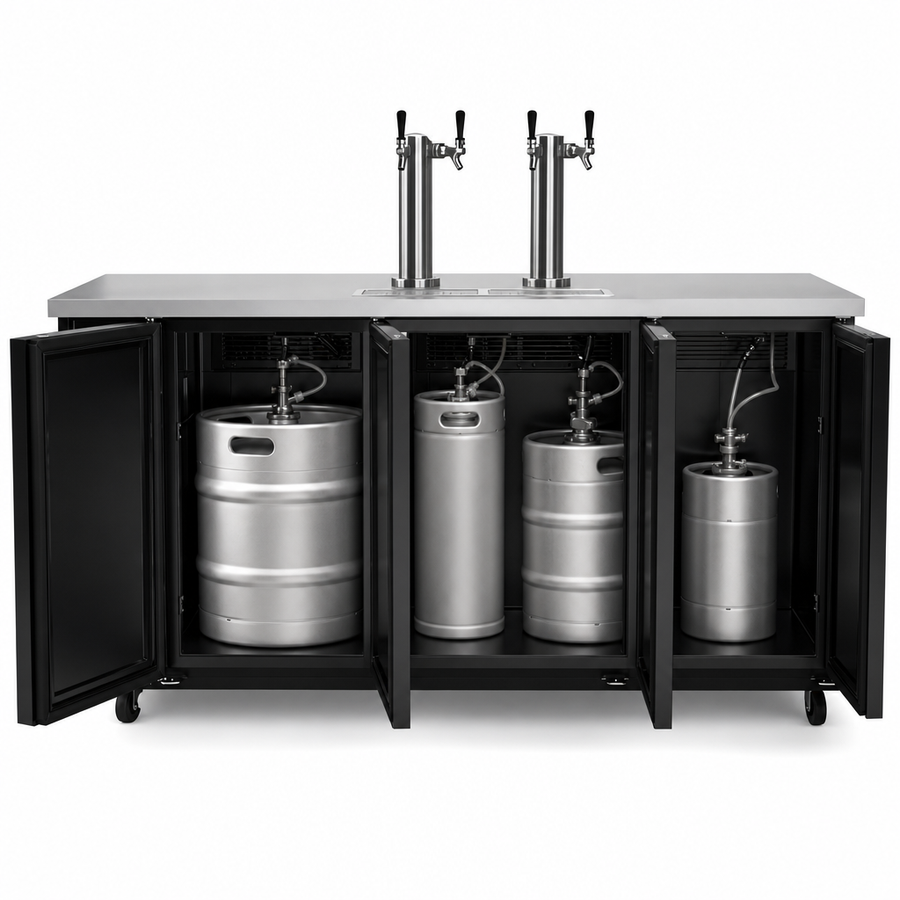

Flexible keg accommodation
The cabinet is capable of accepting three half-barrel, six slim quarter-barrel, six quarter-barrel, or twelve sixth-barrel kegs.
Temperature control and defrost
An external digital temperature controller and automatic defrost system support the listed 33°F to 41°F operating range.
Three lockable full doors
The doors are self-closing, include a 90-degree stay-open feature, and use removable magnetic gaskets.
Stainless steel top and interior
The top and interior are stainless steel; the exterior uses galvanized and black painted steel with a reinforced steel bottom panel.
Self-contained refrigeration
The side-mounted refrigeration system uses R290 hydrocarbon refrigerant and a fin-and-tube condenser.
Mobile cabinet design
Heavy-duty casters are included for mobility.
Electrical connection
The unit uses 115 V, 60 Hz, single-phase power, draws 3 amps, and has a NEMA 5-15P plug.
