Kelvinator Commercial

Kelvinator Commercial 2-Door 2-Tower Draft Beer Dispenser, 49-Inch, 12.5 Cu. Ft.

SKU: KCHBBD2D2T
GTIN: 819450022056
$4,175.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

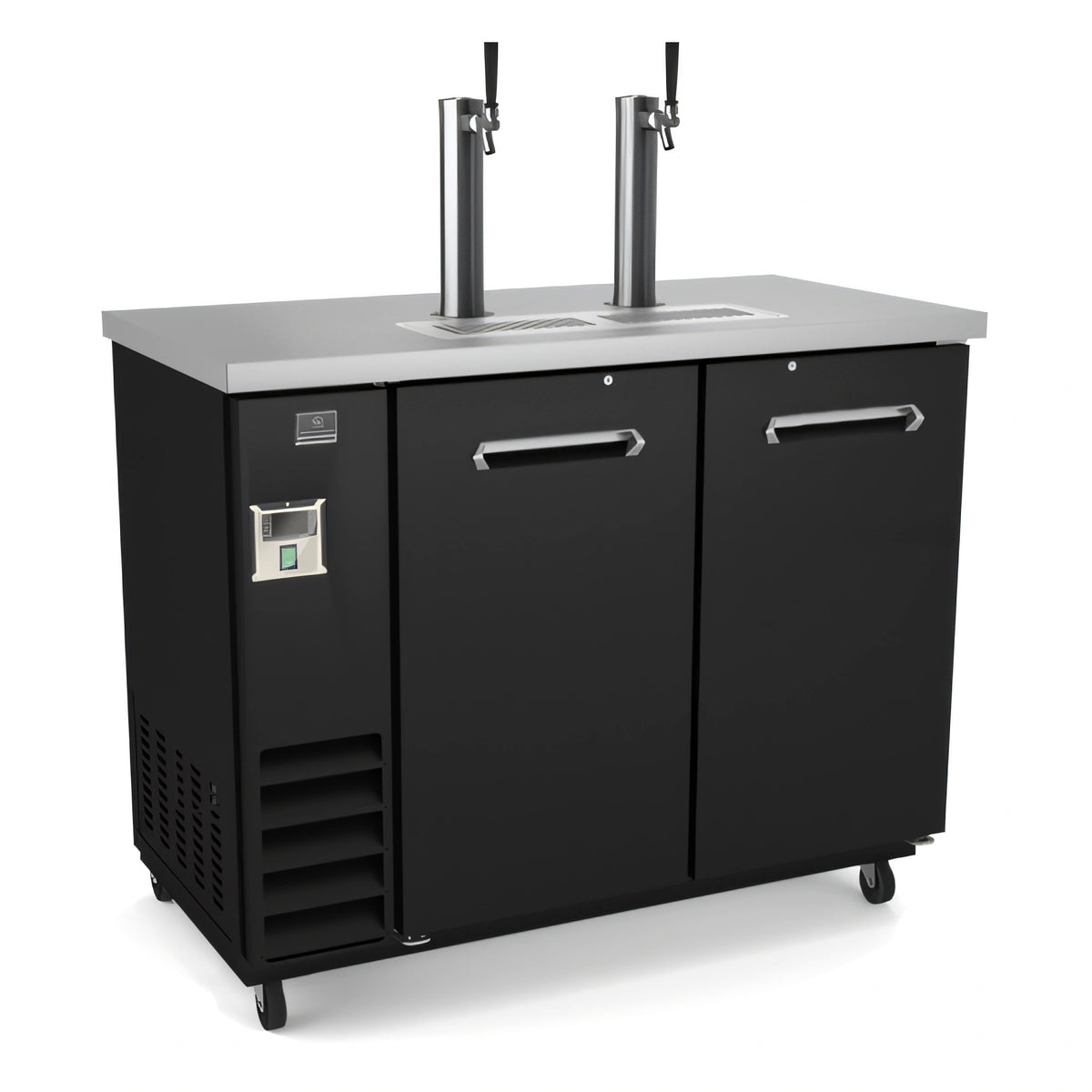

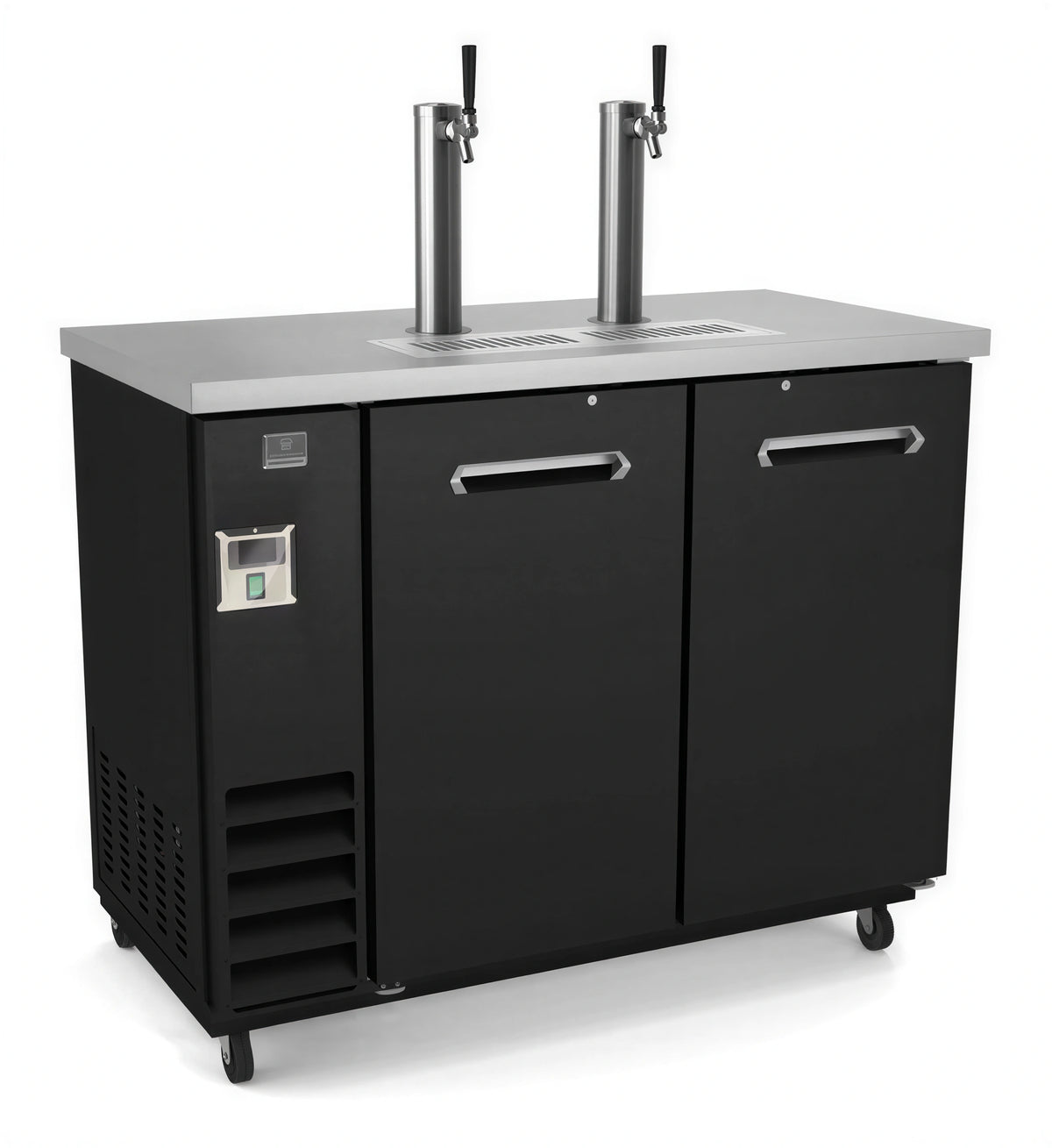

Kelvinator Commercial 2-Door 2-Tower Draft Beer Dispenser, 49-Inch, 12.5 Cu. Ft.

Self-Contained Side-Mounted Refrigeration with 2 Refrigerated Single-Faucet Columns

Built for high-volume beer service, this 49-inch draft dispenser combines flexible keg storage, dual refrigerated towers, and self-contained refrigeration for dependable pouring.

  • 49-inch, 2-door draft beer dispenser with 12.5 cu. ft. of cold storage.
  • Accepts 2 half-barrel, 3 slim quarter-barrel, 4 quarter-barrel, or 6 sixth-barrel kegs.
  • Includes 2 refrigerated single-faucet columns for serving.
  • External digital temperature control, auto defrost, and a fin & tube condenser support consistent performance.
  • Locking self-closing doors, removable magnetic gaskets, stainless steel surfaces, and heavy-duty casters help with daily use and cleaning.

Overall Dimensions:

49.09"W x 24.41"D x 56.95"H

Product Weight:

265.0 lb

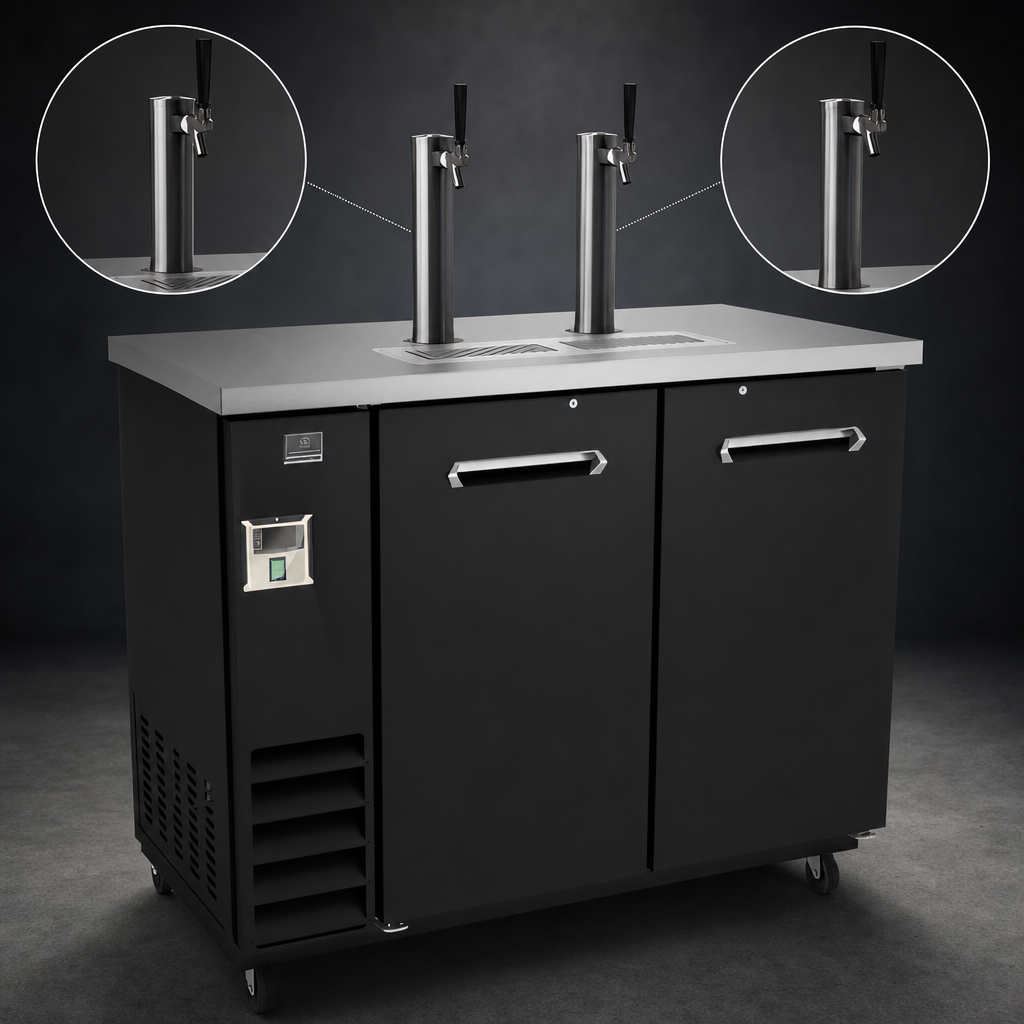

Two Refrigerated Faucet Columns

Includes two refrigerated single-faucet columns for serving beer from both towers.

Two Refrigerated Faucet Columns

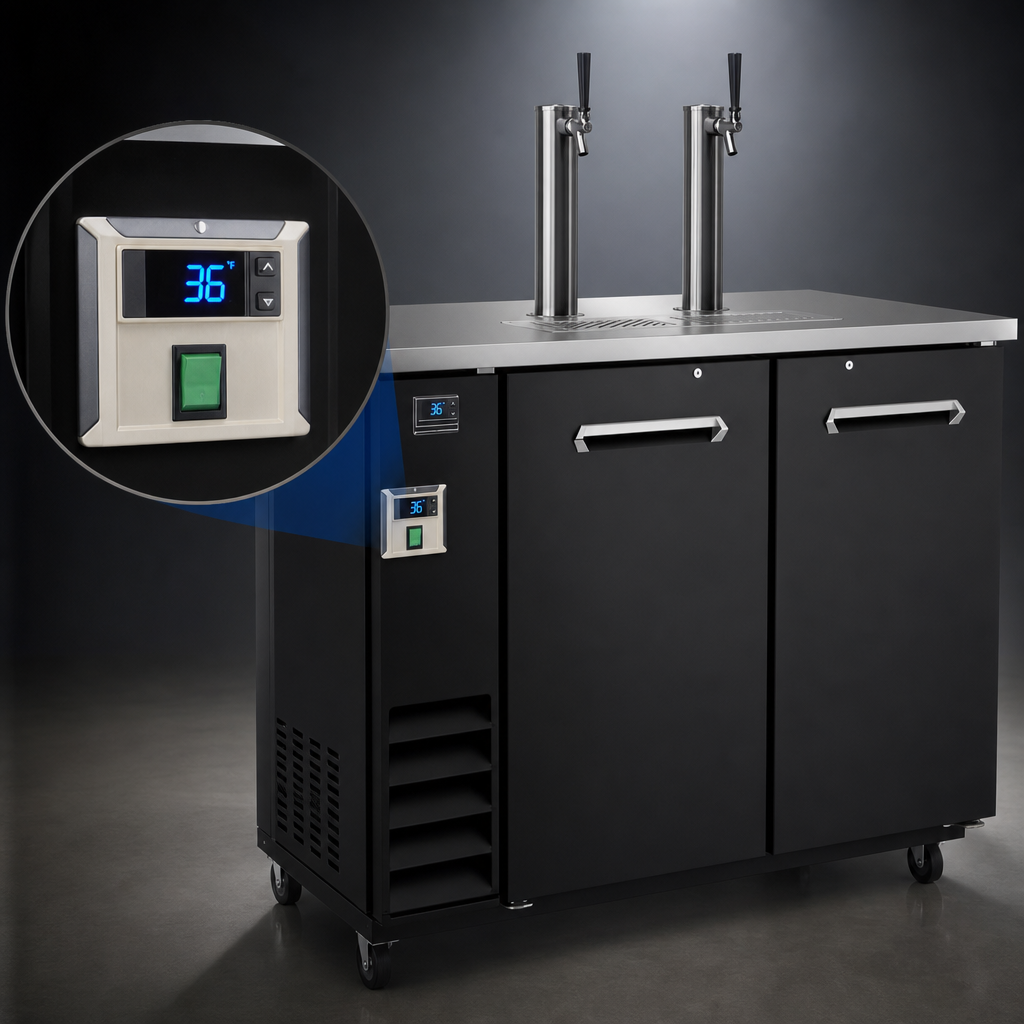

External Digital Temperature Control

External temperature display and digital controller make monitoring and adjustment easy.

External Digital Temperature Control

Self-Contained Side-Mounted Refrigeration

Integrated refrigeration system simplifies installation and keeps cooling components within the cabinet footprint.

Auto Defrost System

Automatic defrost cooling helps reduce maintenance and supports worry-free operation.

Fin & Tube Condenser

Designed to improve performance in high-temperature environments.

Locking, Self-Closing Doors

Doors lock for security, self-close for convenience, and include a 90-degree stay-open feature.

Removable Magnetic Gaskets

Tool-free gasket removal makes cleaning and maintenance easier.

Stainless Steel Top and Interior

Durable stainless steel surfaces help with cleaning and long-term use.

Heavy-Duty Casters

Casters make the unit easier to move for installation and cleaning.

High-Density Polyurethane Insulation

Fully insulated cabinet helps maintain temperature and supports efficient operation.

Flexible Keg Capacity

Cabinet can accept 2 half-barrel, 3 slim quarter-barrel, 4 quarter-barrel, or 6 sixth-barrel kegs.

R290 Hydrocarbon Refrigerant

Uses R290 refrigerant for low environmental impact and efficient cooling.

Type Draft Beer Dispenser
Style 2-Door 2-Tower
Installation Type Floor Model
Capacity 12.5 Cubic Feet
Refrigeration Type Self-Contained
Controls Digital
Temperature Range 32°F to 41°F
Material Stainless Steel
Finish Black Painted Steel
Horsepower 1/5 HP
Condenser Type Fin & Tube
Defrost Type Automatic
Refrigerant Type R290
Voltage 115 Volts
Amps 3 Amps
Watts 0.31 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 50 Inches
Shipping Depth 25 Inches
Shipping Height 58 11/16 Inches
Shipping Weight 265 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3/5 years warranty

Frequently Asked Questions

The cabinet can accept 2 half-barrel, 3 slim quarter-barrel, 4 quarter-barrel, or 6 sixth-barrel kegs.
The documented operating temperature range is 32°F to 41°F.
Yes. It has two lockable, self-closing doors with a 90-degree stay-open feature.
It uses R290 hydrocarbon refrigerant.
Yes. The documentation lists an optional draft tower with double faucet, model PNC 880677.
It requires 115 V / 60 Hz / 1-phase power and uses a NEMA 5-15P plug.
