Keating of Chicago Miraclean 42X24-G Gas Chrome Griddle, 39" W x 18" D Cooking Surface, 3/4" Plate, Thermostatic Controls

SKU: 42X24-G
$16,335.60
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

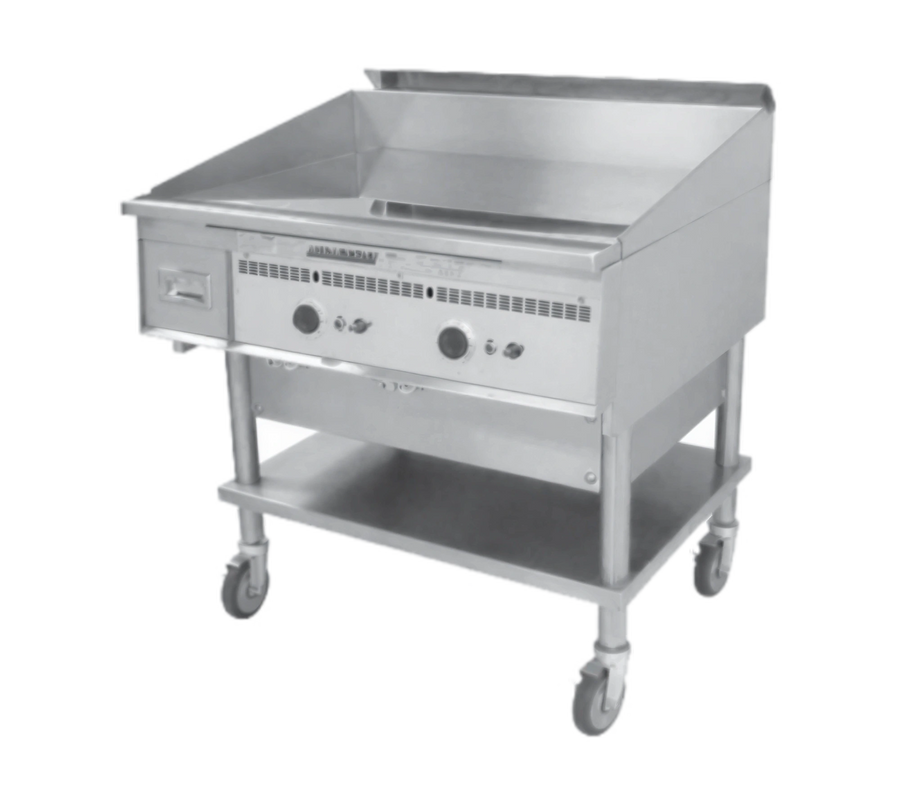

The 42X24-G Miraclean gas griddle has a 39 in W x 18 in D cooking surface and a 3/4 in chrome-finished griddle plate.

Two zoned millivolt thermostatic heat controls support zone cooking. The unit includes a 2 in front grease trough and a 3 in left grease trough.

The griddle has stainless steel front, sides, and back, a 90,000 BTU rating, and requires no electrical connection.

Overall Dimensions:

42.5"W x 24.63"D

Product Weight:

425.0 lb

Chrome-finished griddle plate

The griddle plate is 3/4 in thick with a chrome-plated finish.

Zoned thermostatic control

Two millivolt thermostatic heat controls provide zoned temperature control.

Grease troughs

The unit has a 2 in front grease trough and a 3 in left grease trough.

Gas heating

The griddle has a listed 90,000 BTU rating.

Stainless steel exterior

Stainless steel is specified for the front, sides, and back.

No electrical connection

Electrical connections are not required.

Safety shutoff

The millivolt thermocouple system provides 100% safety shutoff.

Product Type Gas griddle
Cooking Surface 39 in W x 18 in D
Plate Thickness 3/4 in
Plate Finish Chrome plated
Controls 2 zoned millivolt thermostatic heat controls
Gas Input 90,000 BTU
Grease Troughs 2 in front; 3 in left
Exterior Finish Stainless steel front, sides, and back
Burners 3
Electrical Connection Not required
Gas Connection 3/4 in male NPT
Gas Pressure 4 in WC operating pressure for natural gas; 7 in WC natural gas supply pressure; 11 in WC LP supply pressure
Installation Not for outdoor or domestic installation

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty from the date of original equipment installation.

Frequently Asked Questions

The cooking surface is 39 in W x 18 in D.
It uses two zoned millivolt thermostatic heat controls.
No. The specifications state that electrical connections are not required.
The cutsheet specifies a 3/4 in male NPT connection, 4 in WC operating pressure for natural gas, 7 in WC natural gas supply pressure, and 11 in WC LP supply pressure.
The listed dimensions are 42.5 in W x 24.63 in D x 18 in H, with a weight of 425 lb.
No. The cutsheet states that it is not for outdoor or domestic installation.
