Josper Charcoal Ovens (Middleby) HJA-PLUS-S80 Class A Charcoal Broiler Oven, 30"W x 30-1/4"D, Insulated, Hydraulic Door

SKU: HJA-PLUS-S80
$25,444.45
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Charcoal Broiler Ovens Cooking Equipment Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Josper Charcoal Ovens (Middleby) New Arrivals Restaurant Equipment Specialty Roasters & Smokers

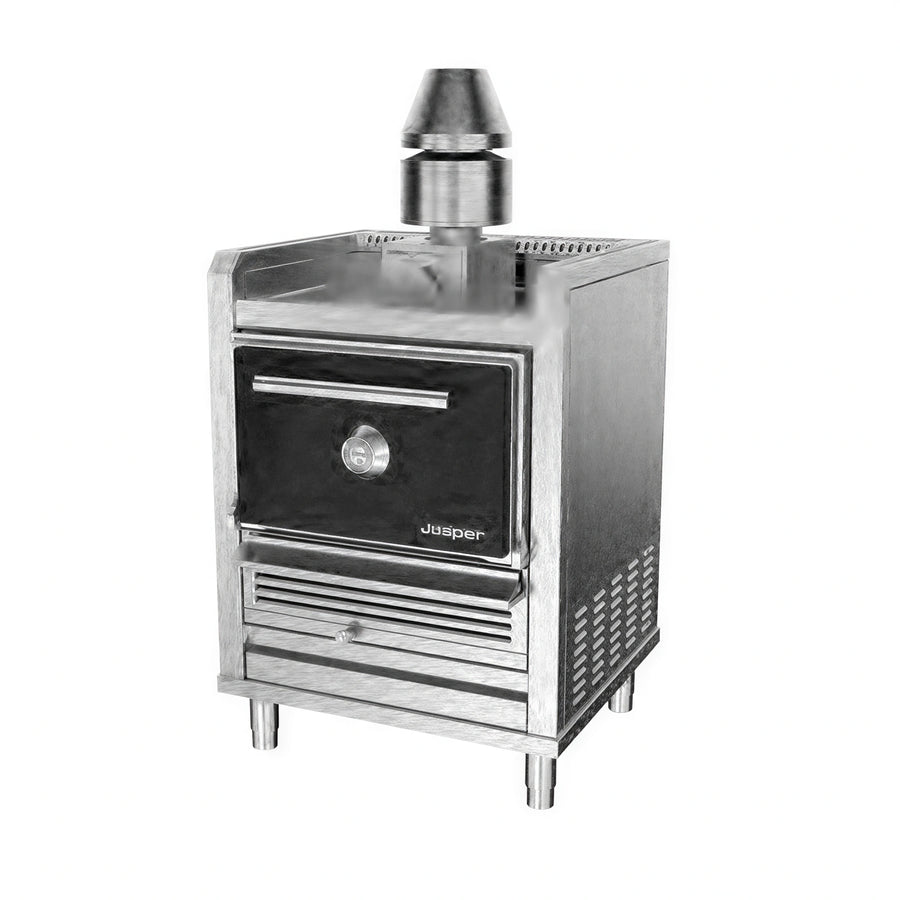

The HJA-PLUS-S80 is a Class A charcoal broiler oven with insulated construction, a pull-down hydraulic door, and two adjustable steel grill racks.

  • Each rack measures 19-3/4 in W x 20-1/8 in D and holds one GN 1/1 tray.
  • Features antispark safety, a combustion shield, cooled flue, firebreak and hat, and a stainless steel tube.
  • Includes tongs, a bristle brush, a poker, and an ash drawer.
  • Has a forged and cast iron interior, stainless steel exterior, and legs.

Overall Dimensions:

30.0"W x 30.25"D x 55.75"H

Charcoal cooking

The oven is designed for charcoal cooking and is specified to operate exclusively with charcoal.

Hydraulic door

One pull-down hydraulic door provides the oven door configuration.

Adjustable grill racks

Includes two adjustable steel grill racks, each measuring 19-3/4 in W x 20-1/8 in D.

GN tray capacity

Each grill rack holds one GN 1/1 tray.

Safety and flue components

Features antispark safety, a combustion shield, cooled flue, firebreak and hat, and a stainless steel tube.

Construction

The oven has a forged and cast iron interior, stainless steel exterior, and legs.

Included tools

Includes tongs, a bristle brush, a poker, and an ash drawer.

Cooking fuel Charcoal
Oven class Class A
Insulation Insulated
Door type Pull-down hydraulic door
Grill racks 2 adjustable steel grill racks
Grill rack dimensions 19-3/4 in W x 20-1/8 in D each
GN tray capacity per rack 1 GN 1/1 tray
Interior material Forged and cast iron
Exterior material Stainless steel
Recommended for Approximately 80 diners
Average fire-up time 30 minutes
Daily charcoal consumption 10–12 kg average
Autonomy per load 9 hours
Average production per hour Approximately 60 kg
Broiling temperature 250–350 °C
Nominal heat output 8.8 kW
Exhaust rate 2800 m³/h
Smoke mass flow 19.36 g/s
Included accessories Tongs, bristle brush, poker, and ash drawer

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Technical sheet PDF Download

Frequently Asked Questions

It is a charcoal broiler oven specified for exclusive use with charcoal.
Yes. It has one pull-down hydraulic door.
Two adjustable steel grill racks are included. Each measures 19-3/4 in W x 20-1/8 in D.
Each grill rack holds one GN 1/1 tray.
The product measures 30 in W x 30.25 in D x 55.75 in H.
Included accessories are tongs, a bristle brush, a poker, and an ash drawer.
The product is listed with CE, NSF, and UL certifications.
