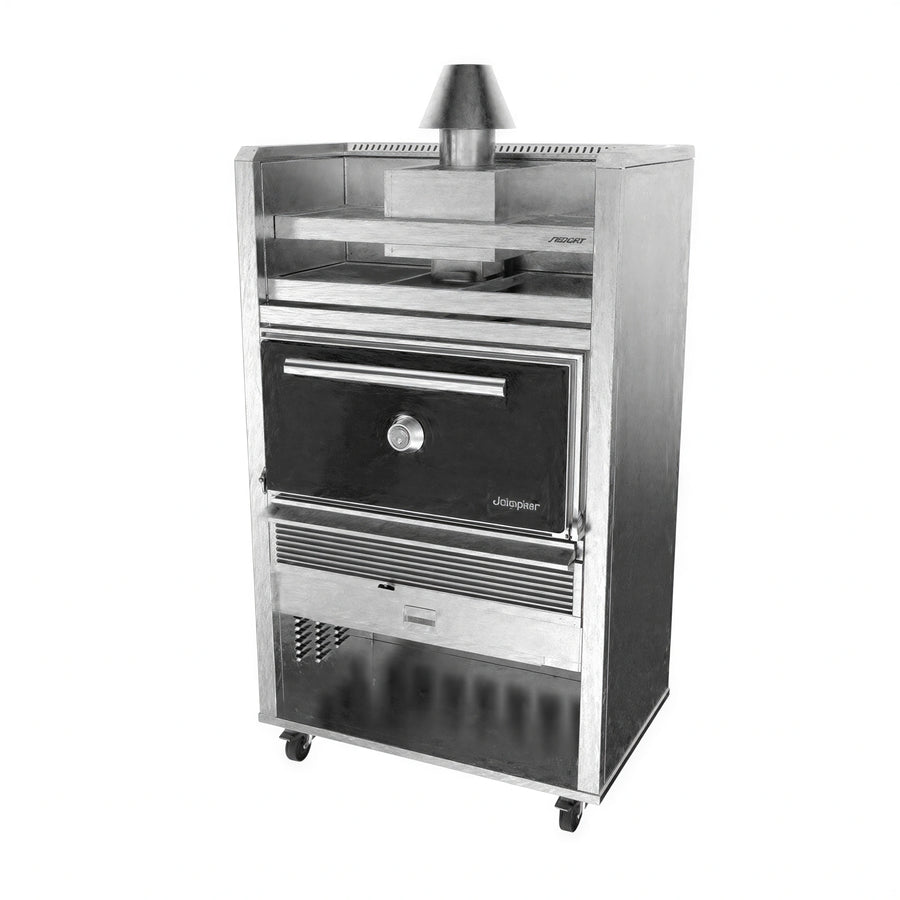

Josper Charcoal Ovens (Middleby) HJA-PLUS-M120-T Charcoal Broiler Oven, 41-3/8"W x 29"D, Insulated, Hydraulic Door

SKU: HJA-PLUS-M120-T
$34,100.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Charcoal Broiler Ovens Cooking Equipment Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Josper Charcoal Ovens (Middleby) New Arrivals Restaurant Equipment Specialty Roasters & Smokers

HJA-PLUS-M120-T is a Class A charcoal broiler oven with insulated construction, a pull-down hydraulic door, seven fire grates, and two adjustable grill racks.

The two grill racks measure 30 in W x 20 1/8 in D and each accommodates two GN 1/1 trays. The tempering cavity holds two GN 2/3 trays and two GN 1/2 trays.

Specified safety and airflow components include antispark safety, a combustion shield, cooled flue, firebreak and hat, smoke outlet vent, and a lower vent with handle regulator. The oven has a forged and cast iron interior, stainless steel exterior, stainless steel tube, and casters.

Includes tongs, bristle brush, poker, and ash drawer. Catalog specifications note shipment within 2 days, with a maximum quantity of one per order.

Overall Dimensions:

41.38"W x 29.0"D x 77.88"H

Product Weight:

1113.3 lb

Class A charcoal broiler oven

Designed for charcoal cooking and specified as a Class A charcoal broiler oven.

Insulated construction

The oven is specified with insulated construction.

Pull-down hydraulic door

A pull-down hydraulic door provides hydraulic door retention.

Fire grate configuration

Includes seven fire grates.

Adjustable grill racks

Two adjustable grill racks measure 30 in W x 20 1/8 in D.

GN tray capacity

Each grill rack accommodates two GN 1/1 trays.

Tempering cavity

The tempering cavity holds two GN 2/3 trays and two GN 1/2 trays.

Safety and airflow components

Specified components include antispark safety, a combustion shield, cooled flue, firebreak and hat, smoke outlet vent, and a lower vent with handle regulator.

Interior and exterior construction

The interior is forged and cast iron, and the exterior is stainless steel.

Included tools and ash drawer

Includes tongs, bristle brush, poker, and ash drawer.

Casters

The oven is specified with casters.

Fuel Charcoal
Fire grates 7
Grill racks 2 adjustable racks
Grill rack size 30 in W x 20 1/8 in D
Tray capacity per grill rack 2 GN 1/1 trays
Tempering cavity capacity 2 GN 2/3 trays and 2 GN 1/2 trays
Recommended service Approximately 120 diners
Fire-up time Approximately 35 min
Charcoal daily consumption 12 to 16 kg
Autonomy per load 9 h
Production per hour Approximately 90 kg
Broiling temperature 250 to 350 °C (482 to 662 °F)
Nominal heat output 7.4 kW
Flue gas mass flow 15.39 g/s
Exhaust rate 3500 m3/h
Interior material Forged and cast iron
Exterior material Stainless steel
Included items Tongs, bristle brush, poker, and ash drawer
Safety features Antispark safety and combustion shield
Flue and vent features Cooled flue, firebreak and hat, smoke outlet vent, and lower vent with handle regulator
Shipping time Within 2 days
Maximum order quantity 1 per order

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Technical sheet PDF Download PDF Middleby financial flyer PDF Download

Frequently Asked Questions

It is a Class A charcoal broiler oven.
Yes. It has a pull-down hydraulic door with hydraulic door retention.
The specification lists two adjustable grill racks, each measuring 30 in W x 20 1/8 in D.
Each grill rack accommodates two GN 1/1 trays.
The tempering cavity holds two GN 2/3 trays and two GN 1/2 trays.
The product specification lists tongs, a bristle brush, a poker, and an ash drawer.
The product documentation states that Josper products work exclusively with charcoal.
The exact product is specified with CE, NSF, and UL certifications.
