Josper Charcoal Ovens (Middleby)

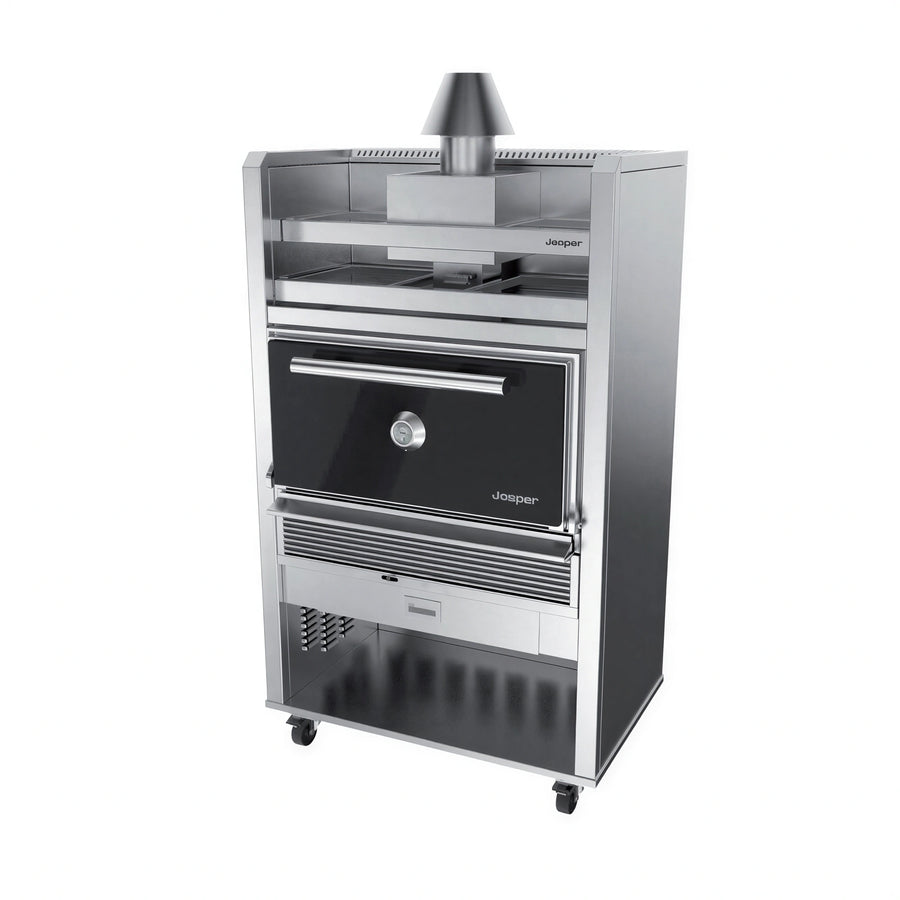

Josper Charcoal Ovens (Middleby) HJA-PLUS-L175-T Class A Charcoal Broiler Oven, 41-3/8"W x 41-5/8"D, Insulated, Hydraulic Door

SKU: HJA-PLUS-L175-T
$34,521.06
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Josper HJA-PLUS-L175-T is a Class A charcoal broiler oven with insulated construction and a pull-down hydraulic door. It includes eight fire grates, two adjustable grill racks, and a tempering cavity for GN trays.

  • Two adjustable grill racks, each measuring 30 in W x 29-3/8 in D
  • Holds two GN 1/1 trays per grill rack
  • Tempering cavity holds two GN 1/1 and two GN 1/2 trays
  • Forged and cast iron interior with stainless steel exterior
  • Includes tongs, bristle brush, poker, and ash drawer
  • Features antispark safety, combustion shield, cooled flue, firebreak and hat, and smoke outlet vent

Overall Dimensions:

41.38"W x 41.63"D x 77.88"H

Product Weight:

1325.0 lb

Class A charcoal operation

The product documentation specifies charcoal-only operation for Josper ovens.

Hydraulic pull-down door

The single pull-down door uses a hydraulic door-retention system.

Adjustable grill racks

Two adjustable grill racks measure 30 in W x 29-3/8 in D.

GN tray capacity

Each grill rack holds two GN 1/1 trays.

Tempering cavity

The tempering cavity holds two GN 1/1 and two GN 1/2 trays.

Insulated construction

The oven has insulated construction, a forged and cast iron interior, and a stainless steel exterior.

Safety and ventilation

Components include antispark safety, a combustion shield, cooled flue, firebreak and hat, smoke outlet vent, and lower vent with handle regulator.

Mobility

Casters are included.

Included items

Included items are tongs, a bristle brush, a poker, and an ash drawer.

Related Searches

Best Sellers Butane Stove Charcoal Broiler Ovens Cooking Equipment Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Josper Charcoal Ovens (Middleby) New Arrivals Restaurant Equipment Specialty Roasters & Smokers
Product type Class A charcoal broiler oven
Fuel Charcoal
Door 1 pull-down hydraulic door
Fire grates 8
Grill racks 2 adjustable racks, 30 in W x 29-3/8 in D each
Oven tray capacity 2 GN 1/1 trays per grill rack
Tempering cavity capacity 2 GN 1/1 and 2 GN 1/2 trays
Interior Forged and cast iron
Exterior Stainless steel
Insulation Insulated
Mobility Casters
Fire-up time Approximately 40 min
Daily charcoal consumption 16–20 kg
Autonomy per load 9 h
Production per hour Approximately 110 kg
Broiling temperature 250–350 °C
Nominal heat output 9.6 kW
Exhaust rate 3800 m³/h
Recommended service Approximately 175 diners
Minimum clearance to combustible elements 12 in
Minimum clearance to non-combustible elements 4 in
Included items Tongs, bristle brush, poker, and ash drawer

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Technical sheet PDF Download

Frequently Asked Questions

The product documentation specifies charcoal-only operation.
The oven has two adjustable grill racks, each measuring 30 in W x 29-3/8 in D.
Each grill rack holds two GN 1/1 trays.
The tempering cavity holds two GN 1/1 and two GN 1/2 trays.
Included items are tongs, a bristle brush, a poker, and an ash drawer.
The product measures 41.38 in W x 41.63 in D x 77.88 in H and weighs 1325 lb.
The model is listed with CE, NSF, and UL certifications.
The product documentation specifies a minimum clearance of 12 in from combustible elements and 4 in from non-combustible elements.
