John Boos UBSC-2124-R-X Bar Equipment
Description

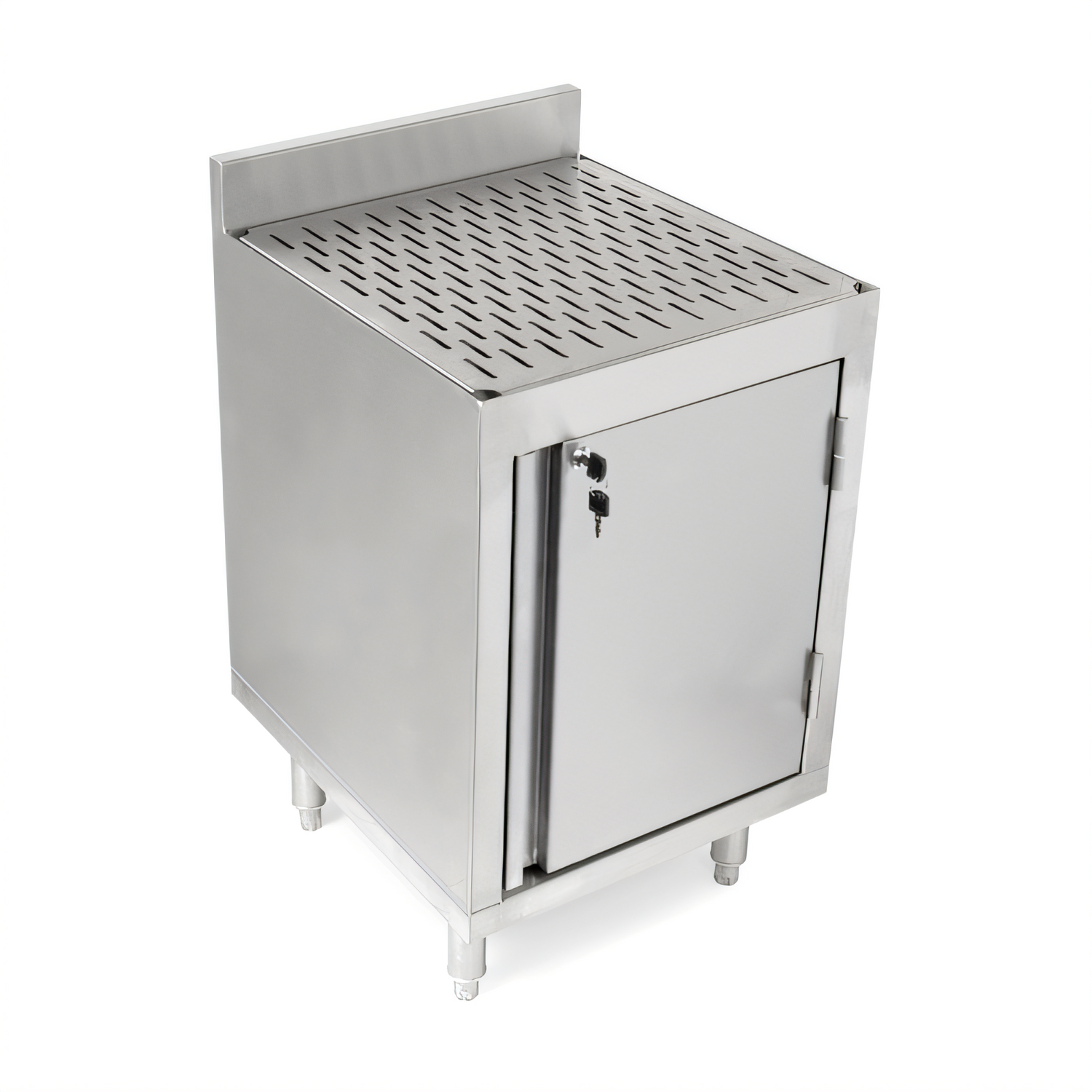

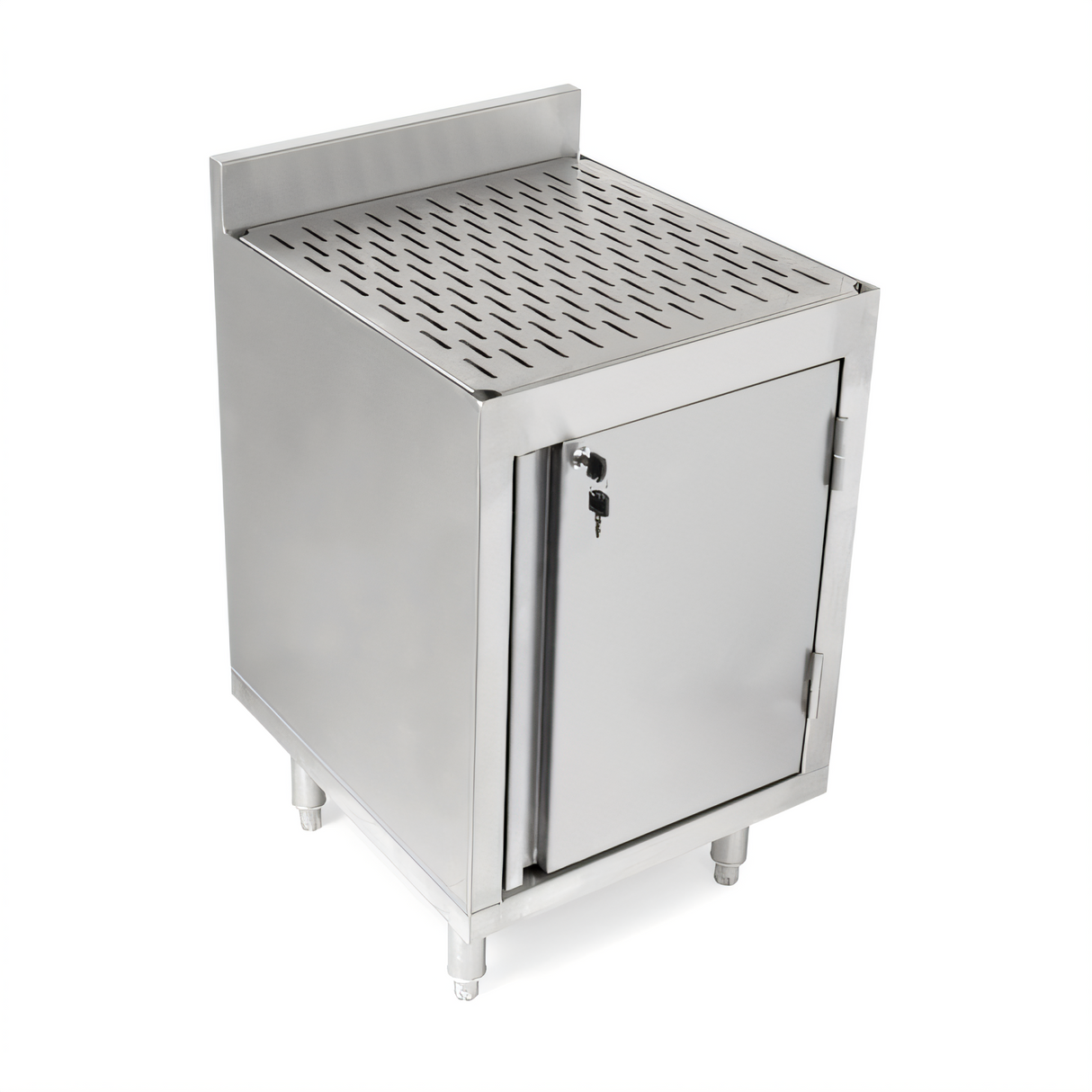

John Boos UBSC-2124-R Underbar Storage Cabinet
24" W × 21" D × 32-1/2" H • Right-Hinged, Locking Door • NSFBuilt for high-volume bars and beverage stations, the UBSC-2124-R combines secure dry storage with a perforated drainboard top—perfect for drying glassware or draining barware while keeping countertops clear. Heavy-duty 18 gauge stainless steel construction, adjustable bullet feet and plug-and-play drain fittings make this cabinet a durable, easy-to-install workhorse behind any bar.
Key Features & Benefits
- 18 GA type 300 stainless steel body with #4 satin polish for a professional look and long-term corrosion resistance.

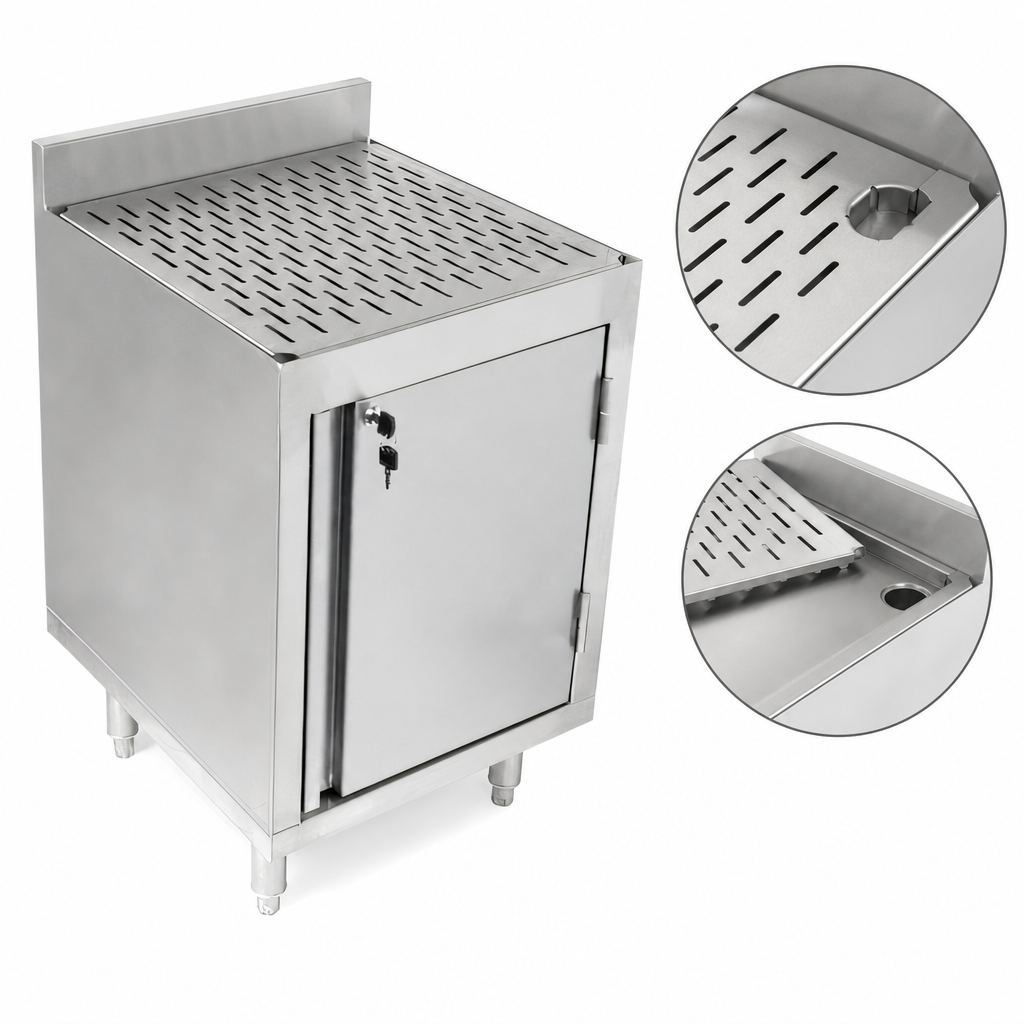

- Perforated drainboard insert lifts out for fast cleaning and maximises air circulation for quick drying.
- Integrated 3" high backsplash helps protect walls from moisture and splashes.
- Top drain comes pre-assembled with ½" barbed outlet, clear drain hose and fittings—no extra parts to source.
- Locking, right-hinged door (type 400 SS) safeguards premium liquor, tools or POS equipment when the bar is closed.
- Standard side mounting holes and supplied Z-clip allow you to bolt to adjacent underbar units or wall-mount for a seamless line-up.
- 1-5/8" bolt-on stainless steel legs with side bracing add strength; 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- NSF listed for open-bar, kitchen or front-of-house use.
Technical Specifications
| Model | UBSC-2124-R |
|---|---|
| Overall Dimensions (W × D × H) | 24" × 21" × 32-1/2" |
| Backsplash Height | 3" |
| Door | Right-hinged, locking, full-height integrated handle |
| Top / Sides / Backsplash | 18 GA type 300 stainless steel |
| Door Material | 18 GA type 400 stainless steel |
| Legs & Bracing | 1-5/8" O.D. stainless steel tubing with side bracing |
| Feet | 1" height-adjustable stainless steel bullet feet |
| Drain Connection | ½" barbed outlet with clear hose & fittings (included) |
| Net Weight | 62 lb (weights subject to additional packaging) |
| Certifications | NSF |
Optional Accessories (Sold Separately)
- UBSS-21-L: Left-hand side splash
- UBSS-21-R: Right-hand side splash
- UBSCS-1618 / UBSCS-1624: Stainless steel cabinet shelves
Need additional shelves or side splashes? Chat with our team before checkout and we’ll bundle the right accessories for your bar layout.
