John Boos UBSC-2124-R Bar Equipment
Description

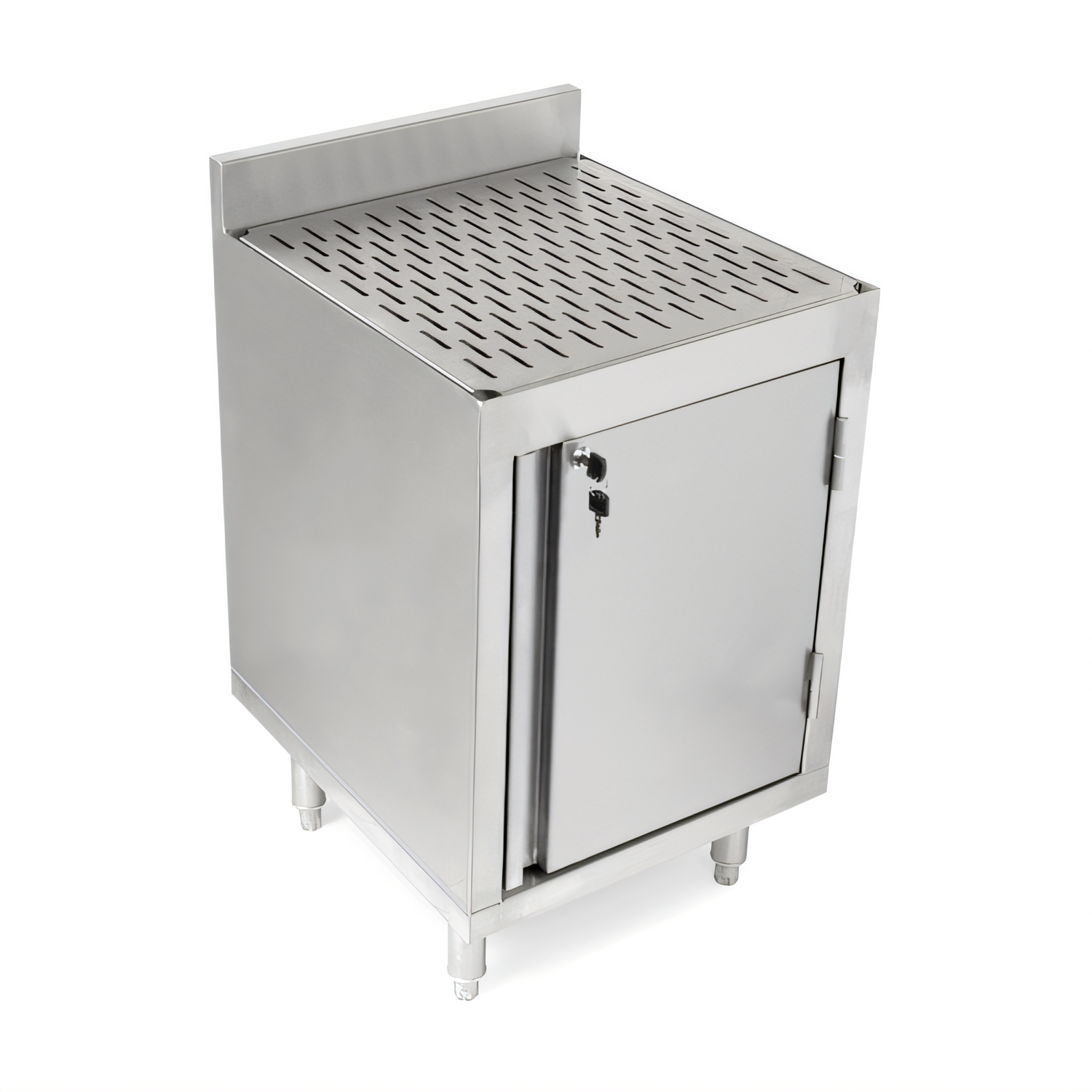

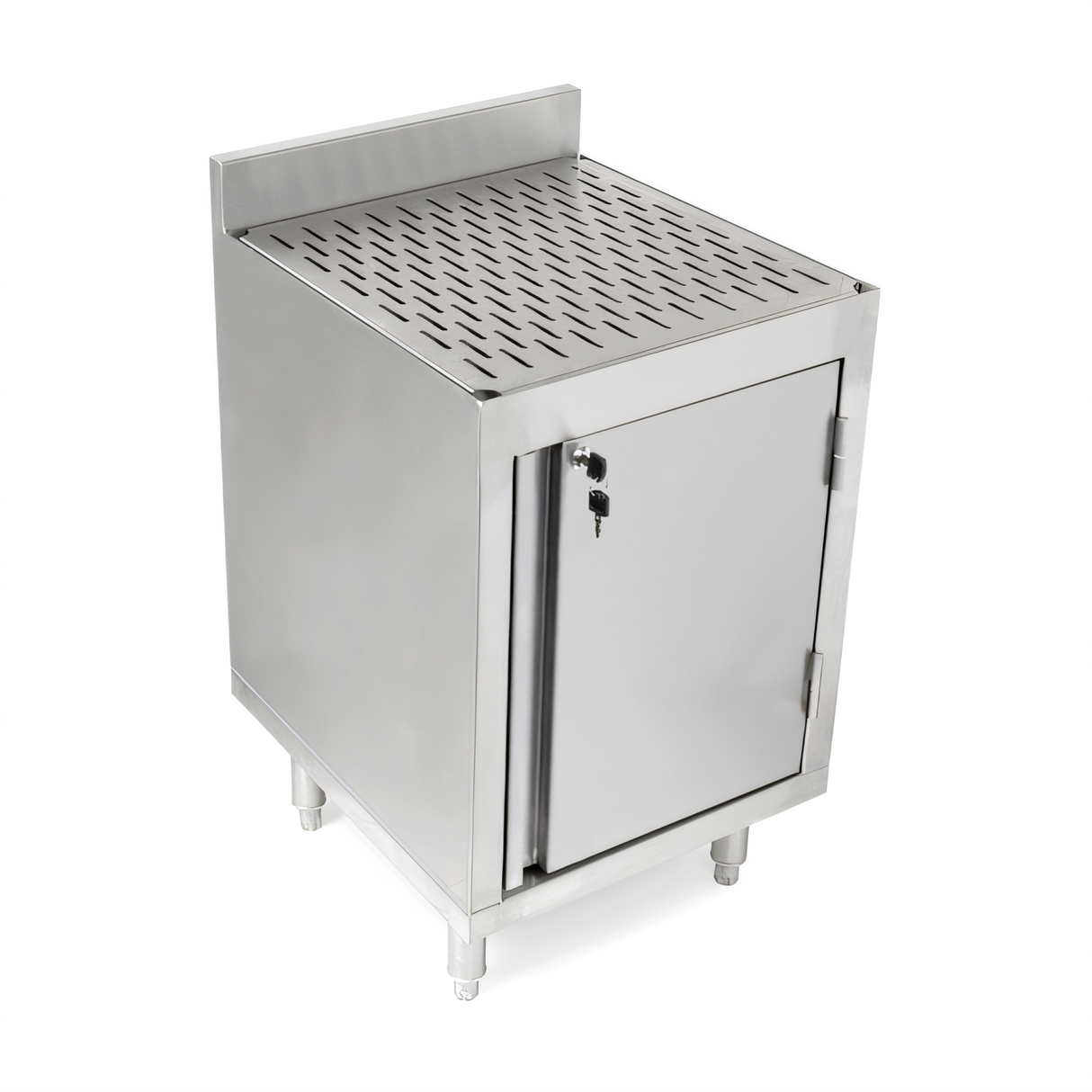

John Boos UBSC-2124-R Underbar Storage Cabinet – 24″
Freestanding 18 GA stainless steel cabinet with drainboard, lockable door & NSF certificationBuilt to keep your bar or prep line organized and sanitary, the John Boos UBSC-2124-R combines rugged Type 300 stainless steel construction with a removable perforated drainboard that whisks away excess water. A right-hinged, lockable door secures contents, while pre-drilled side holes let you gang multiple underbar units for a seamless run.
Key features
- 24″ W × 21″ D work surface with 3″ backsplash to protect surrounding walls.

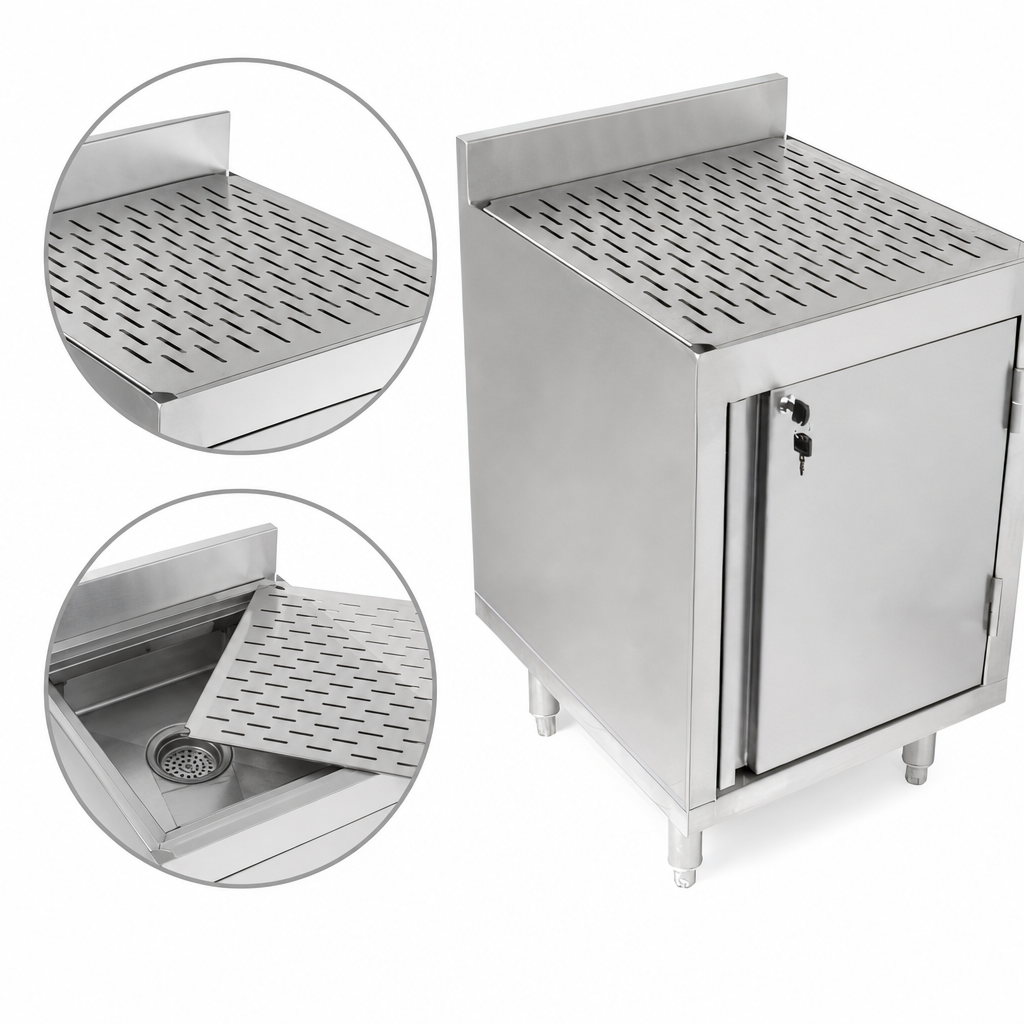

- Perforated stainless steel drainboard insert lifts out for rapid cleaning and maximized air circulation.
- Top drain with ½″ barbed outlet, clear drain hose & fittings included.
- 18 GA Type 300 stainless steel top, sides & backsplash; 18 GA Type 400 stainless door.
- Right-hinged door with key lock and magnetic catch for secure, quiet closure.
- 1 ⅝″ bolt-on stainless steel legs with side bracing for extra rigidity.
- 1″ adjustable stainless steel bullet feet—level the cabinet on uneven floors.
- Standard side mounting holes and supplied Z-clip offer fast wall and unit-to-unit attachment.
- NSF listed for safe use in commercial foodservice environments.
At-a-glance specifications
| Model | UBSC-2124-R |
|---|---|
| Overall dimensions | 24″ W × 21″ D × 32 ½″ H |
| Backsplash height | 3″ |
| Material & finish | 18 GA Type 300 stainless steel, #4 satin polish (door: Type 400) |
| Insert | Removable perforated stainless steel drainboard |
| Drain connection | ½″ O.D. barbed – clear hose & fittings included |
| Door configuration | 1 right-hinged door with lock |
| Legs / feet | 1 ⅝″ S/S legs with side bracing & 1″ adjustable S/S bullet feet |
| Net weight | 62 lb |
| Certifications | NSF |
Optional accessories (sold separately)
- UBSS-21-L / UBSS-21-R – Left or right side splash
- UBSCS-1618 / UBSCS-1624 – Stainless steel interior shelf (18″ or 24″ length)
Need shelves or side splashes? Contact us and we’ll add them to your order.
Quick install highlights
- Bolt-on legs ship loose for reduced freight damage and faster set-up.
- Integrated Z-clip allows simple riser-to-wall mounting—level, clip, hook.
- Pre-drilled side holes accept #8-32 hardware to gang adjacent John Boos underbar units.
Weights are stated without packaging; additional packing materials may increase the shipping weight.
