John Boos  |  SKU: UBSC-2118-R-X

John Boos UBSC-2118-R-X Bar Equipment

$1,053.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Assembly instructions
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

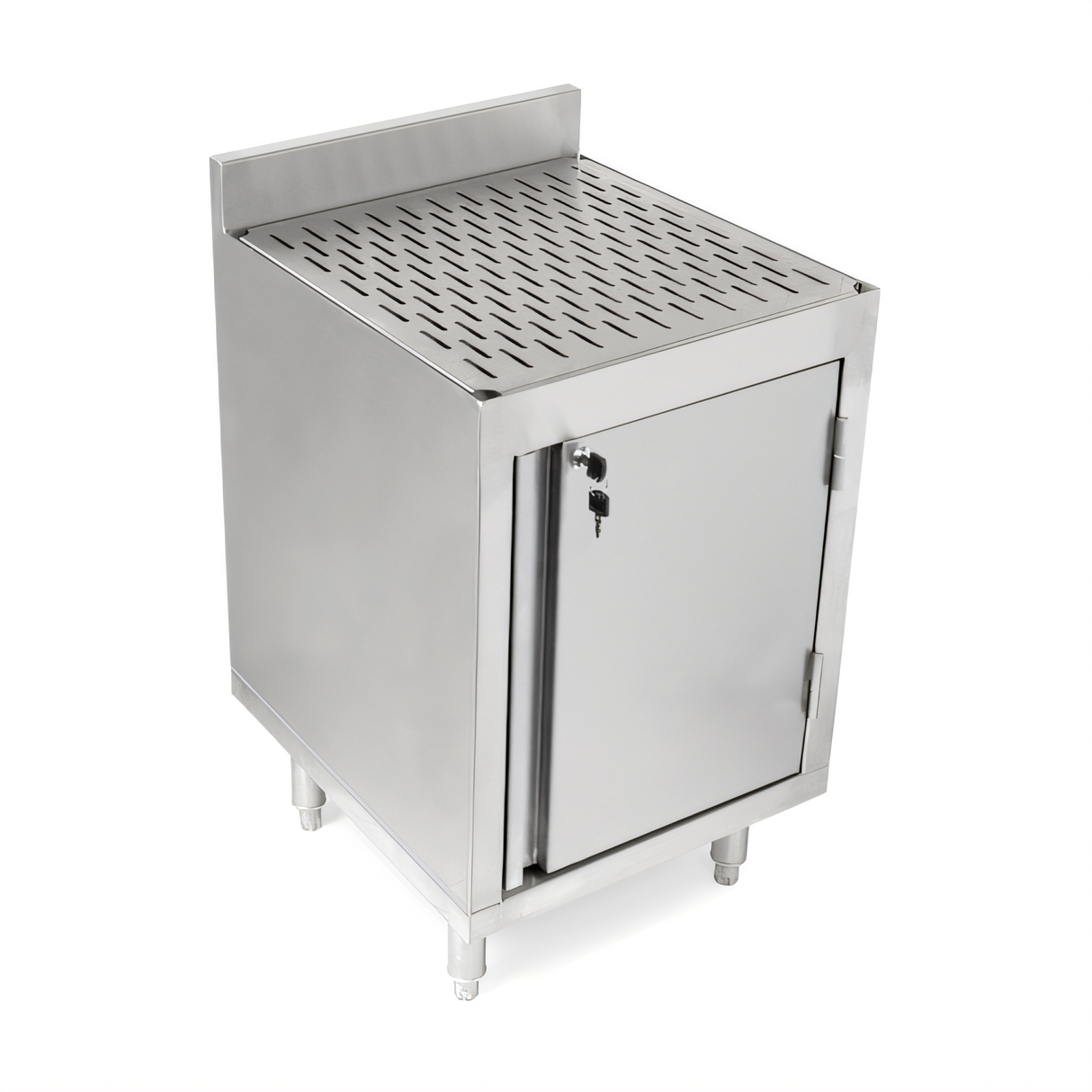

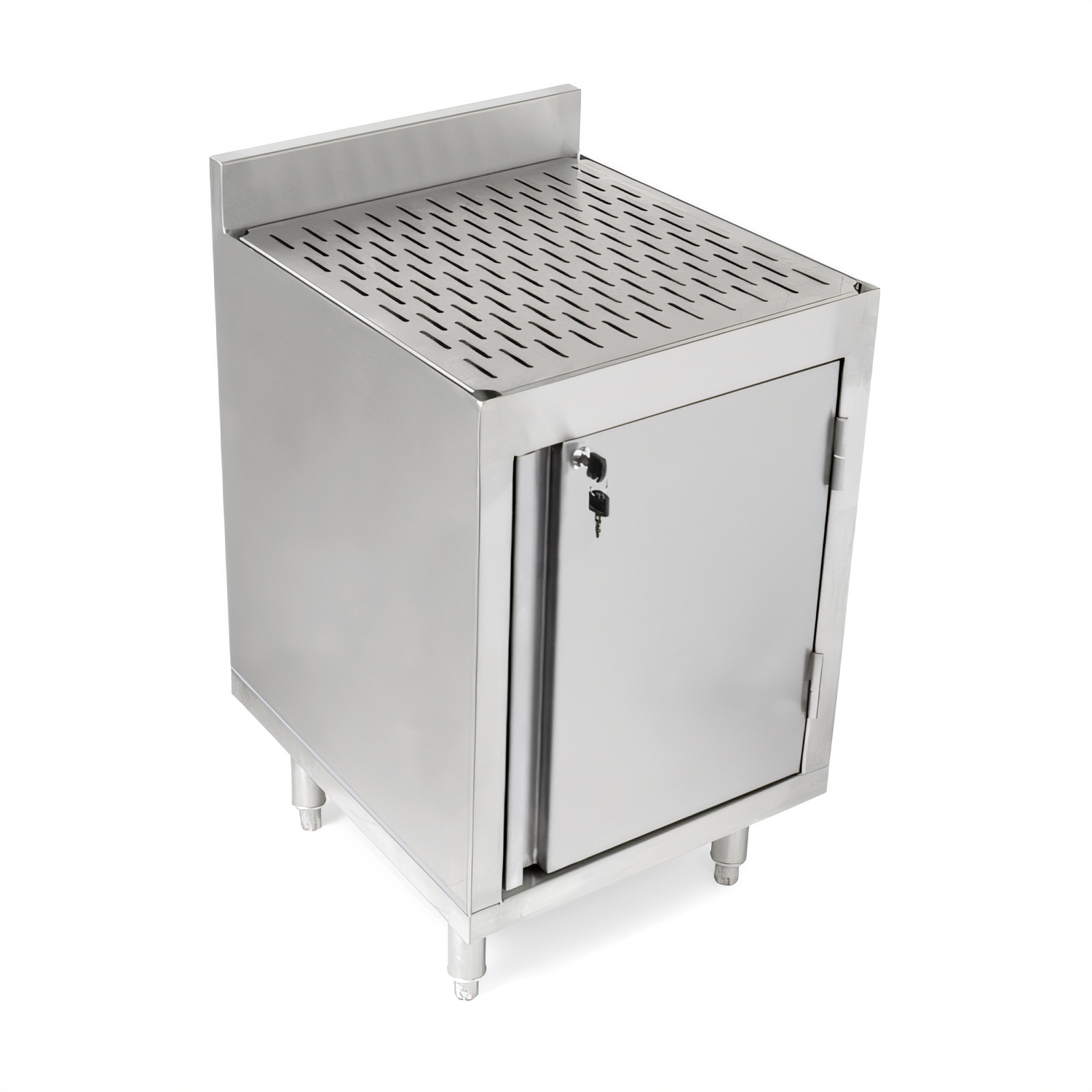

John Boos UBSC-2118-R 18" Underbar Storage Cabinet

With perforated drainboard, locking door & stainless steel construction

Outfit your bar or prep area with a space-saving cabinet that stores supplies, speeds up glassware drying and stands up to the rigors of daily service. The John Boos UBSC-2118-R delivers professional durability in a compact 18" footprint, perfect for tight lines and modular bar layouts.

Key Features

  • 18 GA, Type 300 stainless steel top, sides & backsplash with a #4 satin polish finish.
  • Perforated drainboard insert lifts out for thorough cleaning and improves air circulation.
  • 3" backsplash contains splashes and mounts to the wall via the included Z-clip.
  • Top drain ships complete with ½" barbed elbow, clear hose and fittings for fast hook-up.
  • Right-hinged locking door (18 GA Type 400 stainless) secures valuable barware and chemicals.
  • Bolt-on 1-5/8" Ø stainless legs, side bracing and 1" adjustable bullet feet for rock-solid, level installation.
  • Pre-drilled side holes allow multiple John Boos underbar pieces to be ganged together seamlessly.
  • NSF certified for safe, sanitary use in commercial foodservice environments.

Specifications

Model UBSC-2118-R
Overall dimensions 18" W × 21" D × 32-1/2" H
Drainboard area 18" W × 21" D removable perforated insert
Backsplash height 3"
Door configuration 1 right-hinged door with keyed lock
Construction 18 GA Type 300 stainless (top, sides, backsplash) / 18 GA Type 400 stainless (door)
Legs & bracing 1-5/8" Ø stainless legs with stainless side bracing
Feet 1" adjustable stainless steel bullet feet
Drain connection ½" barbed elbow with ½" clear hose & fittings
Weight 51 lb (unpackaged)
Certifications NSF

Optional Accessories (sold separately)

  • UBSS-21-L – Left-hand side splash
  • UBSS-21-R – Right-hand side splash
  • UBSCS-1618 – Stainless cabinet shelf, 18" length
  • UBSCS-1624 – Stainless cabinet shelf, 24" length

Building a full bar line? Pair this cabinet with matching John Boos ice bins, dump sinks and speed rails for a seamless workflow.

Note: Listed weight does not include additional packaging materials required for shipment.

Features & Specs

Manufacturer

John Boos

Height

32.5in

Width

18.0in

Depth

21.0in

Shipping Weight

51.0lbs

Type

free standing

Depth (front - back) OA

20" - 23"

Base Type

enclosed cabinet base

Width (side - side) OA

13" - 18"

Specifications

Underbar storage cabinet, freestanding, 18"W x 21"D x 32-1/2"H overall size, drainboard with top drain and removable perforated insert, 3"H backsplash, includes drain hose, (1) right hinged door with lock, 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF (weights are subject to additional packaging)
