John Boos UBSC-2118-R Bar Equipment
Description

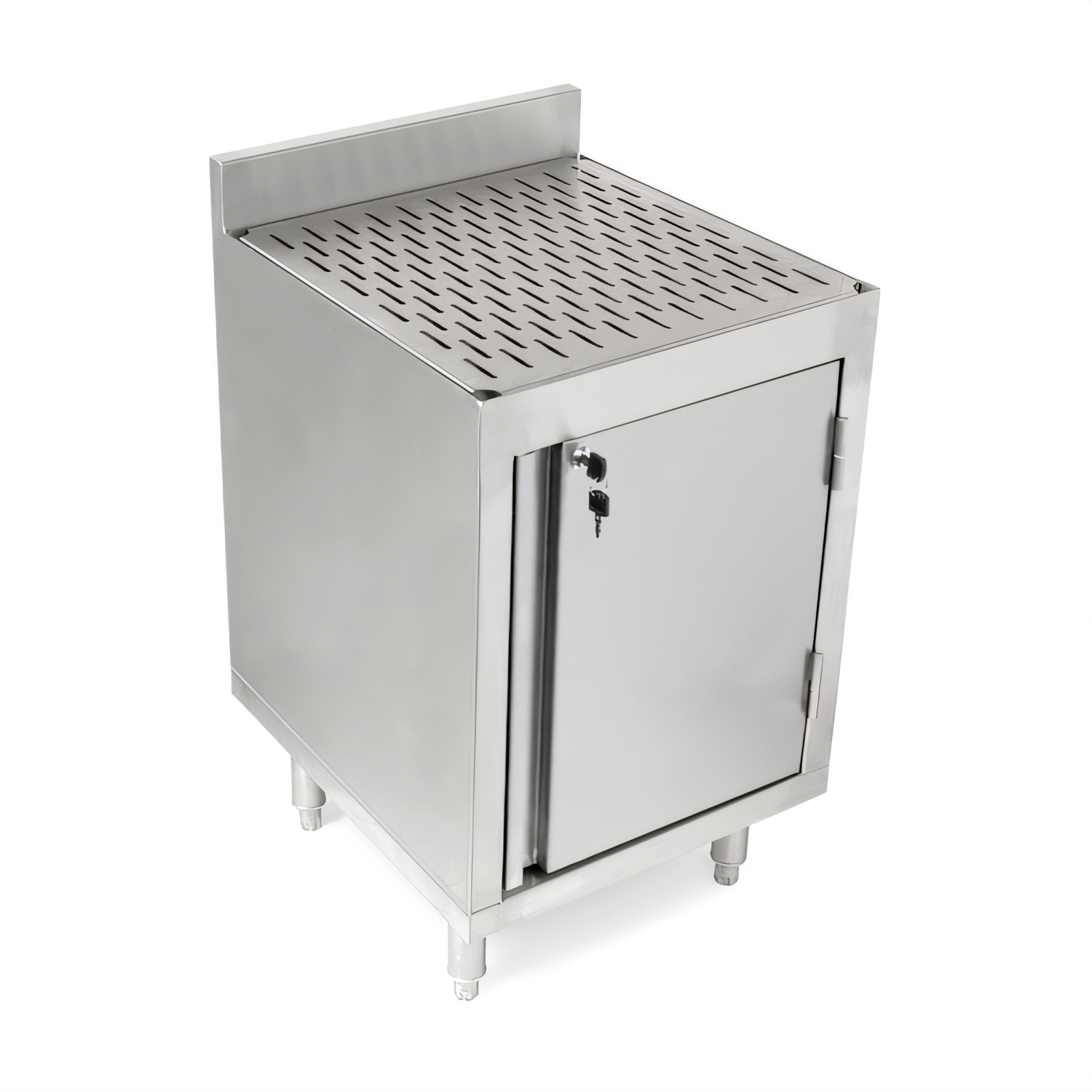

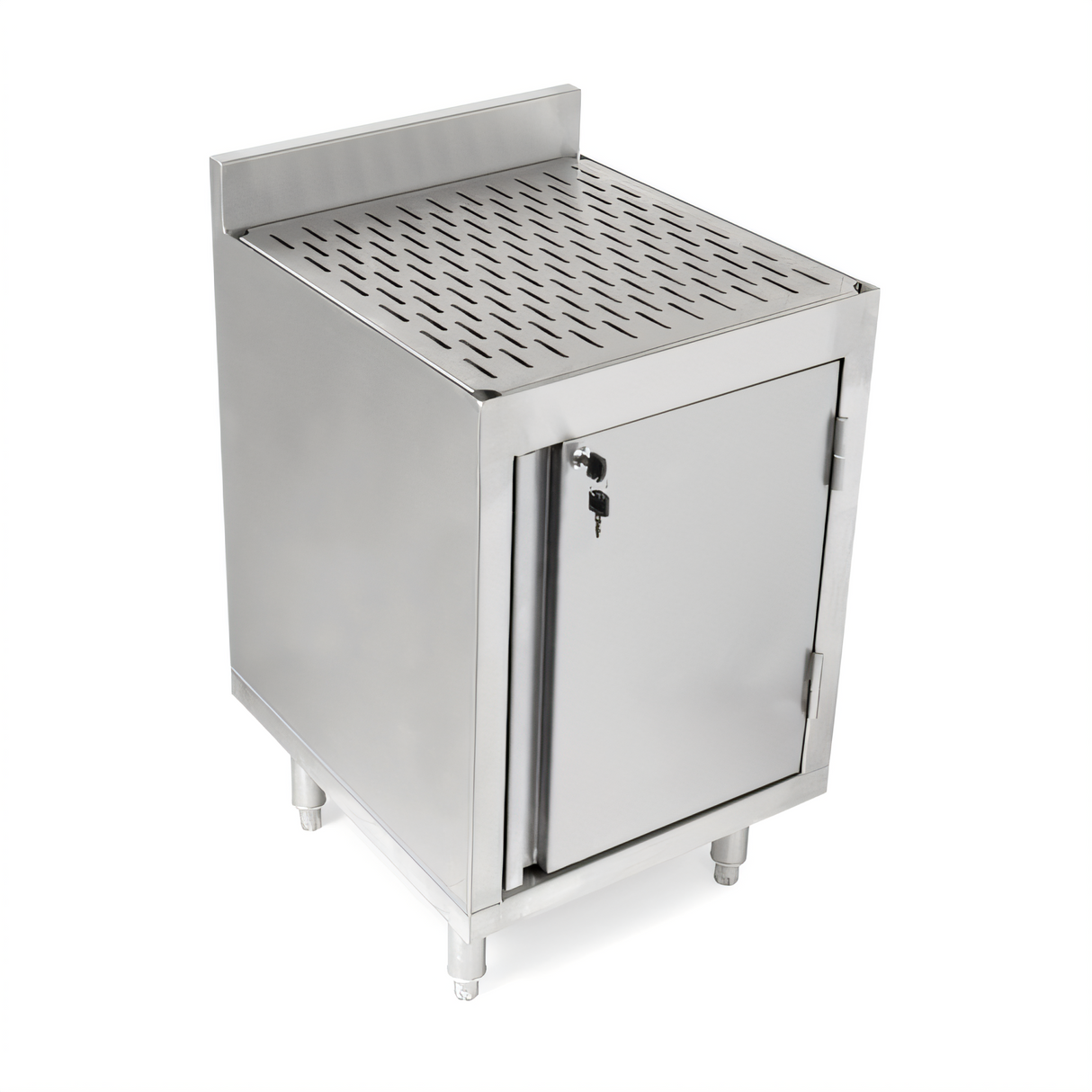

John Boos UBSC-2118-R 18" Underbar Storage Cabinet with Drainboard & Locking Door
Freestanding • 18 W × 21 D × 32 ½ H • NSF ListedMaximize every inch behind the bar with this compact, all-stainless-steel storage cabinet from John Boos. The UBSC-2118-R combines a perforated drainboard worktop, secure locking door, and rugged commercial construction in a space-saving 18 inch footprint—perfect for bars, tasting rooms, and concession counters that demand both efficiency and durability.
Highlights
- 18 GA Type 300 stainless steel top, sides & backsplash with #4 satin polish for long-term corrosion resistance.
- Integrated drainboard (18 W × 21 D) with 3 in. backsplash, top drain, and removable perforated insert for superior air circulation and faster drying.
- ½ in. barbed drain outlet; clear hose and fittings included—no extra hardware to buy.
- Right-hinged locking door (18 GA Type 400 SS) keeps contents secure during and after service.
- Bolt-on 1 ⅝ in. stainless steel legs with side bracing; 1 in. adjustable stainless steel bullet feet level the cabinet on uneven floors.
- Pre-drilled side holes plus included Z-clip make it easy to join adjacent underbar units or mount directly to the wall.
- NSF certified for open-food, beverage, and chemical storage applications.
Why It’s Great for Your Bar
- Ultra-compact 18 in. width keeps walkways clear while adding valuable dry-off and staging space.
- Drainboard insert elevates glassware above standing water—no more soggy towels or slippery counter tops.
- Lockable cabinet safeguards costly POS devices, liquor, or sanitizers after hours.
- Matches other John Boos UBSC series components for a seamless, professional bar line-up.
Technical Specs
| Model | UBSC-2118-R |
|---|---|
| Overall dimensions | 18 in. W × 21 in. D × 32 ½ in. H |
| Backsplash height | 3 in. |
| Cabinet door | Right-hinged, locking |
| Primary material | 18 GA Type 300 stainless steel (door: Type 400) |
| Legs | 1 ⅝ in. Ø stainless steel, bolt-on with side bracing |
| Feet | 1 in. adjustable stainless steel bullet feet |
| Drain connection | ½ in. barbed outlet with hose & fittings |
| Shipping weight * | 51 lb |
| Certifications | NSF |
*Weights are subject to additional packaging.
Optional Accessories (sold separately)
- UBSS-21-L – Left-hand side splash
- UBSS-21-R – Right-hand side splash
- UBSCS-1618 – Stainless steel cabinet shelf, 18 in. length
- UBSCS-1624 – Stainless steel cabinet shelf, 24 in. length
Built in the USA and backed by 135 years of craftsmanship, the John Boos UBSC-2118-R delivers the rugged performance and clean, professional look today’s bars demand—order yours and streamline your service area today.
