John Boos UBSC-1824-R-X Bar Equipment
Description

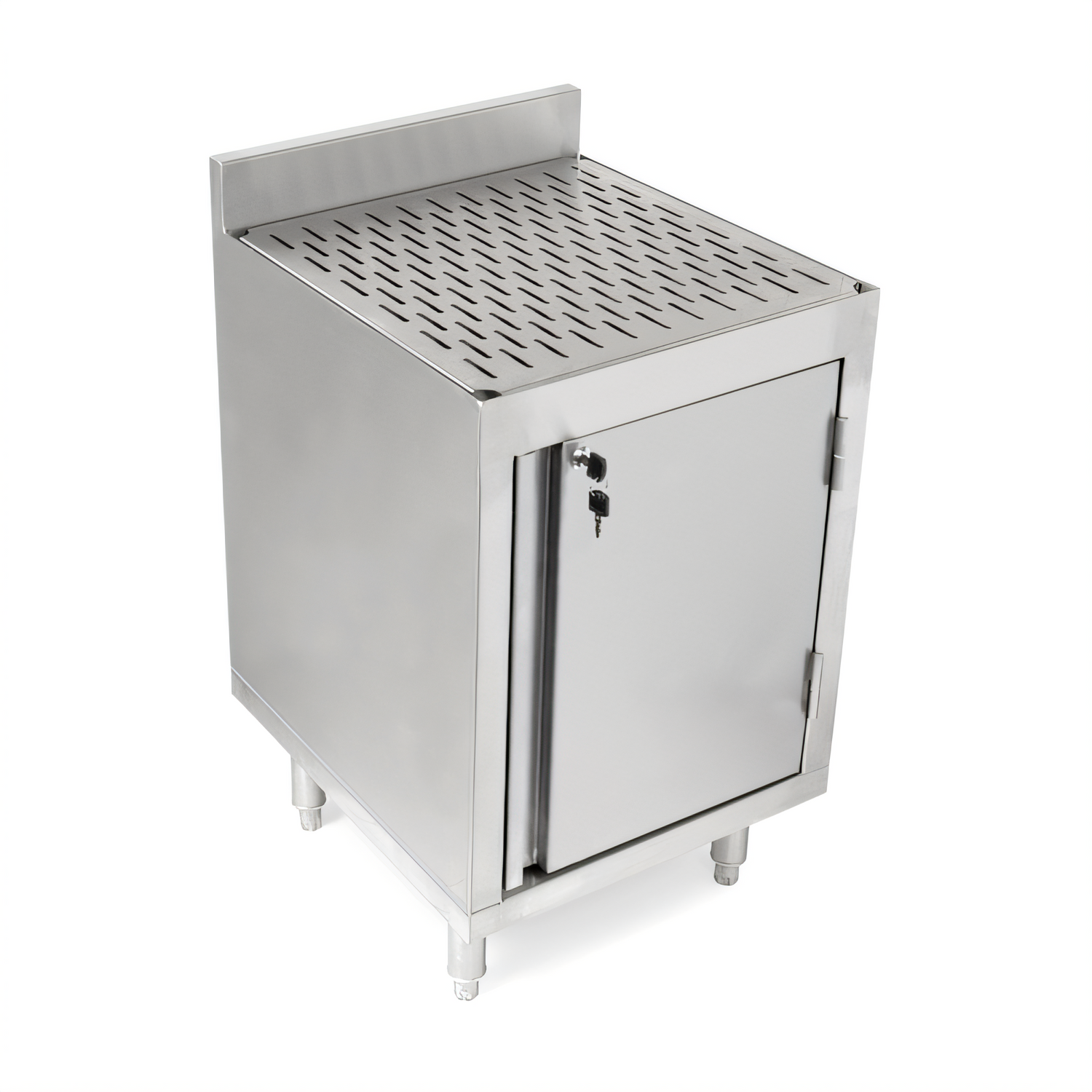

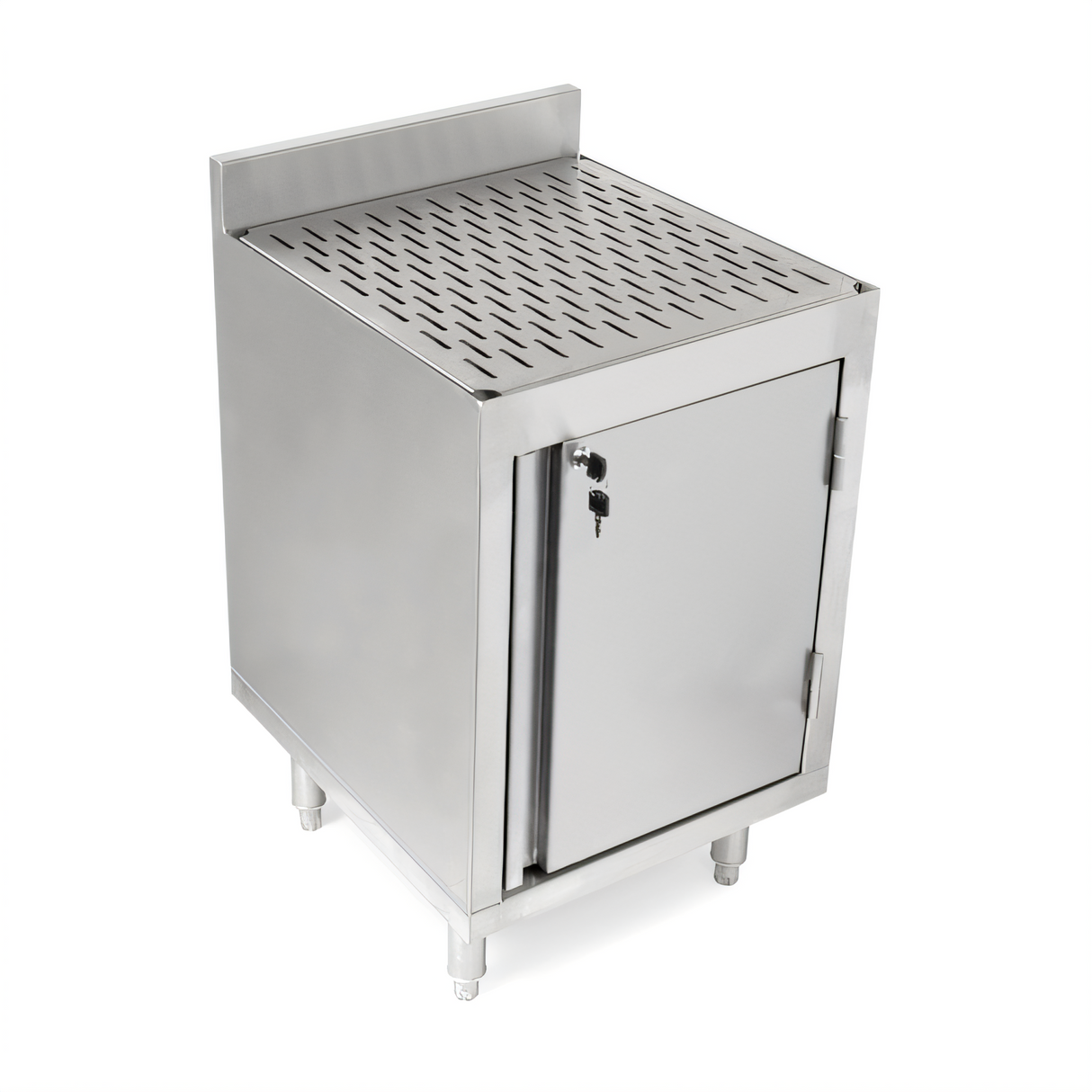

John Boos UBSC-1824-R Slim-Line Underbar Storage Cabinet – 24" W
18 ga. Type 300 stainless • Right-hinged locking door • NSF listedBuilt to thrive in demanding bar, restaurant and concession environments, the UBSC-1824-R delivers secure, sanitary storage in a compact 18" front-to-back footprint. A removable perforated drainboard, complete with top drain and hose, turns the cabinet top into a quick-dry station for barware, smallwares or utensils — all while protecting surrounding surfaces with its 3 inch backsplash.
Why you’ll love it
- 18 ga. Type 300 stainless steel top, sides & backsplash with #4 satin polish
- 18 ga. Type 400 stainless steel right-hinged locking door for secure storage
- Perforated drainboard insert lifts out for fast cleaning & maximized air circulation
- Top drain with ½" barbed fitting, clear drain hose & clamps included
- 3" high backsplash helps contain splashes and meets most health-code requirements
- Bolt-on 1 5⁄8" tubular stainless legs with side bracing for rock-solid stability
- 1" adjustable stainless bullet feet for easy leveling on uneven floors
- Pre-drilled side holes & supplied hardware let you gang this unit to adjacent John Boos underbar pieces
- NSF certified for safe food & beverage service
Technical details
| Model | UBSC-1824-R |
|---|---|
| Overall dimensions (W × D × H) | 24" × 18" × 32 ½" |
| Usable cabinet height | 29 ½" |
| Backsplash height | 3" |
| Door configuration | 1 right-hinged door with keyed lock & magnetic catch |
| Material / finish | 18 ga. type 300 stainless (top, sides, splash) 18 ga. type 400 stainless (door) #4 satin polish |
| Drain connection | ½" O.D. barbed elbow with removable ½" clear hose |
| Legs / feet | 1 5⁄8" round stainless legs, side bracing, 1" adjustable bullet feet |
| Shipping weight | 57 lb (weights subject to additional packaging) |
| Regulatory | NSF listed |
Install with confidence
- Bolt-on legs ship loose for quick field assembly
- Includes Z-clip for optional wall mounting
- Side-mount hardware provided to align flush with other John Boos Slim-Line underbar equipment
All dimensions are typical. Tolerance ± 0.5".
Popular add-ons (sold separately)
- UBSS-18-L / UBSS-18-R – 18" Slim-Line side splashes
- UBSCS-1624 – 24" interior cabinet shelf for tiered storage
