John Boos UBSC-1824-R Bar Equipment
John Boos UBSC-1824-R Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBSC-1824-R Bar Equipment
Description

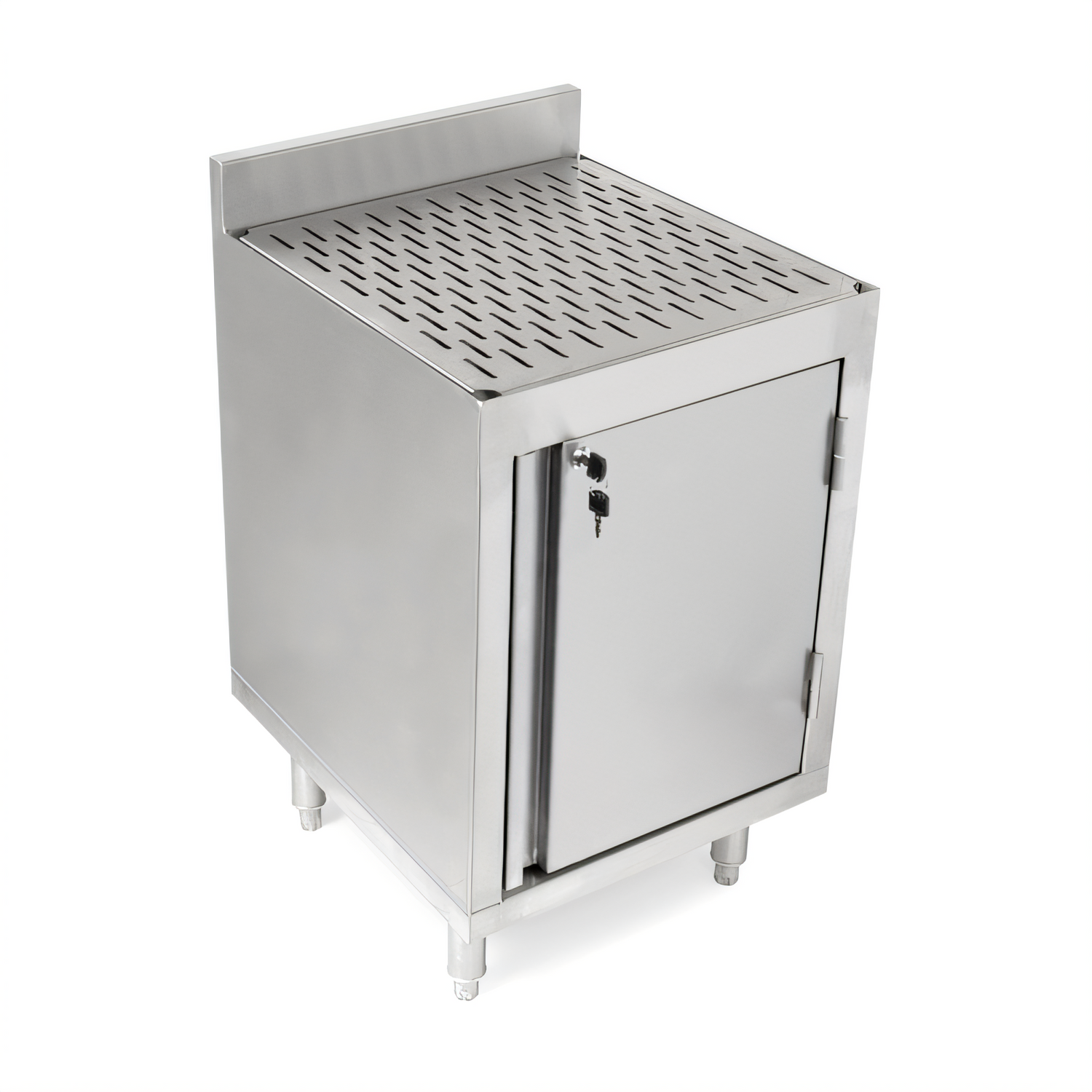

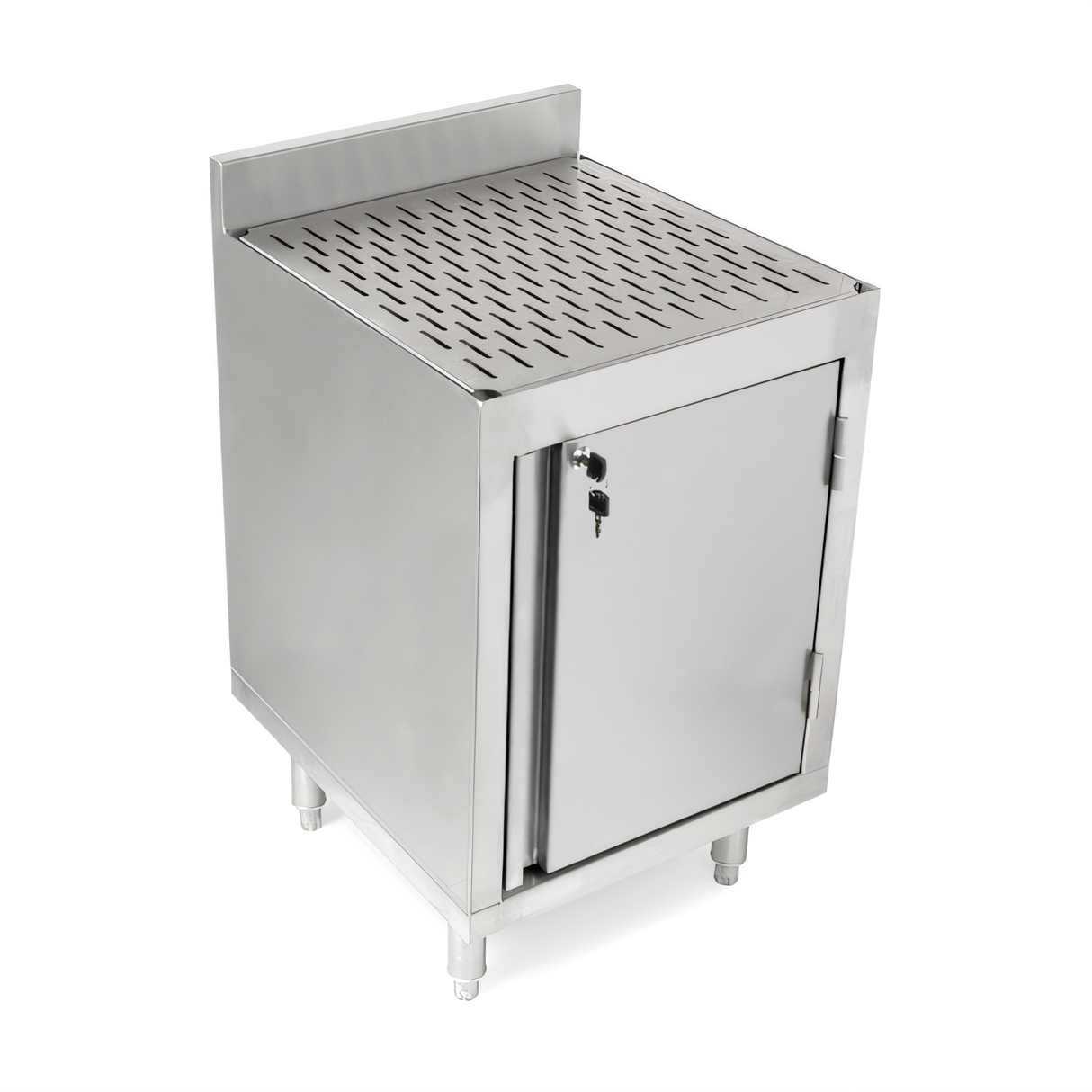

John Boos UBSC-1824-R Slim-Line Underbar Storage Cabinet – 24"
Heavy-duty drainboard cabinet with right-hinged locking doorDesigned for tight bar layouts that refuse to compromise on capacity or cleanliness, the John Boos UBSC-1824-R delivers organized underbar storage, a quick-dry drainboard, and rock-solid 18 gauge stainless-steel construction—all in a space-saving 18" depth. Bolt it to neighboring units, wall-mount it with the included Z-clip, or stand it freely on its adjustable bullet feet: the choice is yours.
Why you’ll love it
- Slim-line 18" front-to-back depth optimizes narrow bar aisles.

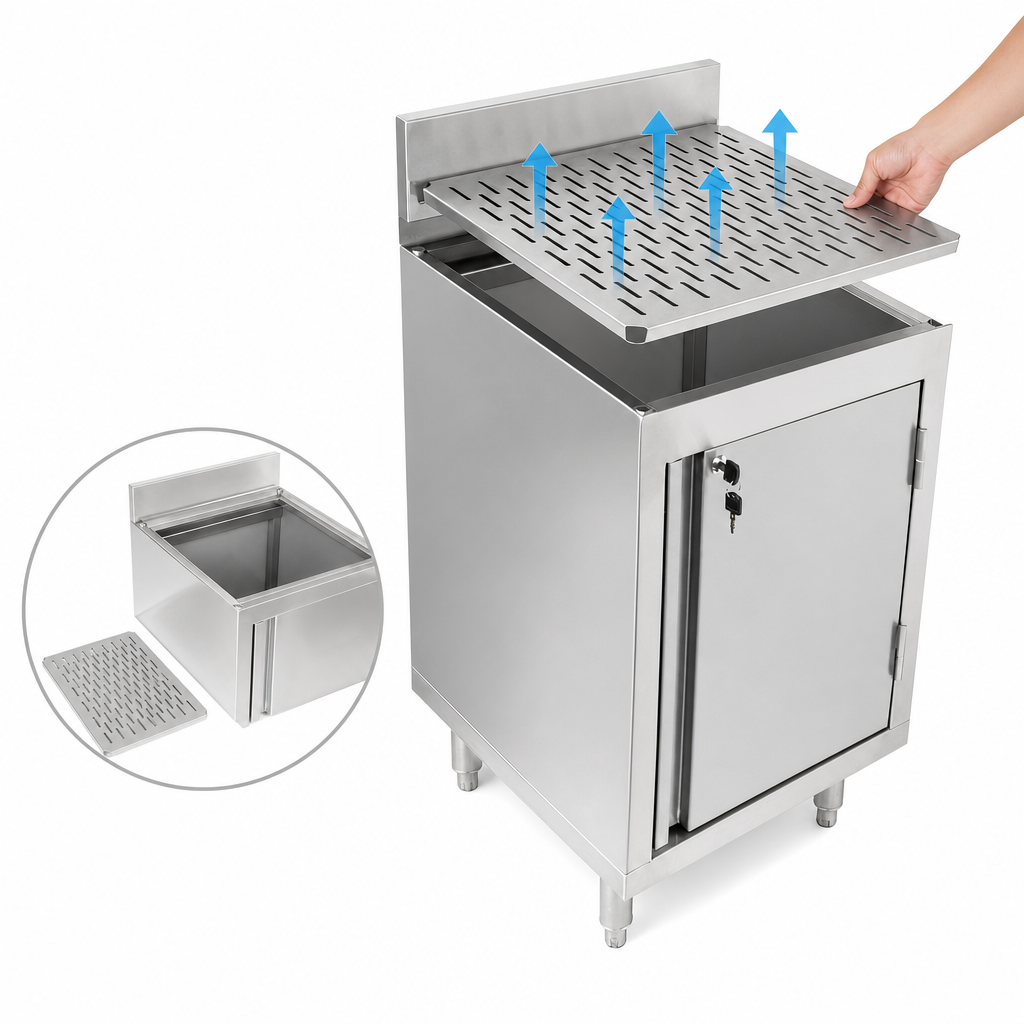

- Removable perforated drainboard insert promotes rapid air circulation for faster glass & utensil drying.
- Top drain with ½" barbed fitting and clear hose (included) for plug-and-play plumbing.
- 3" backsplash helps protect walls and keeps water contained.
- Lockable right-hinged door secures backup liquor, tools, or chemicals after hours.
- All 18 GA Type 300 stainless steel (door in Type 400) with #4 satin polish for easy wipe-downs and a professional look.
- 1-5/8" bolt-on stainless legs with side bracing and 1" adjustable bullet feet for rock-steady, level placement.
- Pre-drilled side holes let you gang multiple John Boos underbar units for a seamless bar run.
- NSF certified—engineered to meet the strictest food-service sanitation standards.
Technical specifications
| Model | UBSC-1824-R |
|---|---|
| Overall dimensions (W × D × H) | 24" × 18" × 32 ½" |
| Construction | 18 GA Type 300 stainless steel (door: 18 GA Type 400) |
| Backsplash height | 3" |
| Drainboard | Integrated top drain, removable perforated insert, ½" barbed outlet & clear hose |
| Door configuration | 1 right-hinged door with keyed lock |
| Legs & bracing | 1 ⅝" Ø stainless legs, stainless side bracing, 1" adjustable bullet feet |
| Certifications | NSF |
| Approx. weight | 57 lb (shipping weight may vary with packaging) |
Flexible installation
- Bolt-on leg design speeds up assembly.
- Z-clip allows wall-mounting for a flush, easy-to-clean toe space (remove rear or both sets of legs if desired).
- Side holes accept factory screws for attaching speed rails, blender shelves, and adjoining underbar modules.
Popular add-ons (sold separately)
- UBSS-18-L / UBSS-18-R – 18" left or right side splash guards
- UBSCS-1624 – 24" interior cabinet shelf
Looking for a different length? A matching 18" version (UBSC-1818-R) is also available. Contact us for lead times, bulk orders, or custom underbar configurations.
