John Boos UBSC-1818-R-X Bar Equipment
Description

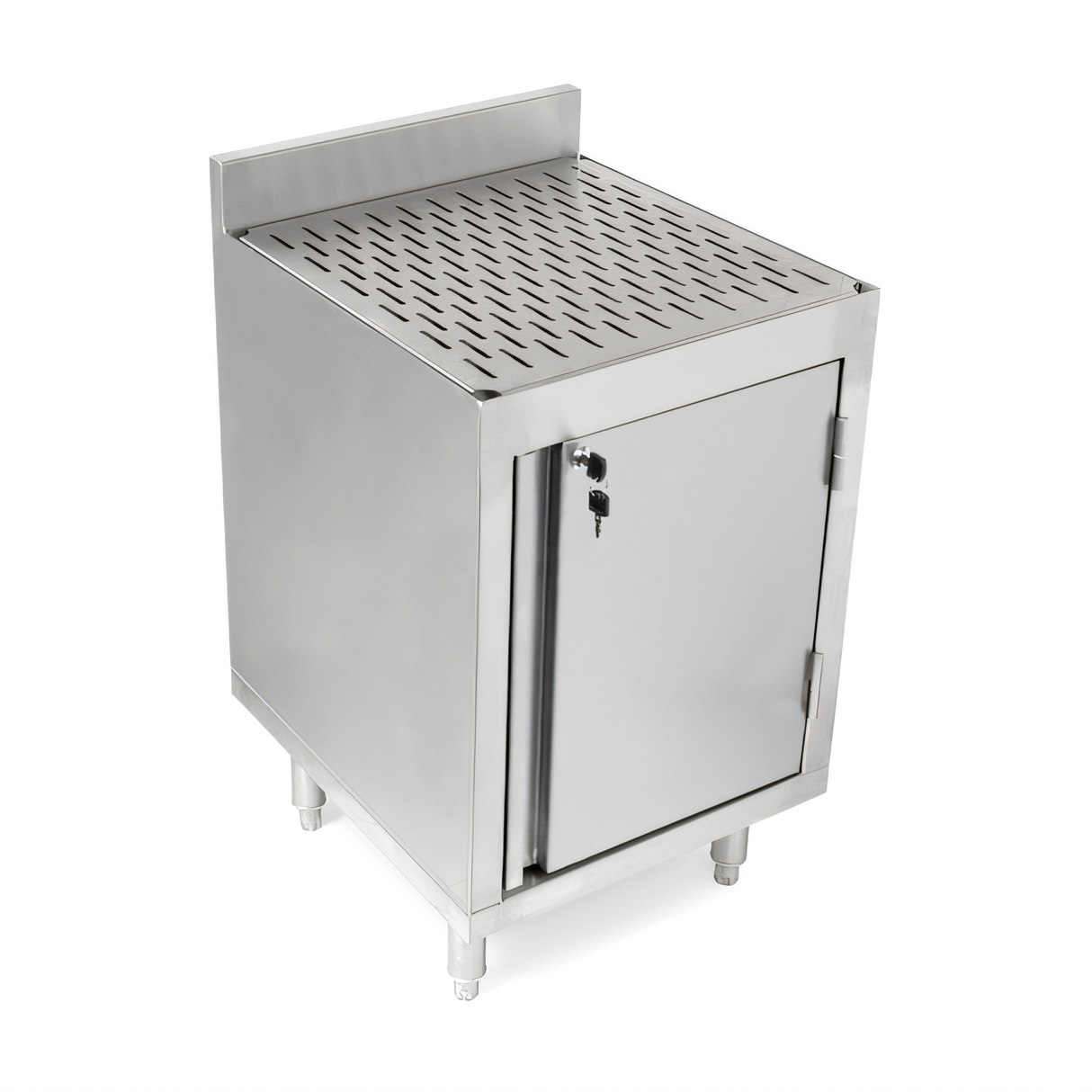

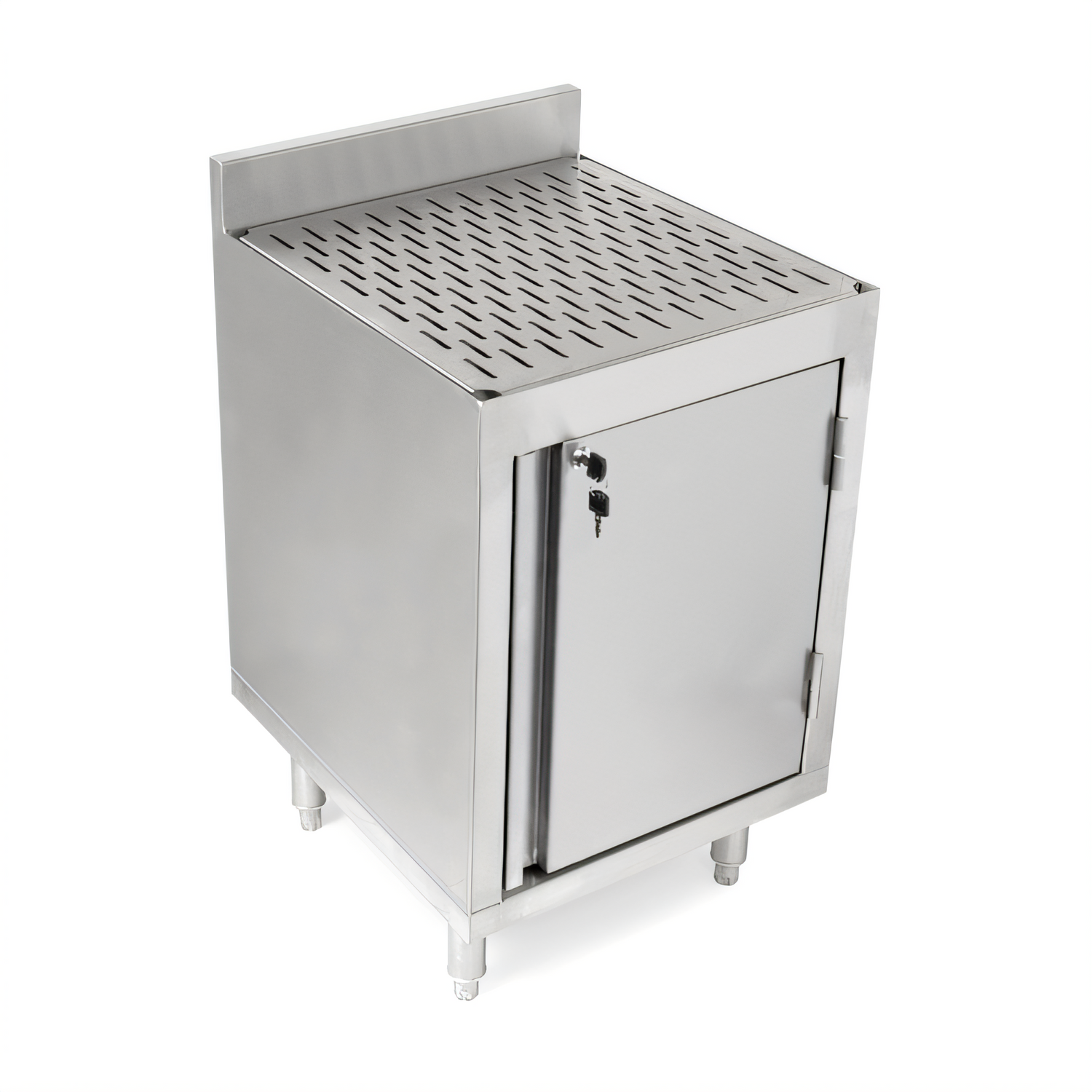

John Boos UBSC-1818-R Slim-Line Underbar Storage Cabinet
18" W × 18" D × 32-1/2" H • Right-Hinged Door • NSF ListedGive your bar the professional edge with the compact John Boos UBSC-1818-R. This 18" wide stainless steel cabinet combines secure storage, a high-performance drainboard and rugged construction—perfect for tight service areas that still demand top-tier durability.
Key benefits
- Full 18-gauge stainless steel body with #4 satin finish stands up to daily bar abuse.
- Integrated 18" × 18" drainboard with removable perforated insert speeds air-drying of glassware and bar tools.
- 1/2" barbed drain fitting with clear hose & fittings included—no extra hardware to source.
- Lockable right-hinged door keeps backup liquor, chemicals or tools secure after hours.

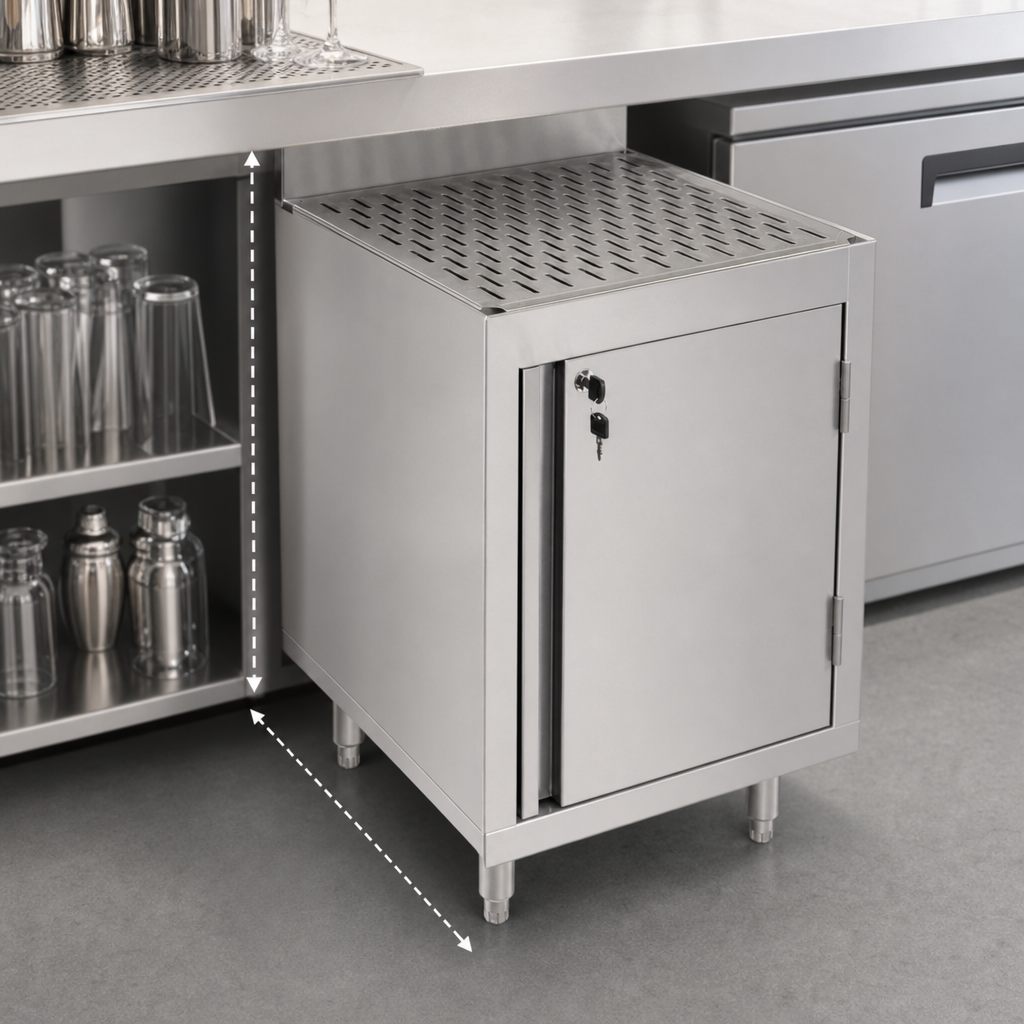

- Slim-Line 18" depth maximizes aisle clearance and mates perfectly with other John Boos underbar modules.
- Pre-drilled side holes and supplied Z-clip simplify attaching to adjacent units or wall mounting.
- Bolt-on 1-5/8" stainless legs with side bracing resist wobble; 1" adjustable bullet feet level the cabinet on uneven floors.
- NSF certification ensures compliance with health codes nationwide.
Technical specifications
| Model | UBSC-1818-R |
|---|---|
| Overall dimensions | 18" W × 18" D × 32-1/2" H to work surface 35-1/2" H to top of 3" backsplash |
| Drainboard | 18" × 18" with removable perforated insert & top drain |
| Door | Right-hinged, 18-gauge Type 400 stainless steel, keyed lock |
| Construction | 18-gauge Type 300 stainless (top/sides/back/backsplash) with #4 polish |
| Legs & feet | 1-5/8" Ø stainless legs, side bracing, 1" adjustable stainless bullet feet |
| Drain connection | 1/2" OD barbed tailpiece with clear hose & fittings |
| Unit weight | 47 lb |
| Certifications | NSF |
Fast & flexible installation
- Bolt-on legs ship loose to minimize freight damage and mount in minutes.
- Side mounting holes align with nearby John Boos underbar pieces for seamless runs.
- Z-clip allows quick wall attachment for extra stability in high-traffic bars.
Compatible accessories (sold separately)
- UBSS-18-L – Slim-Line left hand side splash
- UBSS-18-R – Slim-Line right hand side splash
- UBSCS-1618 – Removable interior shelf (18" length)
Looking to build out a full bar line? Combine this cabinet with matching John Boos ice bins, sinks and speed rails for a fully integrated station.
