John Boos UBS4-2196-2D24-X Bar Equipment
Description

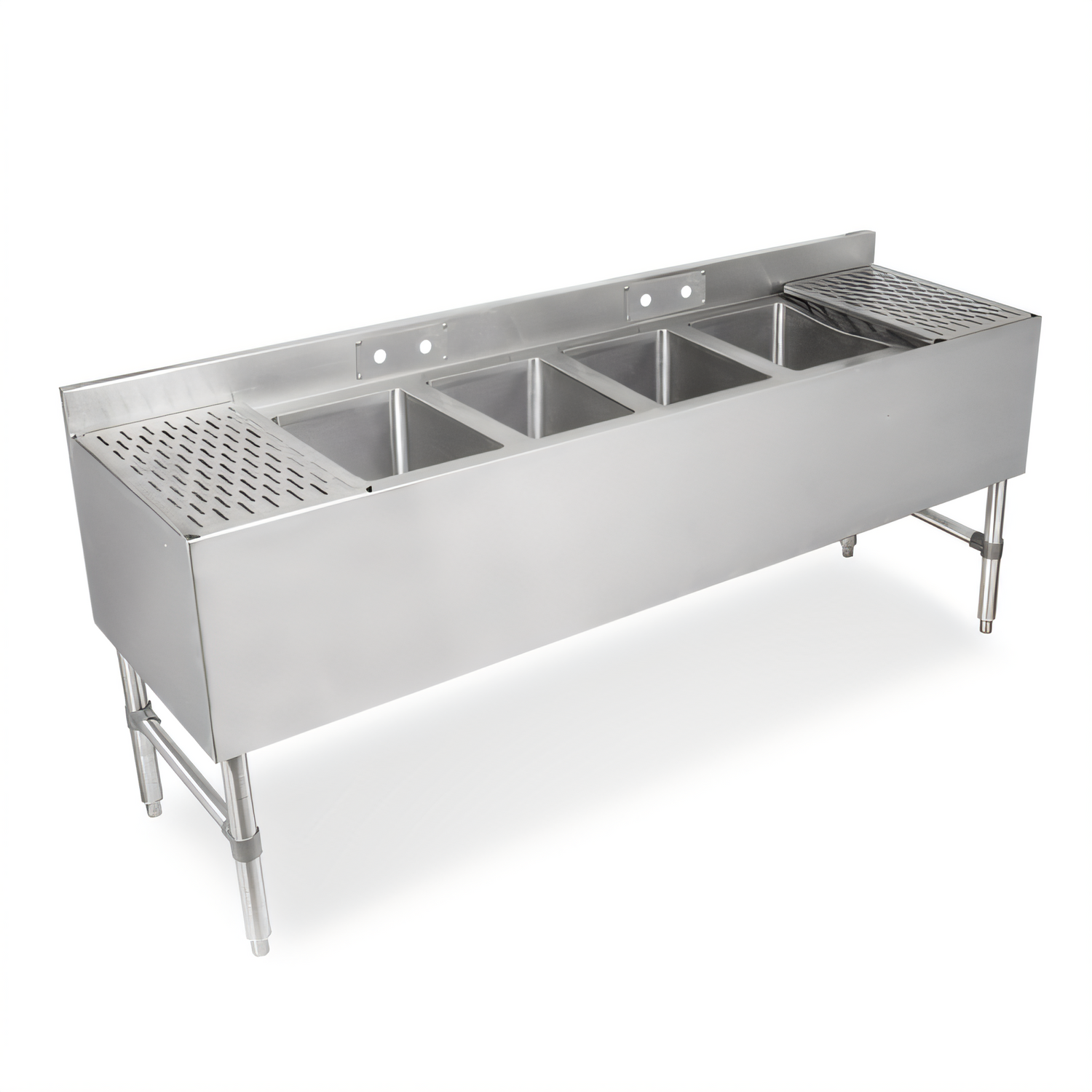

96" Underbar 4-Compartment Sink with Twin 24" Drainboards
John Boos | Model UBS4-2196-2D24Built for high-volume bars, tasting rooms, and beverage service lines, this NSF-listed sink stations four 10"-deep bowls between two generous 24" drainboards—giving your staff a seamless workflow from wash to rinse to sanitize to air-dry. All surfaces are fabricated from durable 18-gauge, 300-series stainless steel with a smooth #4 satin polish that wipes clean in seconds.
Key Features

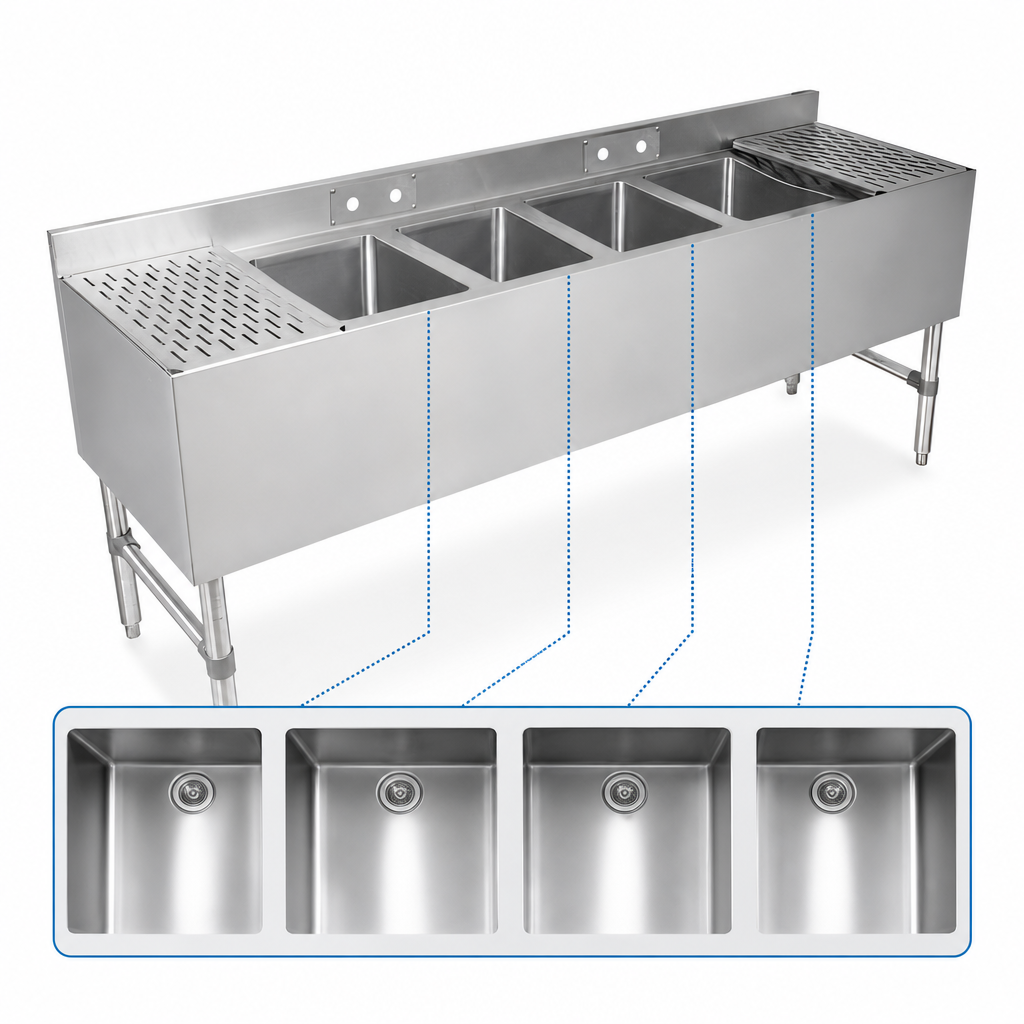

- (4) sink compartments – each 10" W × 14" F/B × 10" D.

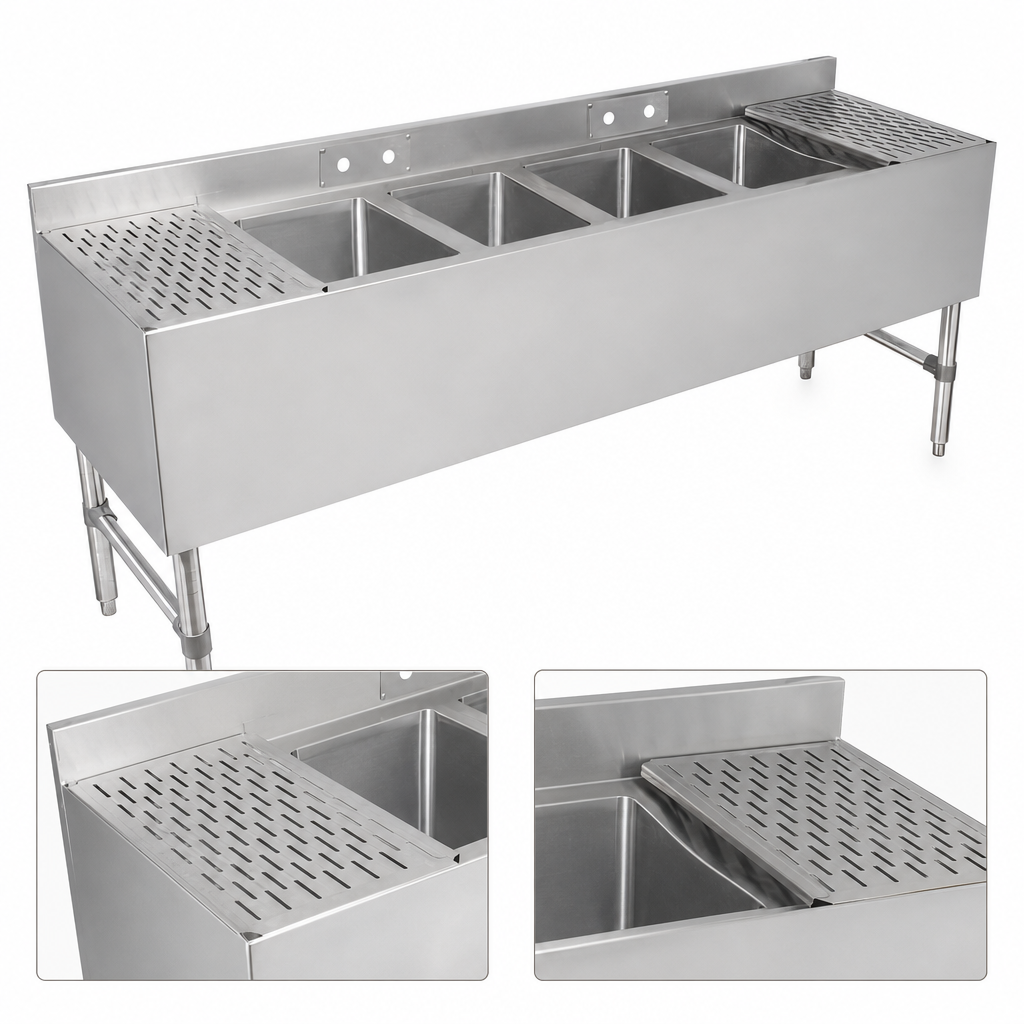

- (2) 24" creased drainboards with removable perforated inserts for superior drainage & air circulation.
- Removable splash-mount faucet plates, pre-punched 4" on-center (one above each drainboard) for quick faucet swap-outs.
- 3" high backsplash with Z-clip mounting slot to keep water in the bowl, not on your wall.
- Includes 1 ½" drains, baskets & overflow standpipes (PB-OVF-BS) – ready for hook-up out of the box.
- Rugged 1 5⁄8" bolt-on stainless steel legs with front-to-back side bracing.
- Adjustable stainless bullet feet level the unit up to 1".
- Standard side-panel holes let you bolt multiple Boos underbar pieces together for a continuous line-up.
- NSF certified for open foodservice environments.
At-a-Glance Specifications
| Overall dimensions | 96" W × 21" D × 32 ½" H |
|---|---|
| Sink bowls (qty 4) | 10" W × 14" F/B × 10" D |
| Drainboards | (2) × 24" L, left & right |
| Backsplash height | 3" |
| Faucet mounting | (2) splash plates, 4" centers (faucets sold separately) |
| Drain connection | 1 ½" NPS |
| Material / finish | 18-ga type 300 stainless, #4 satin polish |
| Legs / bracing | Stainless steel, bolt-on, with side bracing |
| Feet | Adjustable stainless bullet feet (±1") |
| Net weight | ≈ 133 lb |
| Certifications | NSF |
Compatible Accessories (sold separately)
- UBSS-21-L / UBSS-21-R – 21" left or right side splash.
- PBF-4SM2-10LF – Heavy-duty 4" OC splash-mount faucet.
- PBF-W2-10LF – Economy 4" OC splash-mount faucet.
- PB-WL-36 – Flexible shallow-mount faucet hoses.
Fast Assembly & Installation
- Bolt-on legs attach in minutes with the supplied hardware—no special tools required.
- Z-clip lets you secure the backsplash to a wall for rock-solid stability.
- Pre-drilled side holes align with adjacent John Boos underbar units for a perfectly level run.
Care & Cleaning
Preserve the protective chromium oxide film by cleaning with non-chloride, non-abrasive cleaners and wiping dry. Avoid steel scouring pads or bleach to prevent surface corrosion.
