John Boos UBS4-2196-2D24 Bar Equipment
Description

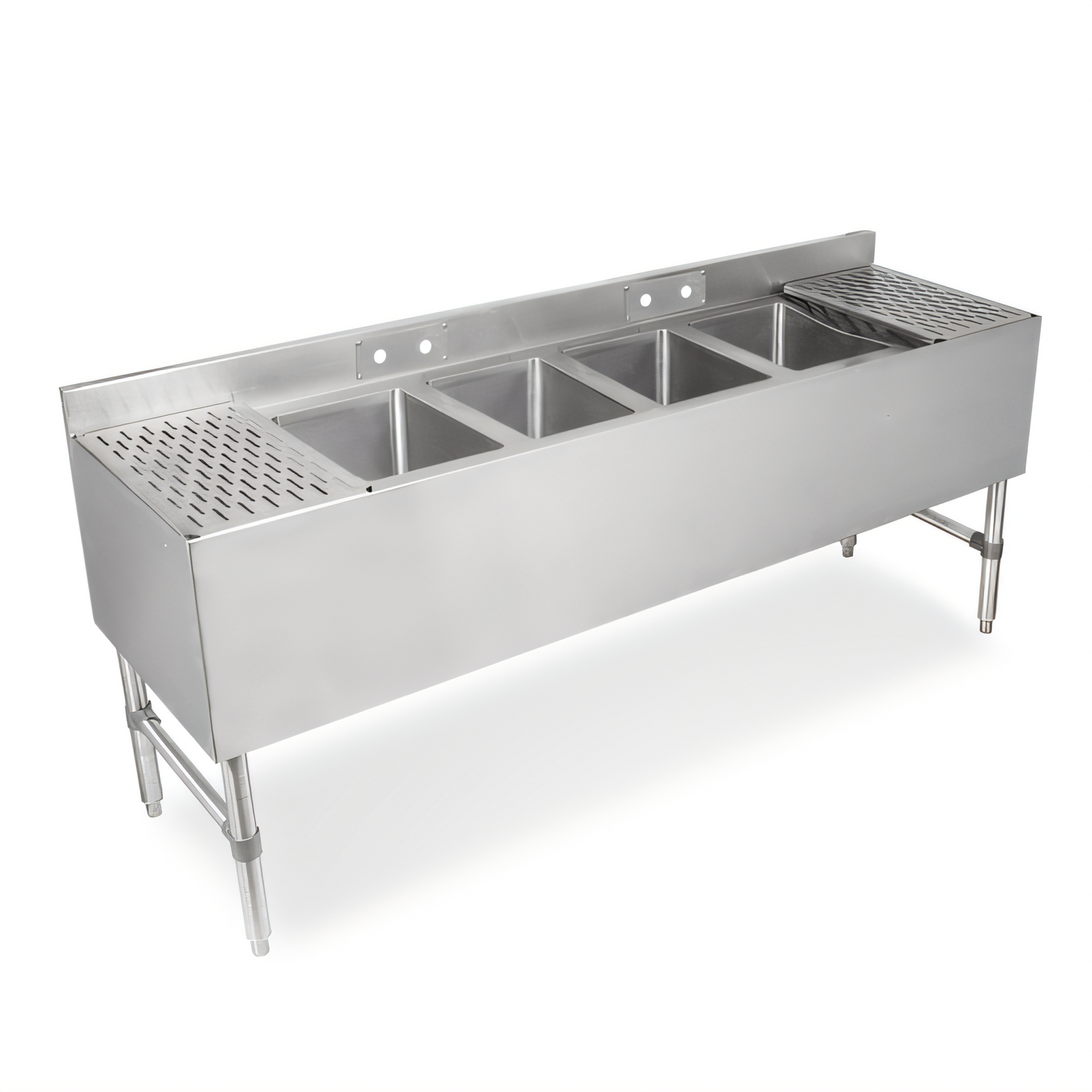

John Boos UBS4-2196-2D24 Underbar 4-Compartment Sink
96" W x 21" D – Dual 24" DrainboardsGive your bar or prep line the professional advantage of a true workhorse. Built entirely from 18 gauge, type 300 stainless steel, the UBS4-2196-2D24 delivers four generous sink bowls, twin drainboards and rock-solid NSF sanitation in one space-saving underbar unit.
Why You’ll Love It
- Four 10"-deep compartments (10" W x 14" F/B) handle rapid wash, rinse, sanitize & dump cycles.
- Dual 24" drainboards with removable perforated inserts speed drying and keep glassware elevated from water.
- Removable faucet plates with 4" on-center splash-mount holes simplify plumbing and future upgrades.
- Creased, pitch-perfect drainboard surfaces ensure water flows directly to the sink – not your floor.
- Bolt-on stainless steel legs & front-to-back bracing install fast and stand up to daily abuse.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- Includes (4) 1 ½" drains with basket strainers plus overflow standpipes (PB-OVF-BS).
- NSF listed for open-food zones – a must for any commercial bar program.
Technical Specifications
| Model | UBS4-2196-2D24 |
|---|---|
| Overall Dimensions | 96" W × 21" D × 32 ½" H |
| Sink Bowls (4) | 10" W × 14" F/B × 10" D |
| Drainboards | 24" L (left) & 24" L (right) with perforated inserts |
| Backsplash | 3" H, with faucet plates |
| Faucet Mount | (2) removable splash-mount plates, 4" centers |
| Drain Connection | 1 ½" NPS |
| Material | 18 GA type 300 stainless steel, #4 satin polish |
| Legs / Feet | 1 ⅝" Ø stainless legs, side bracing, 1" adjustable SS bullet feet |
| Shipping Weight* | 133 lb (before additional packaging) |
| Certification | NSF |
*Weights are approximate and may vary with pallet & protective materials.
Fast, Flexible Installation
- Bolt-on legs ship loose to reduce freight class and set up in minutes.
- Z-clip supplied for quick, secure wall mounting.
- Side panels are pre-drilled so you can gang multiple John Boos underbar units together for a seamless line-up.
Optional Add-Ons
- UBSS-21-L / UBSS-21-R – Stainless steel side splashes
- PBF-4SM2-10LF – Heavy-duty 4" center splash-mount faucet
- PBF-W2-10LF – Economy 4" center splash-mount faucet
- PB-WL-36 – Flexible shallow-mount faucet hoses
Care & Cleaning
Maintain the passive protective film of your stainless steel by cleaning with non-chloride detergents, soft cloths or plastic scouring pads. Avoid harsh chemicals or steel wool to keep your John Boos sink looking like new for years.
