John Boos

John Boos 84-Inch 4-Compartment Underbar Sink Unit with Dual 18-Inch Drainboards

SKU: UBS4-2184-2D18-X
$2,217.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

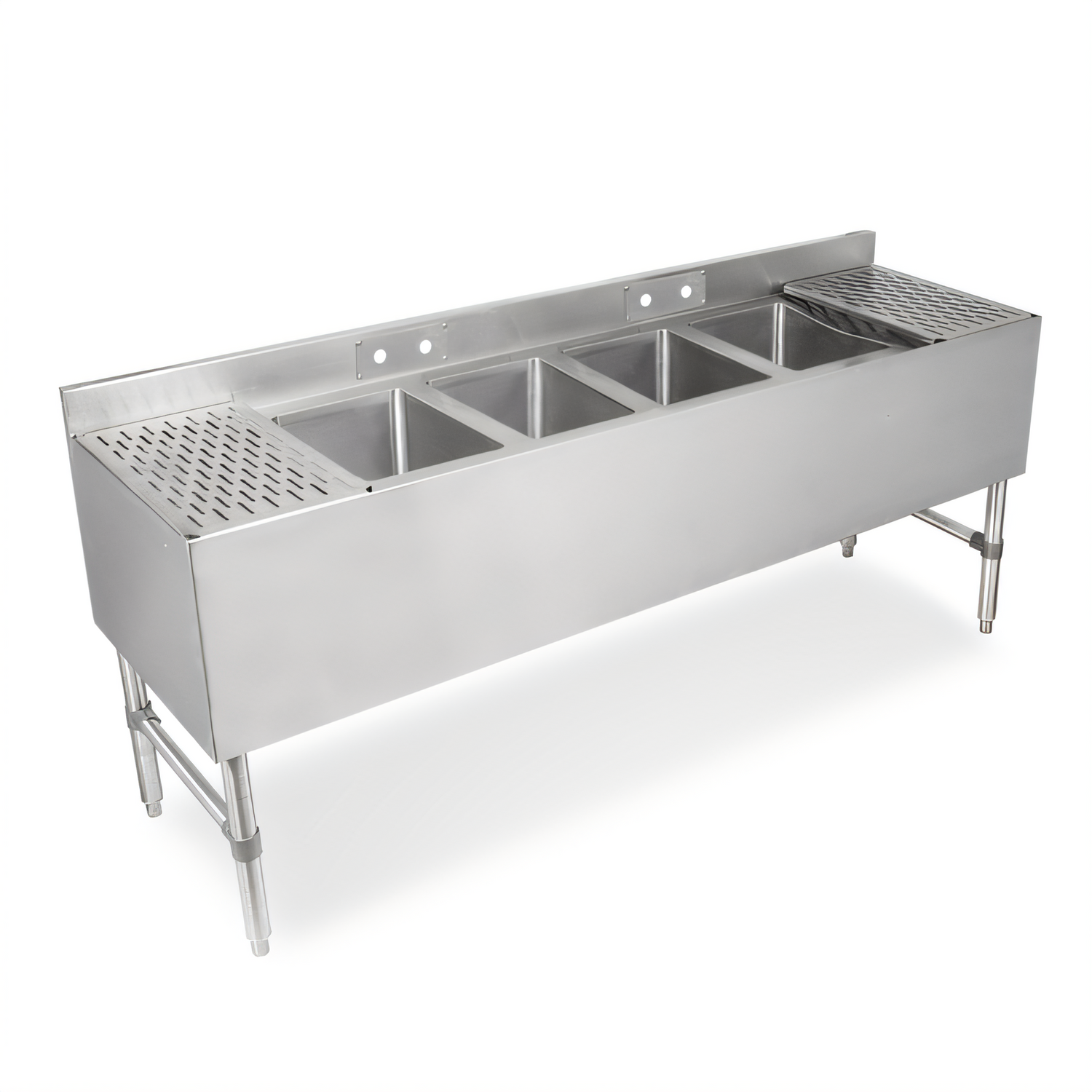

John Boos 84-Inch 4-Compartment Underbar Sink Unit with Dual 18-Inch Drainboards

18/300 Stainless Steel, 3-Inch Backsplash, Removable Faucet Plate

This durable underbar sink station combines four wash compartments, dual drainboards, and stainless steel construction to keep bar and prep areas moving efficiently.

  • Four-compartment underbar sink unit with 10" W x 14" front-to-back x 10" deep compartments.
  • Left and right 18-inch drainboards include removable perforated inserts for convenient staging and drainage.
  • 3-inch backsplash and removable splash-mount faucet holes help simplify installation and splash control.
  • Built from 18/300 stainless steel with stainless steel legs, side bracing, and adjustable bullet feet.
  • Includes 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS) for a ready-to-install sink assembly.

Overall Dimensions:

84.0"W x 21.0"D x 32.5"H

Product Weight:

121.0 lb

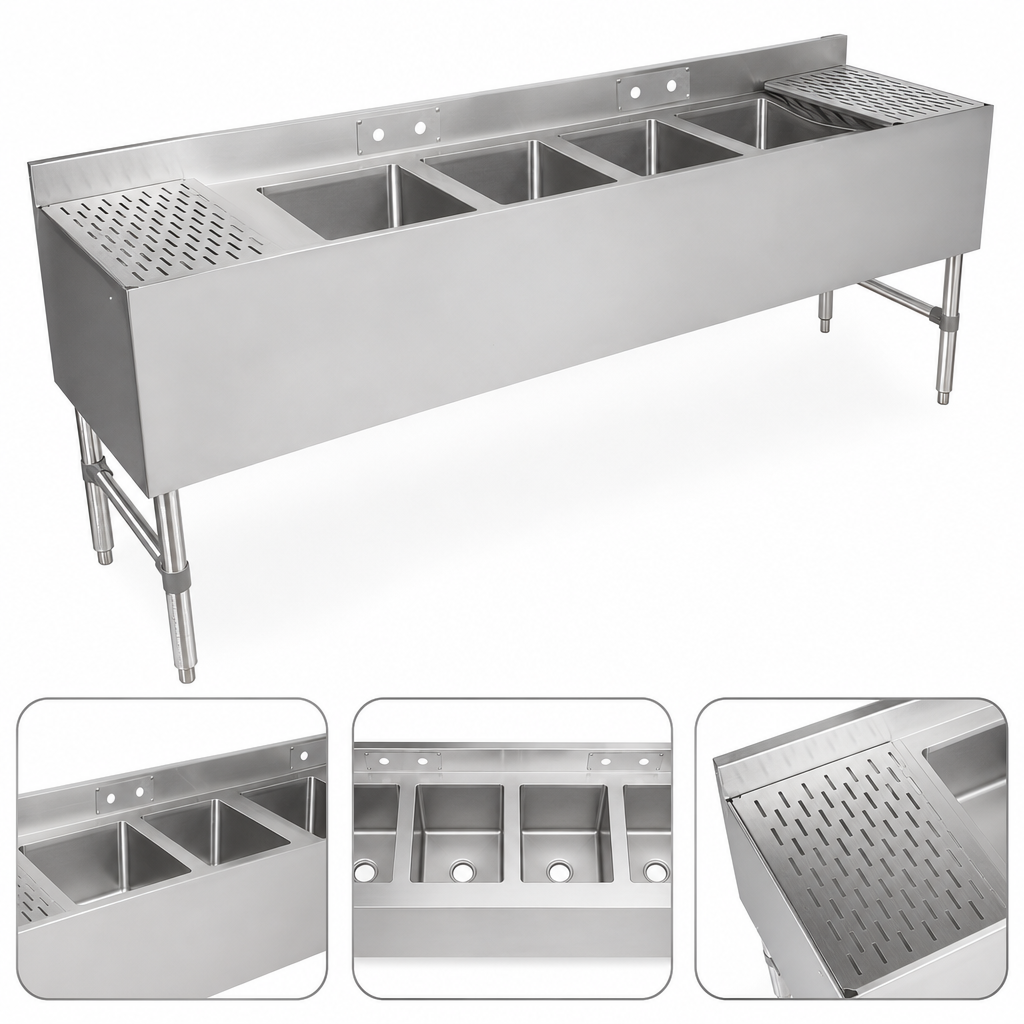

Four Compartment Sink Layout

Four separate sink compartments provide dedicated wash and rinse zones for high-volume underbar tasks.

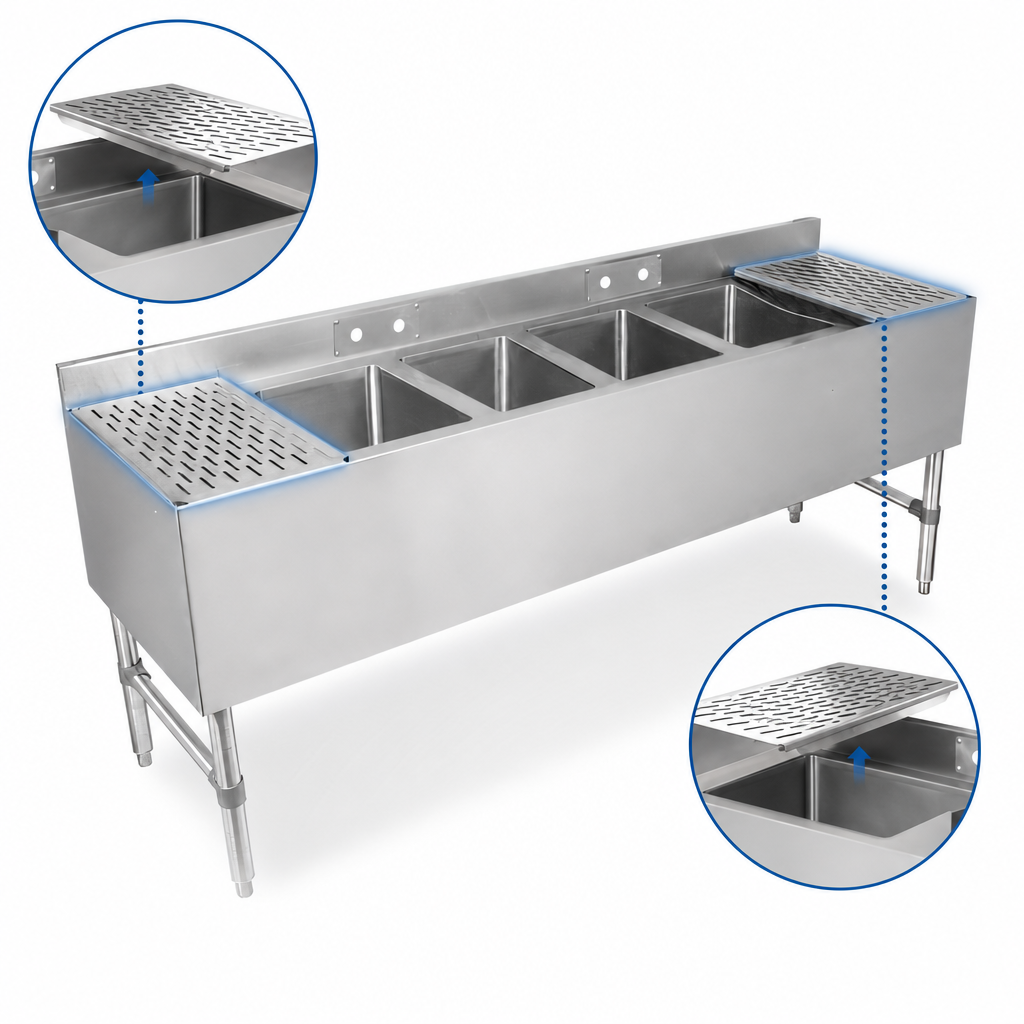

Dual Drainboards

18-inch drainboards are positioned on both the left and right sides and feature removable perforated inserts.

Splash Control and Faucet Mounting

A 3-inch backsplash helps contain splashes, and two sets of removable splash-mount faucet holes use 4-inch centers.

Stainless Steel Construction

Constructed from 18/300 stainless steel with stainless steel legs and side bracing for durability.

Included Drain Assembly

Supplied with 1-1/2-inch drains and overflow stand pipes identified as PB-OVF-BS.

Adjustable Bullet Feet

Adjustable stainless steel bullet feet make it easier to level the unit during installation.

Type Underbar Sink Unit
Style 4-Compartment
Installation Type Freestanding
Compartments 4
Material 300 Series Stainless Steel
Bowl Size 10 Inches Wide x 14 Inches Front-to-Back
Bowl Depth 10 Inches
Backsplash 3 Inches
Drainboard Length 18 Inches Each
Shipping Width 84 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 121 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has four compartments, each measuring 10 inches wide by 14 inches front-to-back by 10 inches deep.
Yes. It has 18-inch drainboards on both the left and right sides, and each drainboard includes a removable perforated insert.
The unit includes two sets of removable splash-mount faucet holes with 4-inch centers.
It includes 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS).
The unit is made from 18/300 stainless steel and includes stainless steel legs, side bracing, and adjustable bullet feet.
