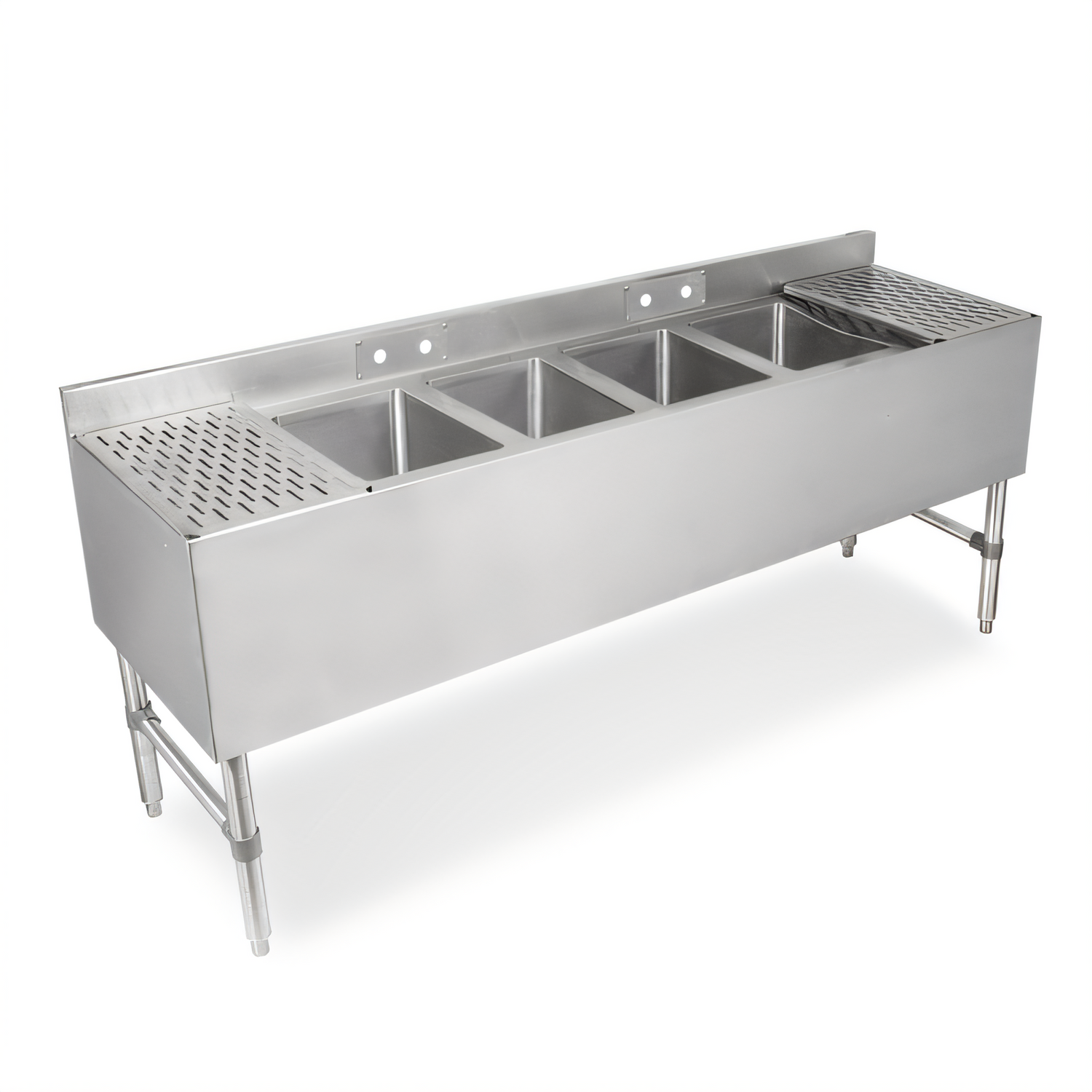

John Boos 84-Inch 4-Compartment Stainless Steel Underbar Sink Unit with Dual 18-Inch Drainboards

3-Inch Backsplash, 10 x 14 x 10 Inch Bowls

Built for busy bar and beverage areas, this four-compartment underbar sink combines dual drainboards, durable stainless steel construction, and easy faucet mounting in one efficient footprint.

  • 84-inch-wide underbar sink unit with four 10 x 14 x 10-inch compartments for multi-station use.
  • Dual 18-inch drainboards on the left and right provide extra landing and drying space.
  • 3-inch backsplash helps contain splashes and protect the wall behind the unit.
  • Removable splash-mount faucet hole sets with 4-inch centers simplify installation.
  • Includes 1-1/2-inch drains and overflow stand pipes for a complete sink setup.
  • Stainless steel top, front, ends, legs, and side bracing are built for long-term commercial use.

Overall Dimensions:

84.0"W x 21.0"D x 32.5"H

Product Weight:

121.0 lb

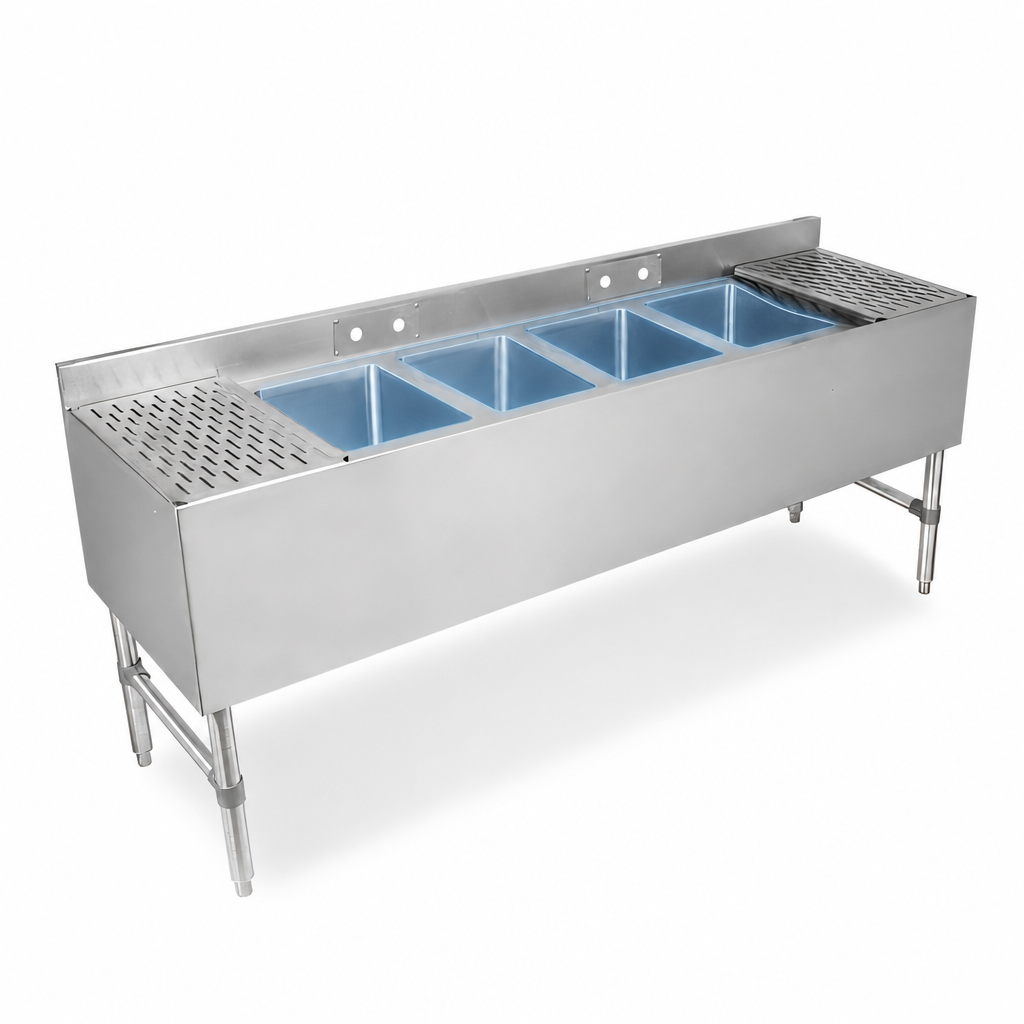

Four-Compartment Layout

Provides four separate 10-inch wide x 14-inch front-to-back x 10-inch deep compartments for washing and prep tasks.

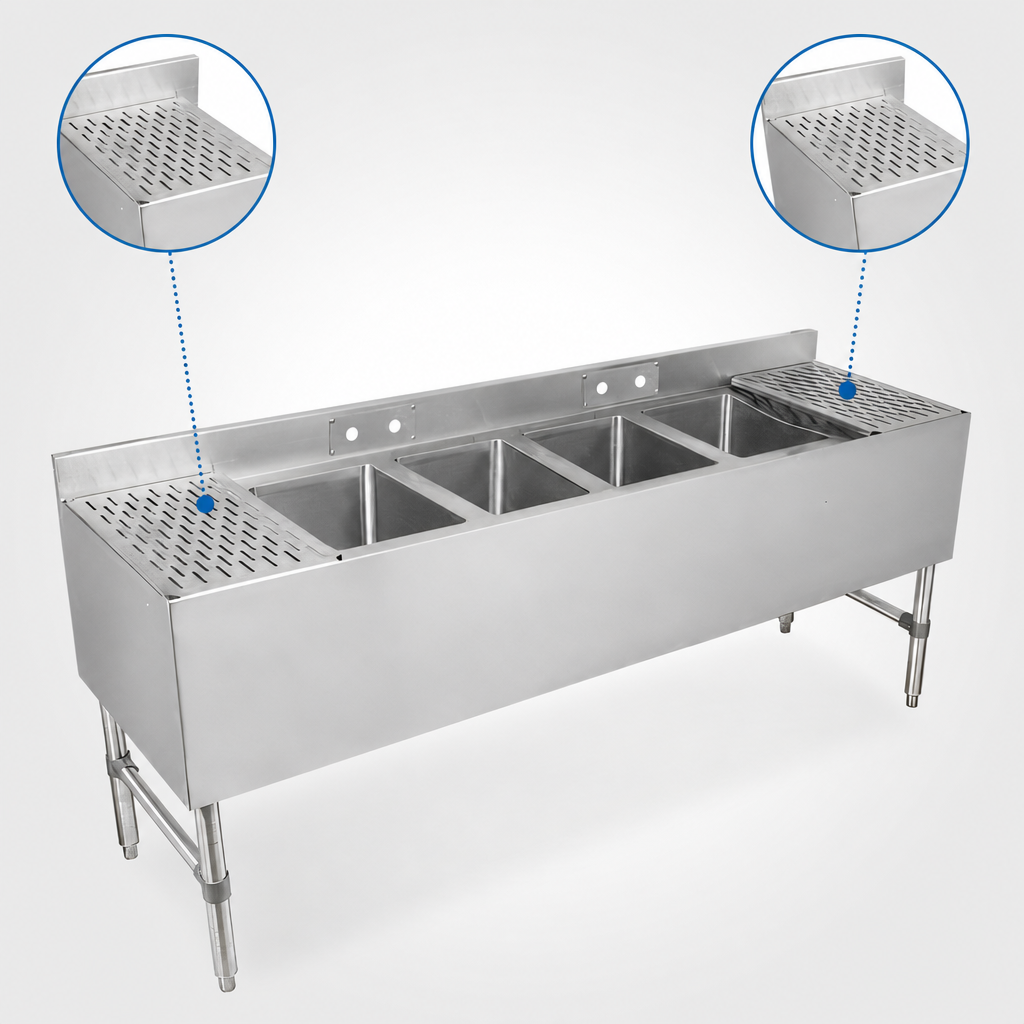

Dual Drainboards

18-inch drainboards on both the left and right sides add convenient landing space for glassware, dishes, or prep items.

3-Inch Backsplash

Helps reduce backsplash splash and keeps the surrounding wall cleaner.

Removable Faucet Mounting

Two sets of removable splash-mount faucet holes with 4-inch centers allow flexible faucet installation.

Included Drain Assembly

Supplied with 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS).

Stainless Steel Construction

Built with 18/300 series stainless steel construction, plus stainless steel legs and side bracing for durability.

Adjustable Bullet Feet

Stainless steel bullet feet can be adjusted to help level the unit during installation.

Type Underbar Sink Unit
Style With Left and Right Drainboards
Compartments 4
Bowl Size 10 Inches W x 14 Inches Front-To-Back x 10 Inches Deep
Backsplash Height 3 Inches
Drain Connection Size 1-1/2 Inches
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has four compartments.
Each compartment measures 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes. It has 18-inch drainboards on both the left and right sides, with removable perforated inserts.
The unit has two sets of removable splash-mount faucet holes with 4-inch centers.
It includes 1-1/2-inch drains and overflow stand pipes.
