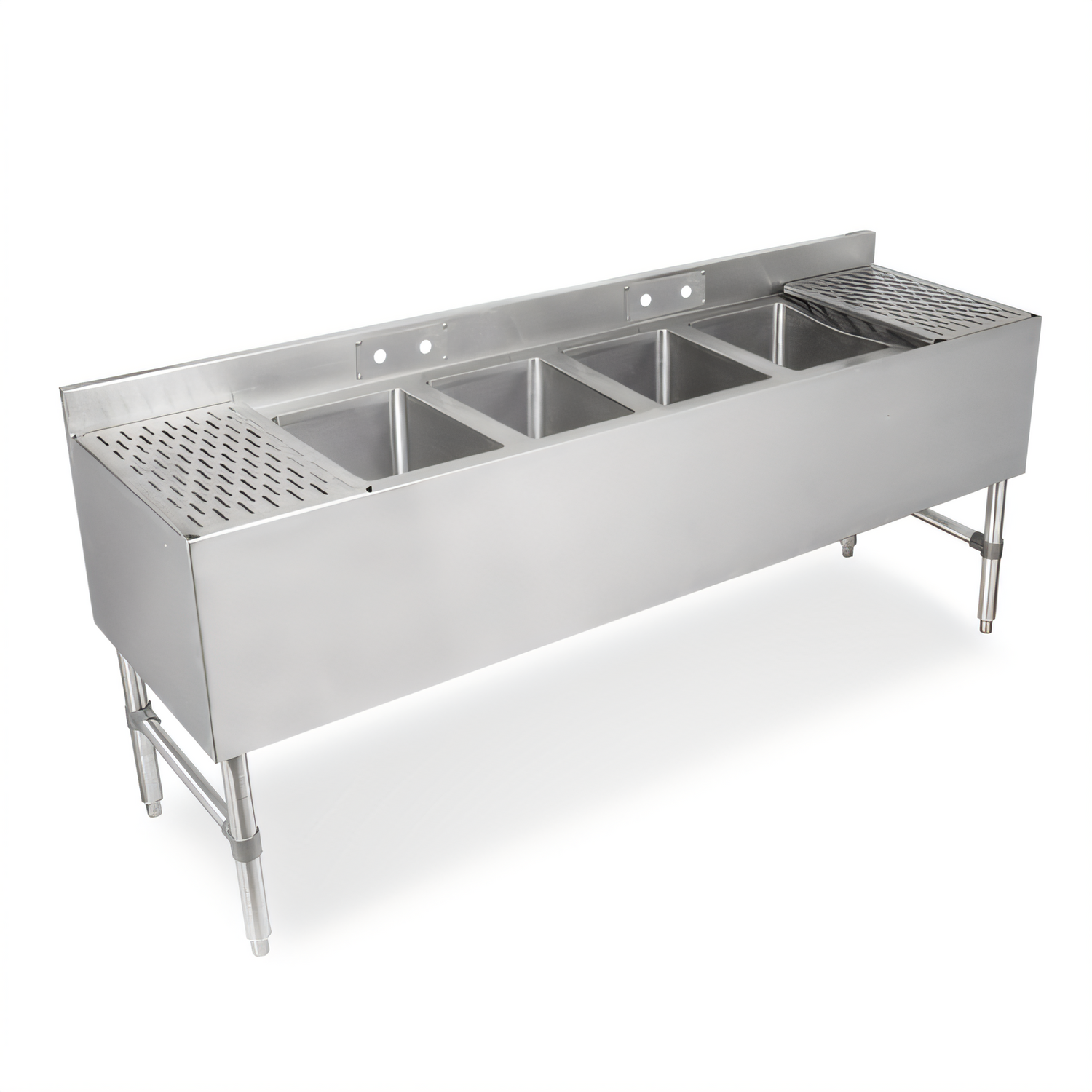

John Boos 4-Compartment Underbar Sink Unit with Dual 12-Inch Drainboards, 72 x 21 Inches

18/300 Stainless Steel, 3-Inch Backsplash, Adjustable Bullet Feet

Built for busy bar service, this underbar sink combines four wash compartments, dual drainboards, and rugged stainless steel construction in a compact 72-inch footprint.

  • Four compartments provide dedicated wash and rinse space in one underbar unit.
  • Dual 12-inch drainboards with removable perforated inserts add convenient drying and staging areas.
  • 18/300 stainless steel construction with stainless steel legs and side bracing supports long-term durability.
  • Three-inch backsplash and removable splash-mount faucet hole sets help simplify installation and control splashing.
  • Includes 1-1/2-inch drains and overflow stand pipes, plus adjustable stainless steel bullet feet for leveling.

Overall Dimensions:

72.0"W x 21.0"D x 32.5"H

Product Weight:

109.0 lb

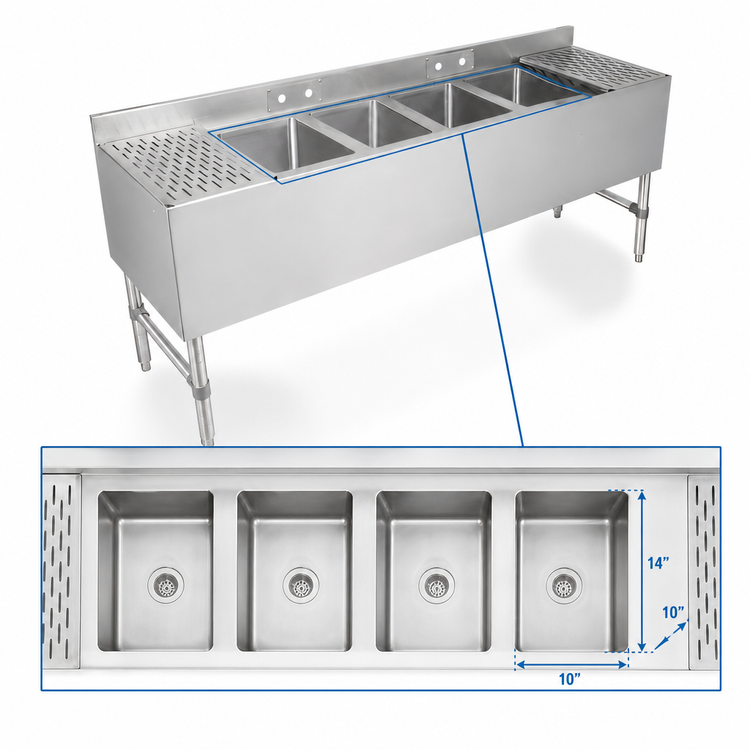

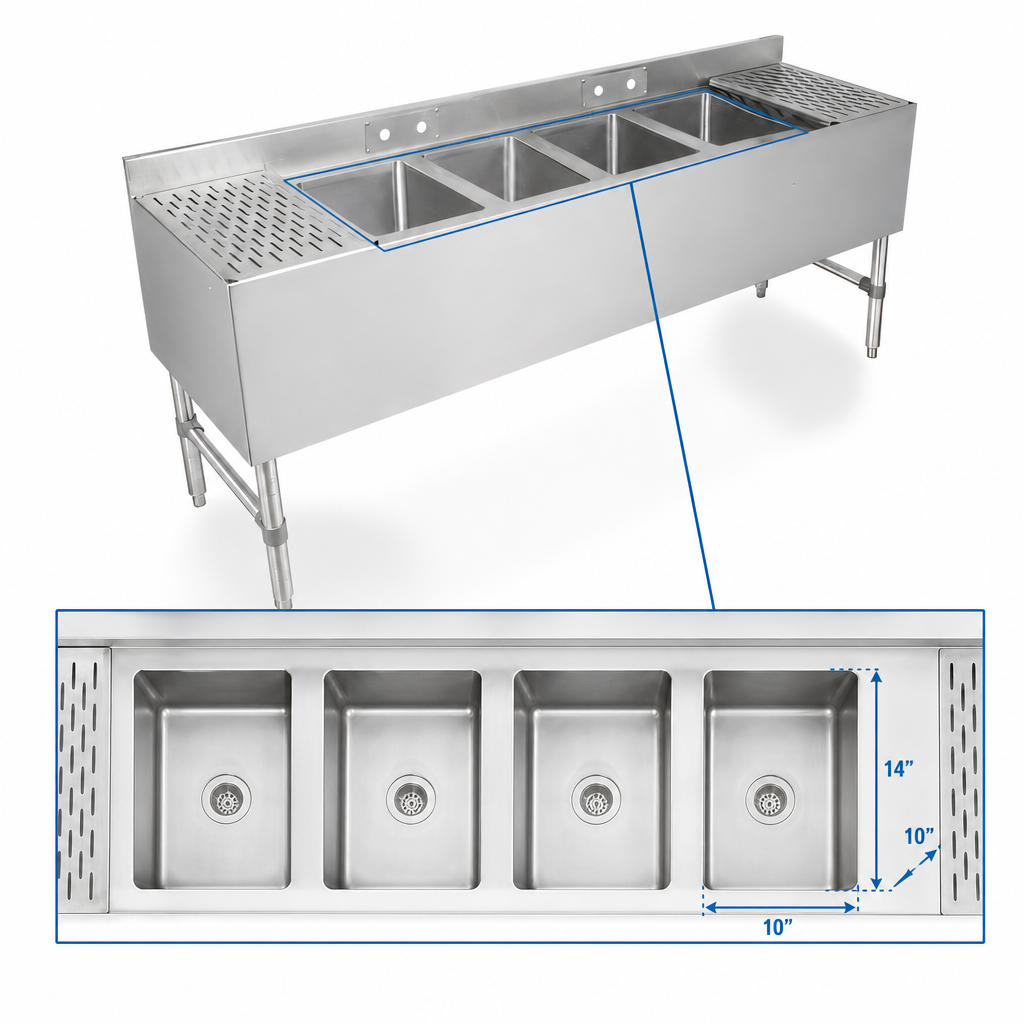

Four-Compartment Basin Layout

Includes four compartments, each measuring 10 inches wide x 14 inches front-to-back x 10 inches deep.

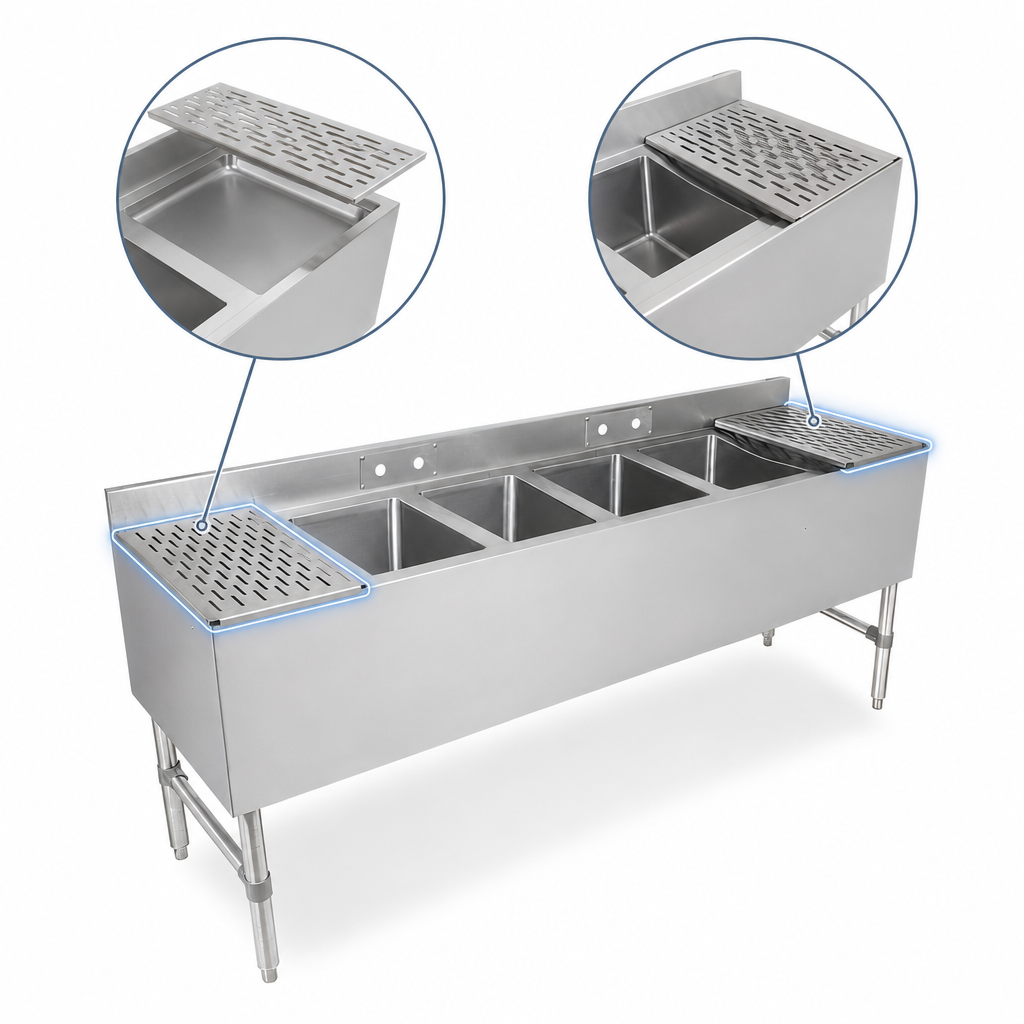

Dual Drainboards

12-inch drainboards on the left and right provide extra drying and staging space; each includes a removable perforated insert.

Stainless Steel Construction

Built from 18/300 stainless steel with stainless steel legs and side bracing for strength and corrosion resistance.

3-Inch Backsplash

Helps contain splashes and protects the wall behind the unit.

Removable Splash-Mount Faucet Holes

Two sets of removable faucet holes with 4-inch centers support flexible faucet placement.

Included Drain Hardware

Comes with 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS).

Adjustable Bullet Feet

Stainless steel bullet feet allow the unit to be leveled during installation.

Type Sink Unit
Style Underbar
Installation Type Floor Model
Compartments 4
Material Stainless Steel
Finish Stainless Steel
Drain Connection Size 1-1/2 Inches
Shipping Width 72 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 109 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has four compartments.
Each compartment measures 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes. It has 12-inch drainboards on both the left and right sides, each with a removable perforated insert.
The unit includes two sets of removable splash-mount faucet holes with 4-inch centers.
It includes 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS).
It is built from 18/300 stainless steel with stainless steel legs and side bracing.
