John Boos  |  SKU: UBS4-2148  |  UPC: 662969778316

John Boos UBS4-2148 Bar Equipment

$2,504.82
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Assembly instructions
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

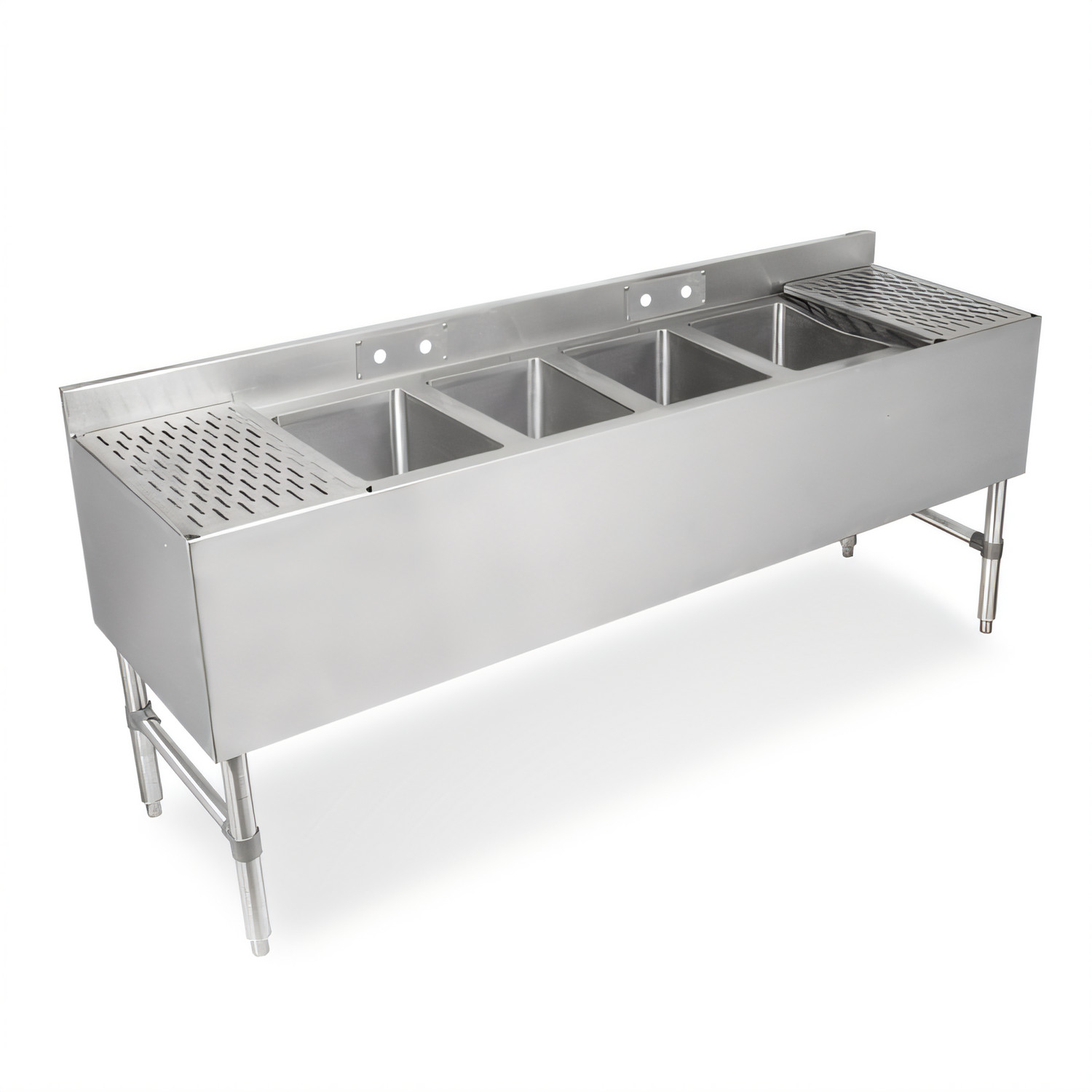

John Boos UBS4-2148 Underbar 4-Compartment Sink – 48" W

Heavy-duty stainless steel sink for high-volume bar & beverage service

The compact UBS4-2148 packs four generous 10" x 14" x 10" bowls into a slim 21-inch-deep footprint, giving bartenders and baristas the washing, rinsing and dumping capacity they need without sacrificing underbar space. Built from rugged 18-gauge, type 300 stainless steel and finished with an appealing #4 satin polish, this NSF-listed sink is engineered to deliver years of reliable, sanitary performance in the busiest venues.

Key Features

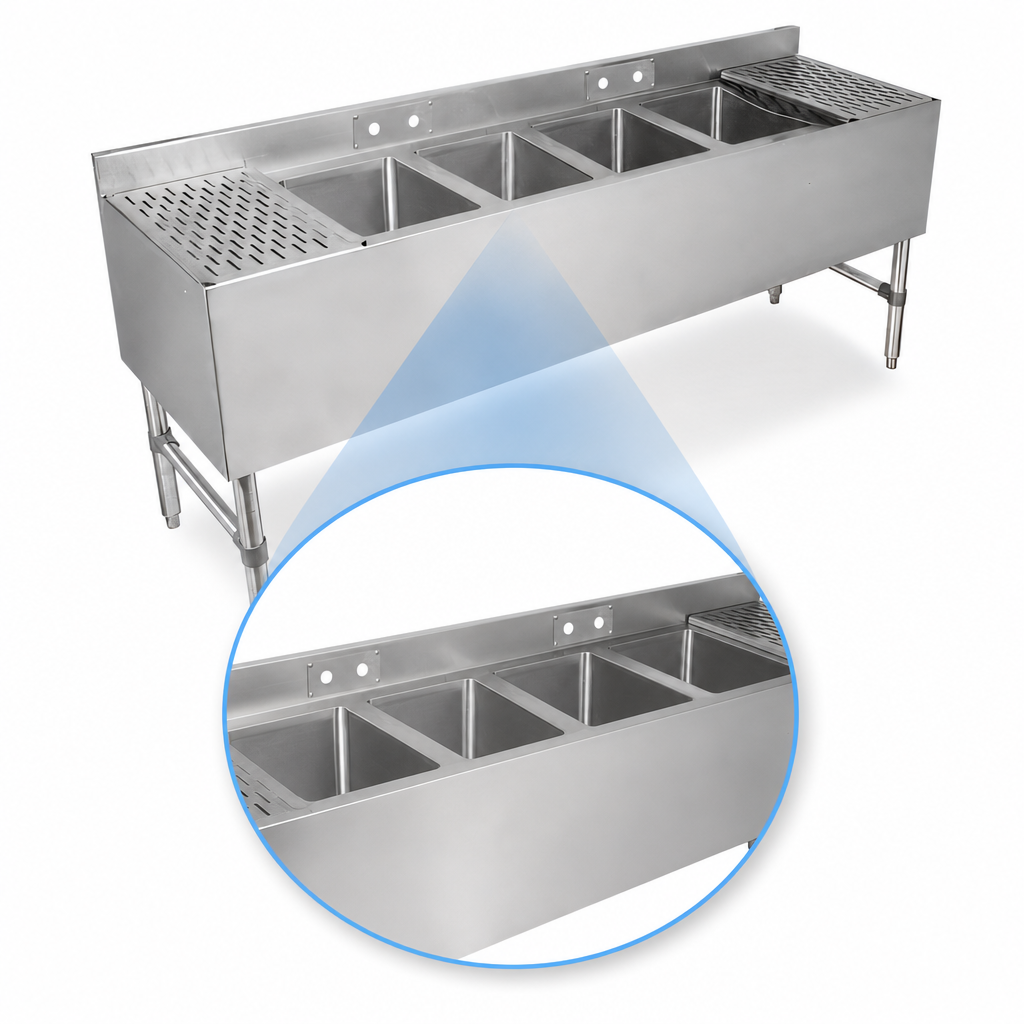

  • Four fabricated compartments – each 10" W x 14" front-to-back x 10" D.

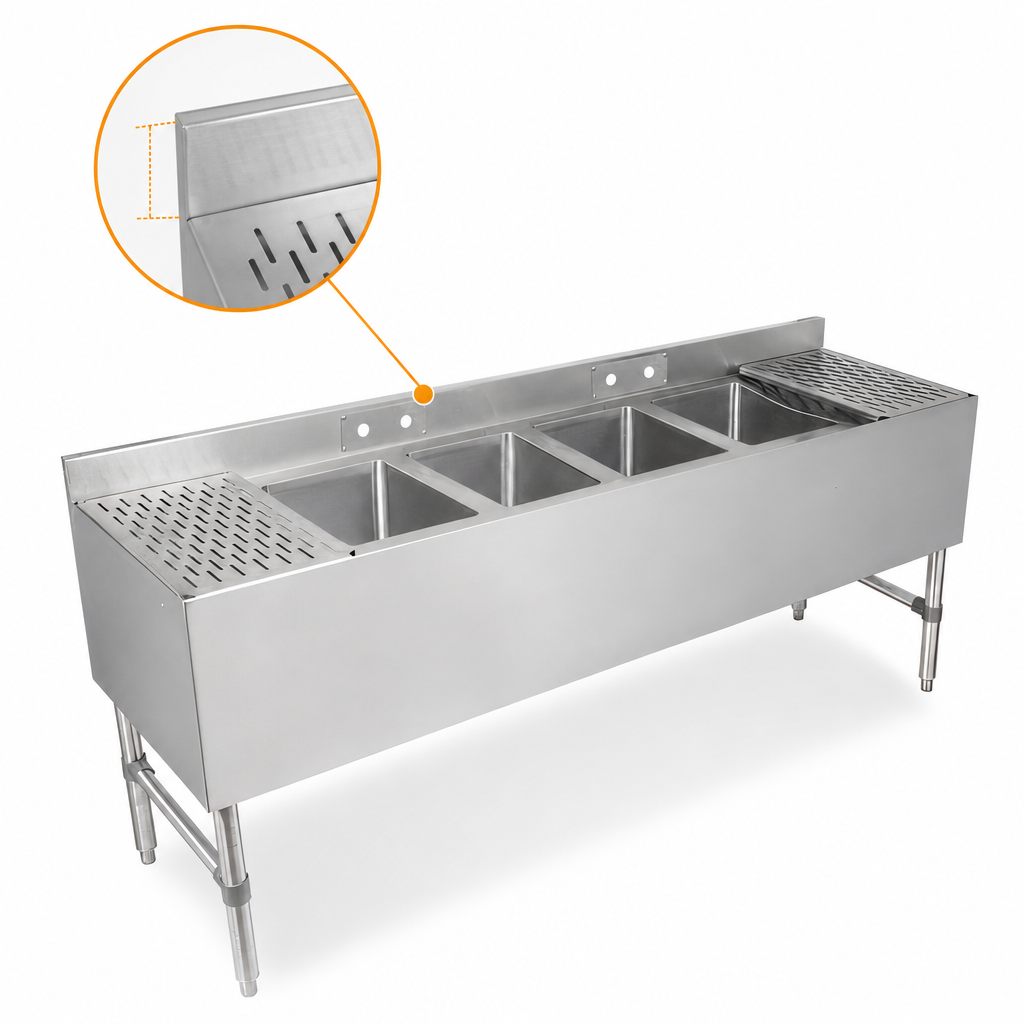

  • 18-gauge, type 300 stainless steel construction with matching front apron, sides & 3" backsplash.
  • (2) removable faucet plates pre-punched on 4" centers for quick splash-mount faucet installation.
  • Includes 1-1/2" drains, basket strainers and PB-OVF-BS overflow standpipes to maintain proper water level.
  • Bolt-on 1-5/8" stainless steel legs, stainless front-to-back bracing and adjustable bullet feet for rock-solid stability.
  • Side mounting holes & supplied Z-clip let you join adjacent underbar sections or secure directly to a wall.
  • NSF certified for open food-service environments.
Specifications
Manufacturer / Model John Boos UBS4-2148
Overall dimensions 48" W x 21" D x 32-1/2" H
Number of compartments 4
Compartment size (each) 10" W x 14" F/B x 10" D
Backsplash height 3"
Faucet mounting (2) splash-mount plates, 4" centers, removable
Drain size / type 1-1/2" NPS drains with basket strainers & overflow standpipes
Material thickness 18 ga (0.050")
Primary material Type 300 stainless steel, #4 satin finish
Legs & bracing Stainless steel legs with side bracing
Feet Adjustable stainless steel bullet feet
Certifications NSF
Shipping weight 80 lb (weights subject to additional packaging)
Popular Accessories (sold separately)
  • UBSS-21-L & UBSS-21-R – left or right side splash guards
  • PBF-4SM2-10LF – heavy-duty 4" center splash-mount faucet
  • PBF-W2-10LF – economy 4" center splash-mount faucet
  • PB-WL-36 – flexible shallow-mount water lines
Installation note: Legs ship loose for field attachment. Use the included Z-clip when wall-mounting the backsplash and follow the supplied assembly instructions for proper leg and bracing installation.

Looking for a longer unit or integrated drainboards? Check out models UBS4-2172-2D12, UBS4-2184-2D18 or UBS4-2196-2D24.

Features & Specs

Manufacturer

John Boos

Height

32.5in

Width

48.0in

Depth

21.0in

Shipping Weight

80.0lbs

Sink Compartments

(4)

Bowl Depth (rim - drain)

10"

Bowl Size

10" x 14" front-to-back

Drainboards

without drainboards

Width (side - side) OA

43" - 48"

Depth (front - back) OA

20" - 21"

Splash

3"

Top Stainless Series

300 series

Construction

stainless steel top, front, ends & legs

Specifications

Underbar Sink Unit, 4-compartment, 48"W x 21"D x 32-1/2"H overall size, (4) 10"W x 14" front-to-back x 10" deep compartments, 3"H backsplash, (2) sets of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF, (weights are subject to additional packaging)
