John Boos UBS4-1896-2D24 Slim-Line Bar Equipment
$3,594.74
Unit price
/
Unavailable
Description

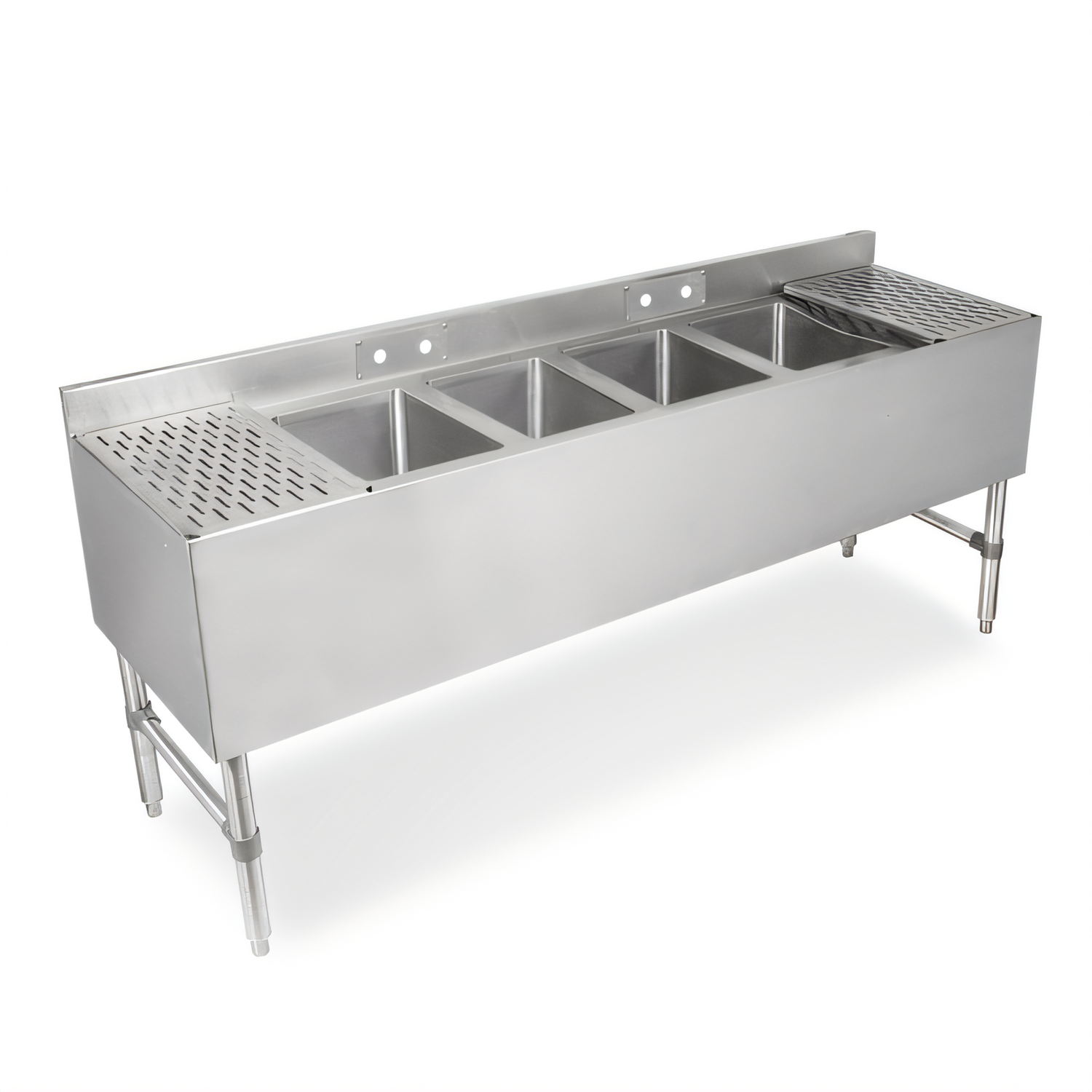

John Boos Slim-Line 4-Compartment Underbar Sink – 96 in.
Model UBS4-1896-2D24 | 18 in. Deep x 32-1/2 in. HighPack maximum washing power into the smallest bar footprint. The John Boos Slim-Line 96" underbar sink delivers four roomy compartments and dual 24" drainboards in a sleek 18"-deep chassis—perfect for fast-paced glassware sanitation and cocktail service.
Key Features
- Slim-Line design saves valuable aisle space—only 18" front-to-back.

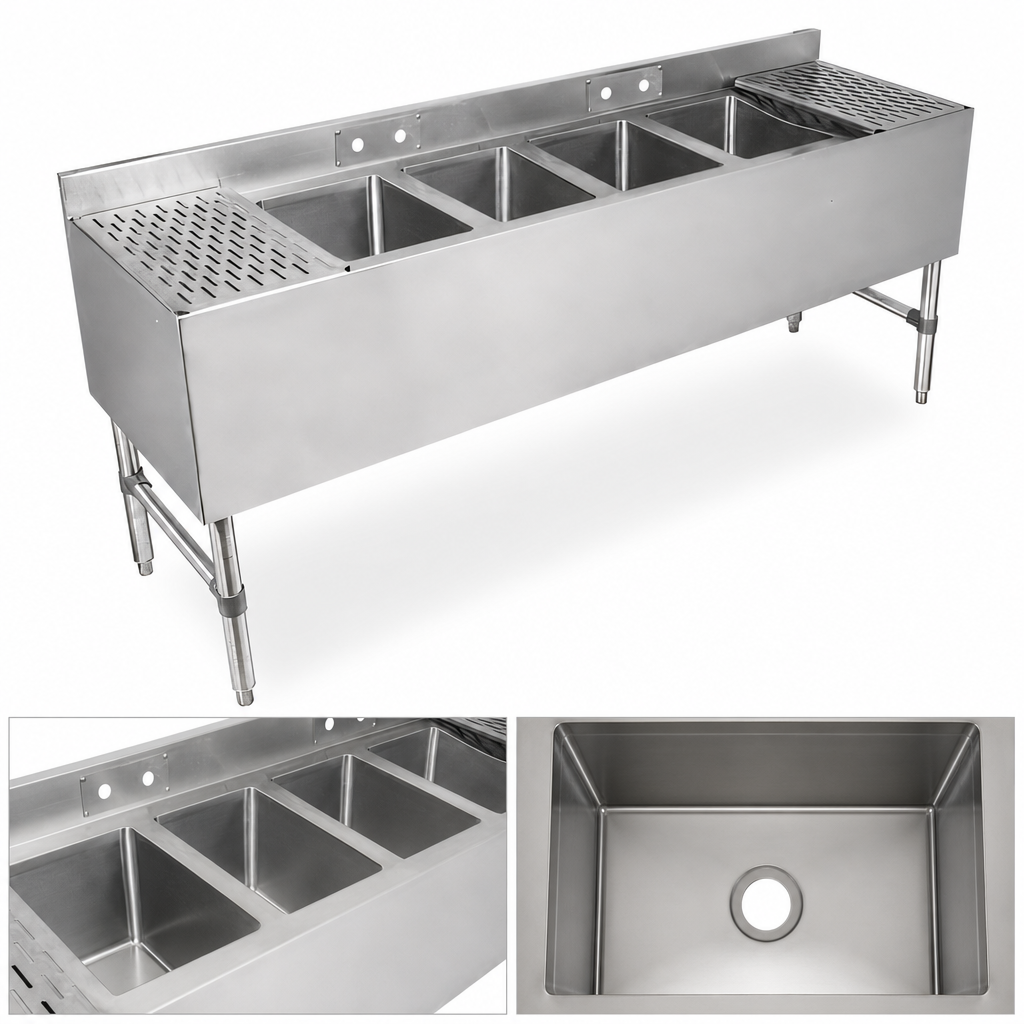

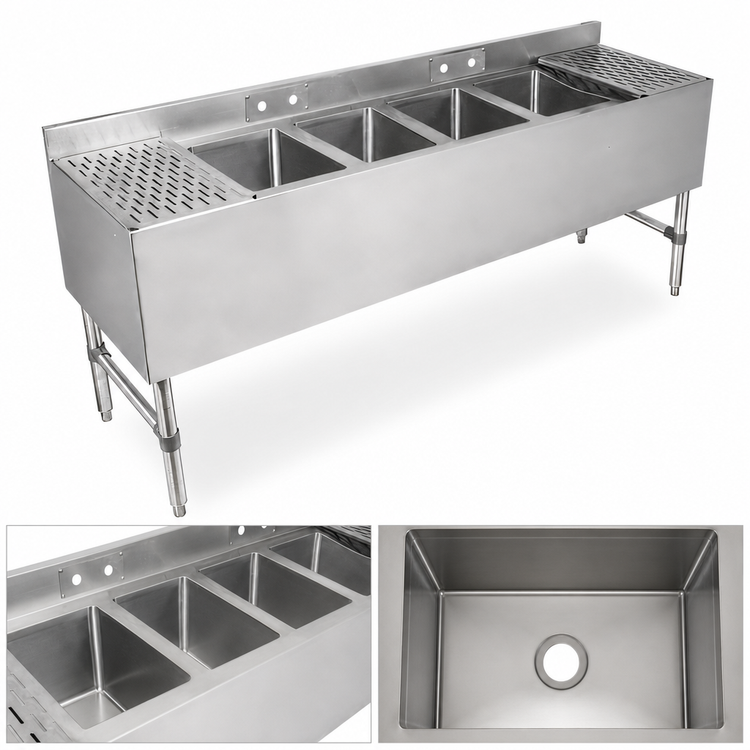

- (4) fabricated bowls, 10" x 14" x 10" each, ideal for wash / rinse / sanitize / dump sequencing.

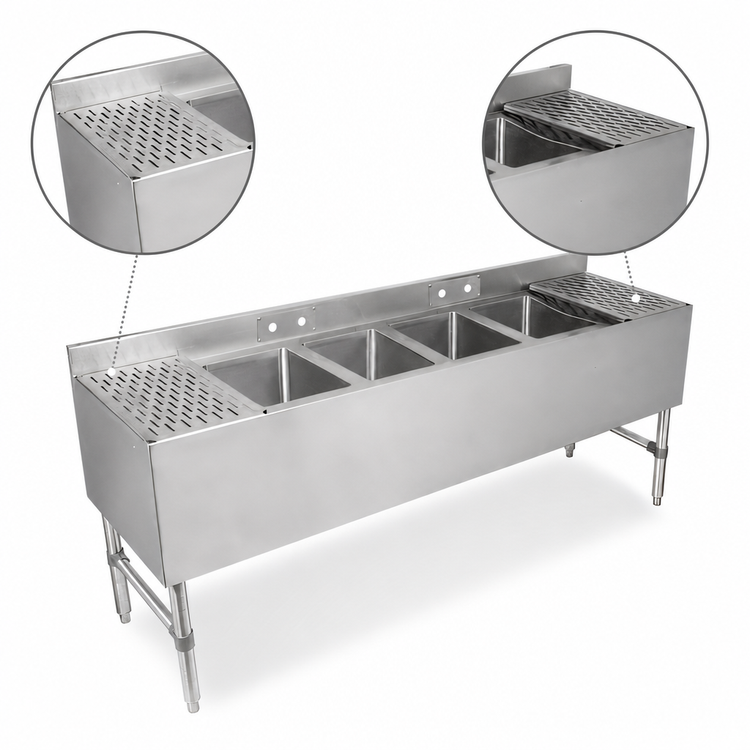

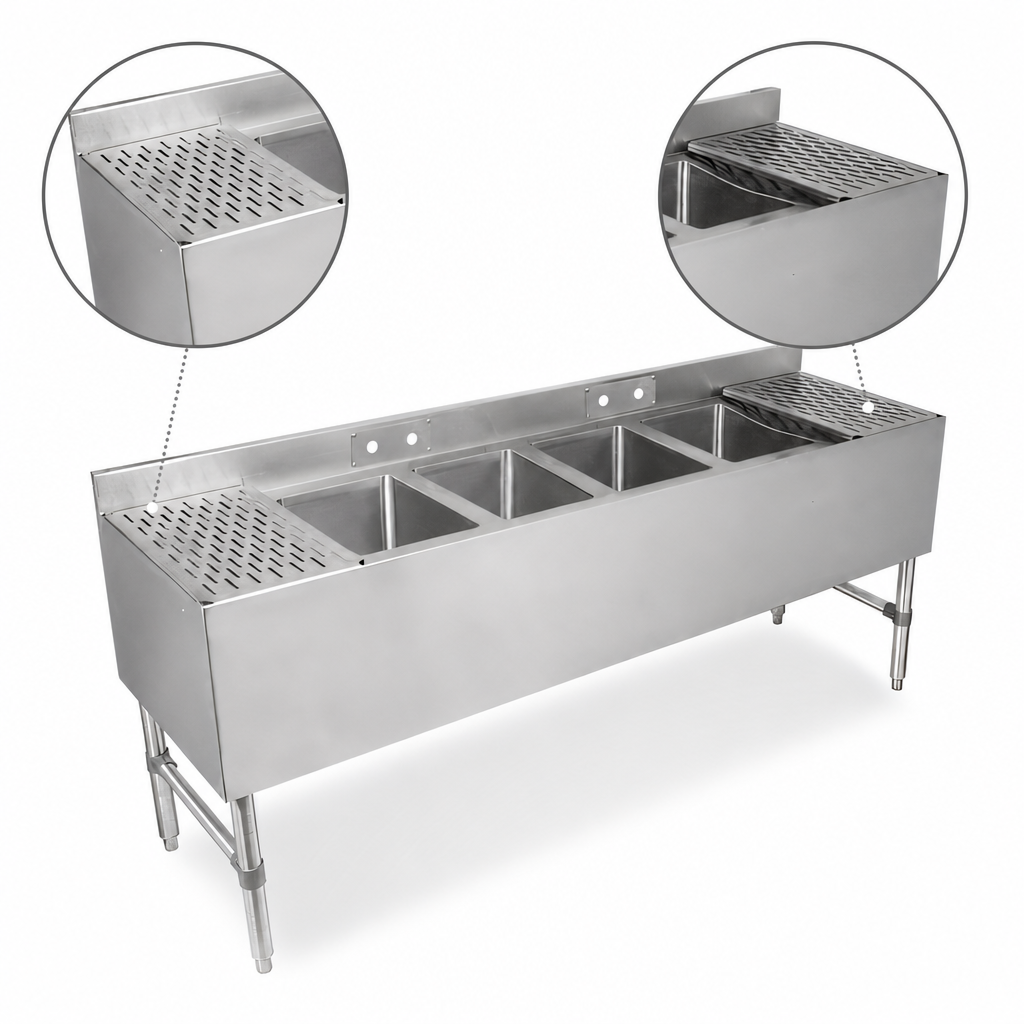

- Left & right 24" drainboards with removable perforated inserts for superior air-drying and easy cleaning.
- 3" backsplash with two removable faucet plates punched 4" on-center for splash-mount faucets.
- Heavy-duty 18 ga Type 300 stainless steel with #4 satin polish resists corrosion and cleans easily.
- 1-5/8" stainless steel legs, stainless side/front-to-back bracing, and 1" adjustable bullet feet for rock-solid stability.
- Pre-drilled side holes & included Z-clip let you gang units and mount to the wall fast.
- Includes (4) 1-1/2" drains with baskets and overflow stand pipes (PB-OVF-BS).
- NSF listed for compliant food & beverage operations.
Specification Highlights
| Overall dimensions | 96" W × 18" D × 32-1/2" H |
|---|---|
| Sink compartments | 4 fabricated bowls |
| Bowl size (each) | 10" W × 14" F-B × 10" D |
| Drainboards | 24" left & 24" right, creased; perforated inserts removable |
| Backsplash height | 3" |
| Faucet plate | (2) removable plates, 4" on-center splash-mount holes |
| Material / finish | 18 ga 300-series stainless steel, No. 4 satin |
| Legs / feet | 1-5/8" S/S legs with side bracing & 1" adjustable bullet feet |
| Drain connection | 1-1/2" NPS |
| Ship weight | Approx. 128 lb (weight subject to packaging) |
| Certifications | NSF |
Compatible Accessories (sold separately)
- PBF-4SM2-10LF Heavy-duty 4" splash-mount faucet
- PBF-W2-10LF Economy 4" splash-mount faucet
- PB-WL-36 Flexible shallow-mount faucet hoses
- UBSS-18-L / UBSS-18-R Slim-Line left or right end side splashes
Note: Faucets, hose kits, and side splashes are not included and must be ordered separately.
Care & Cleaning
- Clean daily with mild soap or a non-chloride stainless cleaner; rinse and wipe dry.
- Always scrub and wipe in the direction of the grain to preserve the satin finish.
- Avoid abrasive pads, steel wool, or chlorine bleach to prevent surface corrosion.
John Boos & Co. reserves the right to change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Slim-Line
Certifications
NSF, CSA-Sanitation
Height
32.5in
Width
96.0in
Depth
18.0in
Shipping Weight
128.0lbs
Sink Compartments
(4)
Drainboards
drainboards on left & right
Splash
3"
Top Stainless Series
300 series
Construction
stainless steel top, front, ends & legs
Bowl Depth (rim - drain)
10"
Bowl Size
10" x 14" front-to-back
Width (side - side) OA
91" - 96"
Depth (front - back) OA
18" - 19"
Specifications
Slim-Line Underbar Sink Unit, 4-compartment, 96"W x 18"D x 32-1/2"H overall size, (4) 10"W x 14" front-to-back x 10" deep compartments, 24" drainboard on left and right with removable perforated insert, 3"H backsplash, (2) sets of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF, (weights are subject to additional packaging)
