John Boos

John Boos Slim-Line 4-Compartment Underbar Sink Unit with Dual Drainboards, 84W x 18D

SKU: UBS4-1884-2D18-X
$2,031.48
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

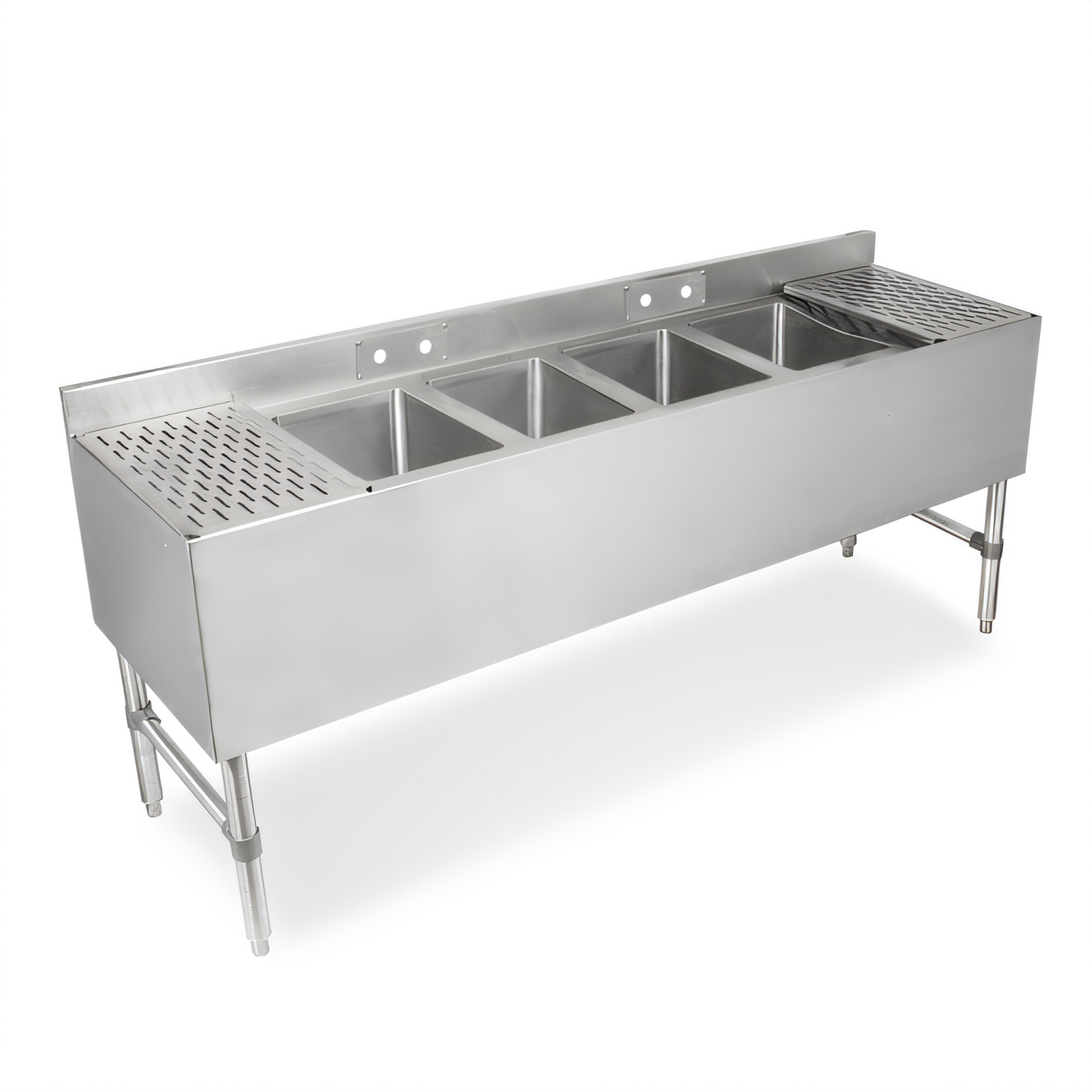

John Boos Slim-Line 4-Compartment Underbar Sink Unit with Dual Drainboards, 84W x 18D

18/300 Stainless Steel, 3-Inch Backsplash, Removable Splash Mount Faucet Holes

Designed for busy bar and beverage stations, this Slim-Line sink unit combines four compartments, dual drainboards, and durable stainless steel construction in a space-saving underbar footprint.

  • Four-compartment underbar sink layout supports separate wash and rinse tasks.
  • 18-inch drainboards on the left and right provide added staging and drying space.
  • 3-inch backsplash and removable splash mount faucet holes simplify installation and help contain splashes.
  • Includes 1-1/2-inch drains and overflow stand pipes for a complete sink setup.
  • Built with 18/300 stainless steel construction, stainless steel legs, side bracing, and adjustable bullet feet.

Overall Dimensions:

84.0"W x 18.0"D x 32.5"H

Product Weight:

106.0 lb

Four Sink Compartments

Four 10-inch wide by 14-inch front-to-back by 10-inch deep compartments provide dedicated wash and rinse space.

Dual Drainboards

18-inch drainboards on both the left and right sides add convenient space for draining and staging items.

Removable Perforated Inserts

The drainboards include removable perforated inserts for easier cleaning and flexible use.

3-Inch Backsplash

Helps contain splashes and protect the wall behind the unit.

Removable Splash Mount Faucet Holes

Two sets of faucet holes with 4-inch centers support splash-mounted faucet installation.

Integrated Drain Package

Includes 1-1/2-inch drains and overflow stand pipes, model PB-OVF-BS.

Stainless Steel Construction

Constructed from 18/300 stainless steel with stainless steel legs and side bracing for durability.

Adjustable Bullet Feet

Adjustable stainless steel bullet feet help level the unit on uneven floors.

Type Underbar Sink Unit
Style Slim-Line
Installation Type Floor Model
Compartments 4
Bowl Size 10 Inches W x 14 Inches Front-to-Back x 10 Inches Deep
Drainboard Configuration Left and Right
Backsplash Height 3 Inches
Faucet Hole Centers 4 Inches On Center
Material 300 Series Stainless Steel
Drain Connection Size 1-1/2 Inches
Shipping Width 84 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 106 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 84 inches wide x 18 inches deep x 32-1/2 inches high.
It has four compartments, each measuring 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes. It has 18-inch drainboards on the left and right sides, and both include removable perforated inserts.
The unit includes two sets of removable splash mount faucet holes with 4-inch centers.
It includes 1-1/2-inch drains and overflow stand pipes, model PB-OVF-BS.
