John Boos UBS4-1848-X Slim-Line Bar Equipment
Description

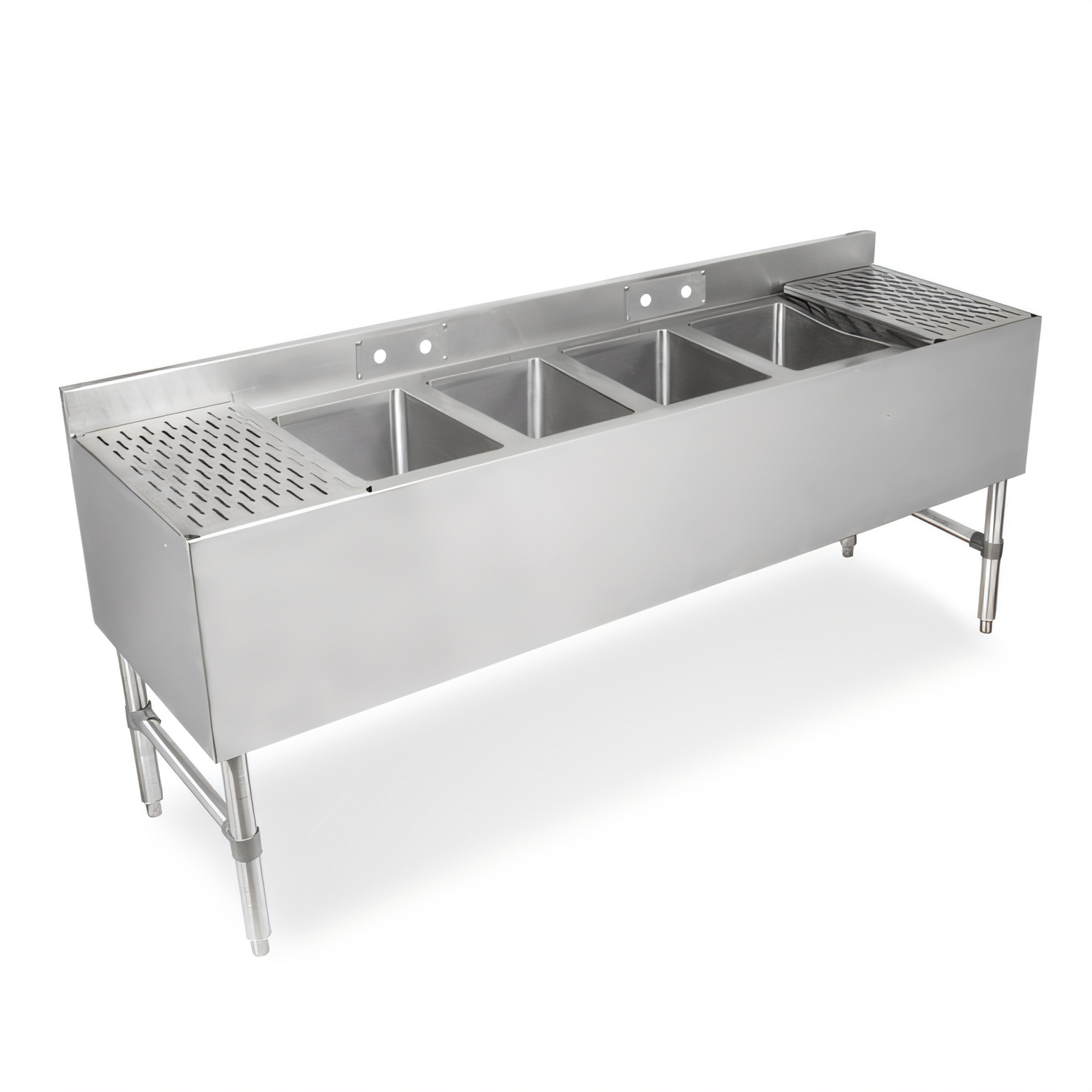

John Boos Slim-Line 4-Compartment Underbar Sink – 48" W x 18" D
Model UBS4-1848 | NSF Listed 18 GA Type 300 Stainless SteelPurpose-built for crowded back-bar and prep areas, the Slim-Line series delivers full-service functionality in a space-saving 18 inch depth. This 48 inch, four-bay sink keeps your glassware rotation flowing without compromising the aisle.
Key Features
- Slim 18" profile frees up valuable floor space.
- (4) fabricated bowls – each 10" W x 14" front-to-back x 10" D.
- 3" integrated backsplash contains splashes and protects walls.
- Two removable faucet plates, pre-drilled 4" on-center for quick splash-mount installation.
- Includes 1-1/2" drains with basket strainers and overflow stand pipes (PB-OVF-BS).
- 18 GA, Type 300 stainless steel construction with #4 satin polish for long-lasting corrosion resistance.
- 1-5/8" O.D. stainless steel legs with front-to-back bracing for extra rigidity.
- Adjustable 1" stainless bullet feet level the unit on uneven floors.
- Factory-punched side holes let you bolt adjoining John Boos underbar units together for a seamless run.
- NSF certified for safe, sanitary operation.
At-a-Glance Specs
| Overall dimensions | 48" W x 18" D x 32-1/2" H |
|---|---|
| Number of compartments | 4 |
| Compartment size (each) | 10" W x 14" F-B x 10" D |
| Backsplash height | 3" |
| Faucet holes | (2) removable plates, 4" on-center |
| Drain size / connection | 1-1/2" NPS with basket strainers & overflow stand pipes |
| Legs | 1-5/8" O.D. stainless, bolt-on |
| Feet | 1" adjustable stainless bullet feet |
| Construction | 18 GA Type 300 stainless steel, #4 satin finish |
| Weight | Approx. 75 lb (not including packaging) |
| Certifications | NSF |
Popular Accessories (sold separately)
- UBSS-18-L – Left-hand side splash
- UBSS-18-R – Right-hand side splash
- PBF-4SM2-10LF – Heavy-duty 4" splash-mount faucet
- PBF-W2-10LF – Economy splash-mount faucet
- PB-WL-36 – Flexible shallow-mount faucet hoses
Ships knocked down to save freight. All assembly hardware is included and installs with common hand tools.
Looking for additional sizes or integrated drainboards? Explore the full John Boos Slim-Line underbar collection.
