John Boos UBS4-1848 Slim-Line Bar Equipment
$2,313.80
Unit price
/
Unavailable
Description
John Boos Slim-Line 48" Underbar 4-Compartment Sink
Model UBS4-1848 | NSF CertifiedReduce bar congestion without sacrificing a full wash-rinse-sanitize setup. The Slim-Line UBS4-1848 tucks four deep bowls into an 18" footprint, delivering rugged John Boos quality in even the tightest service aisles.
Key features
- Space-saving 18" front-to-back profile for narrow bar runs.
- (4) fabricated sink bowls — 10" W × 14" F/B × 10" D — ideal for wash, rinse, sanitize & dump.
- 18 ga Type 300 stainless steel with #4 satin polish resists chemicals and dents.
- 3" backsplash with two removable splash-mount faucet plates (4" centers) for easy plumbing.
- Includes 1-1/2" drains, baskets & overflow stand pipes (PB-OVF-BS) right out of the box.
- Factory-drilled side holes let you bolt this sink flush to adjacent Slim-Line units.
- 1-5/8" stainless legs with front-to-back bracing & 1" adjustable bullet feet keep the unit rock-solid.
Specifications
| Overall dimensions | 48" W × 18" D × 32-1/2" H |
|---|---|
| Bowl size (each) | 10" W × 14" F/B × 10" D |
| Backsplash height | 3" |
| Faucet mounting | (2) removable plates, 4" centers |
| Drain openings | 1-1/2" NPS with basket strainers & overflow stand pipes |
| Material & finish | 18 ga Type 300 stainless, #4 satin |
| Legs / bracing | Stainless, bolt-on, 1-5/8" Ø with stainless side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Approx. weight | 75 lb (subject to additional packaging) |
| Certifications | NSF |
Fast, flexible installation
- Bolt-on legs install with standard 5/16-18 hardware (included).
- Integrated Z-clip lets you level and secure the unit to the wall in seconds.
- Side-mount holes accept speed rails, blender shelves and other underbar accessories.
Popular add-ons (sold separately)
- UBSS-18-L / UBSS-18-R — left or right stainless side splash
- PBF-4SM2-10LF — heavy-duty 4" splash-mount bar faucet
- PBF-W2-10LF — economy 4" splash-mount bar faucet
- PB-WL-36 — 36" flexible shallow-mount faucet hoses

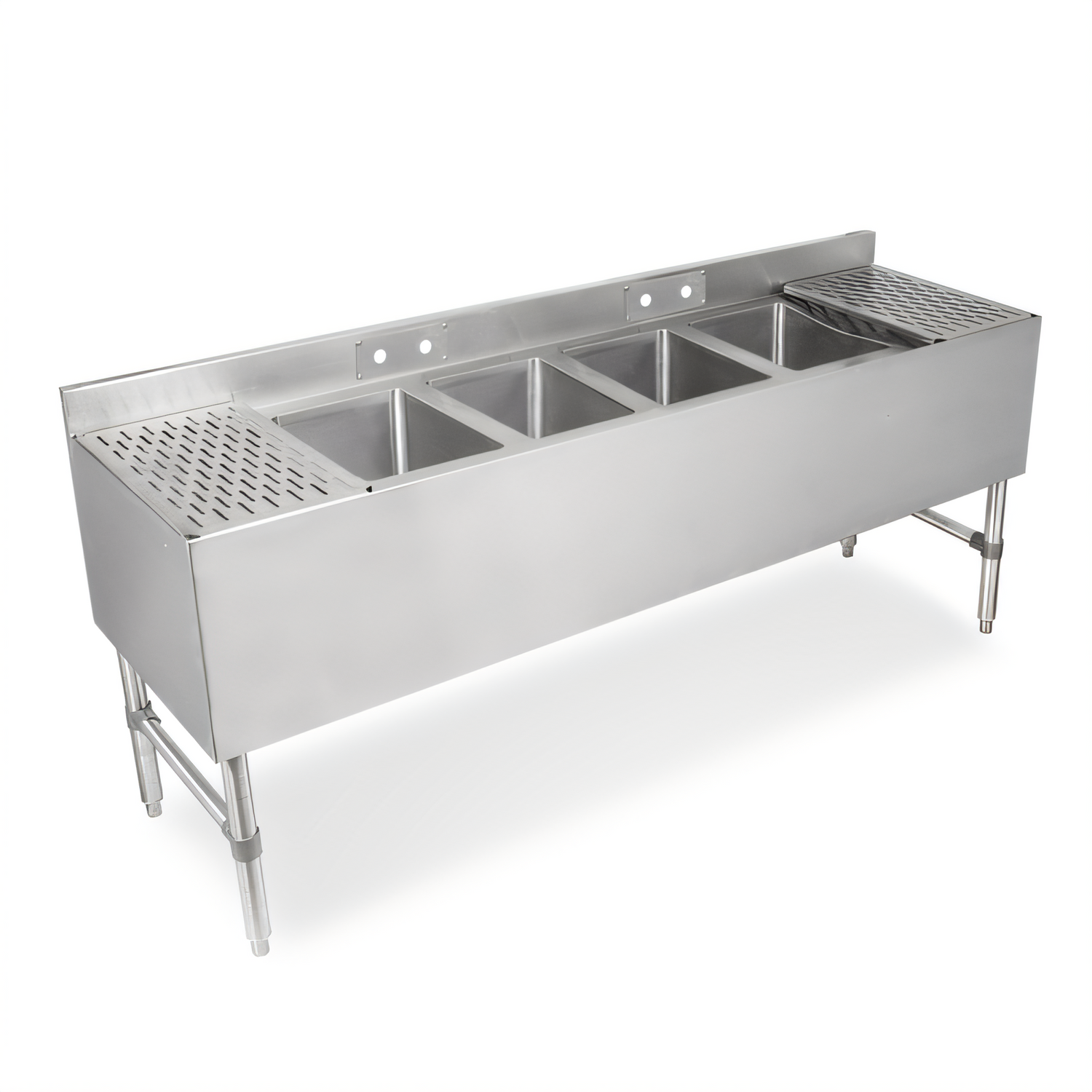

Faucets and side splashes pictured are not included unless added above. Always verify local plumbing codes before installation.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Slim-Line
Height
32.5in
Width
48.0in
Depth
18.0in
Shipping Weight
75.0lbs
Bowl Depth (rim - drain)
10"
Sink Compartments
(4)
Top Stainless Series
300 series
Bowl Size
10" x 14" front-to-back
Drainboards
without drainboards
Depth (front - back) OA
18" - 19"
Splash
3"
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
43" - 48"
Specifications
Slim-Line Underbar Sink Unit, 4-compartment, 48"W x 18"D x 32-1/2"H overall size, (4) 10"W x 14" front-to-back x 10" deep compartments, 3"H backsplash, (2) sets of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF, (weights are subject to additional packaging)
