John Boos | SKU:
UBS3C-1848-2D18-X
John Boos UBS3C-1848-2D18-X Bar Equipment
$2,522.46
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos UBS3C-1848-2D18-X Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBS3C-1848-2D18-X Bar Equipment
$2,522.46
Unit price
/
Unavailable
Description

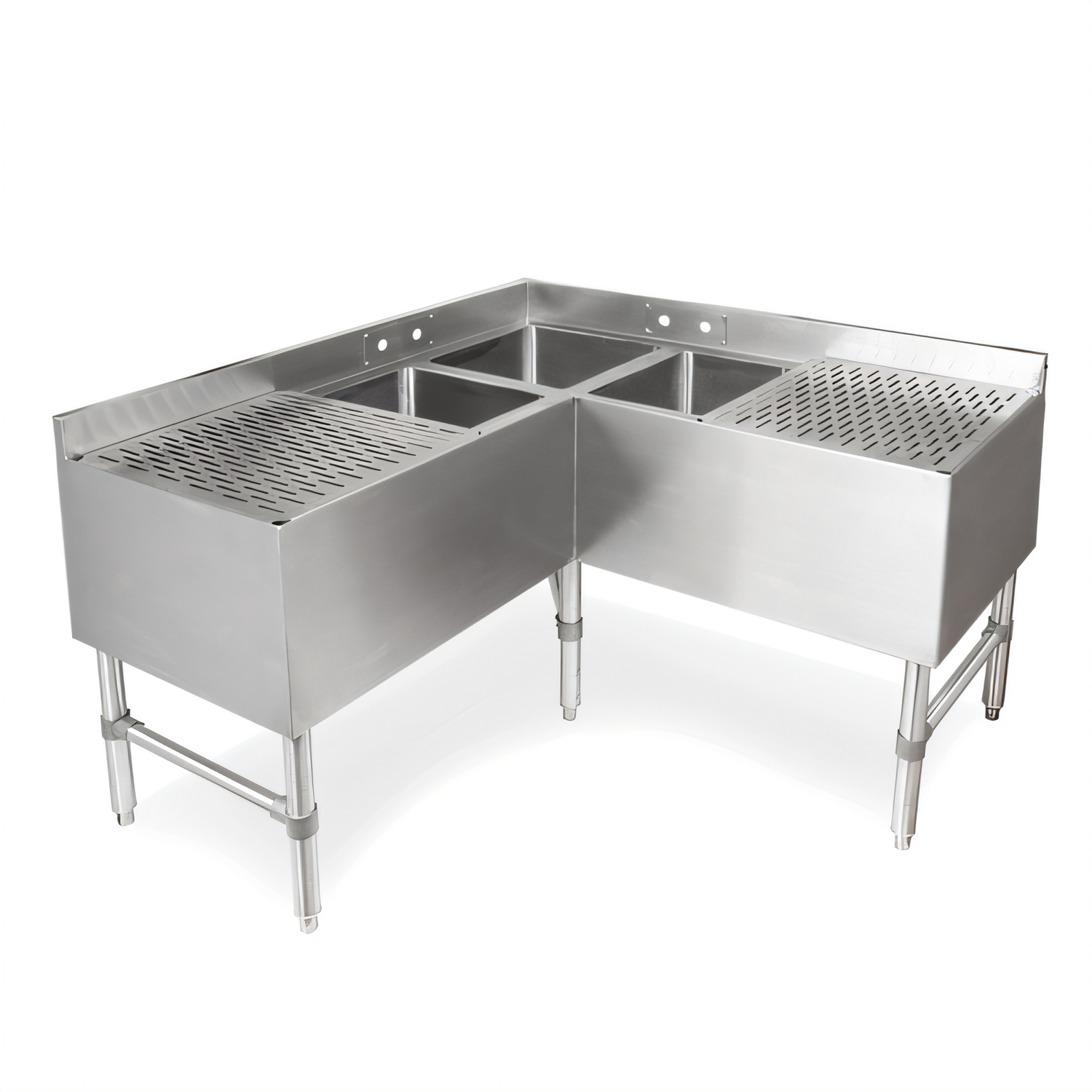

John Boos UBS3C-1848-2D18 Slim-Line Underbar Corner Sink
48" W x 18" D x 32-1/2" H • 3 Compartments • Dual 18" DrainboardsFree up premium bar space without sacrificing workflow. The NSF-listed John Boos UBS3C-1848-2D18 tucks neatly into a 90° corner, providing three separate 10"-deep wash bays and two full-length drainboards—all in a slim 18" front-to-back footprint.
Highlights
- Space-saving L-shape fits bar corners & pass-throughs

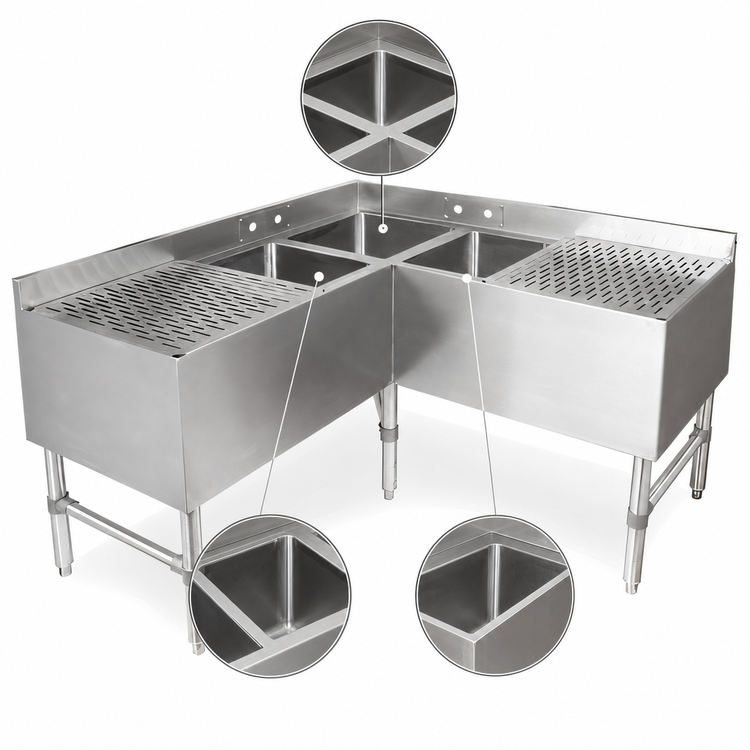

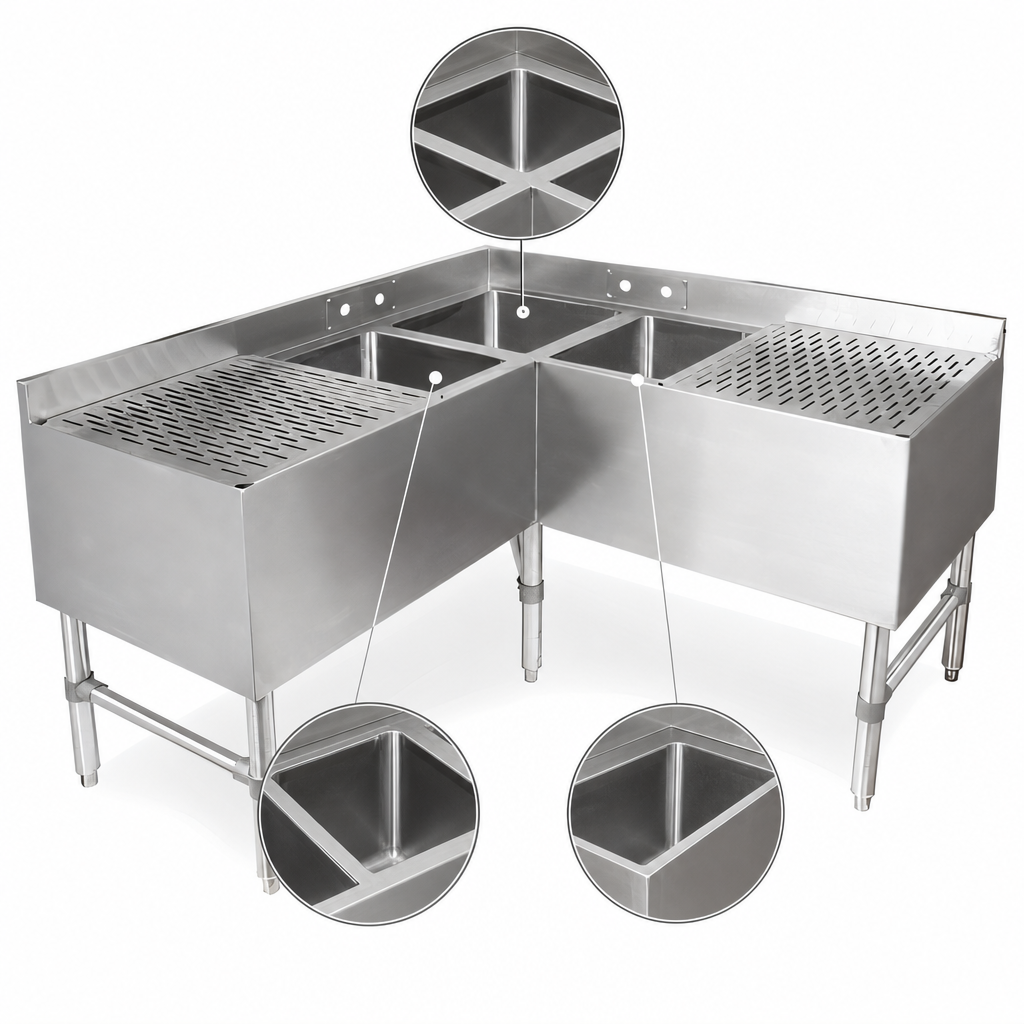

- Three fabricated bowls: (1) 14" × 14" × 10" corner & (2) 10" × 14" × 10" side compartments
- Left & right 18" drainboards with removable perforated inserts for rapid air-drying

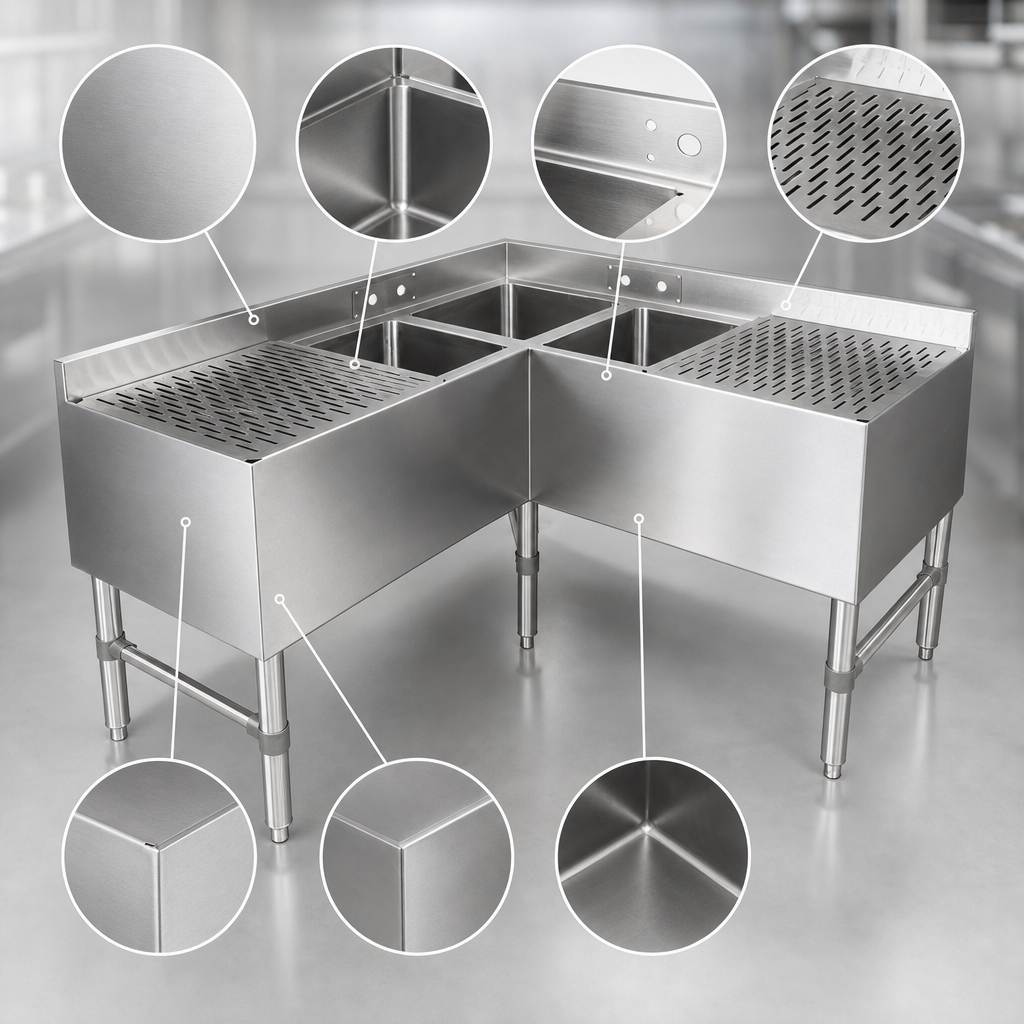

- 18 ga. Type 300 stainless steel with #4 satin finish—built for years of heavy service
- 3" integral backsplash with side-mount holes for joining adjacent underbar units
- (2) removable splash-mount faucet plates, pre-drilled 4" on-center for quick plumbing
- Includes 1-1/2" basket drains & PB-OVF-BS overflow stand pipes
- 1-5/8" stainless legs, front-to-back bracing & adjustable bullet feet for rock-solid stability
- NSF certified for sanitation and public-health safety
Ideal for
- High-volume cocktail, wine & craft-beer bars
- Tasting rooms, cafés & concessions with tight footprints
- Corner stations in commercial kitchens & prep areas
Specifications
| Model | UBS3C-1848-2D18 |
|---|---|
| Overall size | 48" W × 18" D × 32-1/2" H |
| Compartments (Qty 3) | (1) 14" W × 14" F/B × 10" D | (2) 10" W × 14" F/B × 10" D |
| Drainboards | 18" L (left) & 18" L (right) with perforated inserts |
| Backsplash height | 3" |
| Faucet mounting | (2) removable plates, 4" on-center holes |
| Drain connection | 1-1/2" NPS |
| Material | 18 ga. 18/300 series stainless steel, #4 polish |
| Legs / bracing | 1-5/8" Ø stainless legs with front-to-back bracing |
| Feet | Adjustable stainless steel bullet feet |
| Weight | 105 lb (shipping weight may vary with packaging) |
| Certifications | NSF |
Compatible accessories (sold separately)
- UBSS-18-L / UBSS-18-R side splashes
- PBF-4SM2-10LF heavy-duty 4" splash-mount faucet
- PBF-W2-10LF economy 4" splash-mount faucet
- PB-WL-36 flexible shallow-mount faucet hoses
Important: Faucets and side splashes are not included and must be ordered separately.
Confirm all local plumbing codes before installation.
Specifications subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Height
32.5in
Width
48.0in
Depth
18.0in
Shipping Weight
105.0lbs
Top Stainless Series
300 series
Bowl Size
10" x 14" front-to-back
Drainboards
drainboards on left & right
Depth (front - back) OA
18" - 19"
Sink Compartments
(3)
Splash
3"
Bowl Depth (rim - drain)
10"
Construction
stainless steel top, front, ends & legs
Width (side - side) OA
43" - 48"
Specifications
Underbar Corner Sink Unit, 3-compartment, 48"W x 18"D x 32-1/2"H overall size, (1) 14"W x 14" front-to-back and (2) 10"W x 14" front-to-back x 10" deep compartments, 18" drainboard on left and right with removable perforated insert, 3"H backsplash, (2) set of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF, (weights are subject to additional packaging)
