John Boos UBS3-2184-2D24 Bar Equipment
Description

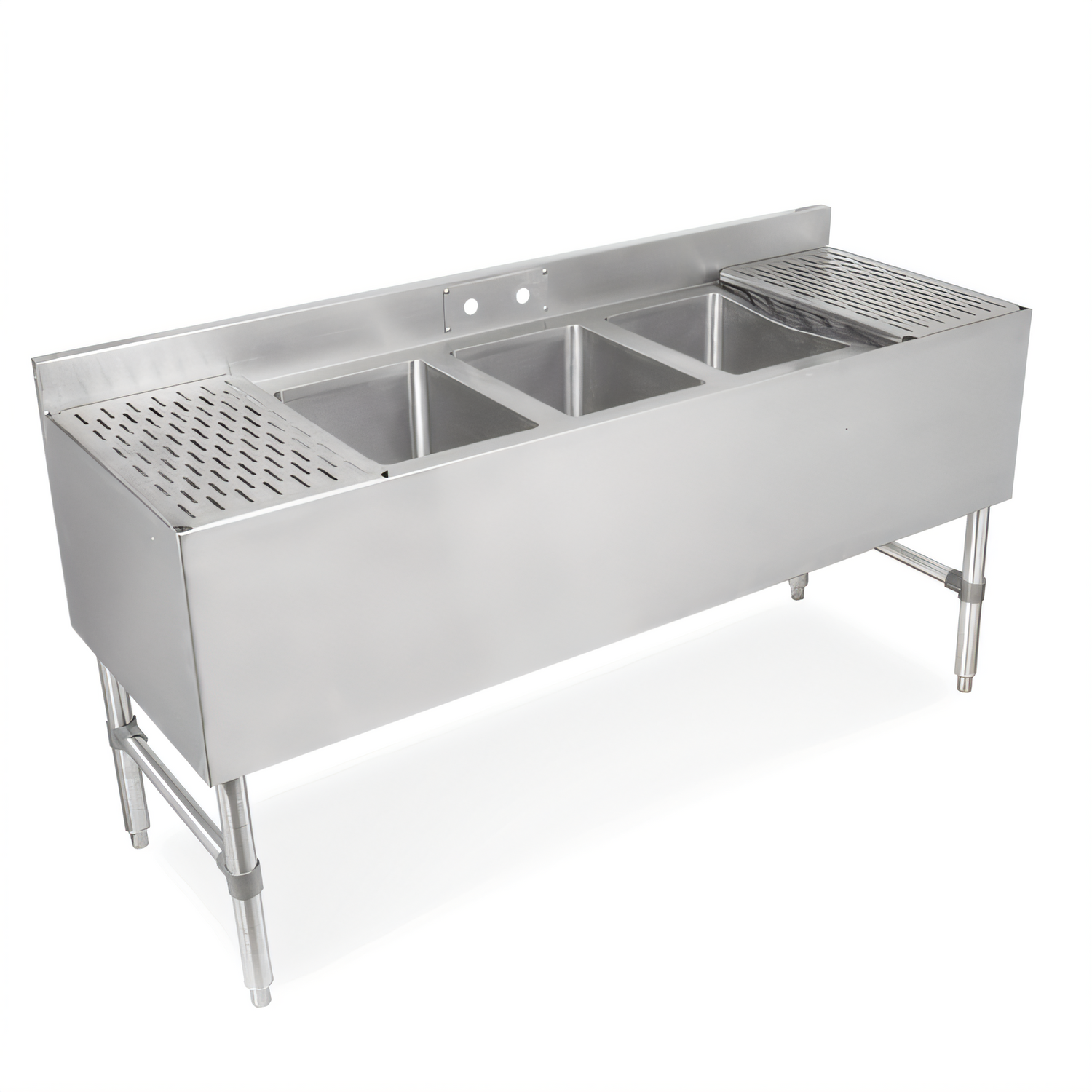

John Boos 84" Underbar 3-Compartment Sink – Model UBS3-2184-2D24
Dual 24" drainboards • Heavy-duty 18 GA Type 300 stainless • NSF CertifiedEngineered for high-volume bars, tasting rooms and beverage stations, this John Boos underbar sink combines three generous wash compartments with two full-size drainboards. Rugged 18 gauge stainless steel, quick-mount legs and NSF sanitation approval make it a dependable workhorse that installs fast and cleans up even faster.
Highlights at a Glance

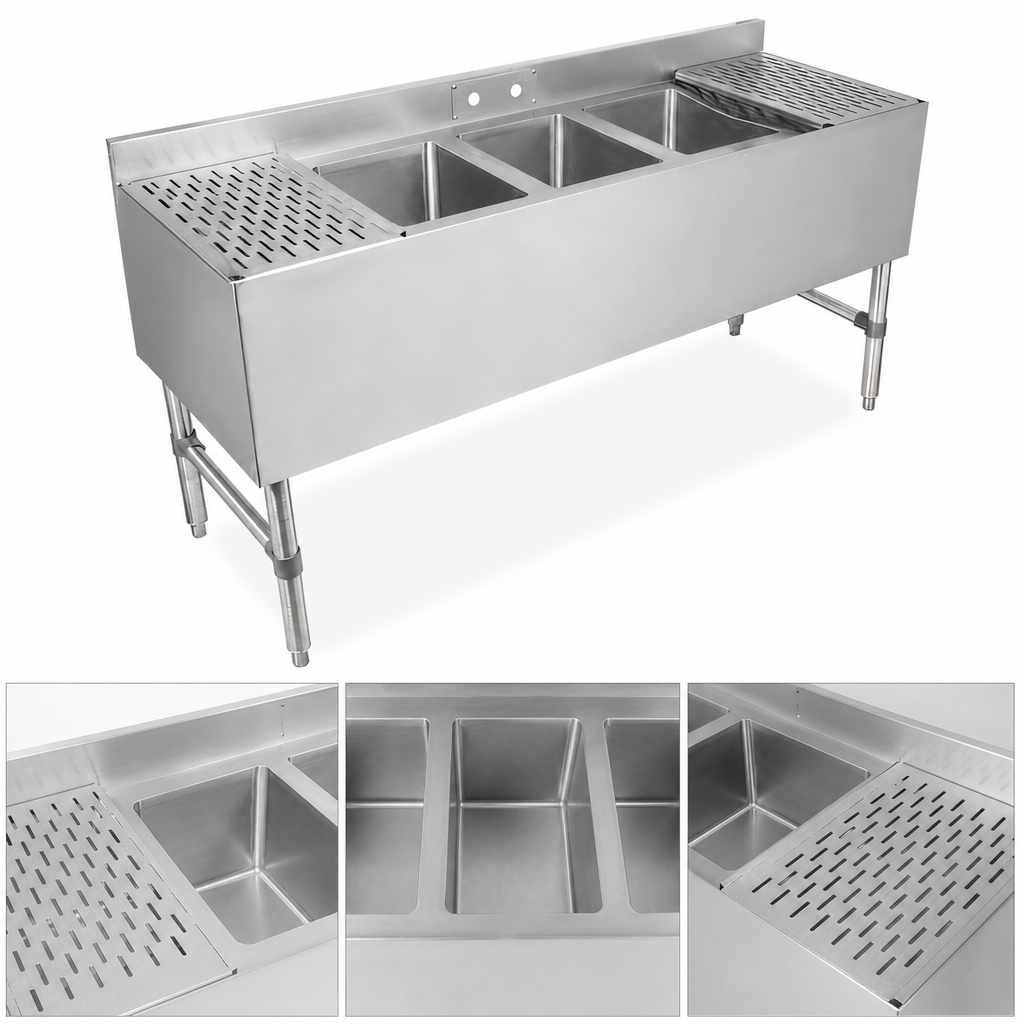

- (3) fabricated bowls, 10" W × 14" F/B × 10" D – perfect for wash/rinse/sanitize setup

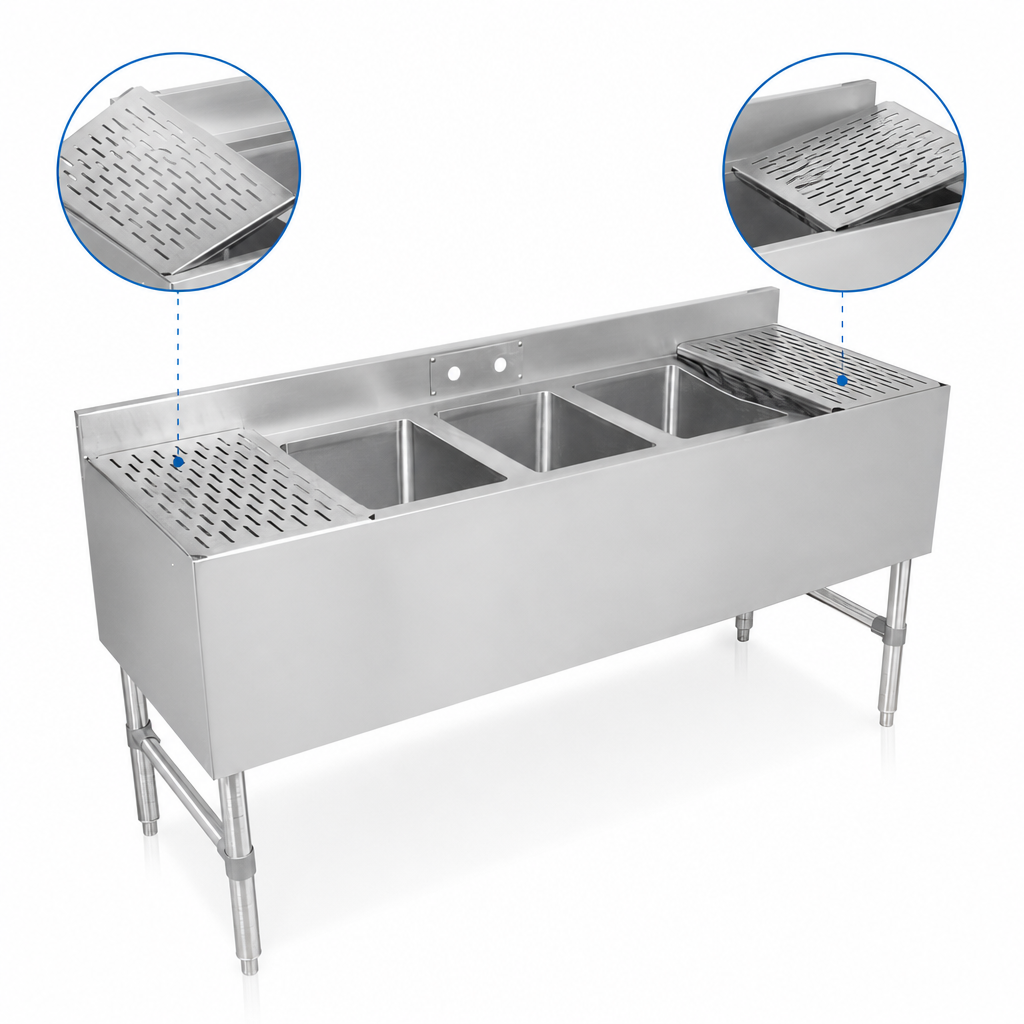

- (2) 24" drainboards with removable perforated inserts for superior air circulation & drying
- Removable faucet plate with 4" on-center splash-mount holes – plumb after the unit is in place
- 3" high backsplash protects walls; pre-drilled side holes let you bolt on adjacent underbar units
- 18 GA Type 300 stainless throughout with #4 satin finish – corrosion-resistant and easy to wipe clean
- Bolt-on 1-5/8" Ø stainless steel legs & front-to-back bracing; adjustable 1" bullet feet for perfect leveling
- Includes 1-1/2" drains and PB-OVF-BS overflow stand pipes
- NSF listed for food-service compliance
Detailed Specifications
| Overall width × depth × height | 84" W × 21" D × 32-1/2" H (35-1/2" H to top of backsplash) |
|---|---|
| Sink bowl interior (each) | 10" W × 14" front-to-back × 10" D |
| Drainboards | (2) 24" L integrated, creased for positive drainage, removable perforated inserts |
| Backsplash height | 3" |
| Faucet mounting | Removable splash plate, 4" on-center holes (faucet sold separately) |
| Material & finish | 18 GA Type 300 stainless, #4 satin polish |
| Legs & bracing | 1-5/8" Ø stainless legs, stainless front-to-back bracing, adjustable stainless bullet feet |
| Drain connection | 1-1/2" NPS, drains & overflow stand pipes included |
| Certifications | NSF |
| Approx. weight | 118 lb (shipping weight may vary with packaging) |
Popular Add-Ons ⇢ (Sold Separately)
- UBSS-21-L / UBSS-21-R – left or right side splash panels
- PBF-4SM2-10LF – heavy-duty 4" center splash-mount faucet
- PBF-W2-10LF – economy splash-mount faucet
- PB-WL-36 – flexible shallow-mount faucet hoses
Fast Installation, Easy Care
- Bolt-on legs and included Z-clip simplify wall mounting and leveling.
- Stainless surface wipes clean with non-chloride cleaner; periodic polish keeps the #4 finish gleaming.
- Refer to included assembly & care manuals for complete instructions.
Faucets, side splashes and glass rack accessories shown in lifestyle images are available separately. Always verify local plumbing codes before installation.
