John Boos

John Boos 72-Inch 3-Compartment Underbar Sink Unit with Dual 18-Inch Drainboards

SKU: UBS3-2172-2D18-X
$1,880.01
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

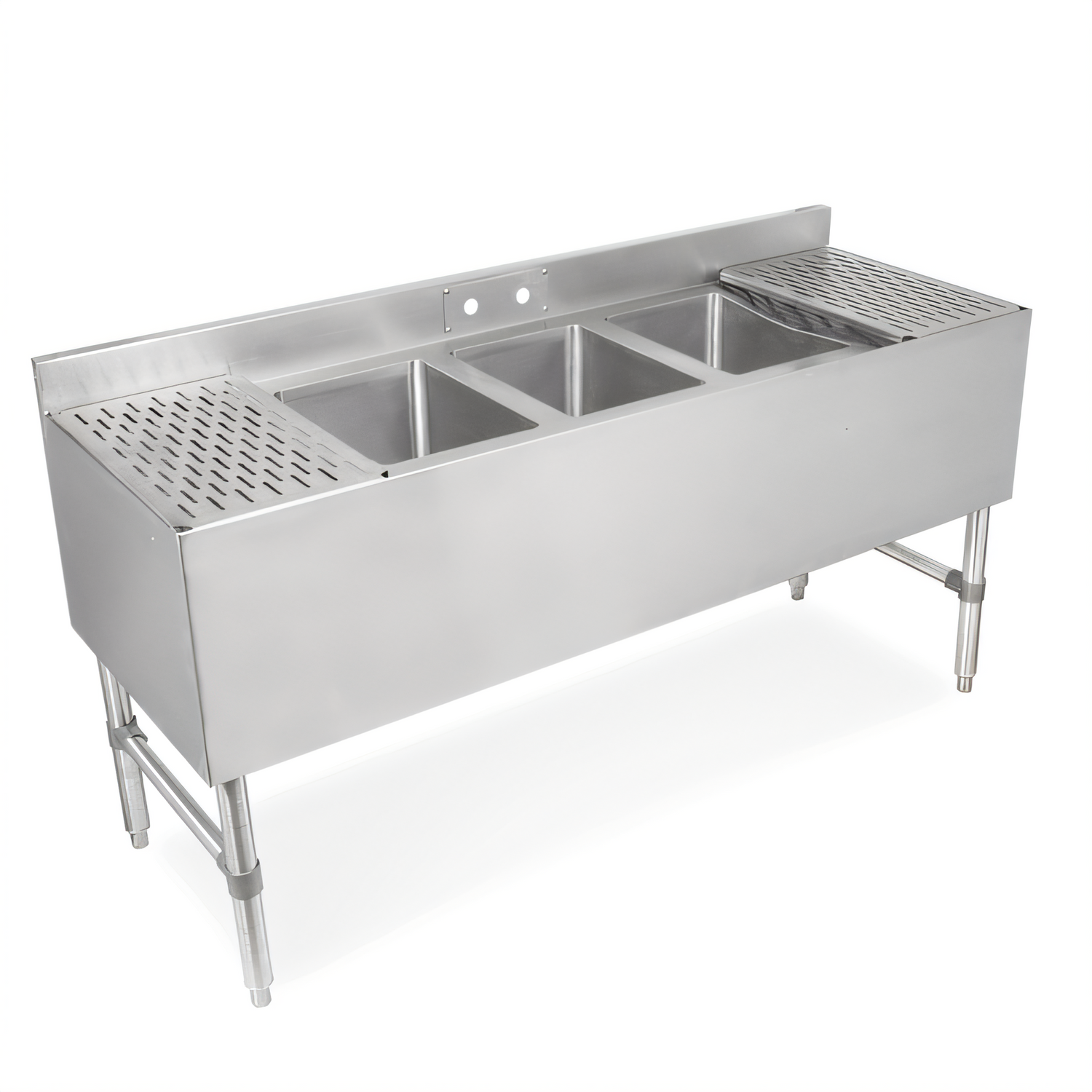

John Boos 72-Inch 3-Compartment Underbar Sink Unit with Dual 18-Inch Drainboards

Floor Model, 18/300 Stainless Steel, 3-Inch Backsplash, Splash-Mount Faucet Holes

Built for busy beverage and bar stations, this underbar sink combines three wash compartments, dual drainboards, and durable stainless steel construction in one compact unit.

  • Three 10 x 14 x 10-inch compartments support rinsing, washing, and prep tasks.
  • 18-inch drainboards on both sides provide convenient landing and drying space.
  • 3-inch backsplash and splash-mount faucet holes help simplify installation and reduce splash.
  • Includes 1-1/2-inch drains and overflow stand pipes.
  • Stainless steel legs, side bracing, and adjustable bullet feet add strength and leveling support.
  • Removable perforated drainboard inserts make cleanup easier.

Overall Dimensions:

72.0"W x 21.0"D x 32.5"H

Product Weight:

106.0 lb

Three Sink Compartments

Three compartments measure 10 inches wide x 14 inches front-to-back x 10 inches deep each for multi-step sink workflow.

Dual 18-Inch Drainboards

Left and right drainboards add landing space and help move cleanware or prep items away from the sink area.

Removable Perforated Inserts

Drainboard inserts lift out for easier cleaning and improved drainage.

3-Inch Backsplash

The backsplash helps protect the wall behind the unit from splashes and spills.

Splash-Mount Faucet Holes

One set of faucet holes with 4-inch centers supports splash-mount faucet installation.

Included Drain Assembly

Includes 1-1/2-inch drains and overflow stand pipes.

Stainless Steel Construction

Built with 18/300 stainless steel top, front, ends, legs, and side bracing for durability.

Adjustable Bullet Feet

Stainless steel bullet feet make leveling easier on uneven floors.

Type Underbar Sink Unit
Style 3-Compartment
Installation Type Floor Model
Compartments 3
Material Stainless Steel
Finish Stainless Steel
Shipping Width 72 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 106 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 72 inches wide x 21 inches deep x 32-1/2 inches high.
Each compartment measures 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes, it includes 18-inch drainboards on the left and right with removable perforated inserts.
Yes, the unit includes 1-1/2-inch drains and overflow stand pipes.
Yes, it includes one set of splash-mount faucet holes with 4-inch centers.
