John Boos UBS3-2172-2D18 Bar Equipment
Description

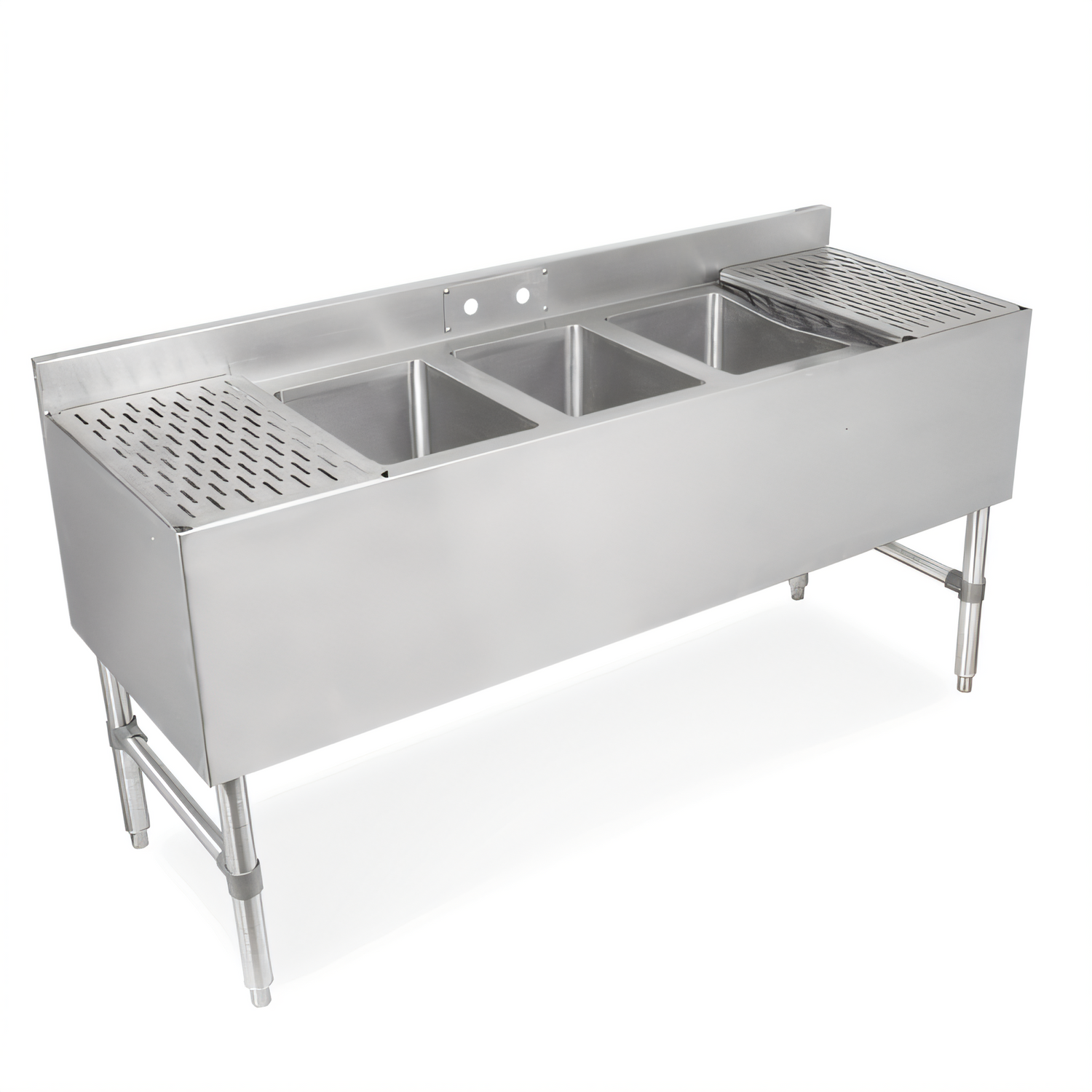

John Boos UBS3-2172-2D18 Underbar 3-Compartment Sink – 72"W
18 GA Type 300 Stainless Steel • Dual 18" Drainboards • NSF ListedGive your bar, café or concession stand a truly professional wash-rinse-sanitize station. The 72" long John Boos UBS3-2172-2D18 packs three deep compartments and extra-large drainboards into a sleek, easy-to-clean footprint that keeps glassware moving and staff working efficiently during peak service.
Built for busy beverage service

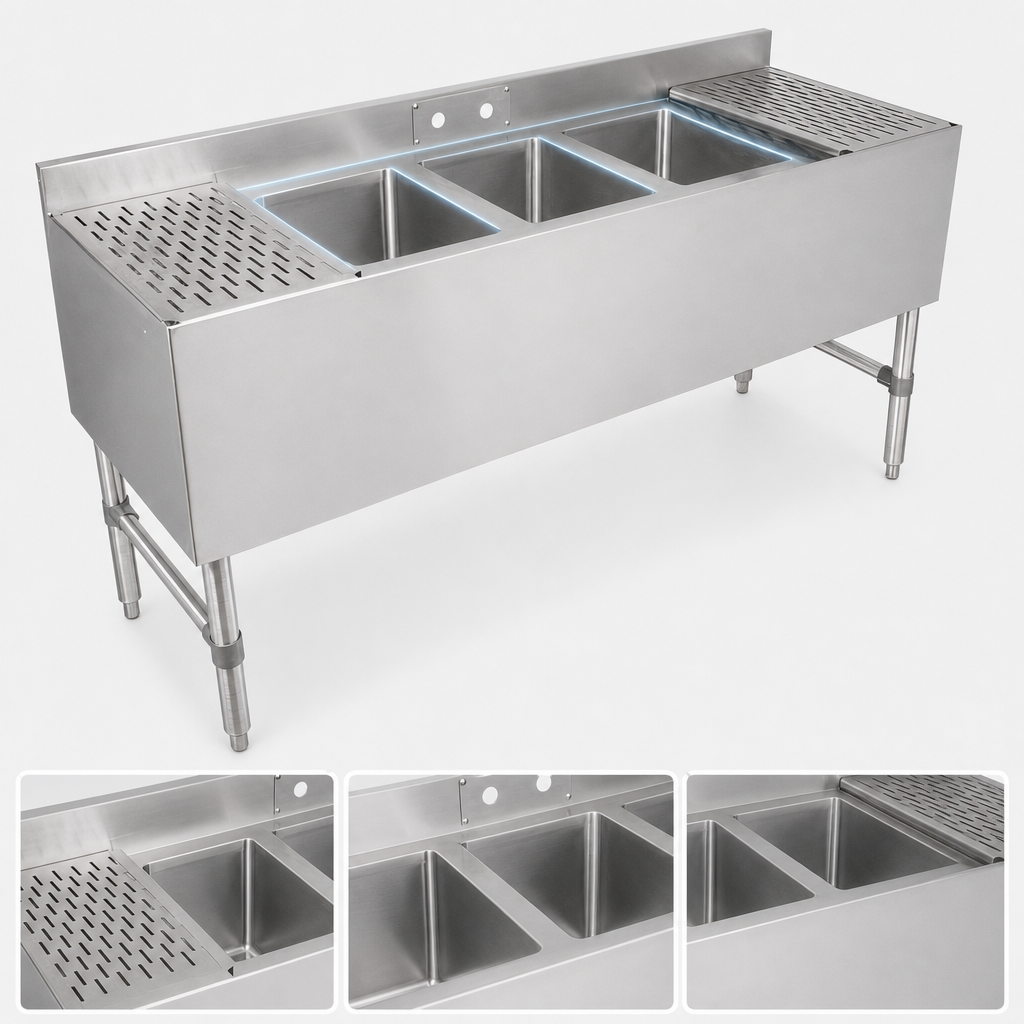

- Three 10"W × 14"F-B × 10"D bowls handle standard wash, rinse & sanitize steps.

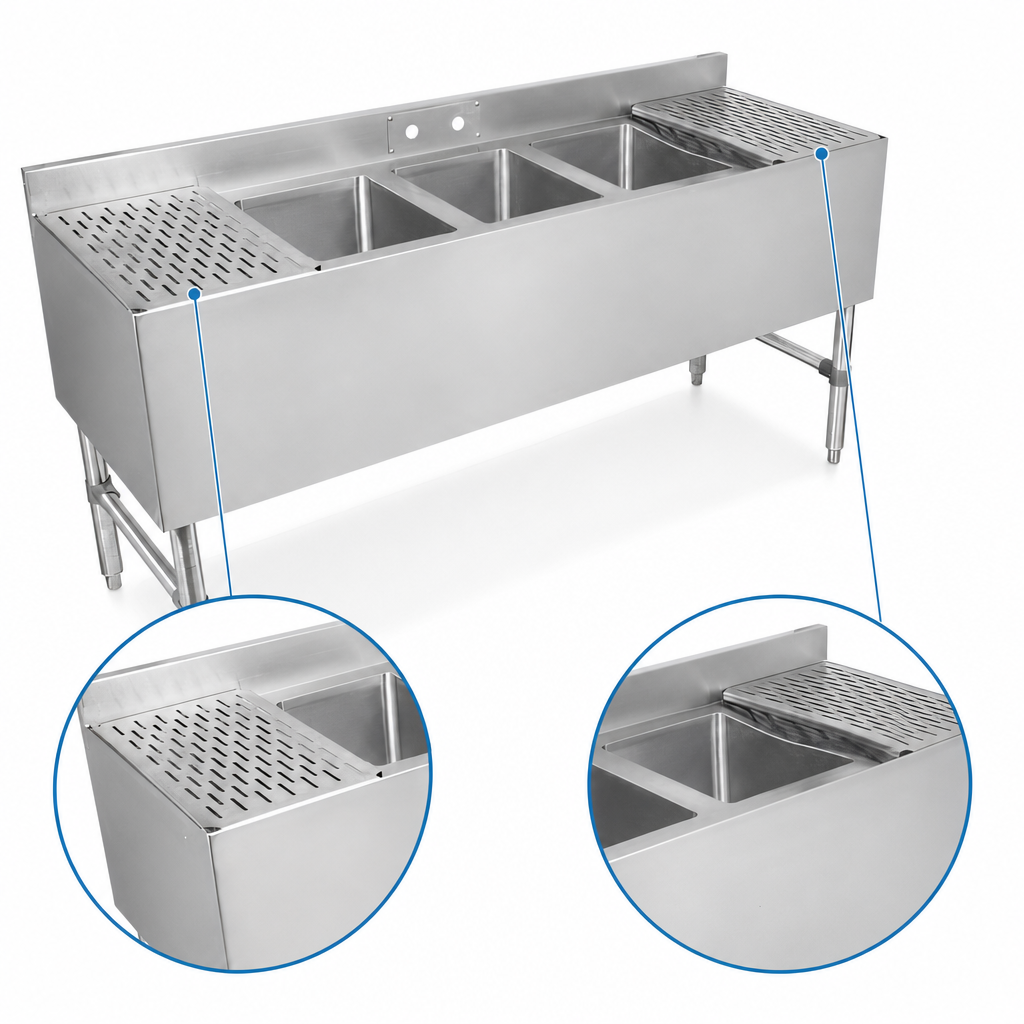

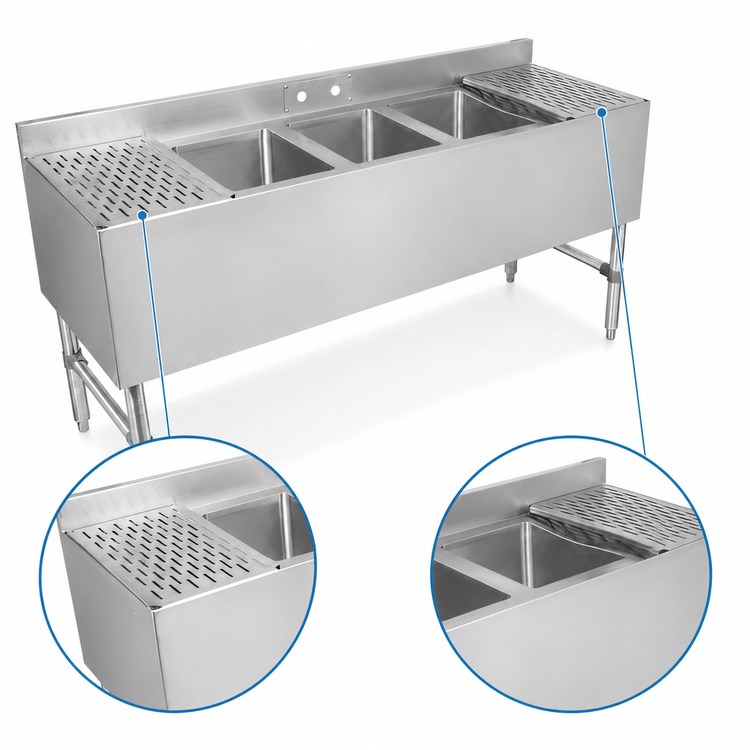

- 18" left & right drainboards with removable perforated inserts elevate glassware for rapid air-drying.
- 3" high backsplash with removable faucet plate and 4" on-center splash-mount holes—add your preferred faucet in minutes.
- 18 GA, Type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast.
- Bolt-on 1-5/8" Ø stainless legs, 1-1/4" side bracing & adjustable 1" bullet feet deliver rock-solid stability on uneven floors.
- NSF certified for open food-zone use—meets the strictest health-code requirements.
At-a-glance specifications
| Model # | UBS3-2172-2D18 |
|---|---|
| Overall size | 72"W × 21"D × 32-1/2"H |
| Compartments (3) | 10"W × 14"F-B × 10"D |
| Drainboards | 18" left & 18" right (creased, with removable inserts) |
| Backsplash height | 3" |
| Faucet mounting | Splash-mount plate, 4" centers (faucet not included) |
| Drains | 1-1/2" drains with basket strainers & overflow stand pipes (PB-OVF-BS) |
| Material / finish | 18 GA Type 300 stainless steel, #4 satin |
| Legs & bracing | Stainless steel legs, side bracing, 1" adjustable SS bullet feet |
| Unit weight | Approx. 106 lb (shipping weight may vary) |
| Certifications | NSF |
What’s in the box
- John Boos UBS3-2172-2D18 3-compartment sink with dual drainboards
- (3) Perforated drainboard inserts
- (3) 1-1/2" drains with basket strainers
- (3) Overflow stand pipes (PB-OVF-BS)
- Bolt-on stainless legs, side bracing & hardware
Quick installation
- Bolt-on leg design cuts assembly time—no welding required.
- Pre-drilled side holes make it easy to attach adjacent underbar modules.
- Z-clip included for optional wall mounting (fasteners by installer).
Faucet and supply lines are sold separately.
Stainless steel care
- Clean daily with non-chloride detergents and a soft cloth or sponge.
- For stubborn stains, use Bar Keepers Friend® followed by a thorough rinse and dry.
- Avoid abrasive pads, steel wool and chlorine bleach to maintain the protective satin finish.
- Apply John Boos Stainless Steel Cleaner regularly to polish and restore luster.
Note: Weights and dimensions are nominal and may vary slightly due to normal manufacturing tolerances and packaging.
