John Boos

John Boos 60-Inch 3-Compartment Underbar Sink Unit with Dual Drainboards and 3-Inch Backsplash

SKU: UBS3-2160-2D12-X
$1,675.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

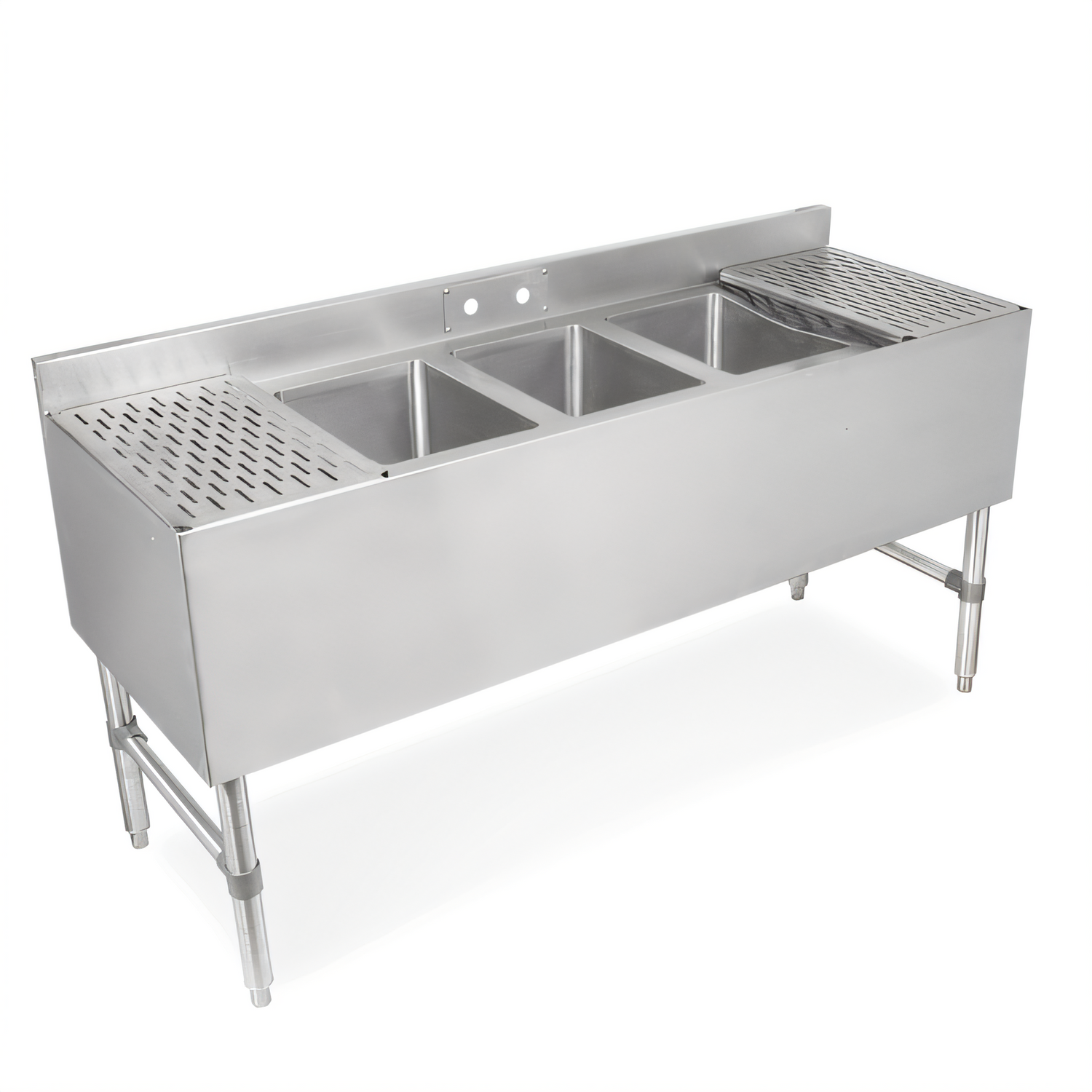

John Boos 60-Inch 3-Compartment Underbar Sink Unit with Dual Drainboards and 3-Inch Backsplash

21-Inch Deep, Stainless Steel, Floor Model

This heavy-duty underbar sink unit combines three compartments, dual drainboards, and integrated drain hardware in a compact 60-inch footprint built for commercial beverage service.

  • Three-compartment sink layout supports efficient washing, rinsing, and dumping workflows.
  • Left and right 12-inch drainboards include removable perforated inserts for added convenience.
  • 3-inch backsplash helps contain splashes and protect the wall area behind the sink.
  • Splash-mount faucet holes with 4-inch centers simplify faucet installation.
  • Includes 1-1/2-inch drains and overflow stand pipes.
  • Stainless steel top, front, ends, legs, and side bracing are built for commercial durability.
  • Adjustable stainless steel bullet feet help with leveling on uneven floors.

Overall Dimensions:

60.0"W x 21.0"D x 32.5"H

Product Weight:

94.0 lb

Three-Compartment Layout

Provides three separate sink compartments for organized underbar workflow.

Dual Drainboards

12-inch drainboards on the left and right add useful landing and drying space.

Removable Perforated Inserts

Drainboard inserts can be removed for cleaning and maintenance.

3-Inch Backsplash

Helps reduce splashing and keeps the surrounding wall area cleaner.

Splash-Mount Faucet Holes

Faucet holes are set on 4-inch centers for standard splash-mount faucet installation.

Included Drain and Overflow Hardware

Supplied with 1-1/2-inch drains and overflow stand pipes.

Stainless Steel Construction

Built with stainless steel top, front, ends, legs, and side bracing for long-lasting use.

Adjustable Bullet Feet

Stainless steel bullet feet allow for leveling and stable placement.

Type Underbar Sink Unit
Style 3-Compartment
Installation Type Floor Model
Material Stainless Steel
Compartments 3
Bowl Size 10 Inches x 14 Inches Front-to-Back x 10 Inches Deep
Drainboards Left and Right
Splash 3 Inches
Top Stainless Series 300 Series
Shipping Width 60 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 94 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 10 inches wide by 14 inches front-to-back by 10 inches deep.
Yes. It includes 12-inch drainboards on both the left and right sides, each with a removable perforated insert.
The unit includes 1-1/2-inch drains and overflow stand pipes.
Yes. This unit includes a 3-inch backsplash.
It has splash-mount faucet holes with 4-inch centers, and the instructions reference a removable faucet plate for mounting the faucet and hoses.
