Description

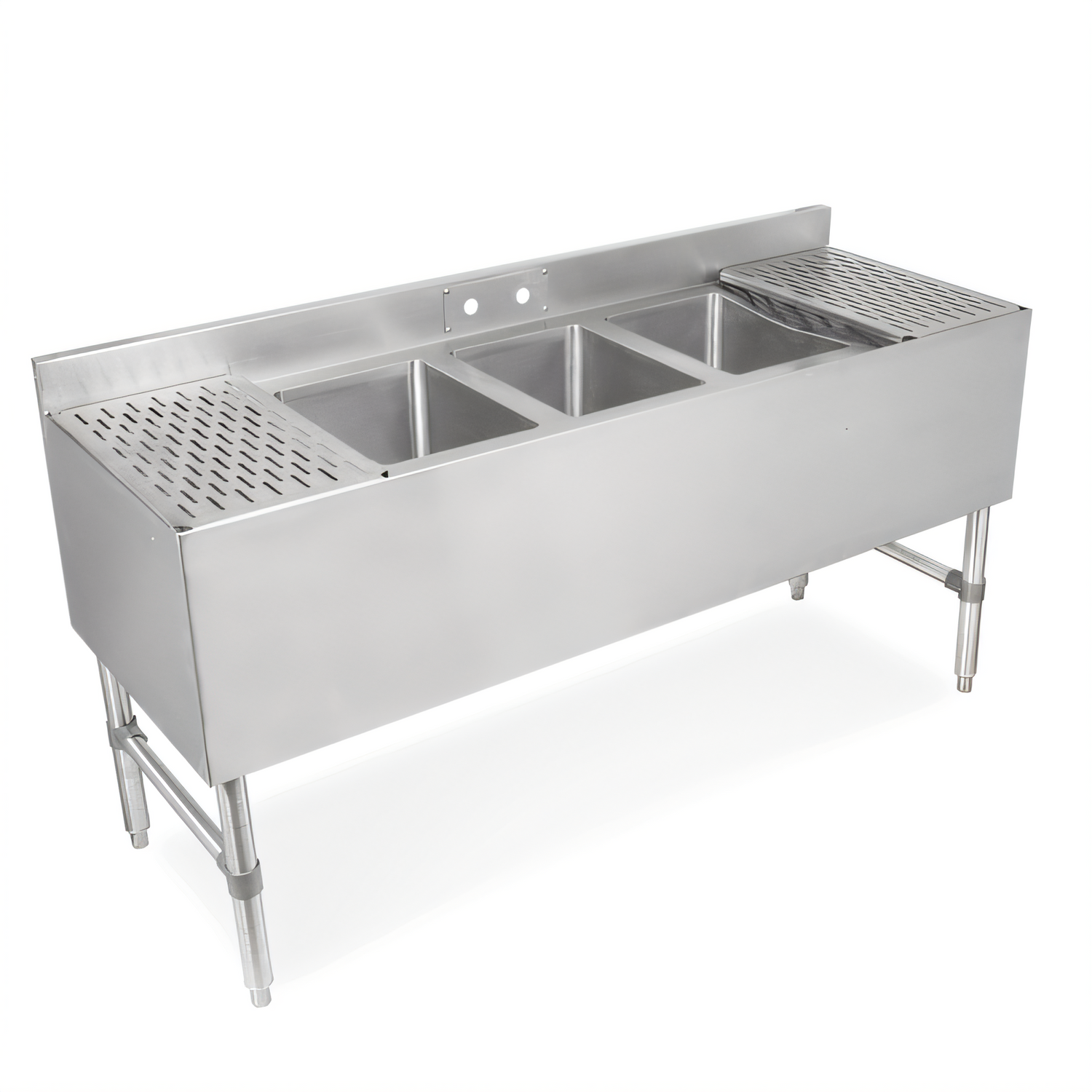

John Boos UBS3-2136 Underbar 3-Compartment Sink – 36" x 21"
Compact stainless steel bar sink with removable splash-mount faucet plateGive your bartenders the rugged, easy-clean workspace they need without giving up precious underbar real estate. Built from 18-gauge, 300-series stainless steel, the John Boos UBS3-2136 combines professional durability, smart installation features, and NSF sanitation compliance in a space-saving 36" footprint.
Key features & benefits

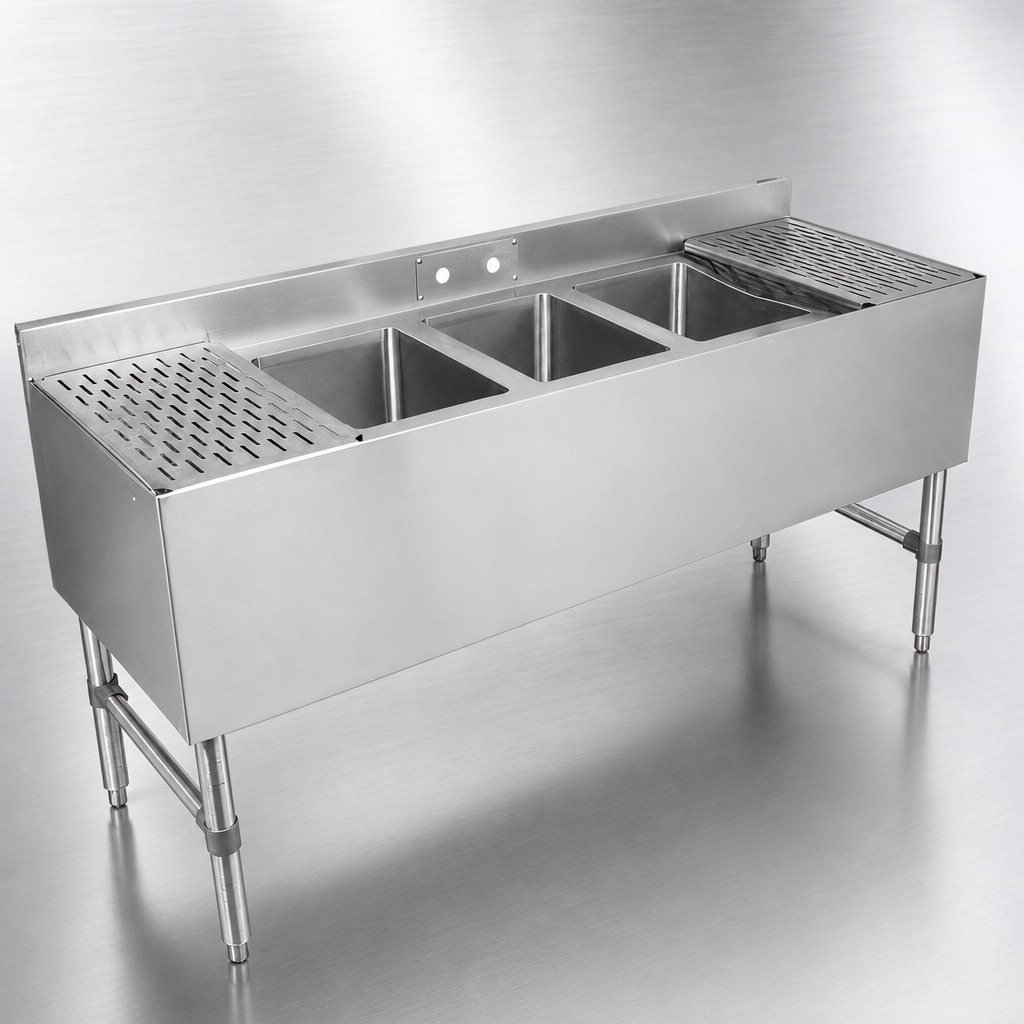

- 18 GA type 300 stainless steel throughout with #4 satin finish for lasting corrosion resistance
- Overall size: 36" W × 21" D × 32-1/2" H – perfect for tight bar layouts

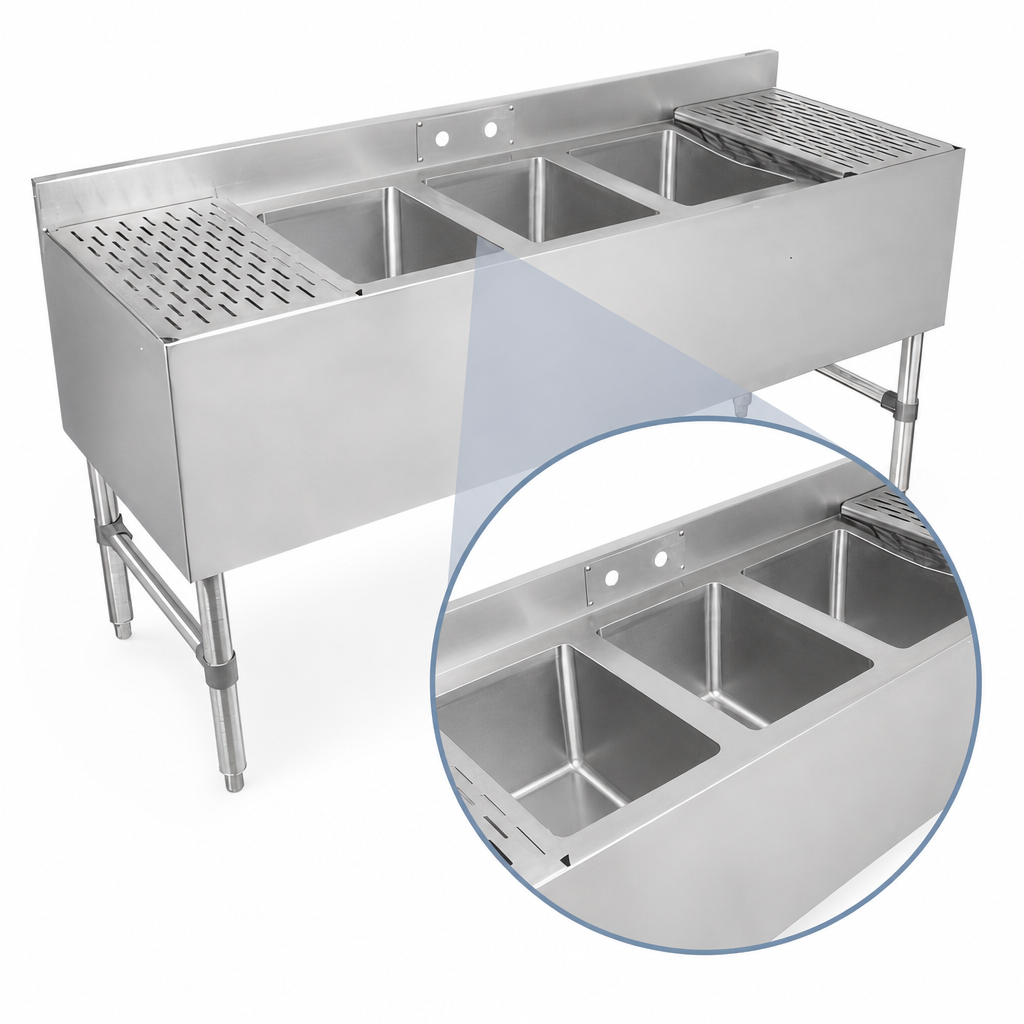

- Three fabricated sink bowls, each 10" W × 14" front-to-back × 10" deep
- 3" integral backsplash with removable faucet plate & 4" on-center splash-mount holes – plumb first, install later
- Includes 1-1/2" drains with basket strainers and PB-OVF-BS overflow stand pipes
- Bolt-on 1-5/8" Ø stainless steel legs with front-to-back side bracing for rock-solid stability
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- Pre-drilled side holes & supplied Z-clip speed wall and adjacent-unit mounting
- NSF certified – meets strict public-health & sanitation standards
At-a-glance specifications
| Model | UBS3-2136 |
|---|---|
| Compartments | 3 |
| Bowl size (each) | 10" W × 14" D × 10" H |
| Overall dimensions | 36" W × 21" D × 32-1/2" H |
| Backsplash height | 3" |
| Faucet holes | 4" centers (removable plate) |
| Drain connection | 1-1/2" NPS (basket strainers & stand pipes included) |
| Material / finish | 18 GA type 300 S/S, #4 satin |
| Legs & bracing | 1-5/8" Ø S/S legs with S/S side bracing |
| Feet | Adjustable stainless steel bullet feet |
| Weight | 67 lb * (unit only) |
| Certifications | NSF |
*Weights and dimensions are typical and may vary ±0.5" or with packaging.
Optional accessories (sold separately)
- UBSS-21-L / UBSS-21-R – left or right side splash
- PBF-4SM2-10LF – heavy-duty 4" center splash-mount faucet
- PBF-W2-10LF – economy 4" center faucet
- PB-WL-36 – flexible 36" shallow-mount faucet hoses
Quick care tips
- Clean daily with non-chloride detergents and a soft cloth or sponge
- Rinse and dry after every shift to preserve the protective chromium film
- Avoid abrasive pads & cleansers that can scratch the satin finish
- Restore shine with John Boos Stainless Steel Cleaner as needed
Heads up: Faucets, side splashes and other plumbing accessories must be ordered separately unless explicitly added to your cart.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
32.5in
Width
36.0in
Depth
21.0in
Shipping Weight
67.0lbs
Depth (front - back) OA
20" - 21"
Bowl Size
10" x 14" front-to-back
Width (side - side) OA
37" - 42"
Construction
stainless steel top, front, ends & legs
Drainboards
without drainboards
Splash
3"
Bowl Depth (rim - drain)
10"
Top Stainless Series
300 series
Sink Compartments
(3)
Specifications
Underbar Sink Unit, 3-compartment, 36"W x 21"D x 32-1/2"H overall size, (3) 10"W x 14" front-to-back x 10" deep compartments, 3"H backsplash, (1) set of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainlesss steel bullet feet, NSF, (weights are subject to additional packaging)
