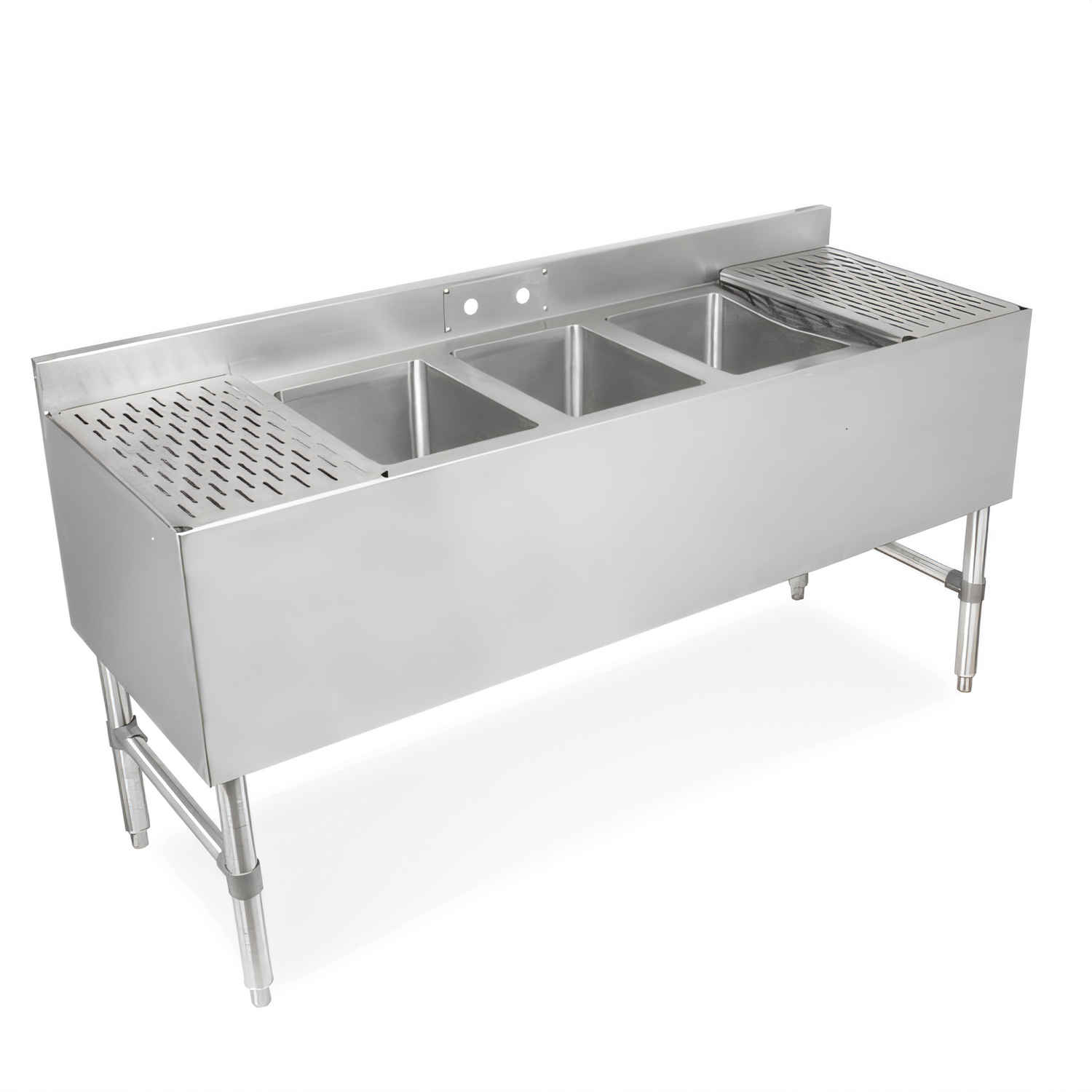

John Boos UBS3-2136 Underbar 3-Compartment Sink – 36"W
Space-saving bar sink built from heavy-duty 18 ga. Type 300 stainless steelEngineered for busy beverage stations, coffee bars, and compact prep areas, the John Boos UBS3-2136 packs full-service versatility into a 36 inch footprint. Three deep sink bowls handle rapid glassware turnover while the integrated backsplash and removable faucet plate simplify installation and keep your work area sanitized.
Key Features
- 3 sink compartments – each 10"W x 14"F-B x 10"D for glasses, barware, and small wares
- 18 ga. Type 300 stainless steel with #4 satin finish resists corrosion and wipes clean fast
- 3" high backsplash with factory-punched, removable faucet plate (4" on-center holes) for splash-mount faucets
- Includes (3) 1 ½" drains with basket strainers & overflow stand pipes (PB-OVF-BS)
- 1 ⅝" diameter stainless steel legs with front-to-back bracing for rock-solid stability
- Adjustable stainless steel bullet feet level the unit on uneven floors
- Pre-drilled side holes & provided Z-clip allow quick connection to adjacent underbar equipment
- NSF listed for open-food service applications
At-a-Glance Specs
| Model | UBS3-2136 |
|---|---|
| Overall Dimensions | 36"W x 21"D x 32 ½"H |
| Sink Bowls (3) | 10"W x 14"F-B x 10"D |
| Backsplash Height | 3" |
| Material & Finish | 18 ga. Type 300 stainless steel, #4 satin |
| Drain Size | 1 ½" NPS with basket strainer |
| Certifications | NSF |
| Approx. Net Weight | 67 lb (shipping weight may vary with packaging) |
Compatible Accessories (sold separately)
- PBF-4SM2-10LF heavy-duty splash-mount faucet
- PBF-W2-10LF economy splash-mount faucet
- UBSS-21-L / UBSS-21-R left or right side splashes
- PB-WL-36 flexible shallow mount faucet hoses
Need a longer run of underbar equipment? Use the factory side holes to bolt multiple John Boos UBS3-21 series pieces together for a seamless, easy-to-clean workstation.
