John Boos

John Boos Slim-Line 3-Compartment Underbar Sink Unit with Dual 24-Inch Drainboards, 84 x 18 Inch

SKU: UBS3-1884-2D24
GTIN: 662969778385
$2,952.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

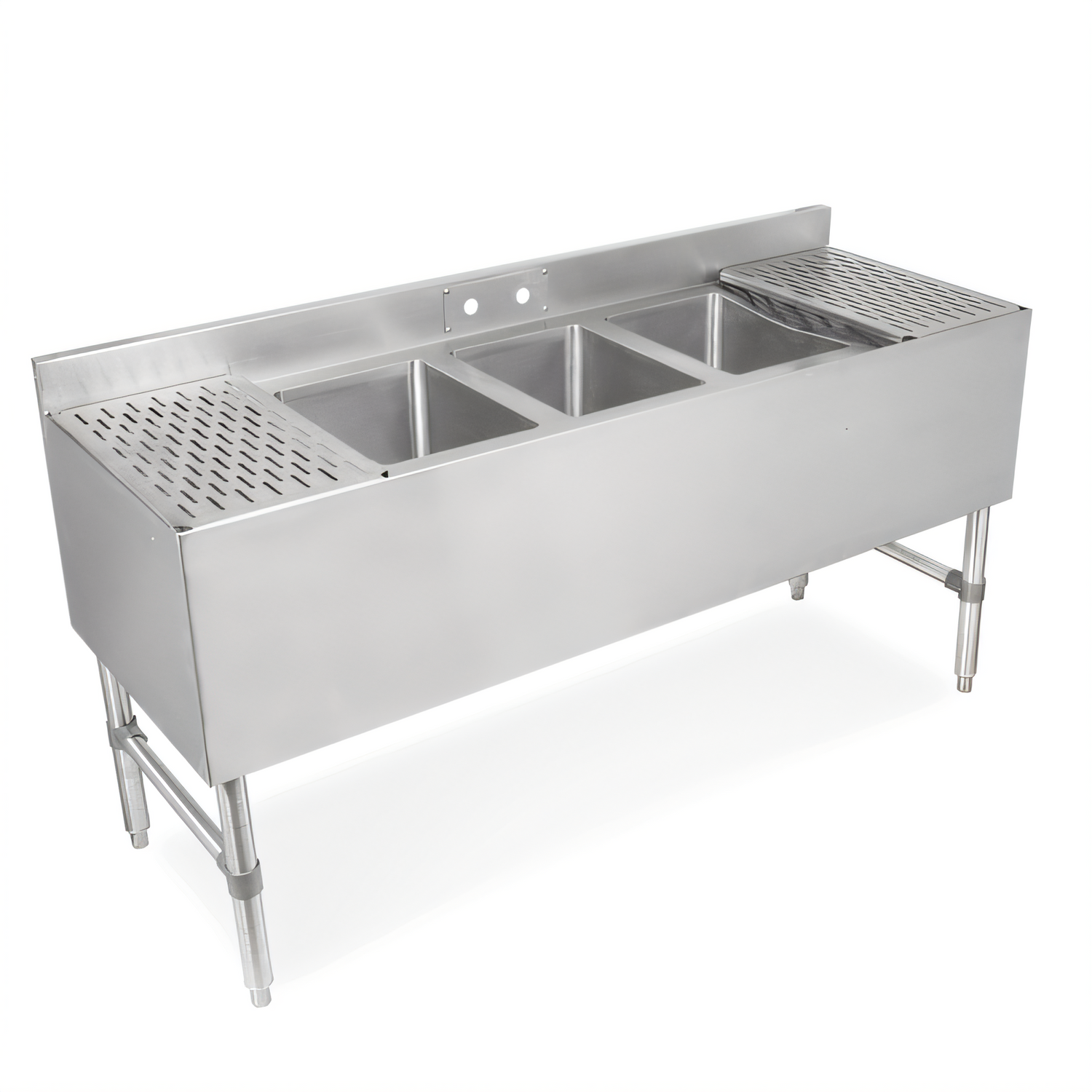

John Boos Slim-Line 3-Compartment Underbar Sink Unit with Dual 24-Inch Drainboards, 84 x 18 Inch

18/300 Stainless Steel Construction, 3-Inch Backsplash, Adjustable Bullet Feet

Built for busy beverage stations, this Slim-Line underbar sink combines three compartments, dual drainboards, and rugged stainless steel construction in a space-saving 84-inch footprint.

  • 84" x 18" Slim-Line footprint is designed to fit underbar layouts and tight service areas.
  • Three 10" x 14" x 10" compartments support washing, rinsing, and sanitizing workflows.
  • 24" drainboards on both left and right sides add staging and drainage space.
  • 18/300 stainless steel construction with stainless steel legs and side bracing for durability.
  • Includes 1-1/2" drains and overflow stand pipes for a complete sink setup.
  • 3" backsplash and splash-mount faucet hole layout help simplify installation and reduce splashing.

Overall Dimensions:

84.0"W x 18.0"D x 32.5"H

Product Weight:

111.0 lb

Slim-Line Underbar Footprint

Compact 84-inch-wide by 18-inch-deep design is sized for underbar beverage applications.

Three Sink Compartments

Three compartments measure 10 inches wide by 14 inches front-to-back and 10 inches deep for multi-step warewashing.

Dual Drainboards

24-inch drainboards are located on the left and right sides, each with a removable perforated insert.

Stainless Steel Construction

Built with 18/300 stainless steel construction, including the top, front, ends, legs, and side bracing.

3-Inch Backsplash

The backsplash helps protect adjacent walls and surfaces from splashing during sink use.

Faucet Hole Layout

Includes one set of splash-mount faucet holes with 4-inch centers.

Included Drain Components

Supplied with 1-1/2-inch drains and overflow stand pipes, model PB-OVF-BS.

Adjustable Bullet Feet

Stainless steel bullet feet provide leveling adjustment for stable installation.

Type Underbar Sink Unit
Style Slim-Line
Installation Type Freestanding
Material Stainless Steel
Compartments 3
Bowl Size 10 Inches x 14 Inches Front-to-Back x 10 Inches Deep
Drainboards Left and Right
Drainboard Length 24 Inches Each
Backsplash Height 3 Inches
Faucet Hole Centers 4 Inches On Center
Drain Connection Size 1-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 111 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 84 inches wide by 18 inches deep by 32-1/2 inches high.
It has three compartments, each measuring 10 inches wide by 14 inches front-to-back by 10 inches deep.
Yes. It includes 24-inch drainboards on both the left and right sides with removable perforated inserts.
The unit includes 1-1/2-inch drains and overflow stand pipes, identified as PB-OVF-BS.
It is constructed from 18/300 stainless steel, including the top, front, ends, legs, and side bracing.
Yes. The unit includes one set of splash-mount faucet holes with 4-inch centers.
