Description

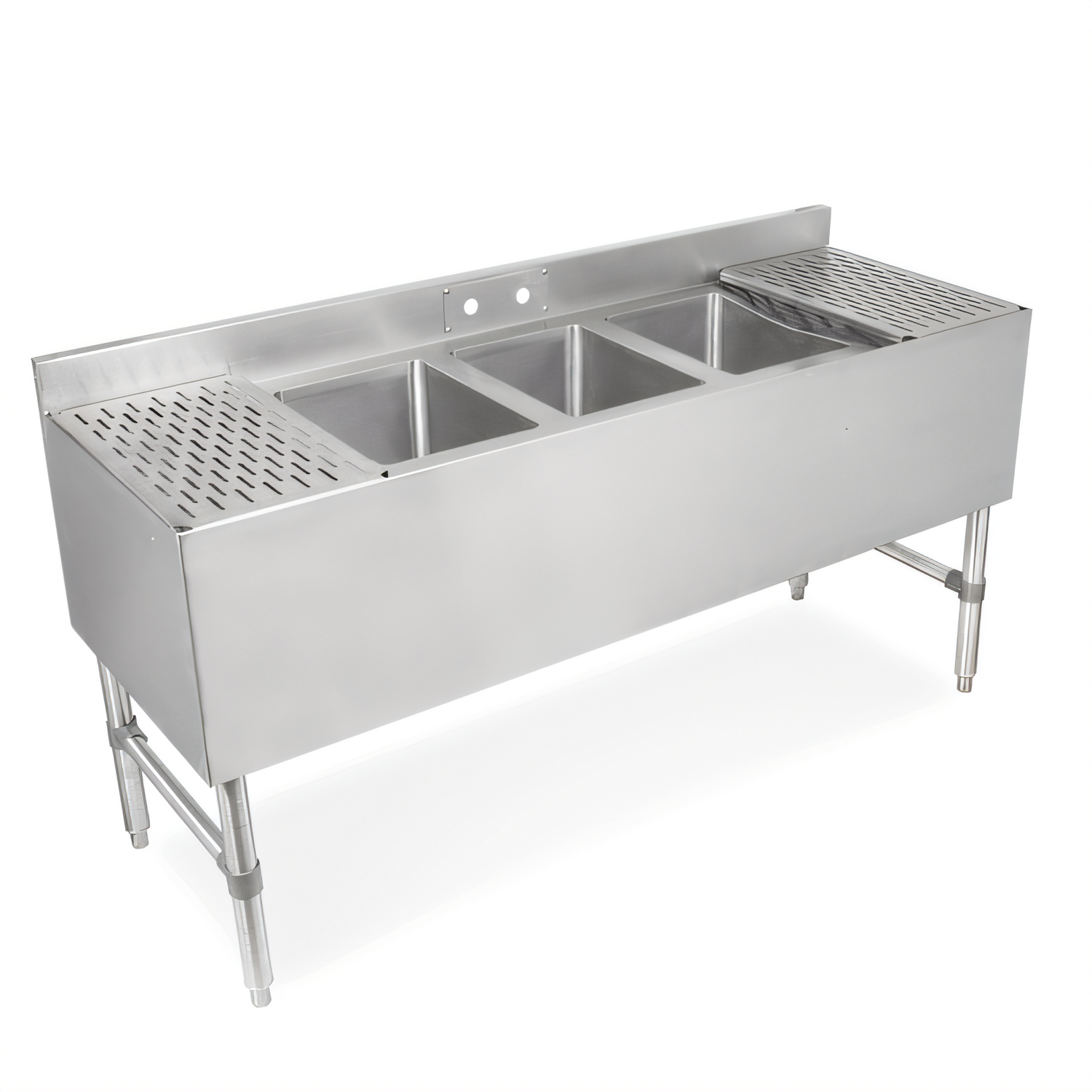

John Boos “Slim-Line” Underbar 3-Compartment Sink – 72" L x 18" D

Model # UBS3-1872-2D18 | NSF Certified Food-Service Equipment

Designed for tight bar layouts that can’t spare an extra inch, the John Boos Slim-Line sink delivers full 3-compartment functionality in a space-saving 18" deep footprint. Premium 18-gauge, Type 300 stainless steel construction stands up to everyday commercial use, while dual 18" drainboards with removable perforated inserts keep glassware and smallwares organized and air-drying.

Why You’ll Love It

  • Slim-Line 18" front-to-back depth leaves more room behind the bar or against the wall.

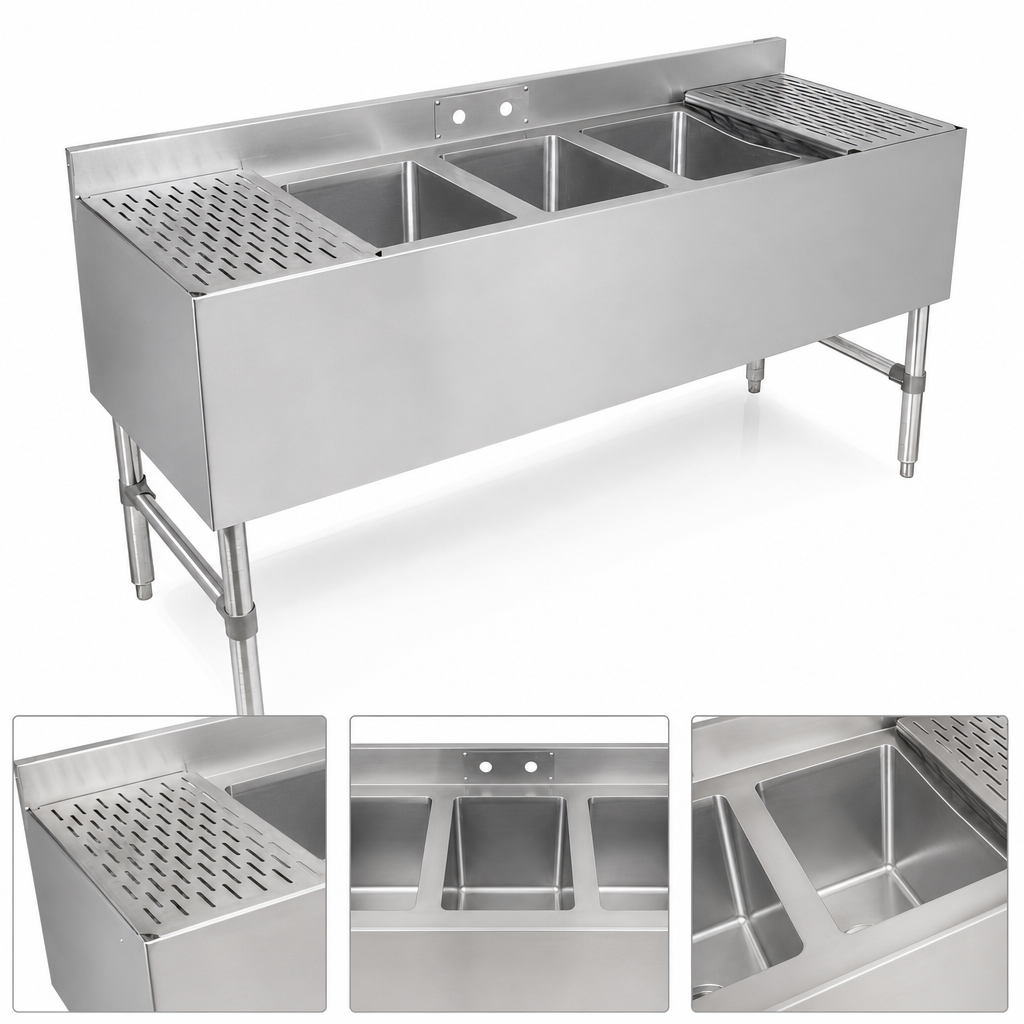

  • Three 10" W x 14" F-B x 10" D bowls meet most municipal health codes for a proper wash-rinse-sanitize setup.

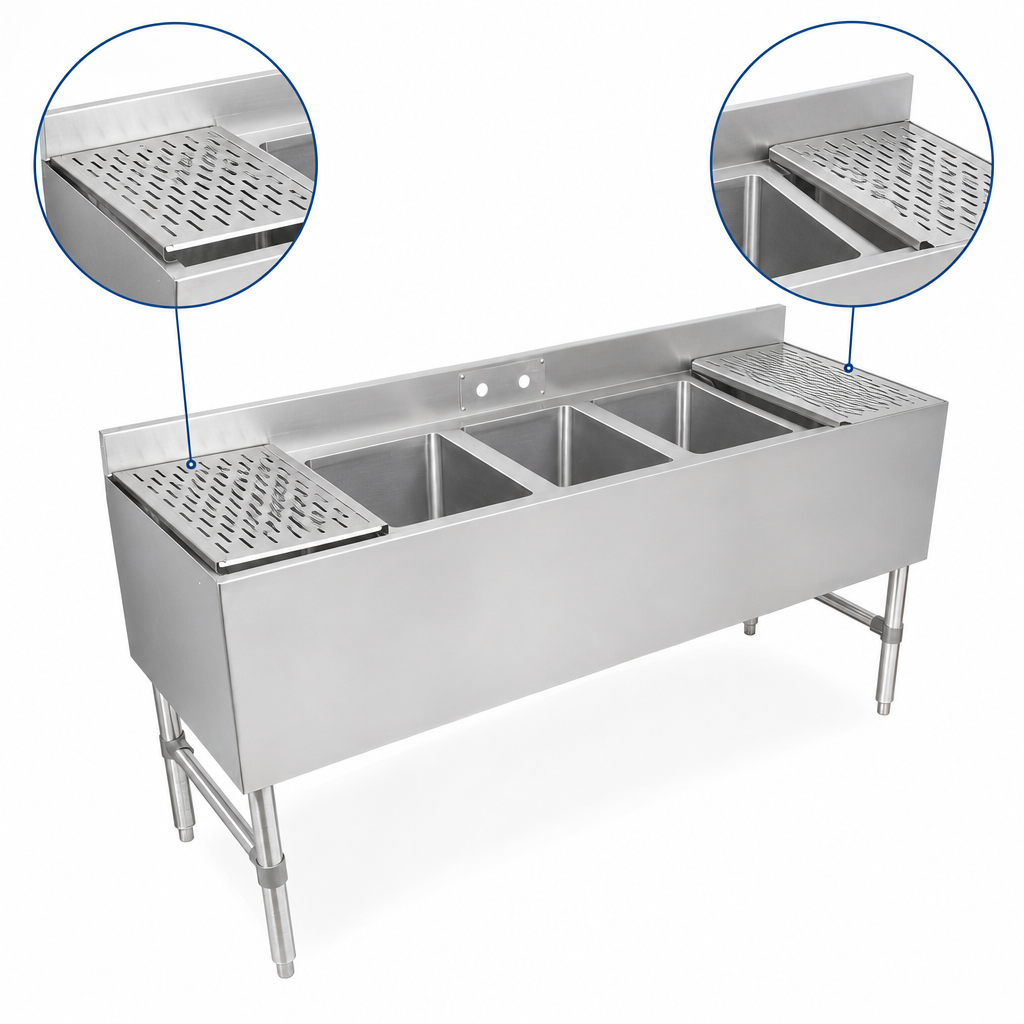

  • Left & right 18" drainboards feature removable perforated inserts for faster air-circulation and easy cleaning.
  • Factory-punched splash-mount faucet plate with 4" on-center holes—remove, plumb, and re-install in minutes.
  • 18-ga #4 satin-finish stainless steel top, apron, sides & backsplash resist corrosion and wipe clean.
  • Bolt-on 1 ⅝" stainless steel legs with side bracing and adjustable bullet feet for rock-solid stability.
  • Standard holes on both ends let you bolt multiple John Boos underbar units together for a seamless line-up.
  • Z-clip supplied for quick, sanitary wall mounting (no rear legs required if desired).
  • Includes (3) 1 ½" drains with basket strainers and overflow stand pipes (PB-OVF-BS).

Ideal For

  • High-volume cocktail bars and nightclubs
  • Brewpub tap rooms
  • Coffee bars and juice counters
  • Compact back-of-house prep areas that need NSF-listed warewashing

Specifications

Overall dimensions 72" W x 18" D x 32 ½" H (work height)
Compartments (3) 10" W x 14" F-B x 10" D
Drainboards (2) 18" L – left & right, removable perforated inserts
Backsplash 3" H with removable faucet plate, 4" OC holes
Construction 18-ga Type 300 stainless steel, #4 satin finish
Legs / Bracing 1 ⅝" Ø stainless steel legs with front-to-back side bracing
Feet 1" adjustable stainless steel bullet feet
Drains & Plumbing (3) 1 ½" drains, basket strainers, overflow stand pipes
Net weight 100 lb (shipping weight may vary with packaging)
Certifications NSF Listed

Compatible Accessories (optional)

  • UBSS-18-L / UBSS-18-R Slim-Line stainless steel side splashes
  • PBF-4SM2-10LF heavy-duty splash-mount faucet
  • PBF-W2-10LF economy splash-mount faucet
  • PB-WL-36 flexible shallow-mount stainless steel faucet hoses

Care & Maintenance

  • Clean daily with non-chloride detergents and a soft cloth.
  • Avoid wire brushes or steel wool; they can compromise the protective chromium layer.
  • For tough stains, use Bar Keepers Friend followed by John Boos Stainless Steel Cleaner.
  • Always wipe in the direction of the grain for a like-new satin finish.

Need a full stainless care kit? Ask your sales rep for details on the John Boos maintenance bundle.

Note: All dimensions are nominal (± ½"). John Boos & Co. reserves the right to improve product design without notice.

Features & Specs

Manufacturer

John Boos

Brand_name

Slim-Line

Certifications

NSF

Height

32.5in

Width

72.0in

Depth

18.0in

Shipping Weight

100.0lbs

Bowl Size

10" x 14" front-to-back

Sink Compartments

(3)

Depth (front - back) OA

18" - 19"

Top Stainless Series

300 series

Splash

3"

Bowl Depth (rim - drain)

10"

Construction

stainless steel top, front, ends & legs

Drainboards

drainboards on left & right

Width (side - side) OA

67" - 72"

Specifications

Slim-Line Underbar Sink Unit, 3-compartment, 72"W x 18"D x 32-1/2"H overall size, (3) 10"W x 14" front-to-back x 10" deep compartments, 18" drainboard on left and right with removable perforated insert, 3"H backsplash, (1) set of splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF, (weights are subject to additional packaging)
