John Boos Slim-Line 3-Compartment Underbar Sink Unit with Dual 12-Inch Drainboards

SKU: UBS3-1860-2D12-X
$1,575.09
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

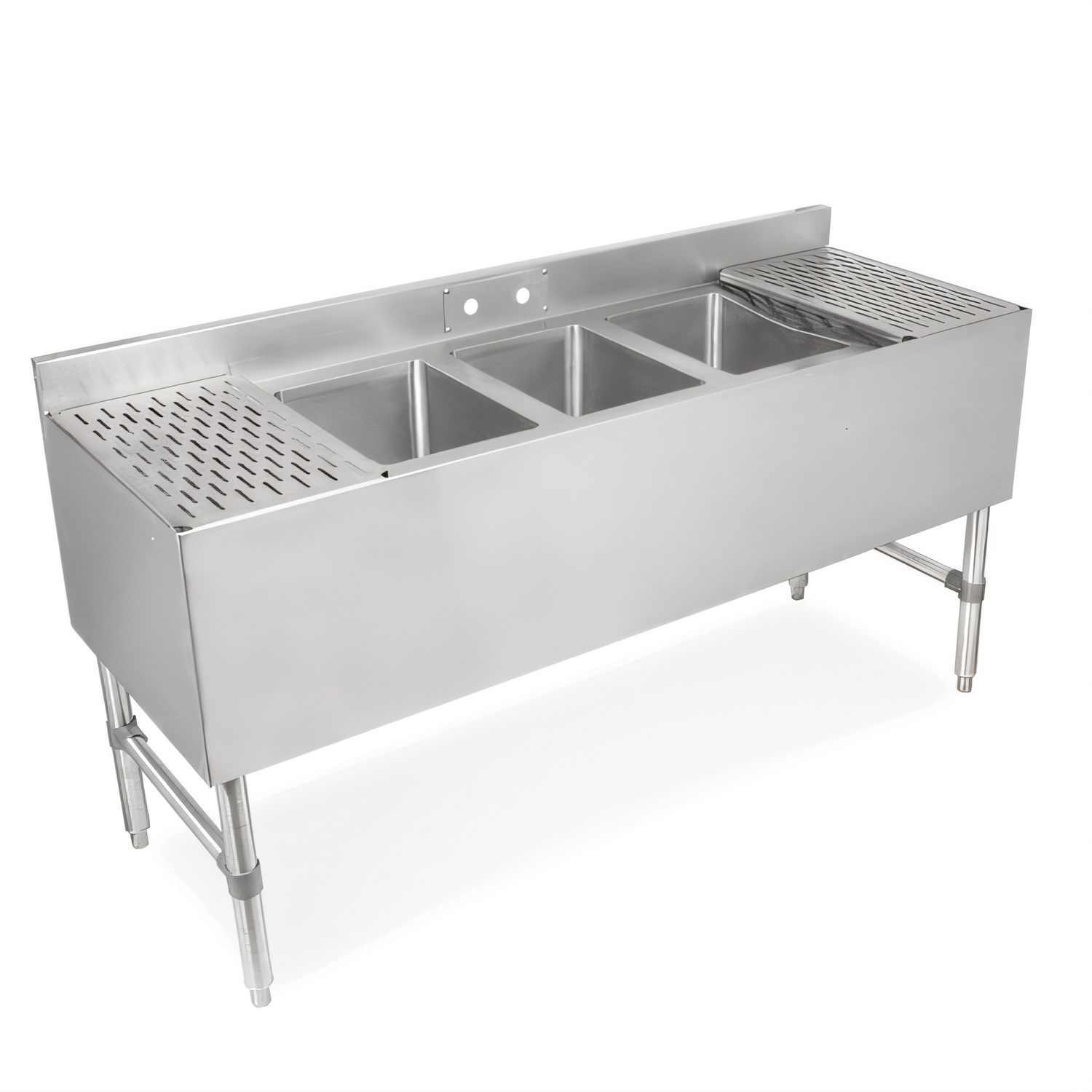

John Boos Slim-Line 3-Compartment Underbar Sink Unit with Dual 12-Inch Drainboards

60 x 18 x 32-1/2 Inches, 3-Inch Backsplash, 300 Series Stainless Steel

A durable Slim-Line underbar sink station that combines three compartments, dual drainboards, and stainless steel construction for efficient bar service.

  • Three 10-inch by 14-inch by 10-inch deep sink compartments support rinse, wash, and sanitize tasks.
  • 12-inch drainboards on the left and right provide extra landing space for glassware and prep items.
  • 3-inch backsplash helps contain splashes behind the unit.
  • Splash-mount faucet holes with 4-inch centers simplify faucet installation.
  • Includes 1-1/2-inch drains and overflow stand pipes.
  • Built with 18/300 stainless steel, stainless steel legs, side bracing, and adjustable bullet feet.

Overall Dimensions:

60.0"W x 18.0"D x 32.5"H

Product Weight:

89.0 lb

Three Compartment Design

Provides three separate sink bowls for organized underbar washing and rinsing.

Dual 12-Inch Drainboards

Left and right drainboards add convenient space for staging clean or dirty items.

Removable Perforated Inserts

Drainboard inserts can be removed for easier cleaning and maintenance.

3-Inch Backsplash

Helps protect the wall and reduce splash back during use.

Splash-Mount Faucet Holes

One set of faucet holes with 4-inch centers is provided for faucet mounting.

Included Drains and Overflow Stand Pipes

Supplied with 1-1/2-inch drains and overflow stand pipes (PB-OVF-BS).

Stainless Steel Construction

18/300 stainless steel construction supports durability in demanding beverage service environments.

Adjustable Bullet Feet

Stainless steel bullet feet help level the unit during installation.

Type Underbar Sink Unit
Style Slim-Line
Installation Type Freestanding
Material 300 Series Stainless Steel
Compartments 3
Bowl Size 10 Inches Wide x 14 Inches Front-to-Back x 10 Inches Deep
Bowl Depth 10 Inches
Drainboard Length 12 Inches Left and Right
Backsplash Height 3 Inches
Faucet Hole Centers 4 Inches
Shipping Width 60 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 89 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has 3 compartments.
Each compartment measures 10 inches wide x 14 inches front-to-back x 10 inches deep.
Yes. The unit includes 12-inch drainboards on the left and right with removable perforated inserts.
It includes one set of splash-mount faucet holes with 4-inch centers.
1-1/2-inch drains and overflow stand pipes are included.
The unit measures 60 inches wide x 18 inches deep x 32-1/2 inches high.
