John Boos UBS3-1860-2D12 Slim-Line Bar Equipment
Description

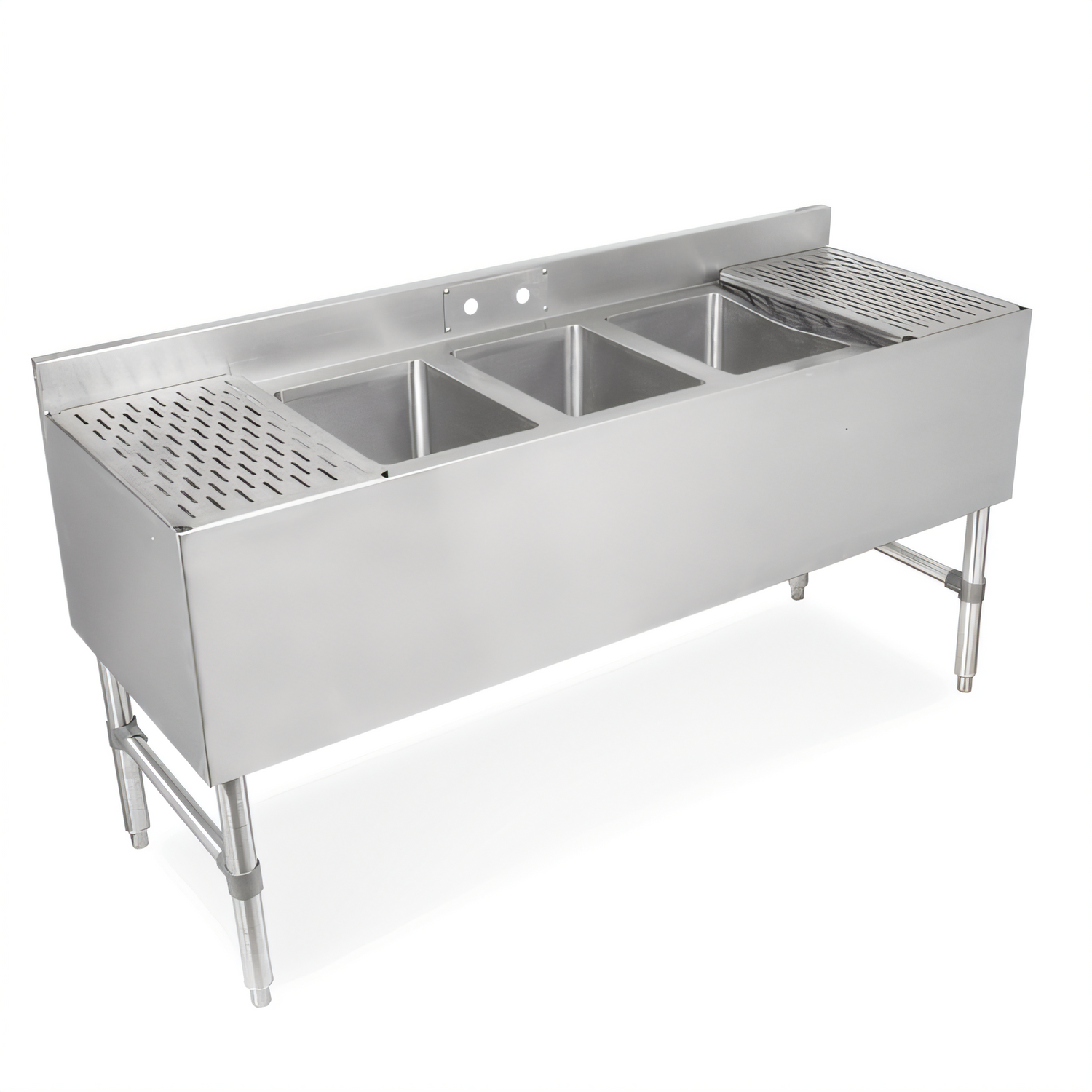

John Boos “Slim-Line” Underbar 3-Compartment Sink – 60" x 18"
Model UBS3-1860-2D12 | NSF ListedBuilt to thrive behind the busiest bars, coffee shops, and concession stands, the John Boos Slim-Line 60" underbar sink delivers full-service functionality in a compact 18" footprint. Three fabricated sink bowls, dual 12" drainboards, and rock-solid type 300 stainless construction keep your workflow clean, compliant and efficient shift after shift.
Why You’ll Love It
- Space-saving 18" front-to-back depth – perfect for narrow bar aisles.
- (3) 10" W x 14" F-B x 10" D compartments for washing, rinsing & sanitizing.
- Dual 12" drainboards with removable perforated inserts boost air circulation for faster drying.
- 18 ga type 300 stainless steel with #4 satin finish resists corrosion & wipes clean fast.
- 3" integral backsplash with removable faucet plate; pre-punched 4" O.C. splash-mount holes.
- Includes 1-½" drains and overflow standpipes (PB-OVF-BS) – no guesswork at install.
- Bolt-on 1-5/8" stainless steel legs, front-to-back bracing & adjustable bullet feet for rock-solid stability.
- Side mounting holes & Z-clip allow quick attachment to walls or adjacent underbar units.
- NSF certified for peace-of-mind food-service compliance.
At-a-Glance Specs
| Overall Dimensions | 60" W x 18" D x 32-1/2" H |
|---|---|
| Compartments (3) | 10" W x 14" F-B x 10" D |
| Drainboards | (2) 12" L, left & right; perforated inserts included |
| Backsplash Height | 3" |
| Faucet Holes | 4" center splash-mount (removable plate) |
| Gauge / Material | 18 ga type 300 stainless steel |
| Finish | #4 polished satin |
| Legs & Bracing | 1-5/8" Ø stainless legs, stainless side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain Connection | 1-1/2" NPS |
| Shipping Weight | 89 lb (subject to packaging) |
| Certifications | NSF |
What’s Included
- Slim-Line 3-compartment sink with dual drainboards
- (3) 1-1/2" drains with basket strainers
- (3) Overflow standpipes
- Bolt-on stainless steel legs, bracing & hardware
- Removable faucet plate (faucet sold separately)
Popular Add-Ons
- UBSS-18-L / UBSS-18-R – Slim-Line side splashes
- PBF-4SM2-10LF – Heavy-duty 4" O.C. faucet
- PBF-W2-10LF – Economy 4" O.C. faucet
- PB-WL-36 – Flexible shallow-mount faucet hoses
Care Tip: Preserve the sink’s corrosion-resistant finish by cleaning with non-chloride stainless steel cleaners and soft cloths. Avoid abrasive pads or bleach. Rinse & dry after each use.
