John Boos UBS3-1836-X Slim-Line Bar Equipment
$1,313.76
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos UBS3-1836-X Slim-Line Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos UBS3-1836-X Slim-Line Bar Equipment
$1,313.76
Unit price
/
Unavailable
Description
John Boos Slim-Line 36" Underbar 3-Compartment Sink – Model UBS3-1836
Space-saving 18" depth | 18-ga type 300 stainless steel | NSF listedPerfect for tight bar layouts, the Slim-Line series delivers full washing capacity without sacrificing valuable aisle space. Heavy-duty construction, quick bolt-on legs and a removable faucet plate make installation fast, while three deep bowls keep your glassware rotation moving during the busiest rush.
Key Features
- Slim-Line 18" front-to-back footprint fits narrow underbar applications

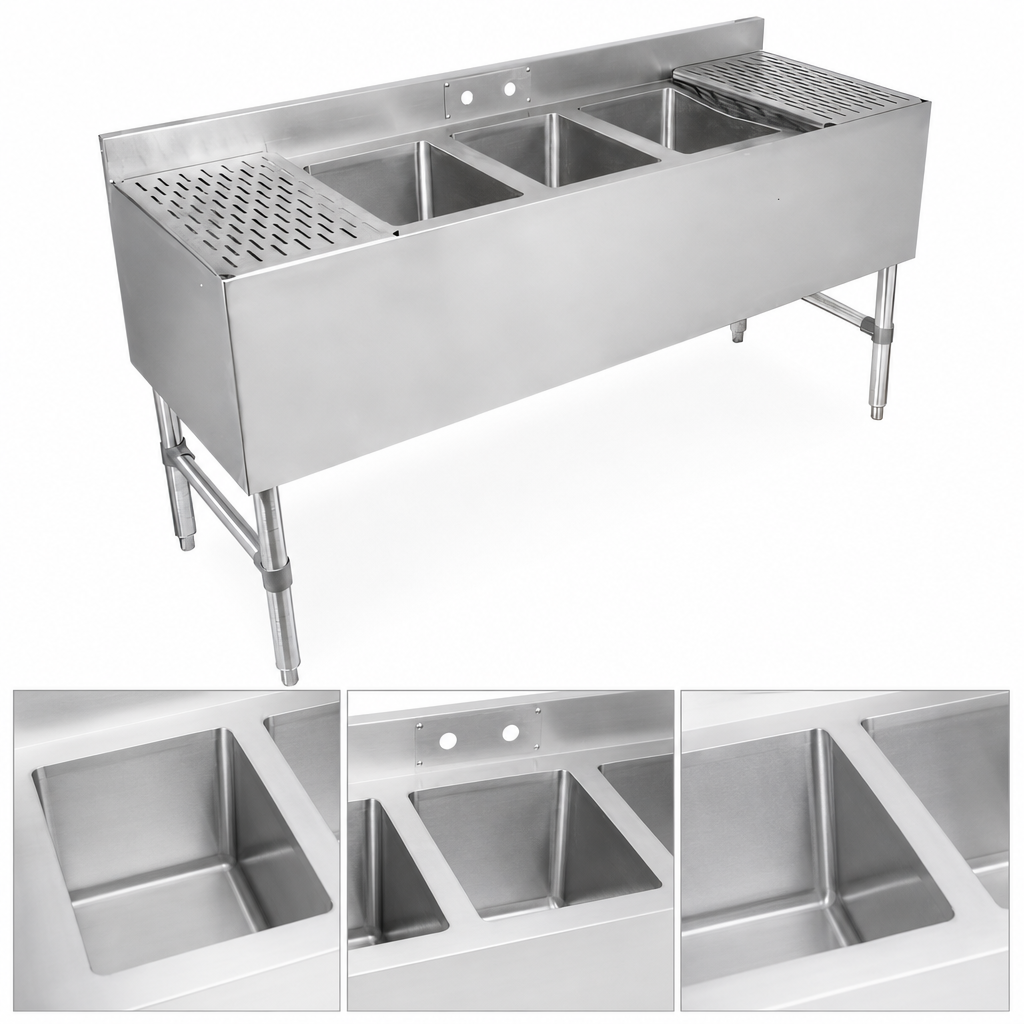

- (3) fabricated bowls — 10" W × 14" F/B × 10" D each

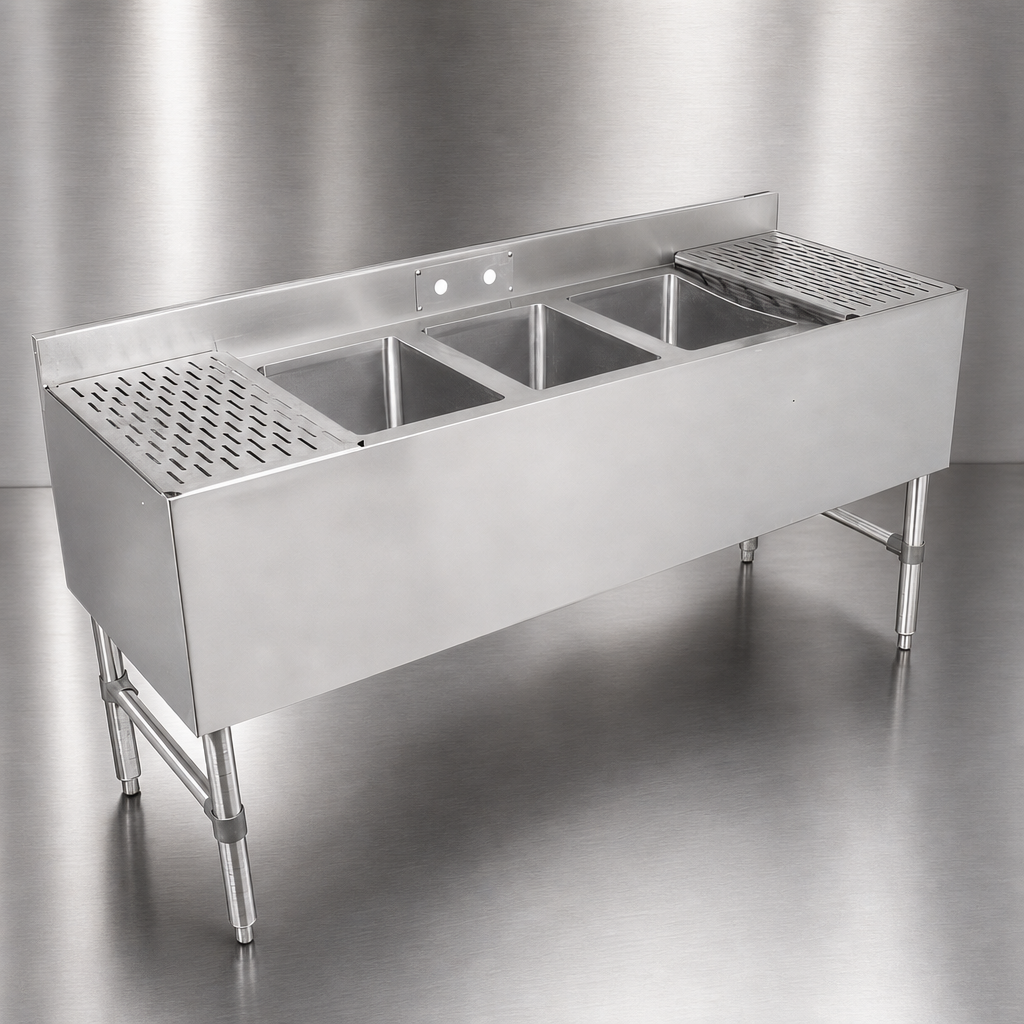

- 18 ga, type 300 stainless steel with #4 satin polish for easy cleaning & professional appearance
- 3" integral backsplash protects surrounding surfaces
- Removable splash-mount faucet plate pre-punched on 4" centers
- Includes 1-1/2" basket drains & PB-OVF-BS overflow stand pipes
- Bolt-on 1-5/8" Ø stainless legs with stainless side bracing
- 1" adjustable stainless bullet feet for wobble-free leveling
- Pre-drilled side holes & supplied Z-clip for wall mounting or ganging multiple units
- NSF certified for commercial sanitation
At-a-Glance Specifications
| Model | UBS3-1836 (AutoQuotes ID 4841) |
|---|---|
| Overall Dimensions | 36" W × 18" D × 32-1/2" H |
| Compartment Size (each) | 10" W × 14" F/B × 10" D |
| Backsplash Height | 3" |
| Material / Finish | 18 ga type 300 stainless / #4 satin |
| Faucet Mount | Splash-mount, 4" centers (plate removable) |
| Drain Connection | 1-1/2" NPS, basket strainers & overflow stand pipes included |
| Legs & Bracing | Stainless, bolt-on, 1-5/8" Ø with side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Weight | 61 lb (plus packaging) |
| Certifications | NSF |
Ideal For

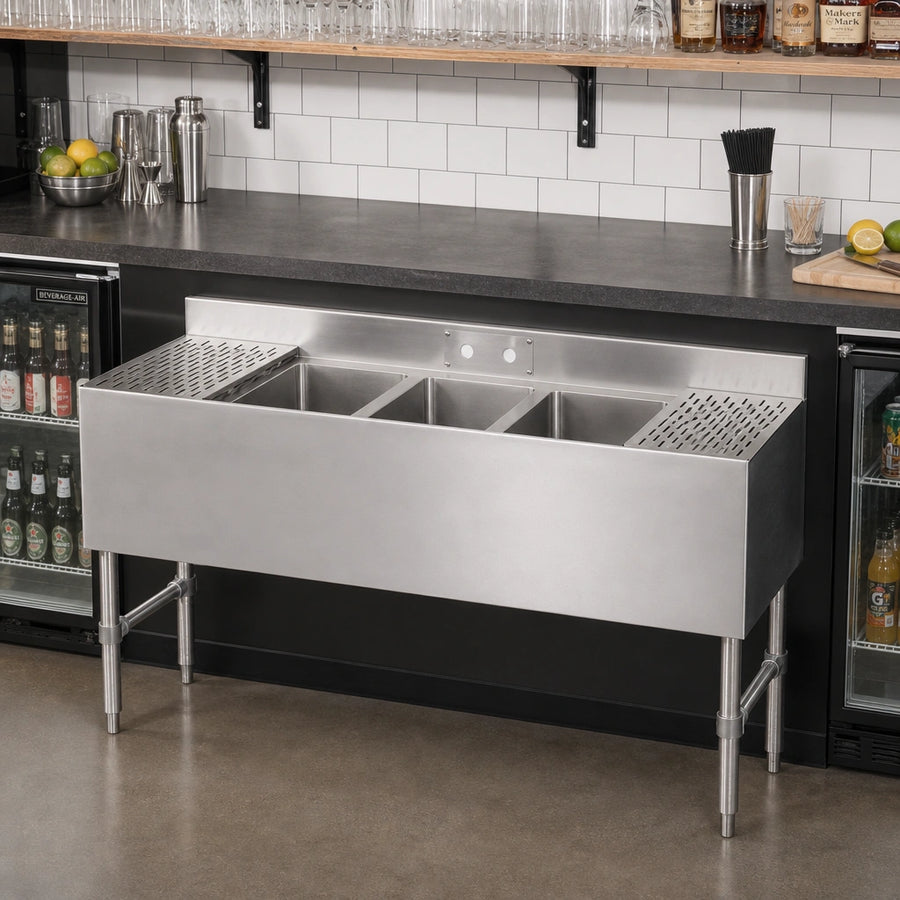

- Bars & tasting rooms needing wash/rinse/sanitize stations
- Food trucks and concession stands with limited depth
- Cafés & taprooms seeking NSF-compliant back-bar equipment
Compatible Accessories (sold separately)
- UBSS-18-L / UBSS-18-R – Slim-Line left or right side splashes
- PBF-4SM2-10LF – heavy-duty 4" center splash-mount faucet
- PBF-W2-10LF – economy 4" center splash-mount faucet
- PB-WL-36 – flexible shallow mount faucet hoses
Please note: Faucets and side splashes are optional items and must be ordered separately.
Stainless Steel Care Tips
- Clean daily with a soft cloth and a non-chloride detergent
- Wipe in the direction of the grain to preserve the #4 finish
- Avoid abrasive pads and cleaners containing chlorides
- Restore shine with John Boos Stainless Steel Cleaner as needed
Specifications subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Slim-Line
Certifications
NSF
Height
32.5in
Width
36.0in
Depth
18.0in
Shipping Weight
61.0lbs
Construction
stainless steel top, front, ends & legs
Top Stainless Series
300 series
Bowl Size
10" x 14" front-to-back
Sink Compartments
(3)
Depth (front - back) OA
18" - 19"
Drainboards
without drainboards
Splash
3"
Bowl Depth (rim - drain)
10"
Width (side - side) OA
37" - 42"
Specifications
Slim-Line Underbar Sink Unit, 3-compartment, 36"W x 18"D x 32-1/2"H overall size, (3) 10"W x 14" front-to-back x 10" deep compartments, 3"H backsplash, (1) set of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainlesss steel bullet feet, NSF, (weights are subject to additional packaging)
