John Boos UBS3-1836 Slim-Line Bar Equipment
$1,900.48
Unit price
/
Unavailable
Description

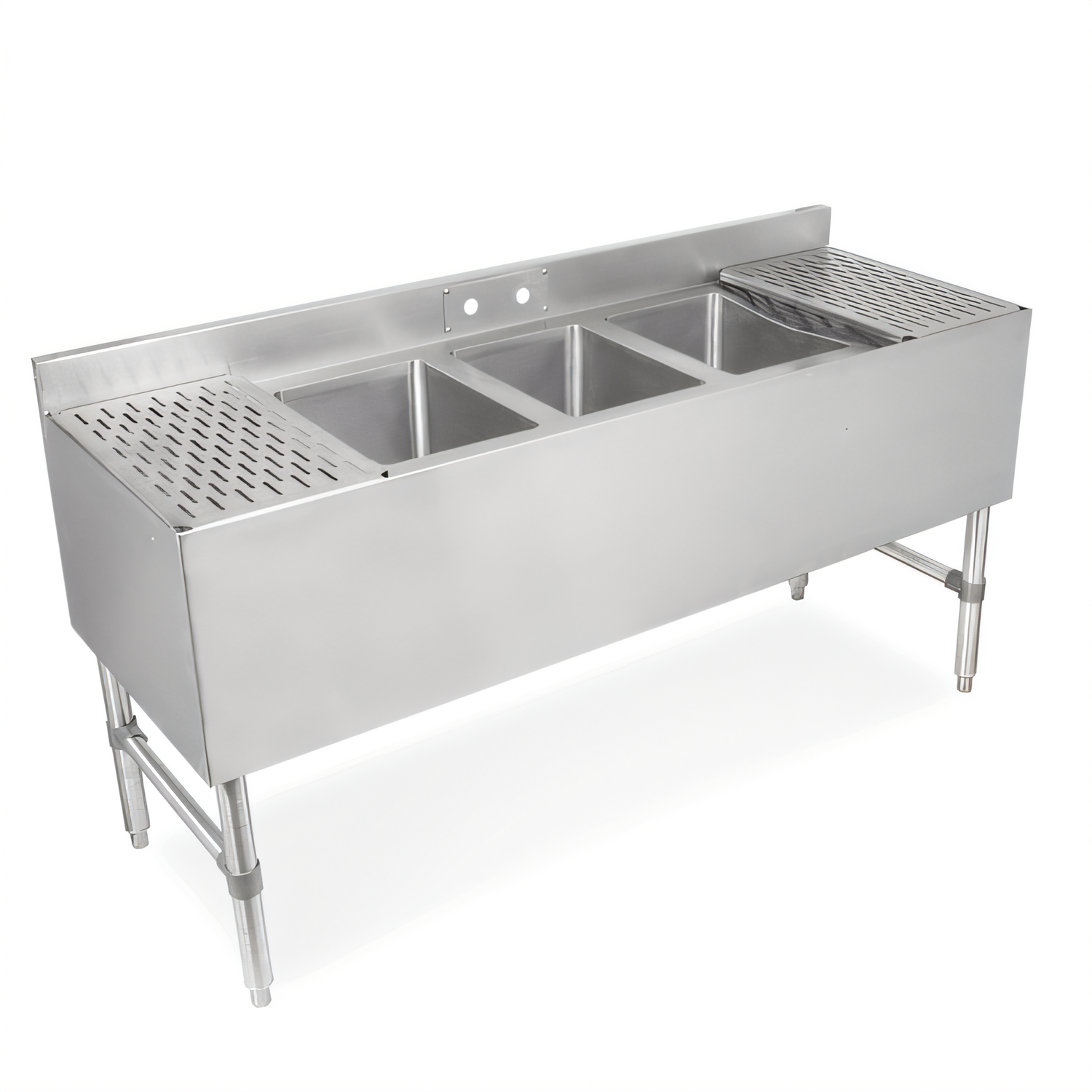

John Boos “Slim-Line” 36" 3-Compartment Underbar Sink
Model UBS3-1836 • NSF ListedPurpose-built for high-volume bars, cafés, and tasting rooms that demand maximum sanitation in minimal space, the Slim-Line underbar sink delivers full-size washing power in an ultra-compact 18" footprint.
Key Advantages
- Slim 18" front-to-back depth frees up valuable aisle and bartender space.
- Three 10" × 14" × 10" deep bowls handle wash, rinse, and sanitize cycles simultaneously.
- 18 gauge, Type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast.
- 3" one-piece backsplash with removable faucet plate—pre-drilled 4" on-center—for splash-mount faucets.
- Includes (3) 1-1/2" drains with basket strainers & overflow stand pipes (PB-OVF-BS) for code compliance.
- Bolt-on 1-5/8" dia. stainless legs, side bracing, and adjustable bullet feet for rock-solid stability.
- Factory-punched side holes and supplied hardware let you bolt multiple Slim-Line units together seamlessly.
Specification Sheet
| Overall size (W × D × H) | 36" × 18" × 32-1/2" |
|---|---|
| Sink compartments (Qty × W × F/B × Depth) | 3 × 10" × 14" × 10" |
| Backsplash height | 3" |
| Faucet mounting | Removable splash plate, 4" centers |
| Drain size / connection | 1-1/2" NPS with basket strainers & stand pipes |
| Material & finish | 18 GA Type 300 stainless, #4 satin |
| Legs & bracing | Stainless steel, bolt-on, with side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Unit weight | 61 lb (unpackaged) |
| Certifications | NSF |
Weights are approximate and do not include pallet or boxing materials.
Recommended Accessories (sold separately)
- UBSS-18-L / UBSS-18-R – Left or Right Slim-Line Side Splash
- PBF-4SM2-10LF – Heavy-duty 4" center splash-mount faucet
- PBF-W2-10LF – Economy 4" center splash-mount faucet
- PB-WL-36 – Flexible shallow-mount faucet hoses
Easy Installation
- Bolt-on legs attach with 5/16-18 hardware—no cutting or welding required.
- Side punch-outs align adjacent underbar units quickly for a unified bar line.
- Included Z-clip allows backsplash to be wall-mounted first, then plumbed later.
Stainless Steel Care Tips
- Clean daily with a soft cloth and non-chloride cleanser such as Bar Keepers Friend.
- Rinse and dry after each shift to preserve the protective chromium oxide layer.
- Polish periodically with John Boos Stainless Steel Cleaner to maintain a like-new finish.
Important: Avoid bleach, steel wool, or harsh chlorinated cleaners that can pit or rust stainless
surfaces.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Slim-Line
Certifications
NSF
Height
32.5in
Width
36.0in
Depth
18.0in
Shipping Weight
61.0lbs
Bowl Size
10" x 14" front-to-back
Drainboards
without drainboards
Construction
stainless steel top, front, ends & legs
Bowl Depth (rim - drain)
10"
Splash
3"
Top Stainless Series
300 series
Depth (front - back) OA
18" - 19"
Width (side - side) OA
37" - 42"
Sink Compartments
(3)
Specifications
Slim-Line Underbar Sink Unit, 3-compartment, 36"W x 18"D x 32-1/2"H overall size, (3) 10"W x 14" front-to-back x 10" deep compartments, 3"H backsplash, (1) set of removable splash mount faucet holes with 4" centers, includes 1-1/2" drains & overflow stand pipes (PB-OVF-BS), 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainlesss steel bullet feet, NSF, (weights are subject to additional packaging)
