John Boos UBMS-2124-X Bar Equipment
Description

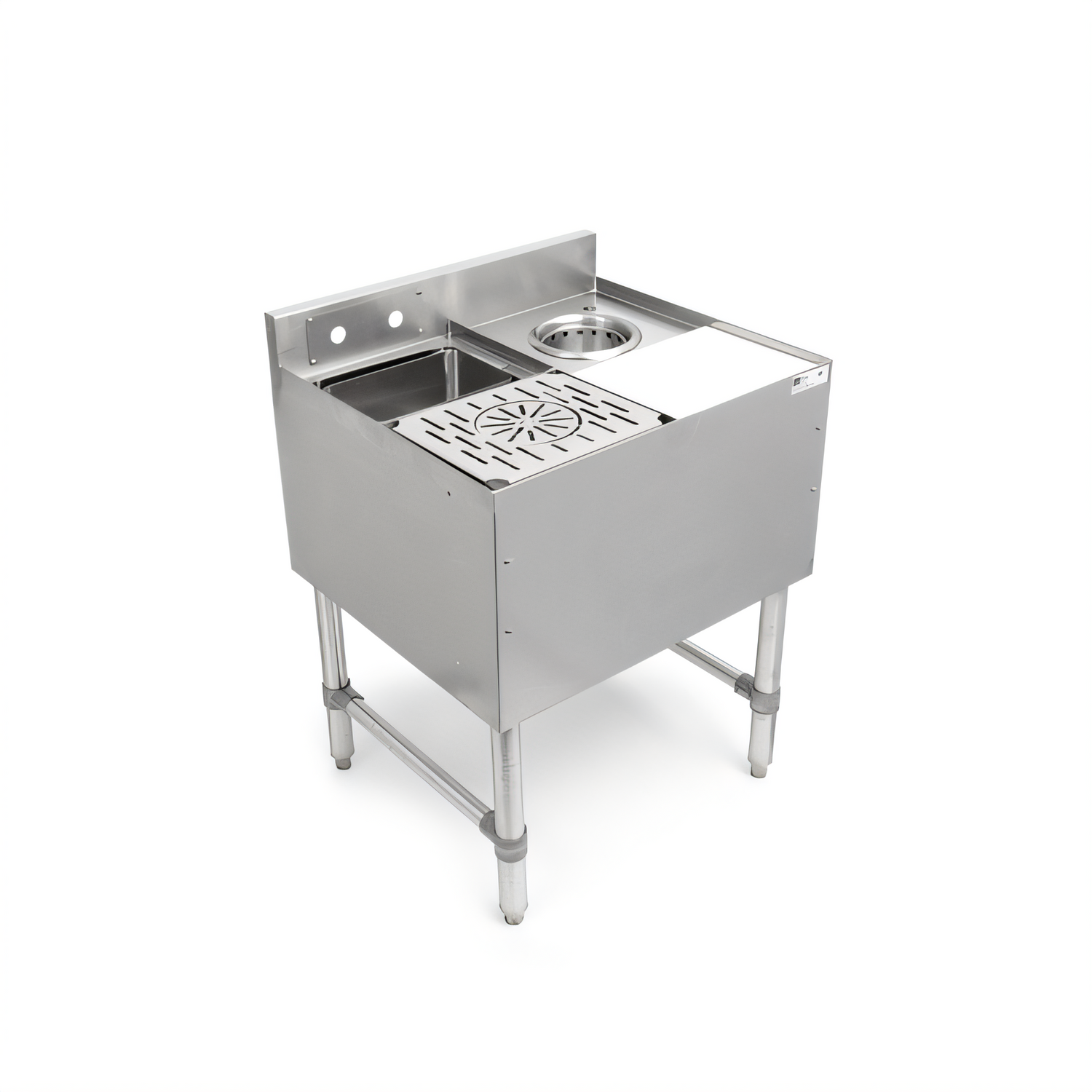

John Boos UBMS-2124 Underbar Mixology Station
24" W × 21" D – Compact, all-in-one bar prep centerGive bartenders everything they need in one sanitary, space-saving station. Built from heavy-duty 18 ga. stainless steel and NSF listed for open food zones, the John Boos UBMS-2124 delivers a dedicated sink, rinser, cutting board, dipper well and dump basket—all in a 24" footprint that bolts seamlessly into any underbar line-up.
Key features

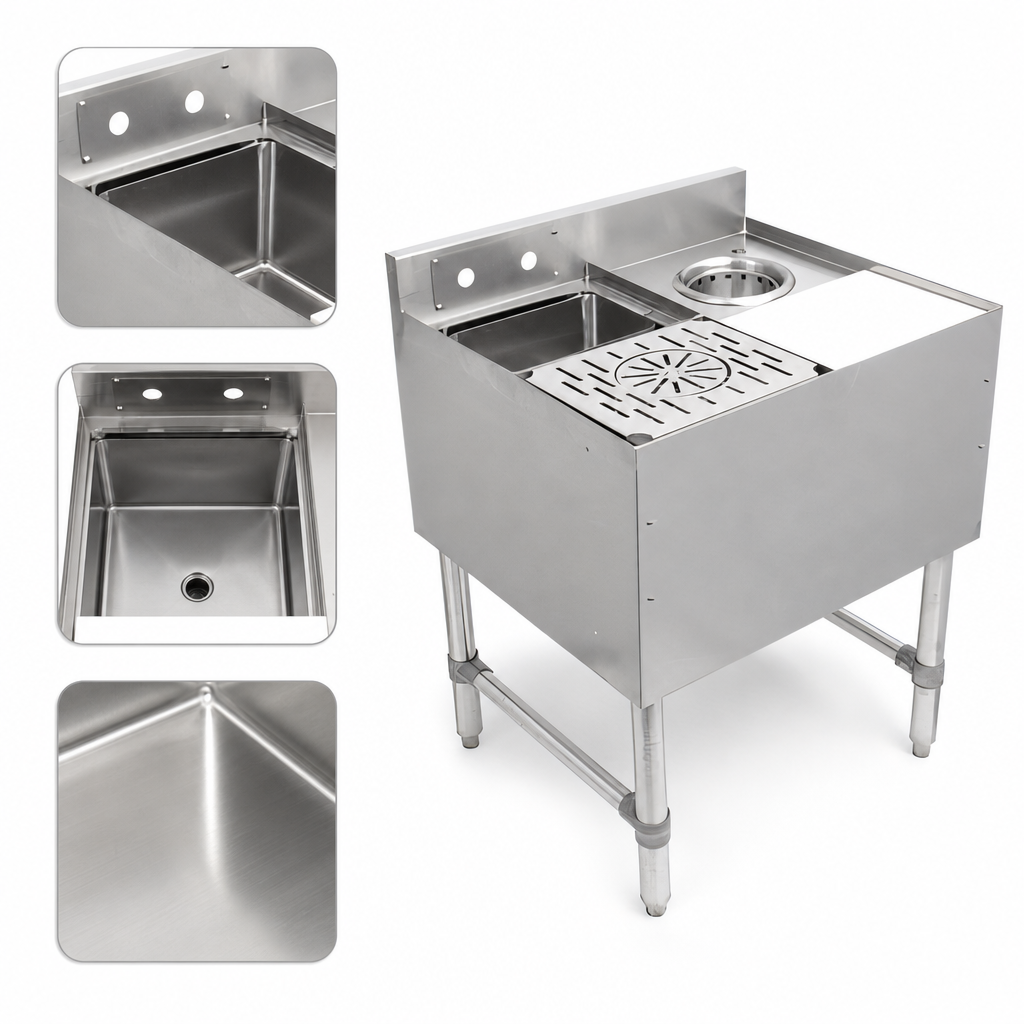

- 10" × 8" × 6" deep fabricated sink bowl for quick rinses & fruit prep
- Integrated push-down glass/bottle rinser keeps barware spotless

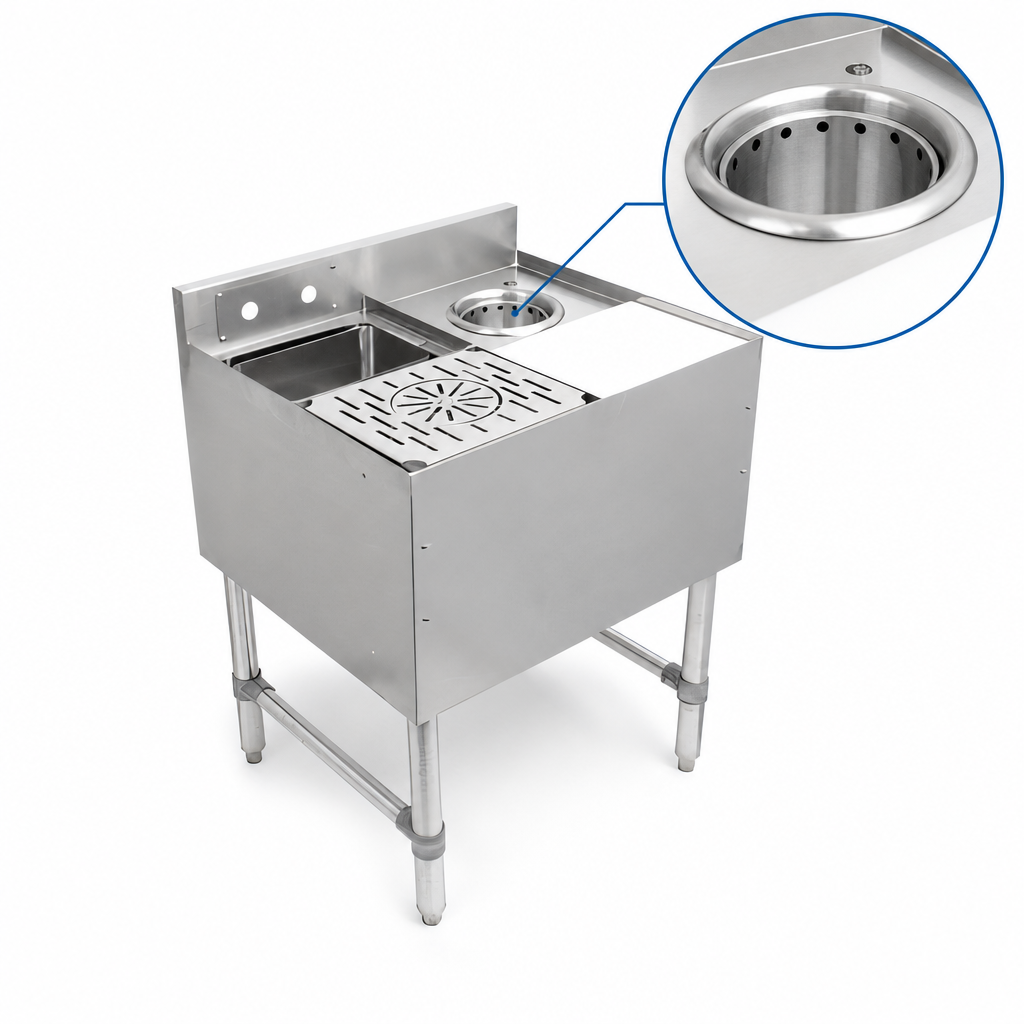

- 5-3/4" Ø dipper well (plumb-ready; faucet sold separately) for spoons & strainers
- 11-1/2" × 9-3/8" removable poly cutting board doubles as a sink cover
- Perforated 9-1/2" × 6" × 5" dump basket catches fruit scraps & ice
- 3" backsplash plus splash-mount faucet plate with 4" centers for tidy plumbing
- 18/300 series stainless top, sides & backsplash with #4 satin finish
- Bolt-on 1-5/8" stainless legs, side bracing & adjustable bullet feet for fast, level set-up
- Pre-drilled side holes let you bolt adjoining John Boos underbar modules
- NSF certified for peace of mind in high-volume bars & restaurants
At-a-glance specs
| Model | UBMS-2124 |
|---|---|
| Overall size | 24" W × 21" D × 32-1/2" H |
| Sink bowl | 10" W × 8" F/B × 6" D |
| Cutting board | 11-1/2" W × 9-3/8" D, removable white poly |
| Dipper well | 5-3/4" diameter (faucet not included) |
| Included faucet | Push-down rinser |
| Material thickness | 18 gauge |
| Stainless grade | Type 300 top/sides/back; Type 400 door panels |
| Legs & bracing | 1-5/8" Ø stainless legs with side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Backsplash height | 3" |
| Certifications | NSF |
| Approx. ship weight | 47 lb (packaging may add weight) |
Simple installation
- Bolt-on legs & bracing ship loose to minimize freight size
- Adjustable bullet feet level the unit on uneven floors
- Z-clip supplied for optional wall mounting
- Removable faucet plate lets you plumb after the station is secured
Care & maintenance
- Wipe daily with warm water & a non-chloride detergent
- Avoid abrasive pads or cleaners containing chlorides
- Polish with John Boos Stainless Steel Cleaner to maintain a brilliant satin finish
