John Boos UBMS-1824-X Bar Equipment
Description

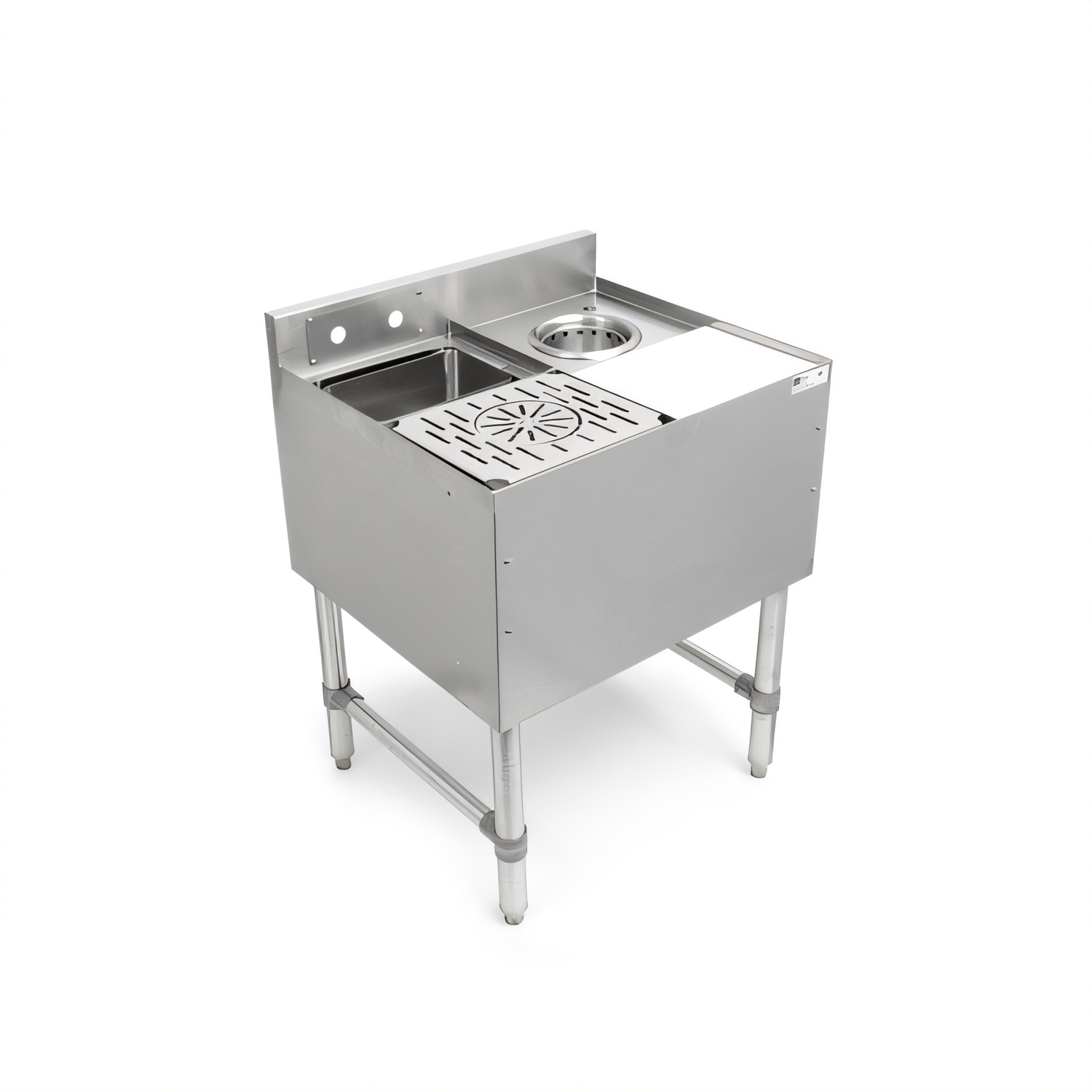

John Boos UBMS-1824 Underbar Mixology Station
24" W x 18" D – Slim-Line SeriesEngineered for busy bars, cafés and event venues, the UBMS-1824 Mixology Station combines a compact footprint with every workflow essential: built-in dump sink, push-down glass rinser, dipper well, cutting board and dump basket. All surfaces are food-safe Type 300 stainless steel with a #4 satin polish, delivering the legendary durability professionals expect from John Boos.
Key Features

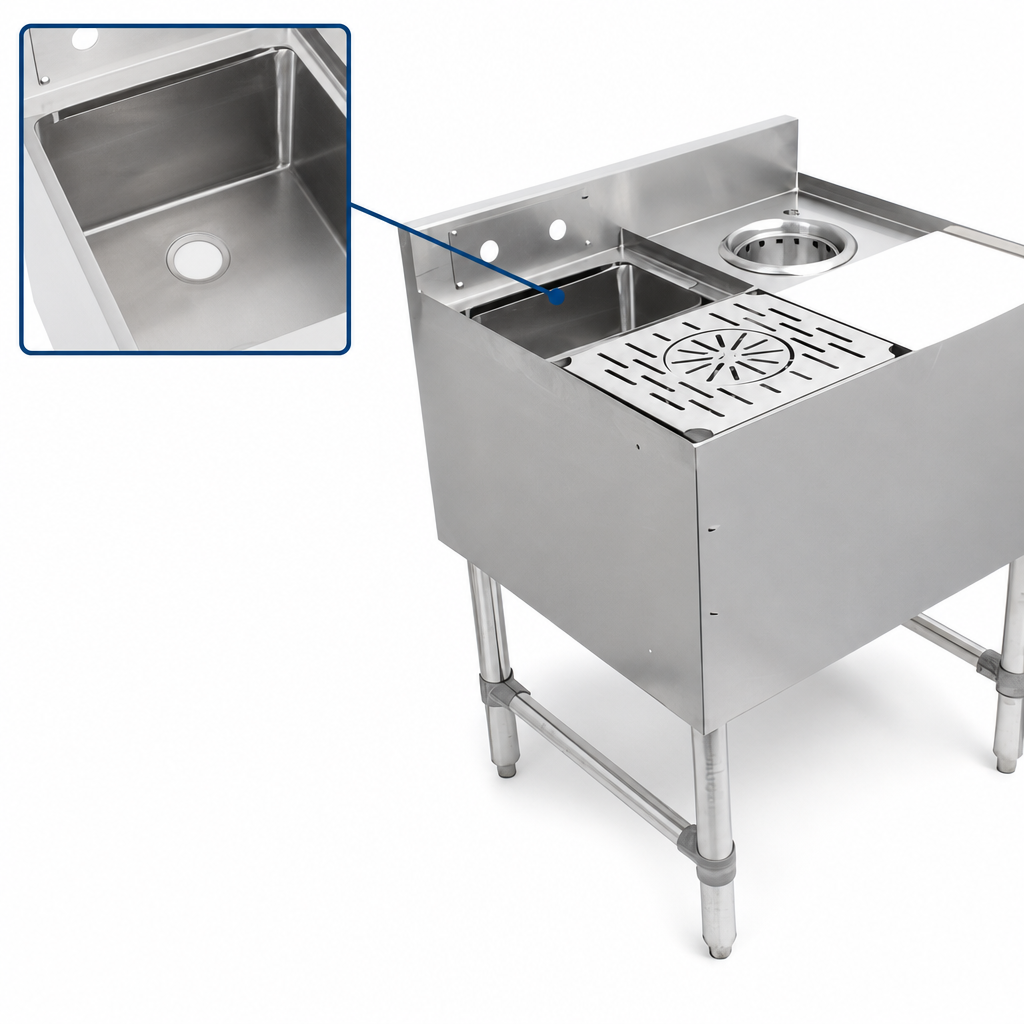

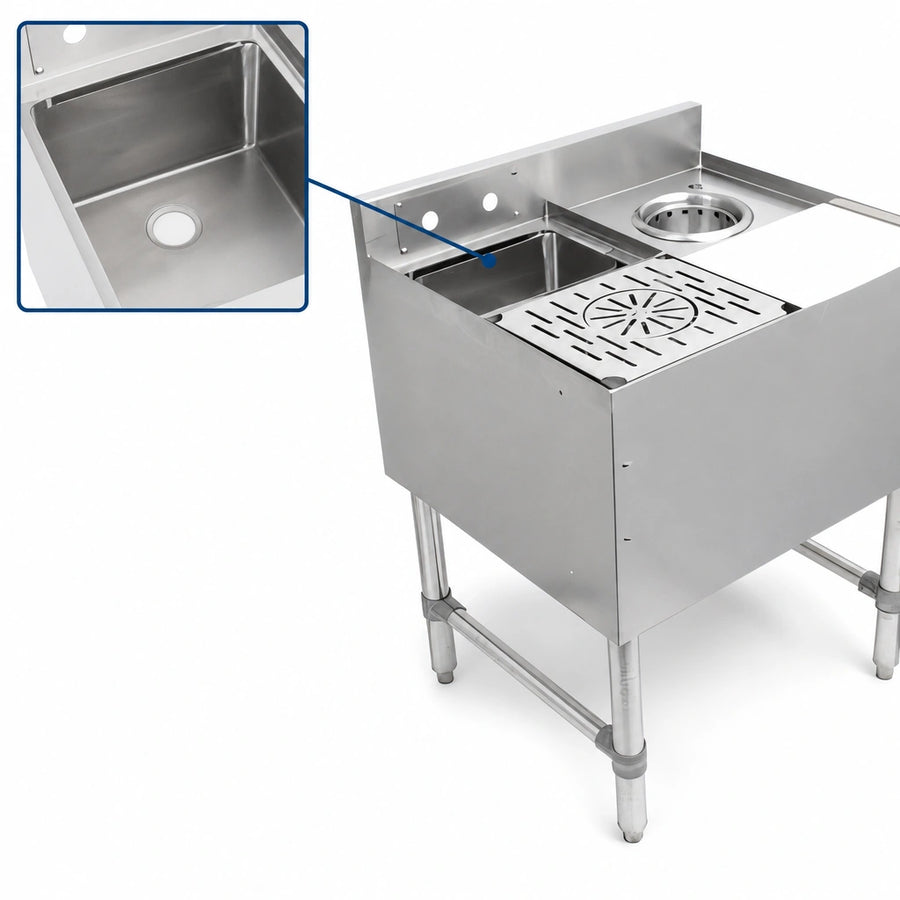

- Fabricated 10" W x 8" F-B x 6" deep sink bowl with 3" backsplash

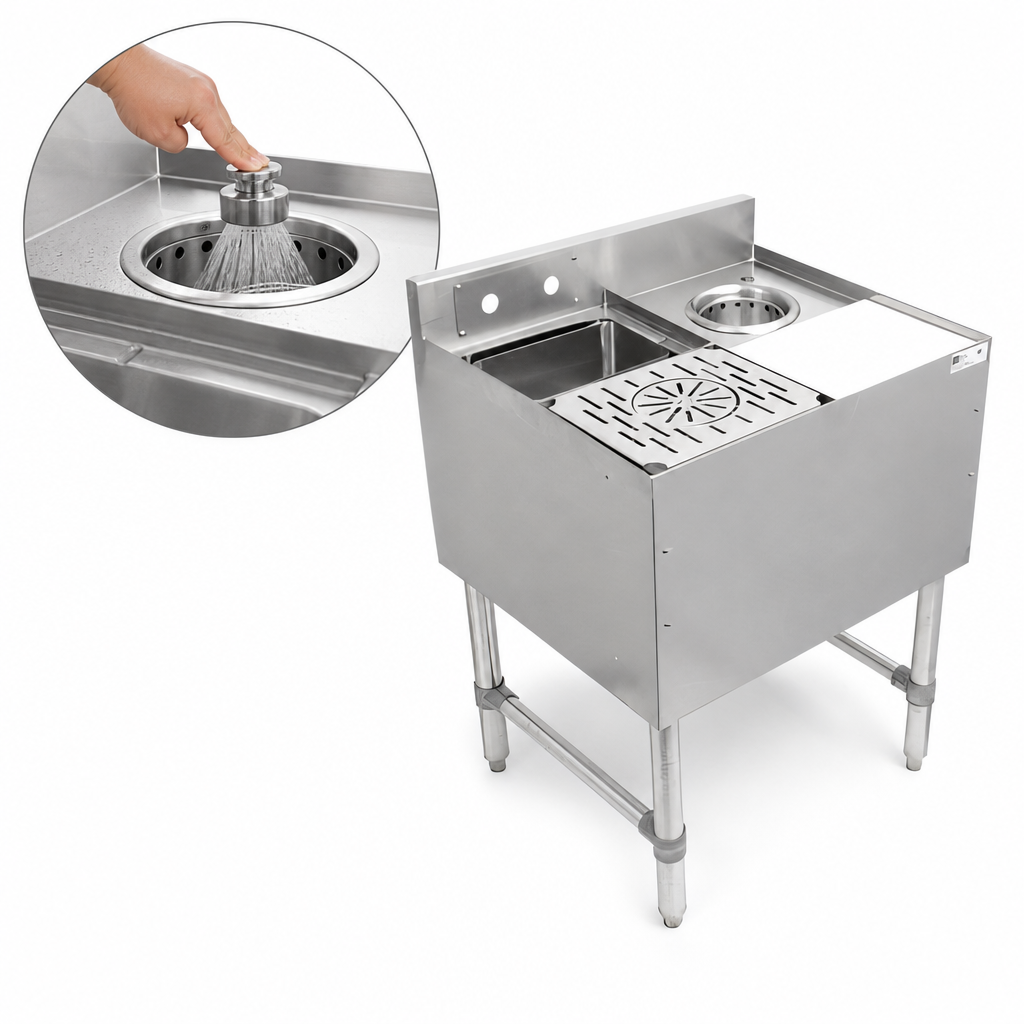

- Integrated push-down rinser faucet for lightning-fast glass prep
- 5-3/4" diameter dipper well keeps bar spoons & scoops clean (faucet not included)
- 11-1/2" W x 6-3/8" D removable 3/8" poly cutting board
- Perforated 9-1/2" x 6" x 5" dump basket included for easy waste separation
- Removable splash-mount faucet plate with 4" centers – plumb after the unit is in place
- Bolt-on 1-5/8" stainless steel legs, side bracing & adjustable bullet feet for rock-solid installation
- Standard side holes allow you to gang multiple underbar units together
- NSF listed for trusted foodservice compliance
Specifications
| Model | UBMS-1824 |
|---|---|
| Overall dimensions | 24" W x 18" D x 32-1/2" H |
| Sink bowl size | 10" W x 8" F-B x 6" D |
| Dipper well | 5-3/4" Ø (faucet not included) |
| Cutting board | 11-1/2" W x 6-3/8" D, removable white poly |
| Dump basket | 9-1/2" L x 6" W x 5" D, perforated stainless |
| Material / finish | 18 GA Type 300 stainless steel, #4 satin polish |
| Backsplash height | 3" |
| Faucet holes | 1 removable plate, 4" centers |
| Legs & bracing | Bolt-on 1-5/8" Ø stainless legs with side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF |
| Shipping weight | Approx. 43 lb (additional packaging may apply) |
Why Choose John Boos Stainless?
- #4 satin polish wipes clean and resists corrosion
- Factory-prepped mounting points for wall clips and adjacent units
- Made in the USA since 1887 – backed by a century of foodservice expertise
Looking for a seamless underbar line-up? Combine the UBMS-1824 with John Boos ice bins, speed rails and blender shelves for a fully integrated bar system.
