John Boos UBIB-2148-CP10-X Bar Equipment
Description

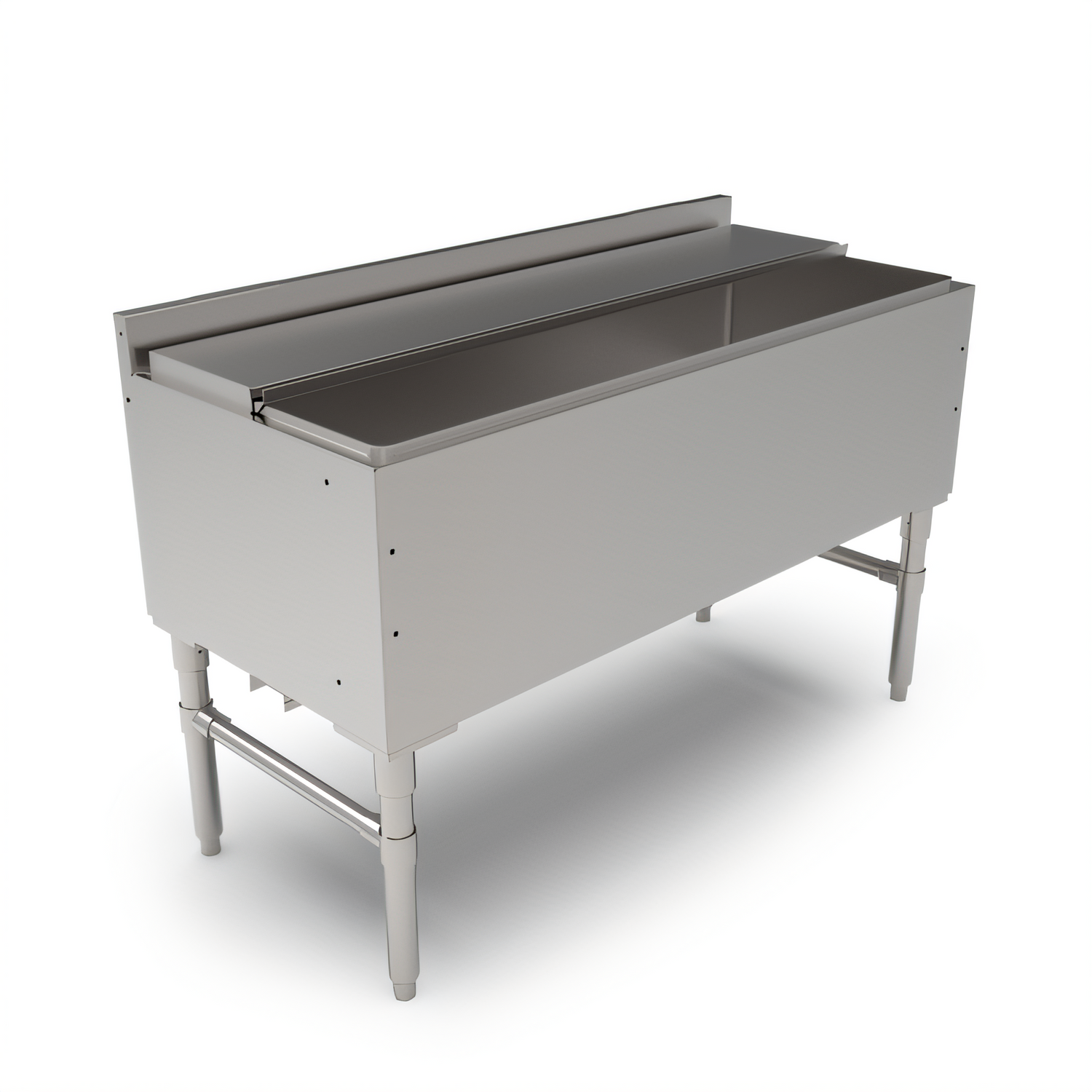

John Boos 48" Underbar Ice Bin / Cocktail Unit – 10-Circuit Cold Plate
Model: UBIB-2148-CP10 (48"W x 21"D x 32-1/2"H)Engineered for the busiest bars, night-clubs and beverage stations, this 48 inch John Boos underbar ice bin keeps product ice-cold, organized and always within reach. Heavy-duty 18 ga. Type 300 stainless steel, a foam-insulated compartment and an integrated 10-circuit cold plate work together to deliver maximum drink chilling power shift after shift.
Why You’ll Love It
- Spacious 46" W x 18" F-to-B x 13-1/2" D foam-insulated ice bin (≈ 310 lb. ice capacity).
- Built-in 10-circuit aluminum cold plate lets you run up to 10 soda/juice lines through the ice for instantly chilled beverages.
- 2-piece sliding stainless-steel lid protects ice between orders and removes easily for cleaning.
- 3" rear backsplash with access plates for rapid routing of soda gun lines.
- Rugged 18 ga. Type 300 stainless steel everywhere – top, apron, sides, backsplash and bolt-on legs.
- Stainless front-to-back side bracing and 1-5/8" O.D. legs for rock-solid stability.
- Adjustable stainless bullet feet level the unit on uneven floors.
- Threaded inserts on the sides & front accept speed rails or allow you to bolt multiple underbar units together for a continuous work line.
- 1-7/8" drain with 1" MPT 3-1/4" long connection for fast, leak-free installation.
- NSF listed for open foodservice applications.
Ideal For
- Full-service bars & clubs
- Restaurant beverage stations
- Stadium & arena concessions
- Catering & banquet bars
Technical Specifications
| Overall dimensions | 48" W x 21" D x 32-1/2" H |
|---|---|
| Ice bin interior | 46" W x 18" F-to-B x 13-1/2" D (foam insulated) |
| Cold plate | 10 circuit, cast aluminum |
| Backsplash height | 3" |
| Material & finish | 18 ga. Type 300 stainless steel, #4 satin polish |
| Legs / bracing | 1-5/8" O.D. stainless legs with stainless side bracing |
| Feet | 1" adjustable stainless bullet feet |
| Drain | 1-7/8" drain plug with 1" MPT, 3-1/4" long |
| Certification | NSF |
Optional Accessories (sold separately)
- Single or double speed rails – 30" or 36"
- Left- or right-hand stainless steel side splashes
- Bottle well holders with lid
Maintain the like-new appearance of your stainless equipment by cleaning with a non-chloride cleanser and polishing in the direction of the grain. View the full John Boos stainless care guide on the John Boos website.
