John Boos UBIB-2148 Bar Equipment
Description

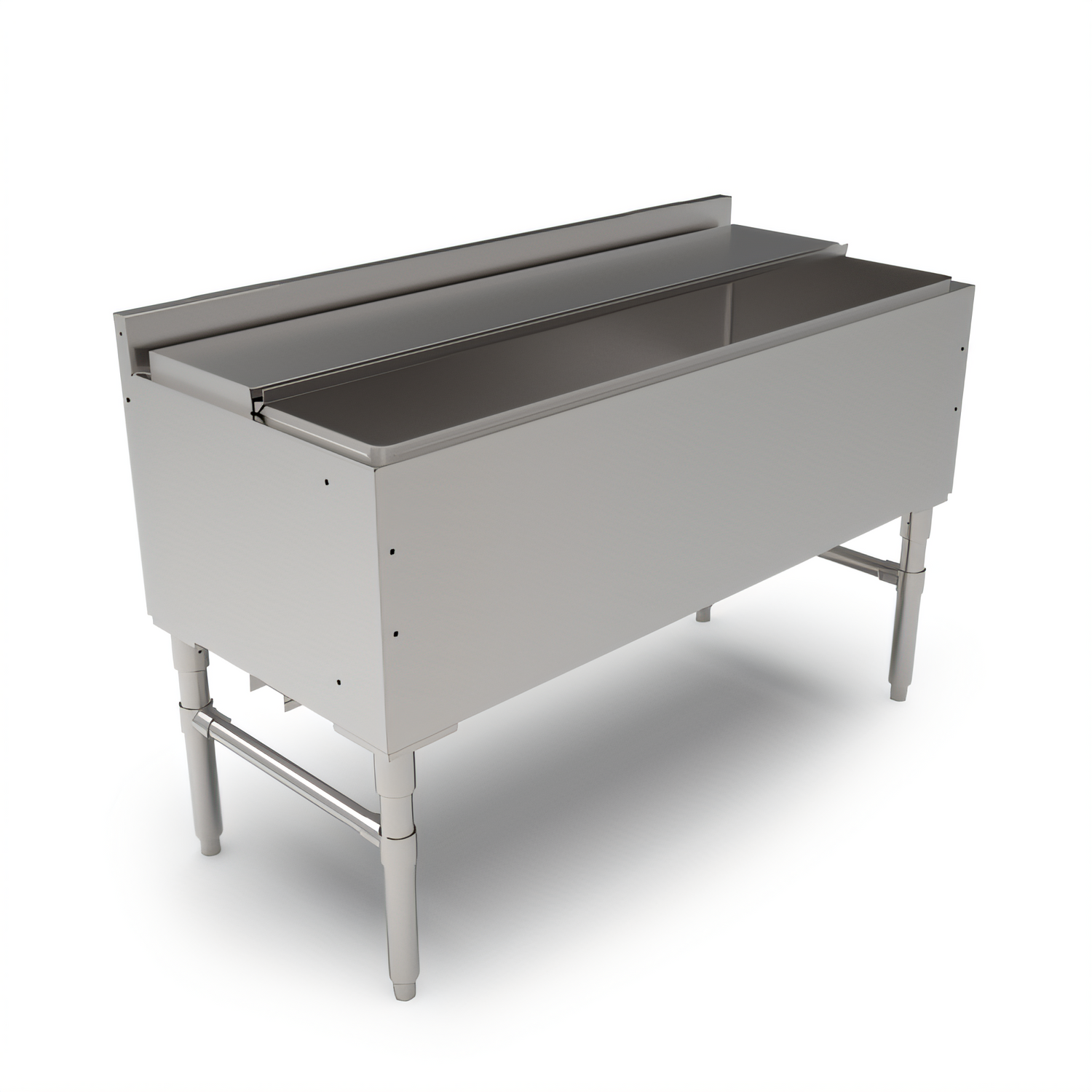

48" Underbar Ice Bin / Cocktail Unit – John Boos
Model reference: 48 × 21 UBIB SeriesKeep the drinks flowing and the ice rock-solid with this heavy-duty, NSF-listed underbar ice bin. Engineered from 18 ga. Type 300 stainless steel, it delivers the rugged durability, quick clean-up and professional polish today’s high-volume bars demand.
Why You’ll Love It
- 46" W × 18" F-B × 13-1/2" deep foam-insulated ice well maximizes ice retention.
- Two-piece sliding stainless steel lid protects ice during peak service hours.
- 3" high backsplash with twin access plates for easy routing of soda gun lines.
- 18 ga. Type 300 stainless steel throughout with #4 satin finish—corrosion-resistant and easy to sanitize.
- Bolt-on 1-5/8" stainless steel legs, stainless steel side bracing and 1" adjustable bullet feet ensure rock-solid stability on uneven floors.
- Factory-installed threaded inserts let you join adjacent underbar units or add speed rails in minutes.
- 1-7/8" drain with 1" MPT (3-1/4" long) outlet for fast, reliable plumbing hook-up.
- NSF certified for food-safe performance in commercial environments.
Technical Specifications
| Overall dimensions (W × D × H) | 48" W × 21" D × 32-1/2" H |
|---|---|
| Ice bin interior | 46" W × 18" front-to-back × 13-1/2" deep |
| Ice capacity (approx.) | ≈ 180 lb* |
| Backsplash height | 3" |
| Construction | 18 ga. Type 300 S/S, #4 satin finish |
| Legs & bracing | 1-5/8" O.D. stainless legs with stainless front-to-back bracing |
| Feet | 1" dia. adjustable stainless steel bullet feet |
| Drain | 1-7/8" drain plug, 1" MPT (3-1/4" L) connection |
| Certifications | NSF |
| Shipping weight | *Weights are subject to additional packaging |
Compatible Add-Ons
- Single or double speed rails (24"–36" widths)
- Left- or right-hand side splashes
- Bottle-well holders with lids
Accessories are sold separately and ship loose for field installation.
Stainless Steel Care
Clean daily with non-chloride, non-abrasive stainless steel cleaner, wiping in the direction of the grain. Avoid steel wool, wire brushes and bleach to preserve the protective stainless film.
