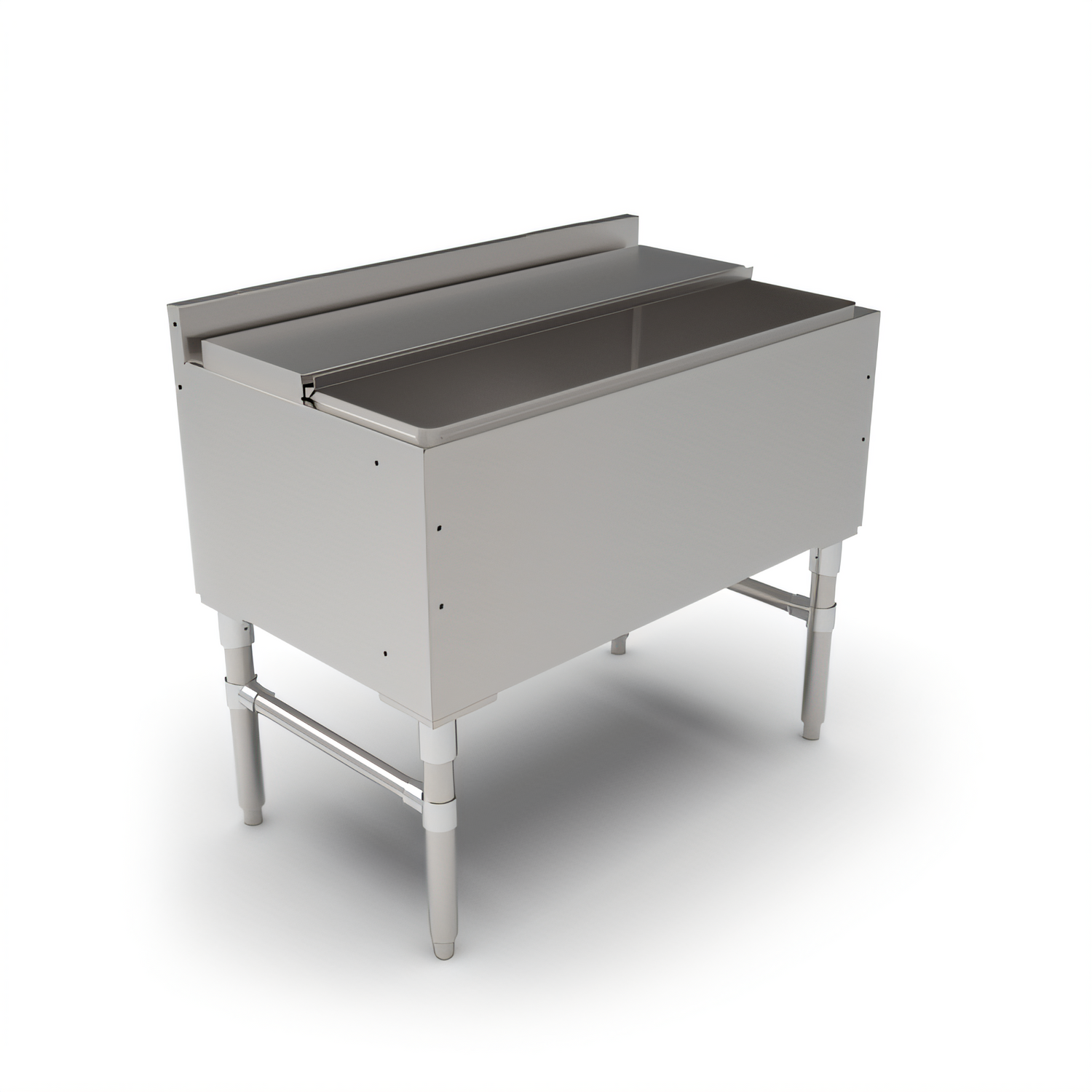

John Boos 36-Inch Wide Underbar Ice Bin/Cocktail Unit with 2-Piece Sliding Lid

36 x 21 Inch, 13-1/2 Inch Deep Insulated Ice Bin, Stainless Steel

Built for busy bars, this insulated underbar ice bin combines durable stainless steel construction, an included sliding lid, and accessory-friendly mounting points.

  • 36"W x 21"D x 32-1/2"H overall size with a 34" x 18" x 13-1/2" insulated ice bin
  • Includes a 2-piece sliding lid to help protect ice and improve access
  • Foam insulated bin with drain helps keep ice colder and manage meltwater
  • 18GA Type 300 stainless steel construction with a satin finish for durability
  • 3" backsplash helps contain splashes and supports bar-side workflow
  • Stainless steel legs, side bracing, and adjustable bullet feet provide stable support

Overall Dimensions:

36.0"W x 21.0"D x 32.5"H

Product Weight:

90.0 lb

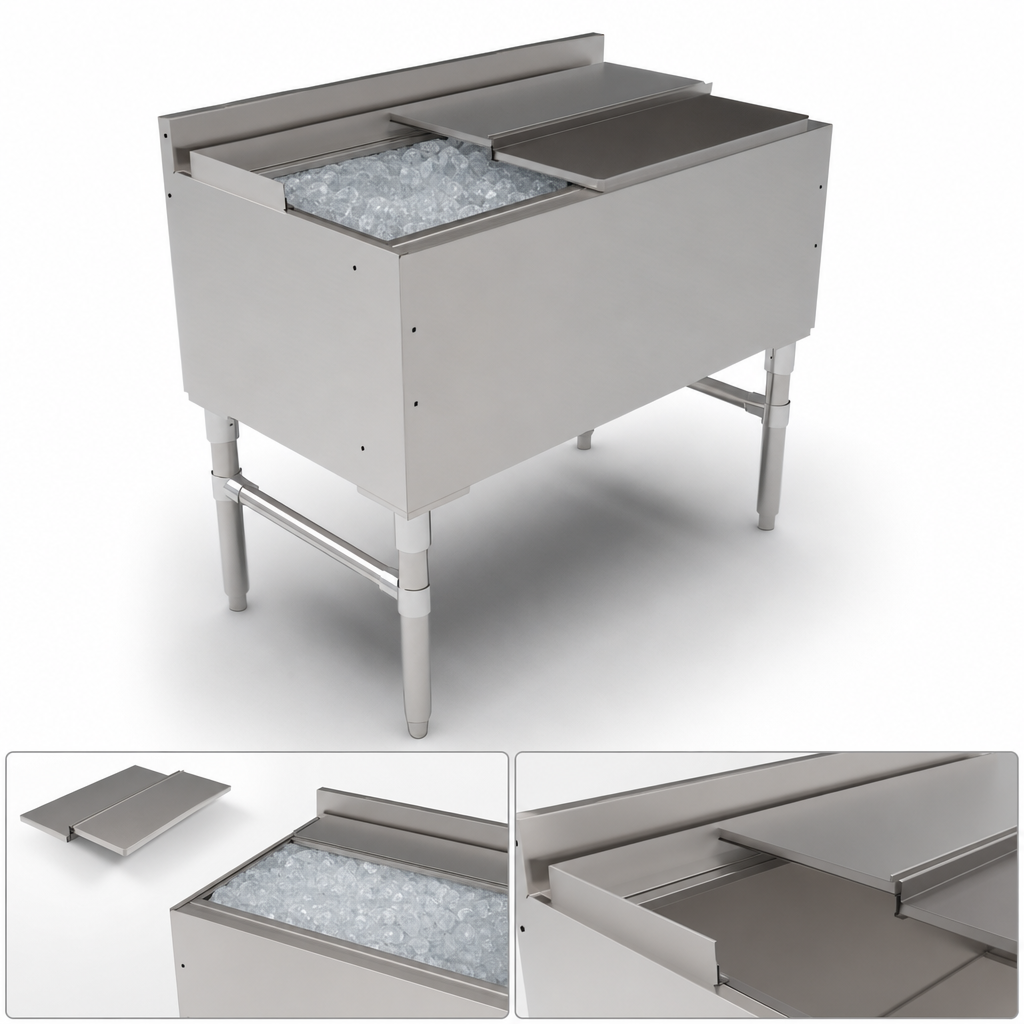

2-Piece Sliding Lid

Included sliding lid helps cover the ice bin while allowing convenient access.

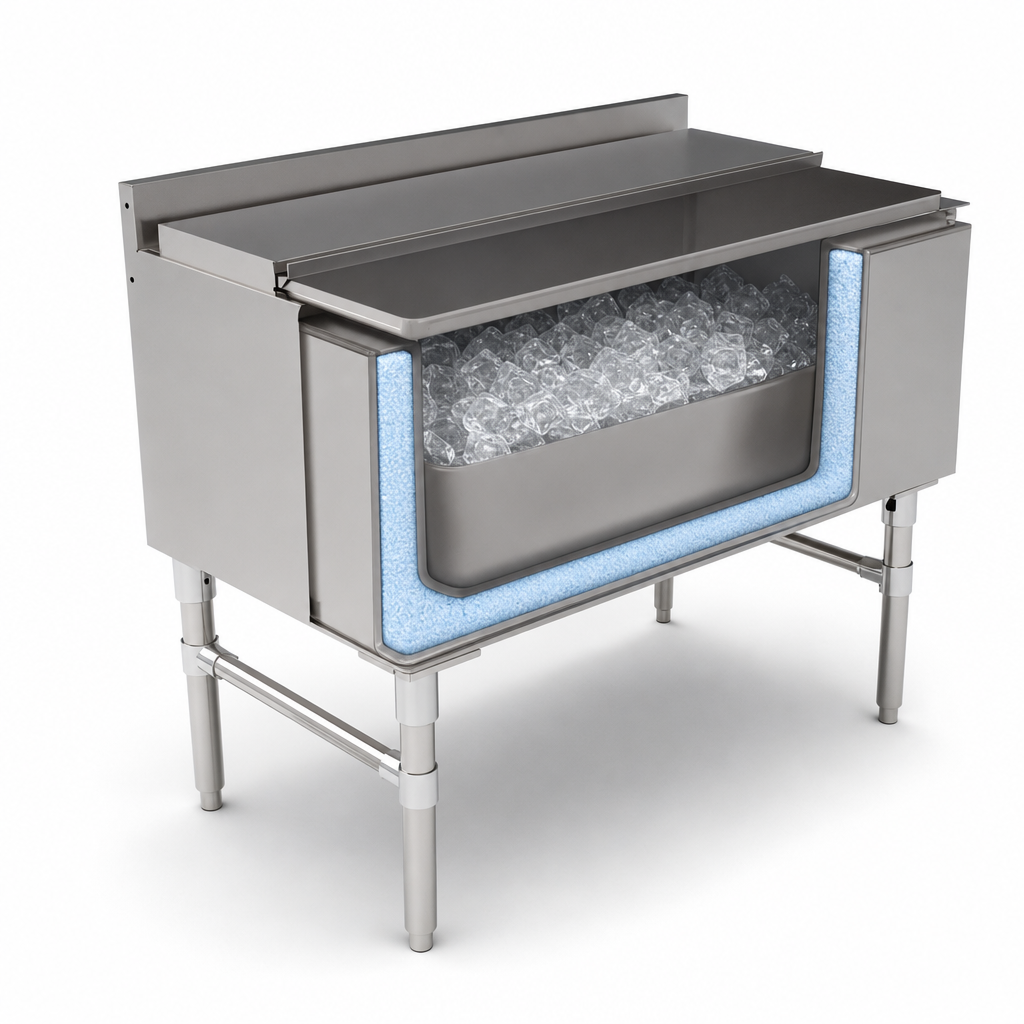

Foam Insulated Ice Bin

Foam insulation helps retain cold and keep ice at serving temperature longer.

Drain Included

Built-in drain helps remove meltwater from the ice bin.

3-Inch Backsplash

Provides splash containment and a clean finished back edge.

18GA Type 300 Stainless Steel Construction

Durable stainless steel body with a #4 polish, satin finish for long service life.

Stainless Steel Legs and Bracing

Includes stainless steel legs, side bracing, and front-to-back bracing for stability.

Adjustable Stainless Steel Bullet Feet

Adjustable feet help level the unit during installation.

Accessory Mounting Inserts

Threaded side inserts and front inserts support attachment of adjacent units and speed rails.

Soda Gun Line Access Plates

Access plates on top of the backsplash simplify routing soda gun lines.

Type Underbar Ice Bin
Style Cocktail Unit
Material Type 300 Stainless Steel
Finish #4 Polish Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 90 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 36"W x 21"D x 32-1/2"H.
The insulated ice bin is 13-1/2" deep and measures 34"W x 18" front-to-back.
Yes, it includes a 2-piece sliding lid.
It is constructed from 18GA Type 300 stainless steel with a satin finish.
Yes, the unit includes side threaded inserts for adjacent-unit attachment and front inserts for speed rail mounting.
