John Boos

John Boos 36-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate, Stainless Steel

SKU: UBIB-2136-CP7
GTIN: 662969778835
$2,539.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

John Boos 36-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate, Stainless Steel

36" W x 21" D x 32-1/2" H, 2-Piece Sliding Lid, 3" Backsplash

Built for fast-paced bars, this stainless steel underbar ice bin combines a foam-insulated bin, integrated 7-circuit cold plate, and sliding lid for efficient service.

  • 36-inch underbar ice bin/cocktail unit designed for bar and beverage prep
  • Integrated 7-circuit cold plate helps support chilled drink service
  • Foam-insulated ice bin helps keep ice colder longer and reduce melt
  • Includes a 2-piece sliding lid and 3-inch backsplash for service convenience
  • Stainless steel legs, side bracing, and adjustable bullet feet provide stable support
  • Threaded side inserts and front inserts help with modular attachment and speed rail use

Overall Dimensions:

36.0"W x 21.0"D x 32.5"H

Product Weight:

128.0 lb

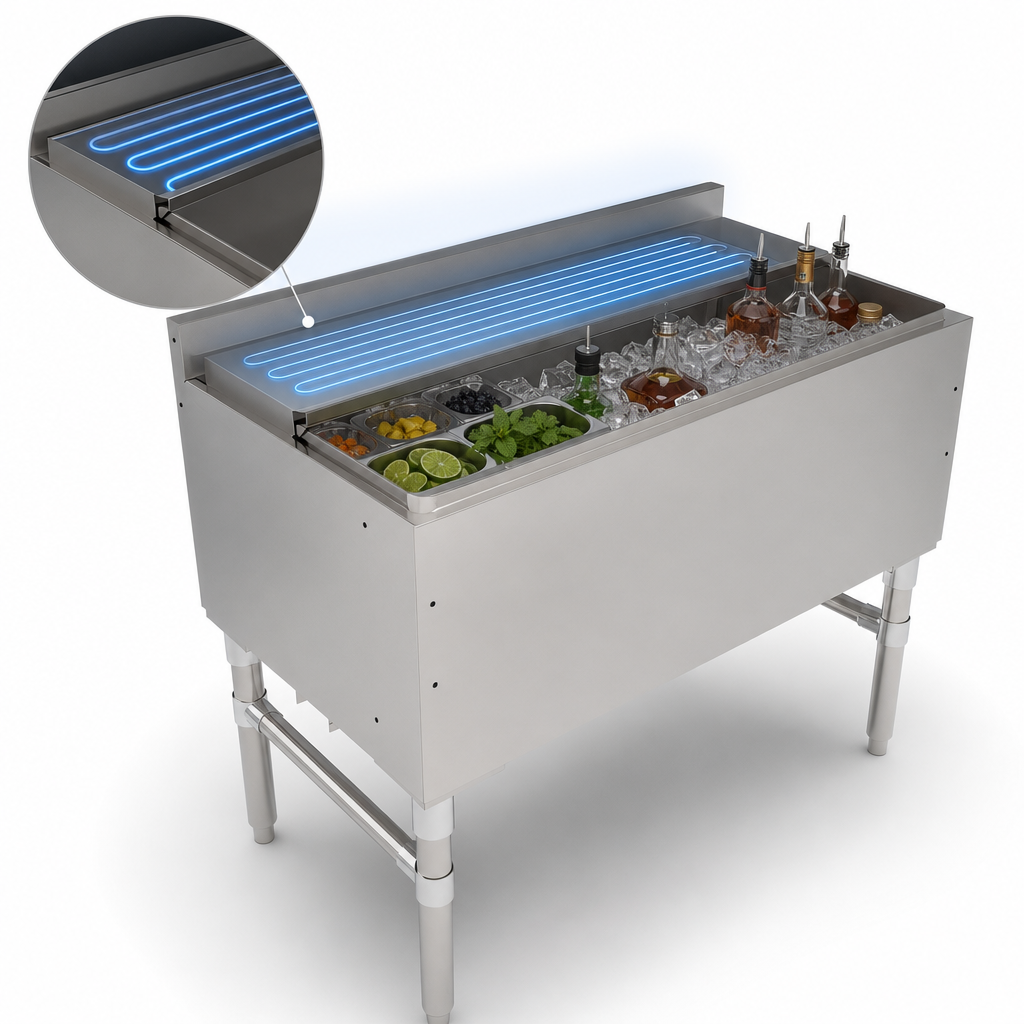

7-Circuit Cold Plate

Integrated cold plate provides seven circuits for chilled beverage service and cocktail preparation.

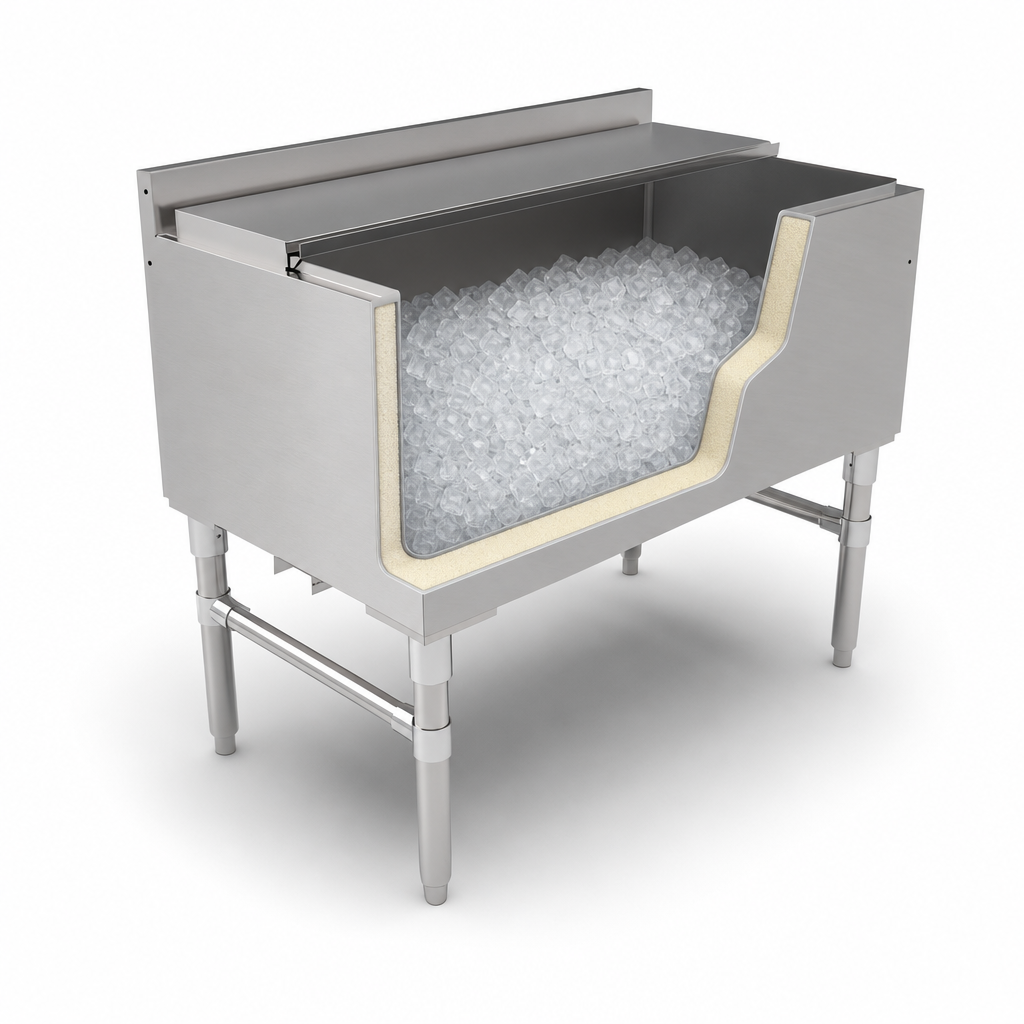

Foam-Insulated Ice Bin

Insulated bin construction helps maintain ice temperature and reduce melt.

2-Piece Sliding Lid

Sliding lid helps cover the ice bin between uses while still allowing quick access during service.

Stainless Steel Construction

Built with 18GA Type 300 stainless steel for durability and easy cleaning.

Satin Finish

#4 polish satin finish gives the unit a clean, professional appearance.

Stable Base Design

Includes stainless steel legs, side bracing, and adjustable bullet feet for secure installation.

Service-Friendly Backsplash

3-inch backsplash includes access plates for soda gun lines.

Modular Attachment Points

Standard threaded inserts on the sides and front inserts help attach adjacent units and accessories.

Drain Connection

Includes a drain plug and 1-inch MPT drain connection for installation.

Type Underbar Ice Bin/Cocktail Unit
Style With Cold Plate
Installation Type Freestanding
Material Stainless Steel
Interior Finish Type 300 Stainless Steel
Finish #4 Polish, Satin Finish
Shipping Width 36 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 128 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The unit measures 36" W x 21" D x 32-1/2" H overall, and the insulated ice bin is 34" W x 18" front-to-back x 13-1/2" deep.
Yes. It includes a 7-circuit cold plate.
The unit is built from 18GA Type 300 stainless steel with a #4 polish, satin finish.
Yes. It includes a 2-piece sliding lid, a drain plug, and a 1-inch MPT drain connection.
Yes. The unit has standard threaded side inserts for attaching adjacent units together.
Documented accessories include side splashes, single and double speed rails, and bottle well holders with lids.
