Description

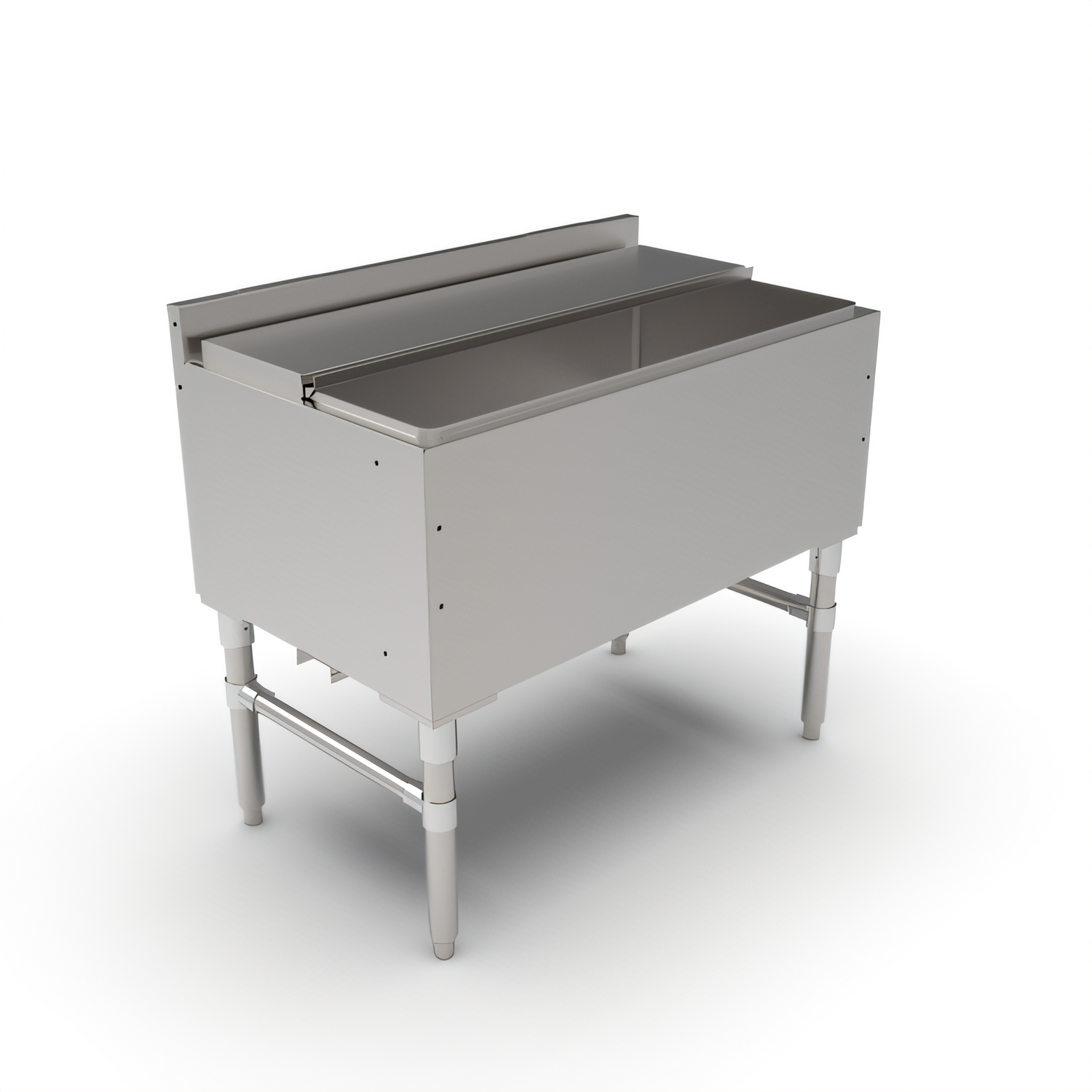

John Boos UBIB-2136-CP10 Underbar Ice Bin / Cocktail Station

36" W x 21" D – 10-Circuit Cold Plate – NSF

Keep cocktails flowing and soda guns ice-cold with the industry-trusted UBIB-2136-CP10. Built from heavy-duty 18 gauge, type 300 stainless steel and packed with a 10-circuit cold plate, this 36" underbar ice bin is ready for the demands of high-volume bars, clubs and tasting rooms.

Why You’ll Love It

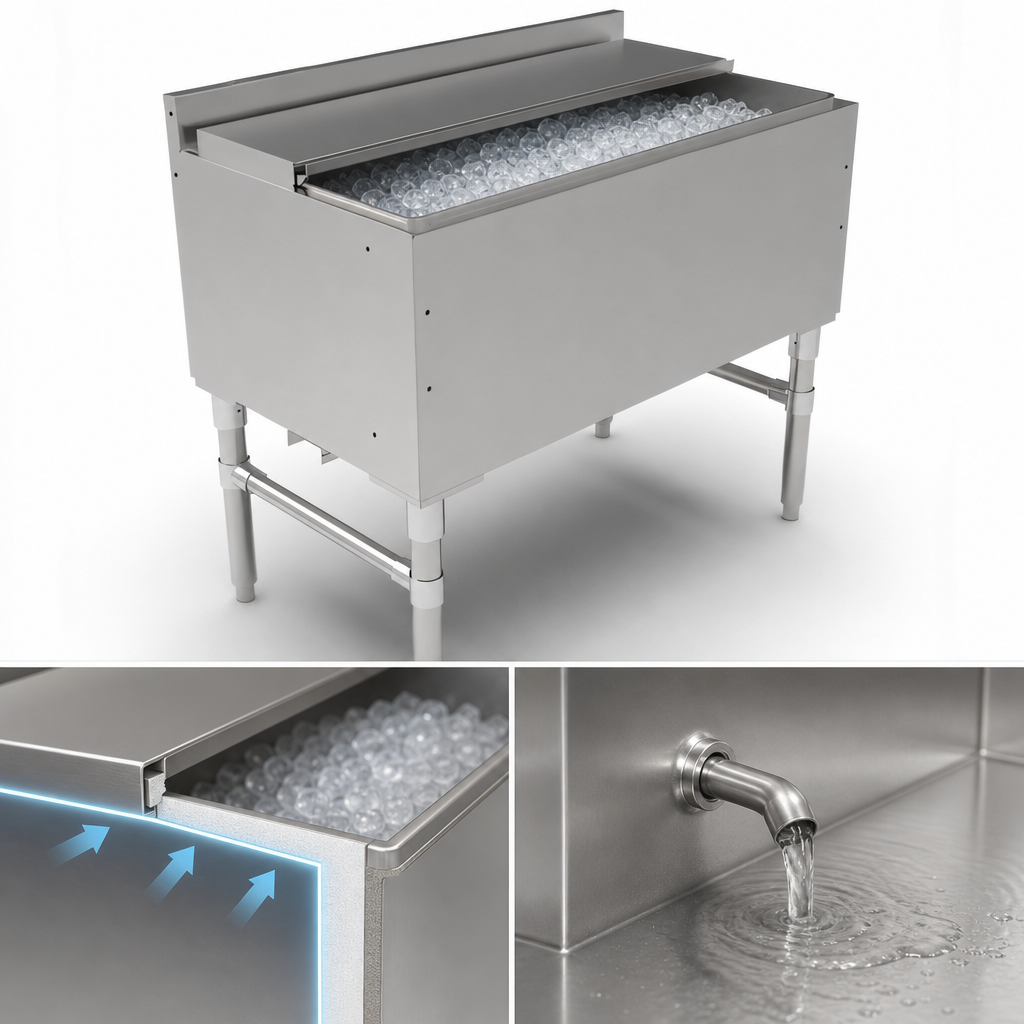

  • Large 120 lb capacity ice bin (34" W x 18" F-B x 13-1/2" D) is foam-insulated to slow melt-off.

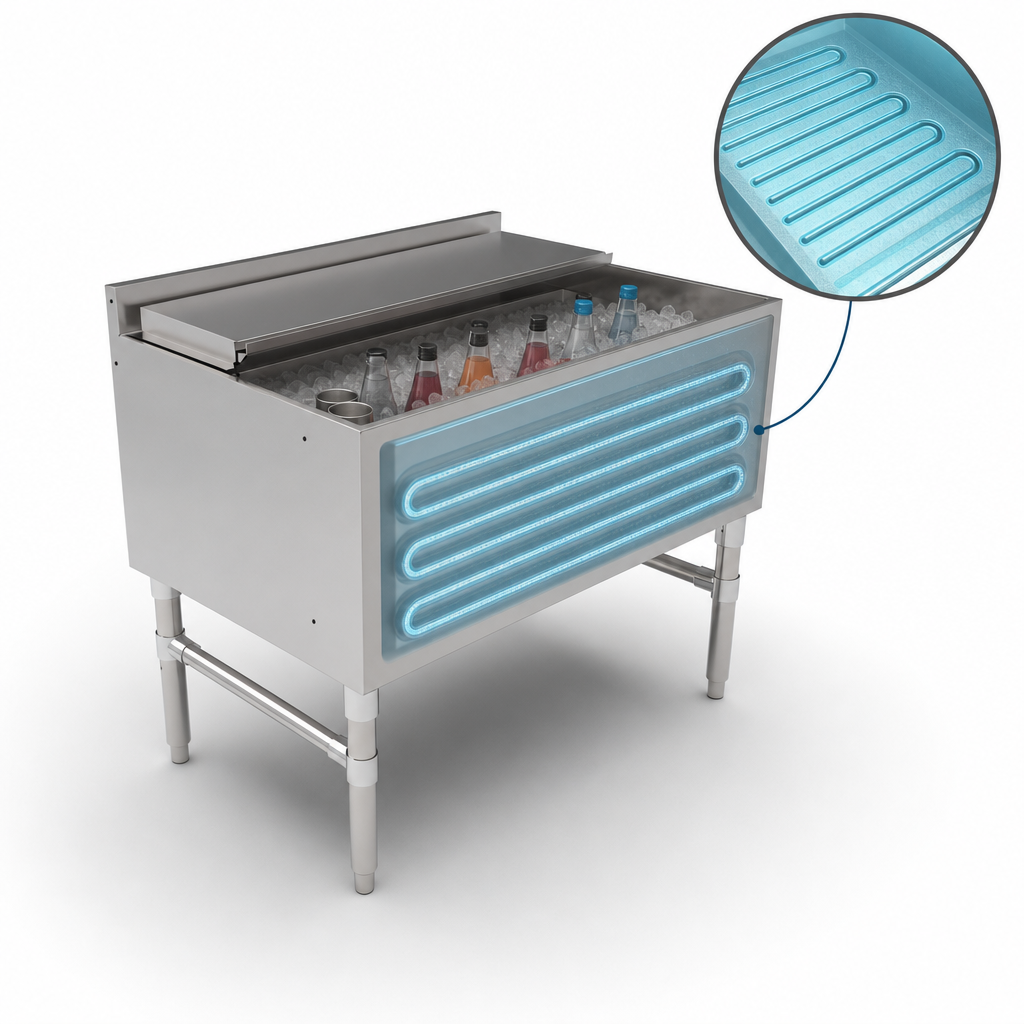

  • Built-in 10-circuit cold plate chills up to ten beverage lines right in the ice for consistent pours.
  • Includes a 2-piece sliding stainless-steel lid to keep ice clean and service quick.
  • 3" backsplash with removable access plates—run soda gun bundles without cutting the unit.
  • 18 ga stainless top, sides, apron & backsplash with #4 satin finish—durable, easy to wipe down.
  • 1-5/8" diameter stainless legs, side-to-side & front-to-back bracing, plus adjustable bullet feet for rock-solid stability on uneven floors.
  • Pre-threaded side inserts for mating to other John Boos underbar pieces; front inserts accept single or double speed rails (sold separately).
  • NSF listed for safe use in commercial food & beverage operations.

Specifications

Model UBIB-2136-CP10
Overall Dimensions 36" W × 21" D × 32-1/2" H
Ice Bin Interior 34" W × 18" F-B × 13-1/2" Deep (foam insulated)
Cold Plate 10 circuits (pre-drilled & sealed)
Drain 1-7/8" drain plug, 1" MPT × 3-1/4" long outlet
Construction 18 ga type 300 stainless steel, #4 satin finish
Legs & Feet 1-5/8" Ø stainless legs with stainless side bracing & 1" adjustable bullet feet
Backsplash Height 3"
Unit Weight Approx. 145 lb (shipping weight may vary with packaging)
Certifications NSF

Popular Add-Ons (sold separately)

  • UBSS-21-L / UBSS-21-R stainless side splashes (left or right)
  • UBSR single or double speed rails – 30" or 36" lengths
  • UBIBL-2136-BWH bottle well holder with hinged lid
Heads-up: Legs are factory-installed for structural integrity and are not intended to be removed.

Need help configuring a full underbar lineup? Our foodservice specialists are ready to assist—just reach out via chat or email.

Features & Specs

Manufacturer

John Boos

Certifications

NSF

Height

32.5in

Width

36.0in

Depth

21.0in

Shipping Weight

145.0lbs

Cold Plate

(10) circuit

Construction

stainless steel construction

Depth (front - back) OA

20" - 21"

Width (side - side) OA

31" - 36"

Splash

3"

Bin Depth

12" deep ice bin

Specifications

Underbar Ice Bin/Cocktail Unit, 36"W x 21"D x 32-1/2"H overall size, 34"W x 18" front-to-back x 13-1/2" deep insulated ice bin with drain, 3"H backsplash, with 10-circuit cold plate, includes 2-piece sliding lid, 18/300 stainless steel construction, stainless steel legs & side bracing, adjustable stainless steel bullet feet, NSF (weights are subject to additional packaging)
