John Boos UBIB-2136 Bar Equipment
Description

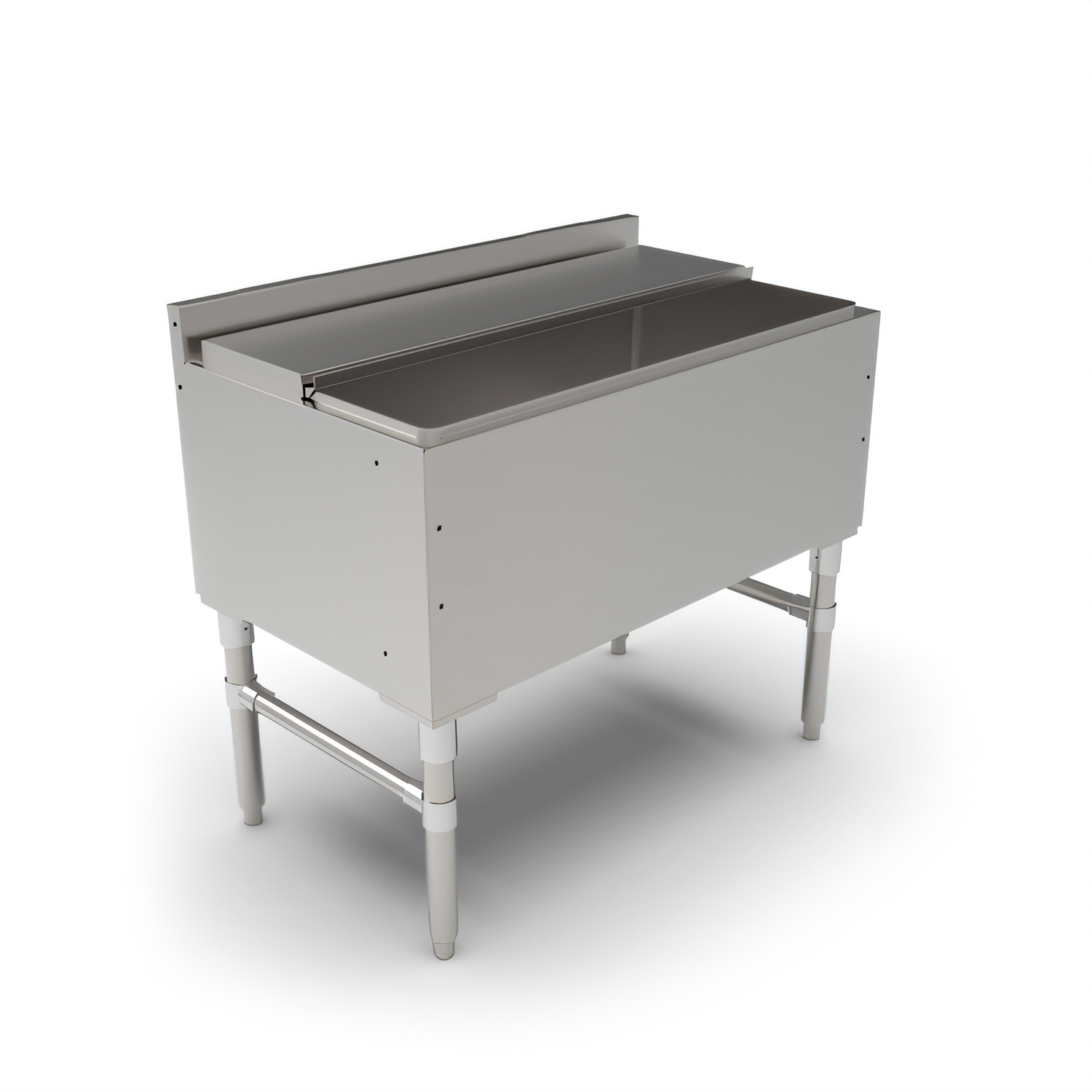

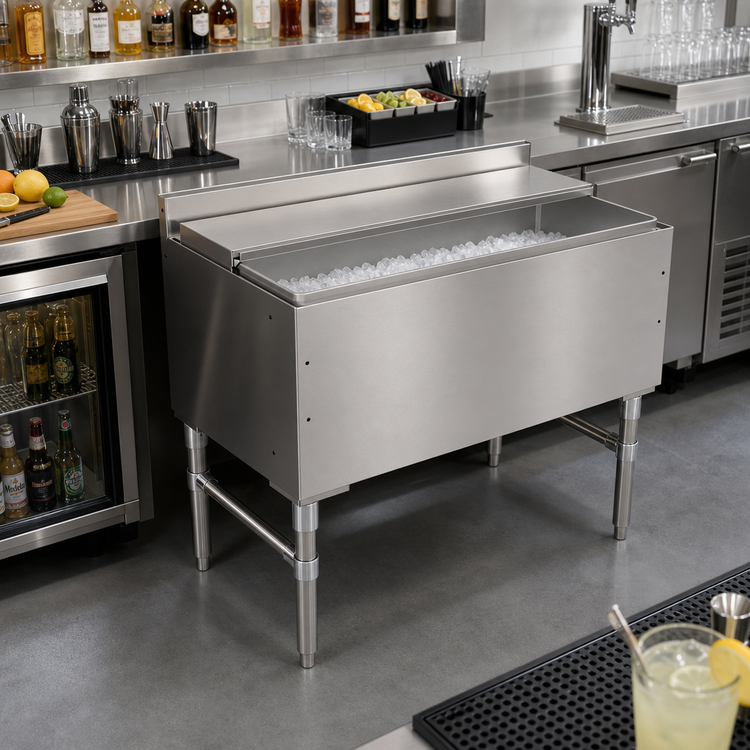

John Boos UBIB-2136 Underbar Ice Bin / Cocktail Unit
36" W x 21" D – Foam-insulated 18/300 stainless steel, NSFKeep cocktails flowing and service running smoothly with the John Boos UBIB-2136. This 36-inch wide underbar ice bin pairs industry-leading stainless-steel durability with a deep, fully insulated well that keeps ice solid through the rush. Perfect behind any bar, restaurant, hotel or event space where speed, sanitation and reliability are non-negotiable.
Stand-out features

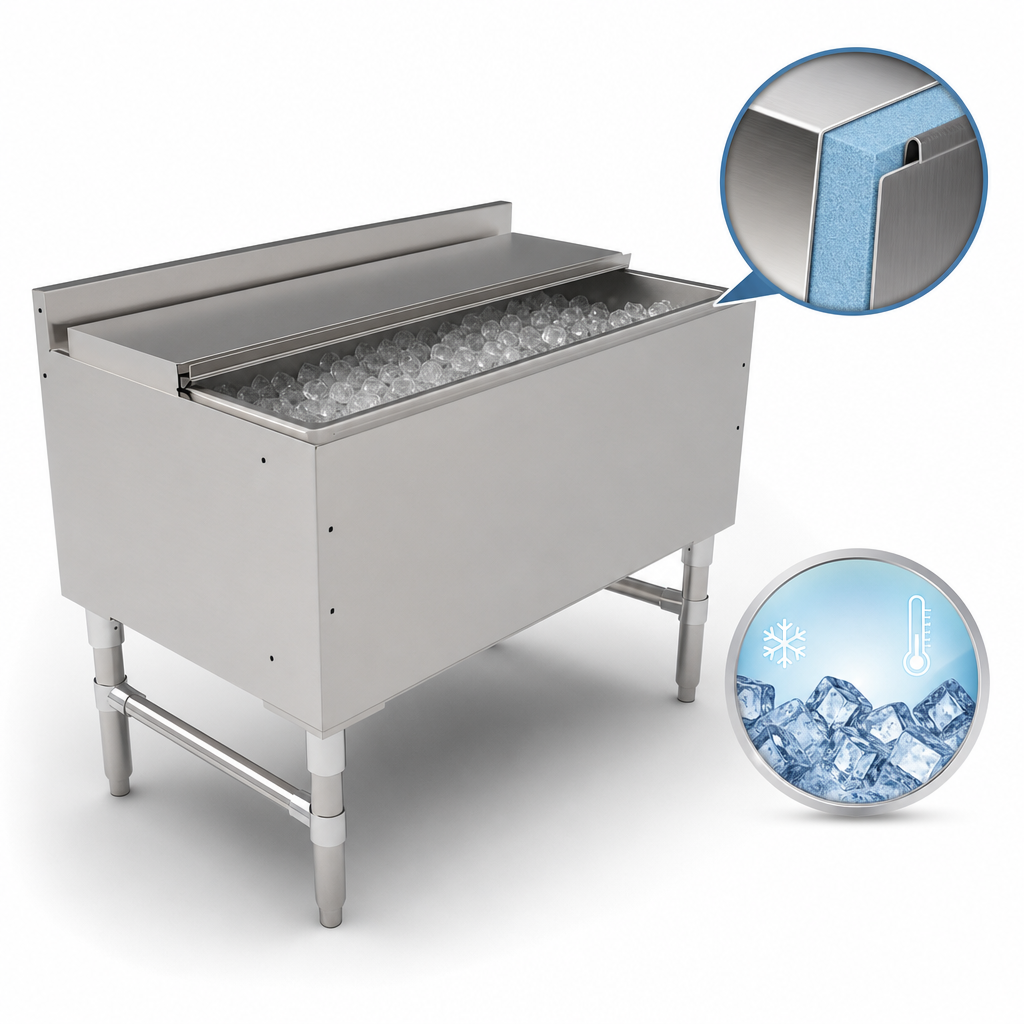

- Foam-insulated ice bin measures 34" W x 18" front-to-back x 13-1/2" deep for maximum ice retention
- 18 gauge, type 300 stainless steel construction with #4 satin finish—built for years of heavy-duty commercial use

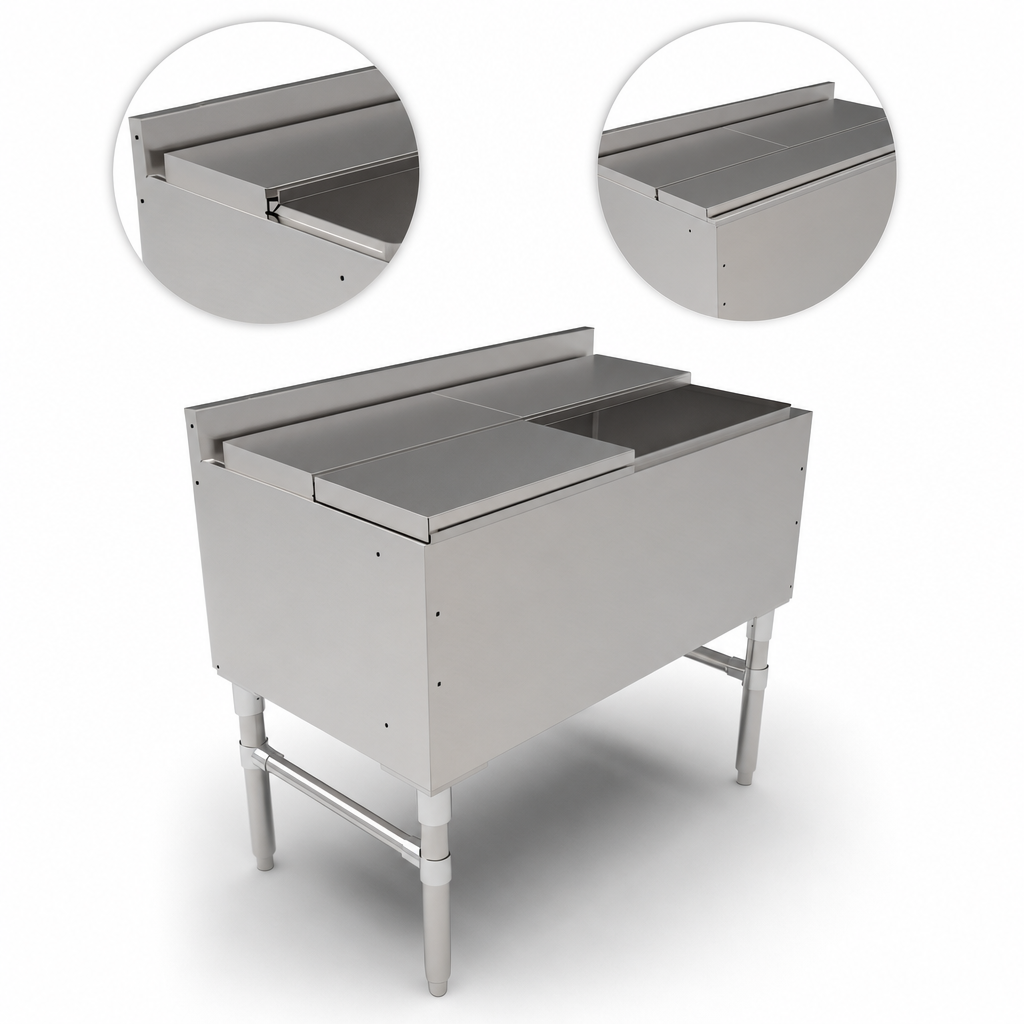

- Includes 2-piece sliding stainless steel lid to shield ice from contaminants between drinks
- 3" high backsplash with access plates for easy routing of soda gun lines
- 1-7/8" drain with 1" MPT, 3-1/4" long connection—quick to hook up and simple to clean
- Pre-tapped side inserts for adjoining underbar sections & front inserts for speed-rail installation
- Bolt-on 1-5/8" stainless steel legs, front-to-back stabilizing brace & adjustable 1" stainless steel bullet feet for fast, level installation
- NSF listed for safe use in all food-service operations
Technical specifications
| Model | UBIB-2136 (21" Series) |
|---|---|
| Overall dimensions | 36" W × 21" D × 32-1/2" H |
| Ice bin interior | 34" W × 18" F-B × 13-1/2" D (foam-filled walls) |
| Backsplash height | 3" |
| Material & finish | 18 ga. type 300 stainless steel, #4 satin polish |
| Drain | 1-7/8" drain plug with 1" MPT, 3-1/4" L connection |
| Legs / bracing | 1-5/8" Ø stainless steel legs with 1-1/4" front-to-back brace |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF |
| Shipping weight | 90 lb (weight subject to additional packaging) |
Popular add-ons (sold separately)
- Speed rails – single or double (24", 30", 36")
- Left or right side splash (UBSS-21-L / -R)
- Bottle well holder with lid (UBIBL-2136-BWH)
Care & maintenance
Clean daily with non-chloride cleaners and soft cloths. Avoid abrasive pads or bleach. For restoration, John Boos Stainless Steel Cleaner is recommended.
