John Boos

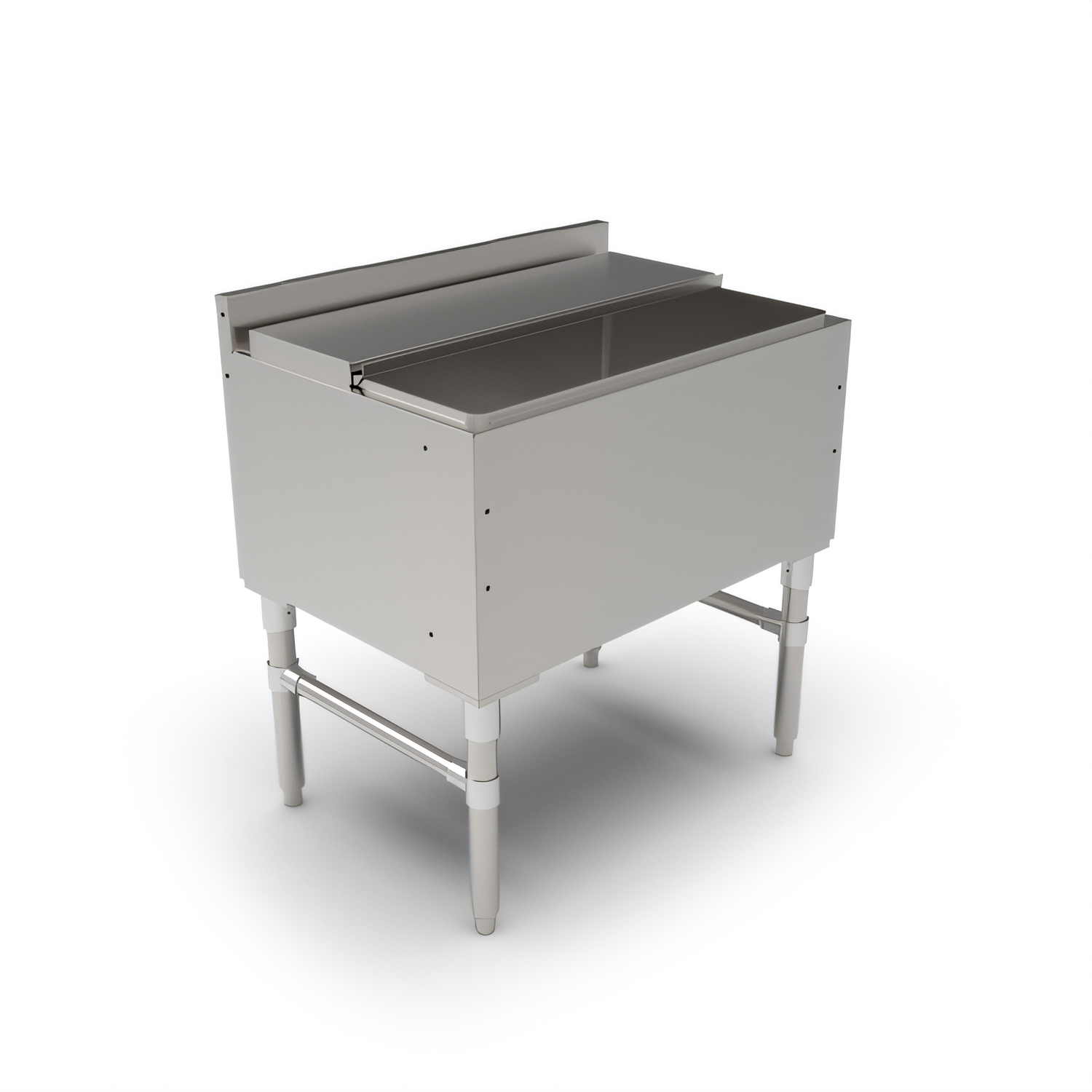

John Boos Insulated Stainless Steel Underbar Ice Bin/Cocktail Unit with Sliding Lid, 30 Inch Wide

SKU: UBIB-2130-X
$818.10
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

John Boos Insulated Stainless Steel Underbar Ice Bin/Cocktail Unit with Sliding Lid, 30 Inch Wide

30 Inch x 21 Inch Floor Model with 3 Inch Backsplash, Drain, and Adjustable Bullet Feet

Built for busy bars, this insulated underbar ice bin keeps ice close at hand while delivering durable stainless steel construction and modular attachment points.

  • 30-inch-wide underbar ice bin/cocktail unit sized for efficient bar service.
  • Foam-insulated ice bin helps keep ice colder and reduces melt.
  • Includes a 2-piece sliding lid for easy access and added protection.
  • 18-gauge Type 300 stainless steel construction with a satin finish supports heavy-duty use.
  • Stainless steel legs, front-to-back bracing, and adjustable bullet feet provide a stable floor installation.
  • Threaded side inserts and front inserts help connect adjacent units and add speed rails.
  • Access plates on the backsplash help route soda gun lines cleanly.

Overall Dimensions:

30.0"W x 21.0"D x 32.5"H

Product Weight:

80.0 lb

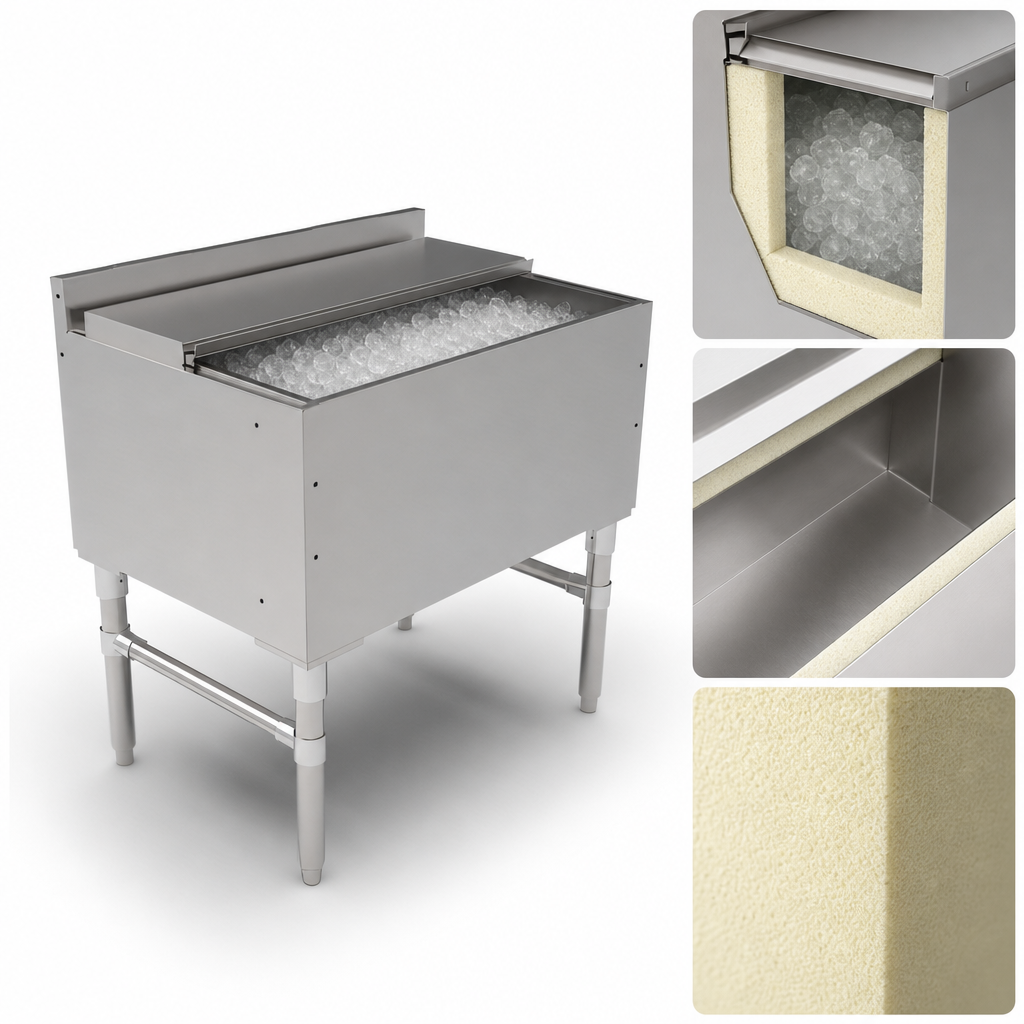

Foam Insulated Ice Bin

Insulation helps maintain ice temperature and supports longer ice retention during service.

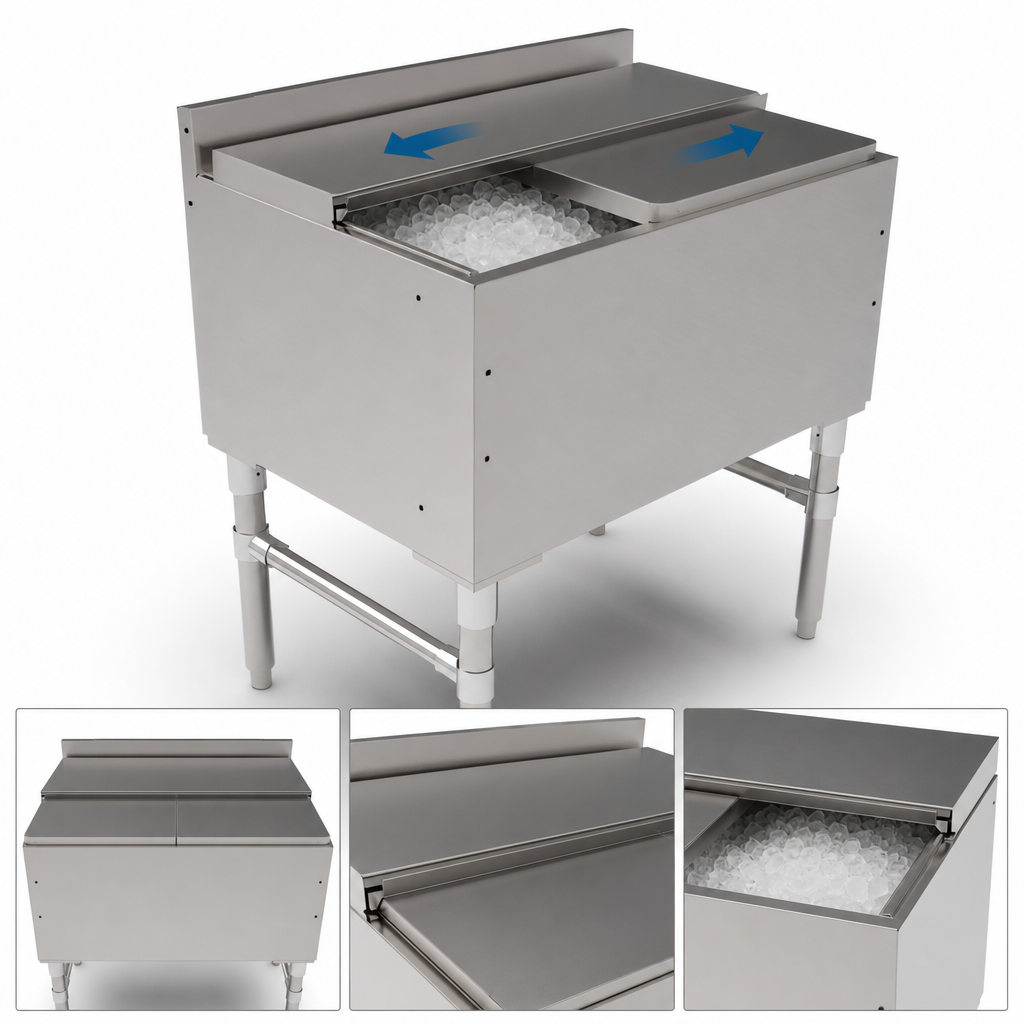

2-Piece Sliding Lid

Included sliding lid makes it easy to access the bin while helping keep ice covered when not in use.

Stainless Steel Construction

Built with 18-gauge Type 300 stainless steel for durability, with a #4 polish satin finish.

Integrated Drain System

The ice bin includes a drain plug and drain connection to help remove meltwater efficiently.

Modular Attachment Points

Standard threaded side inserts and front inserts allow the unit to bolt to adjacent units and accept speed rail accessories.

Stable Support Hardware

Includes stainless steel legs, front-to-back bracing, and adjustable stainless steel bullet feet for installation stability.

Service-Ready Backsplash

Access plates on top of the backsplash accommodate soda gun lines for bar setup.

Type Underbar Ice Bin/Cocktail Unit
Style Insulated
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Backsplash Height 3 Inches
Ice Bin Size 28 Inches W x 18 Inches Front-to-Back x 13-1/2 Inches Deep
Drain Connection Required
Water Connection Not Required
Cold Plate Without
Shipping Width 30 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 80 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 30 inches wide by 21 inches deep by 32-1/2 inches high.
The insulated ice bin measures 28 inches wide by 18 inches front-to-back by 13-1/2 inches deep.
Yes, it includes a 2-piece sliding lid.
It is constructed from 18-gauge Type 300 stainless steel with a #4 polish satin finish.
Yes, it includes a drain plug and a 1 inch MPT drain connection.
The unit has side inserts for attaching adjacent units and front inserts for speed rails. Documented accessories include side splashes, single and double speed rails, and bottle well holders with lids.
