John Boos UBIB-2130-CP10-X Bar Equipment
Description

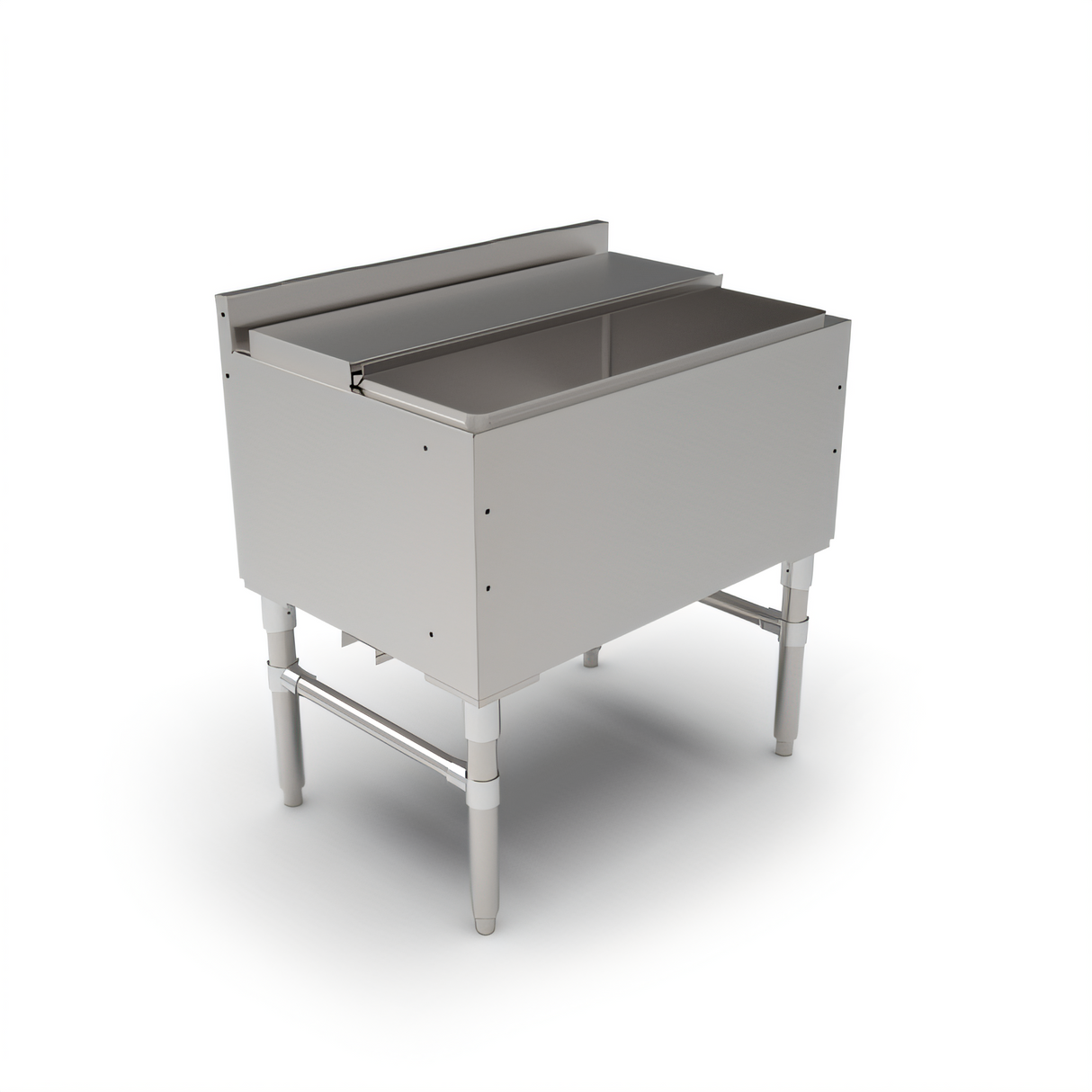

John Boos UBIB-2130-CP10 Underbar Ice Bin/Cocktail Unit
30" W x 21" D x 32-1/2" H | 10-Circuit Cold Plate | NSF ListedBuilt for high-volume bars that refuse to compromise on quality, the John Boos UBIB-2130-CP10 delivers rapid drink prep, rock-solid durability, and beverage-line cooling—all in a compact 30 inch footprint. From the foam-insulated ice bin and stainless sliding lids to the integrated 10-circuit cold plate, every detail is engineered to keep your cocktails cold and your service even cooler.
Key Features & Benefits

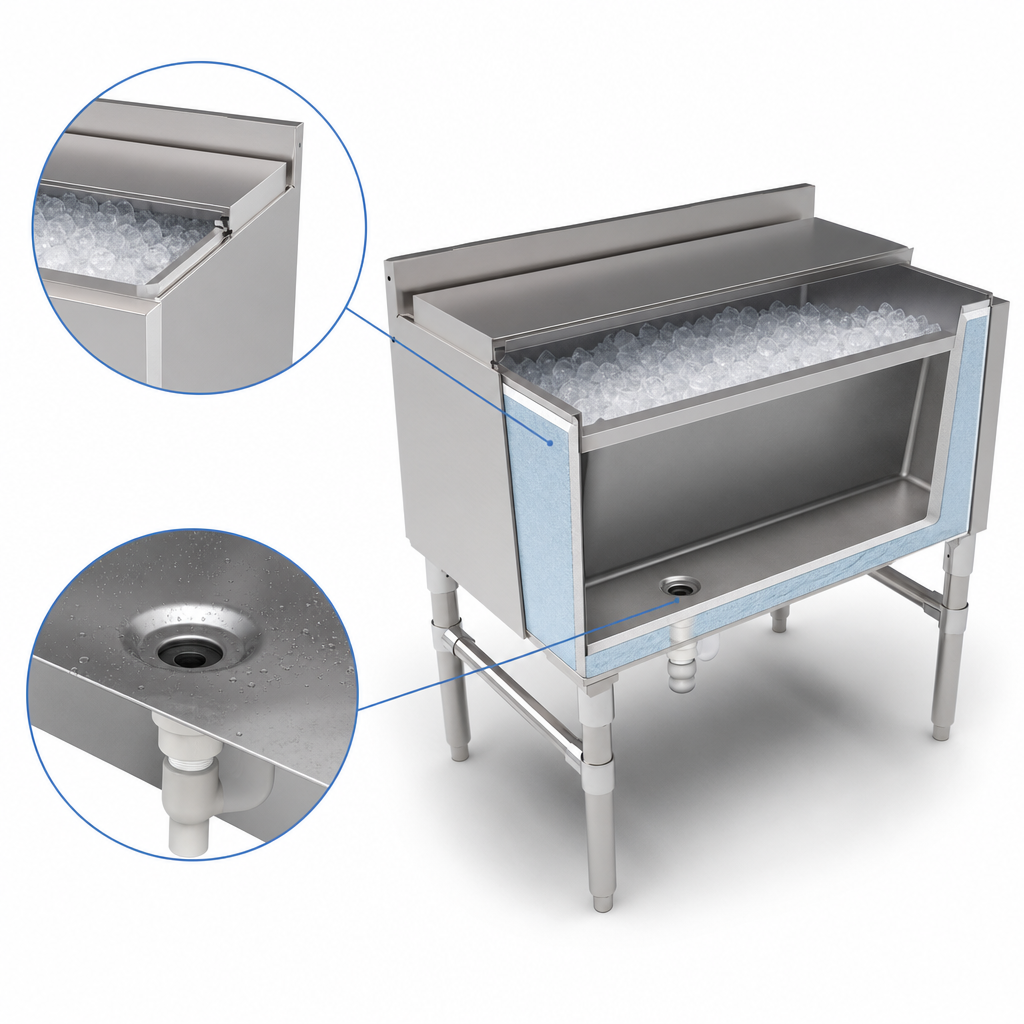

- Foam-insulated ice bin holds 28" W x 18" F-B x 13-1/2" D of ice for all-night service.

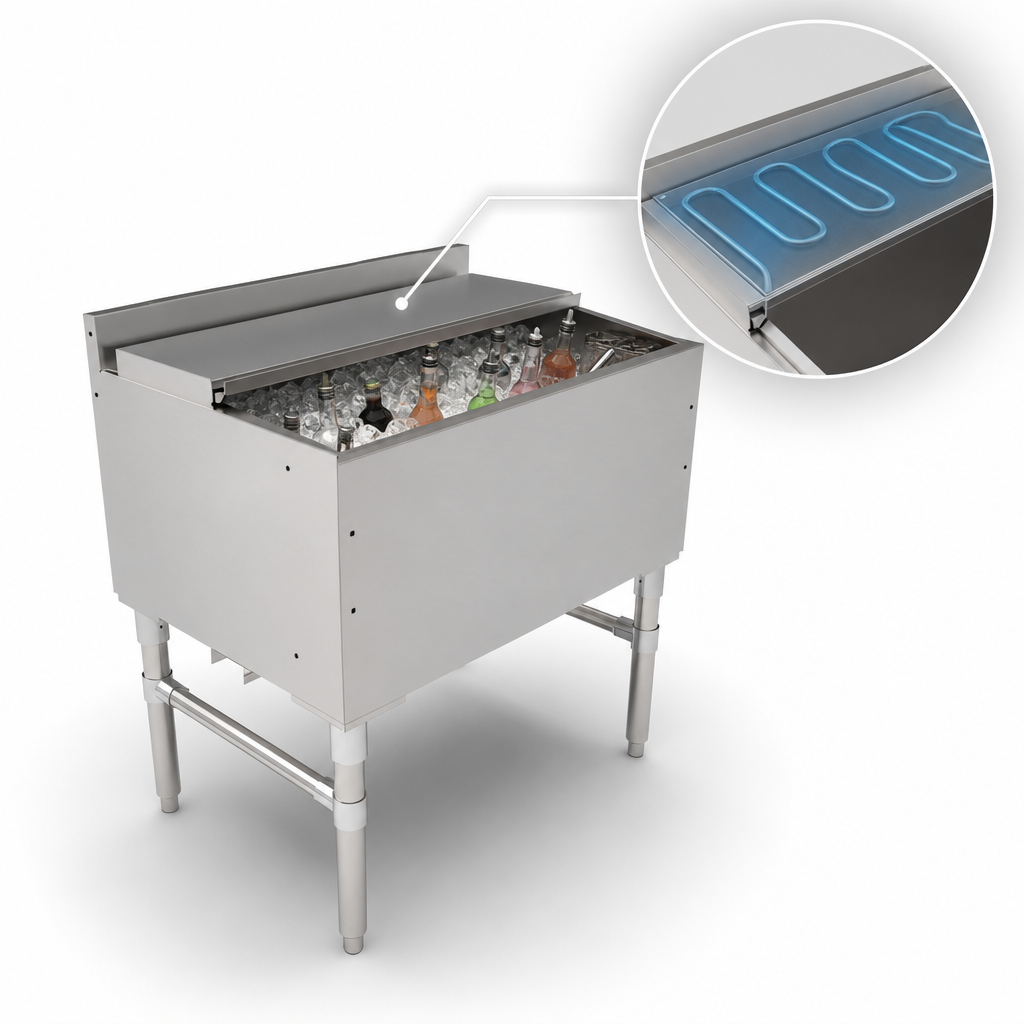

- 10-circuit cast aluminum cold plate chills soda or liquor lines right at the point of pour.
- Rugged 18 GA, Type 300 stainless steel construction with #4 satin polish for easy cleaning & long life.
- 3" backsplash with pre-punched access plates keeps walls dry and organizes soda-gun lines.
- Includes a 2-piece sliding stainless-steel lid to protect ice from debris and maintain temperature.
- Bolt-on 1-5/8" Ø stainless legs, side bracing, and 1" adjustable bullet feet for fast leveling on uneven floors.
- Threaded side inserts let you seamlessly gang multiple underbar sections together.
- Front inserts accept single or double speed rails for streamlined bottle storage (sold separately).
- Z-clip furnished for secure wall mounting.
- Large 1-7/8" drain with 1" MPT (3-1/4" L) connection simplifies plumbing hook-up.
- NSF certified for sanitation and peace of mind.
Complete Specifications
| Model | UBIB-2130-CP10 |
|---|---|
| Overall Dimensions (W x D x H) | 30" x 21" x 32-1/2" |
| Ice Bin Interior | 28" x 18" x 13-1/2" (foam insulated) |
| Backsplash Height | 3" |
| Cold Plate | 10 beverage circuits (cast aluminum) |
| Drain Size | 1-7/8" dia. w/ 1" MPT 3-1/4" long fitting |
| Material | 18 GA Type 300 stainless steel (#4 satin) |
| Legs & Feet | 1-5/8" Ø stainless legs, stainless side bracing, 1" adjustable bullet feet |
| Weight | 135 lb (before packaging) |
| Certifications | NSF |
Compatible Accessories (sold separately)
- Single & double speed rails – 30" or 36" widths
- Left- or right-hand side splashes (UBSS-21-L / UBSS-21-R)
- Bottle well holder with lid for 30" ice bin (UBIBL-2130-BWH)
Care & Maintenance
Wipe with non-chloride cleaners and a soft cloth, following the grain of the steel. For stubborn spots, John Boos Stainless Steel Cleaner or Bar Keepers Friend is recommended. Avoid abrasive pads, wire brushes, or bleach to keep the #4 satin finish looking new.
