John Boos UBIB-2130-CP10 Bar Equipment
Description

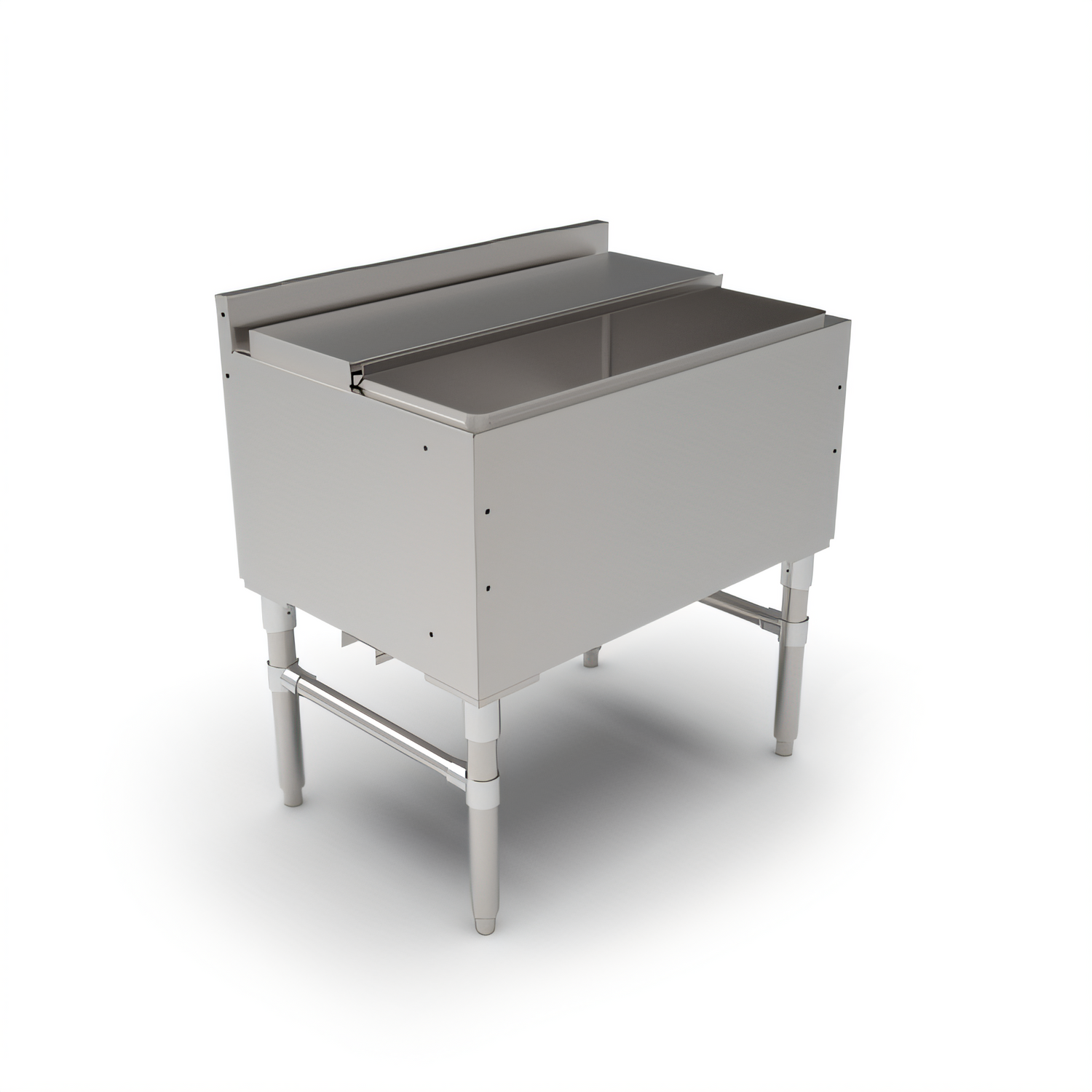

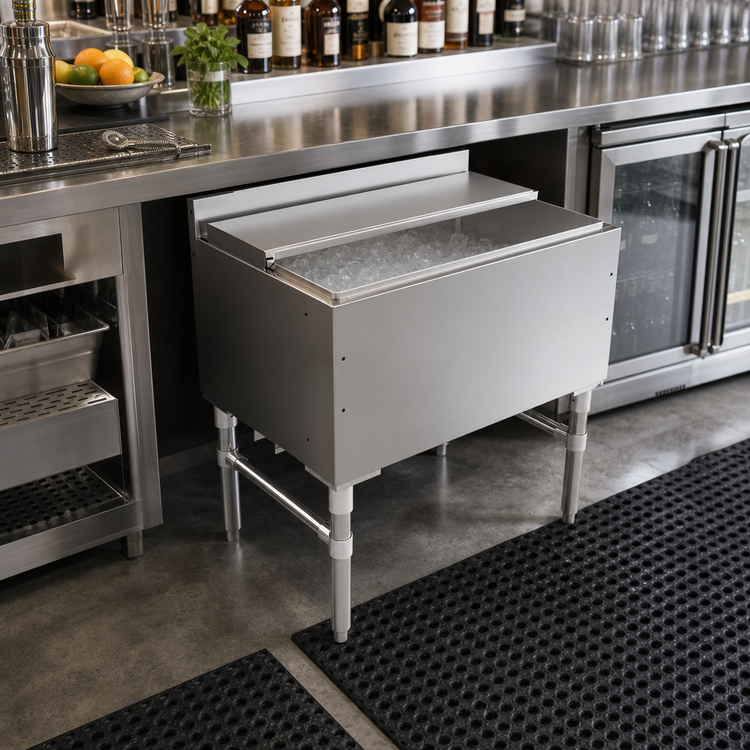

John Boos UBIB-2130-CP10 Underbar Ice Bin w/ 10-Circuit Cold Plate – 30"W
Premium stainless cocktail station for high-volume bar serviceKeep cocktails flowing and soda guns ice-cold with the John Boos UBIB-2130-CP10. Built from heavy-duty 18 gauge, type 300 stainless steel, this 30" underbar ice bin combines a generous foam-insulated ice well, an integrated 10-circuit cold plate, and bartender-friendly details that speed up service while standing up to years of abuse.
Key Features
- 28" W × 18" F-B × 13-1/2" deep foam-insulated ice bin maximizes holding time

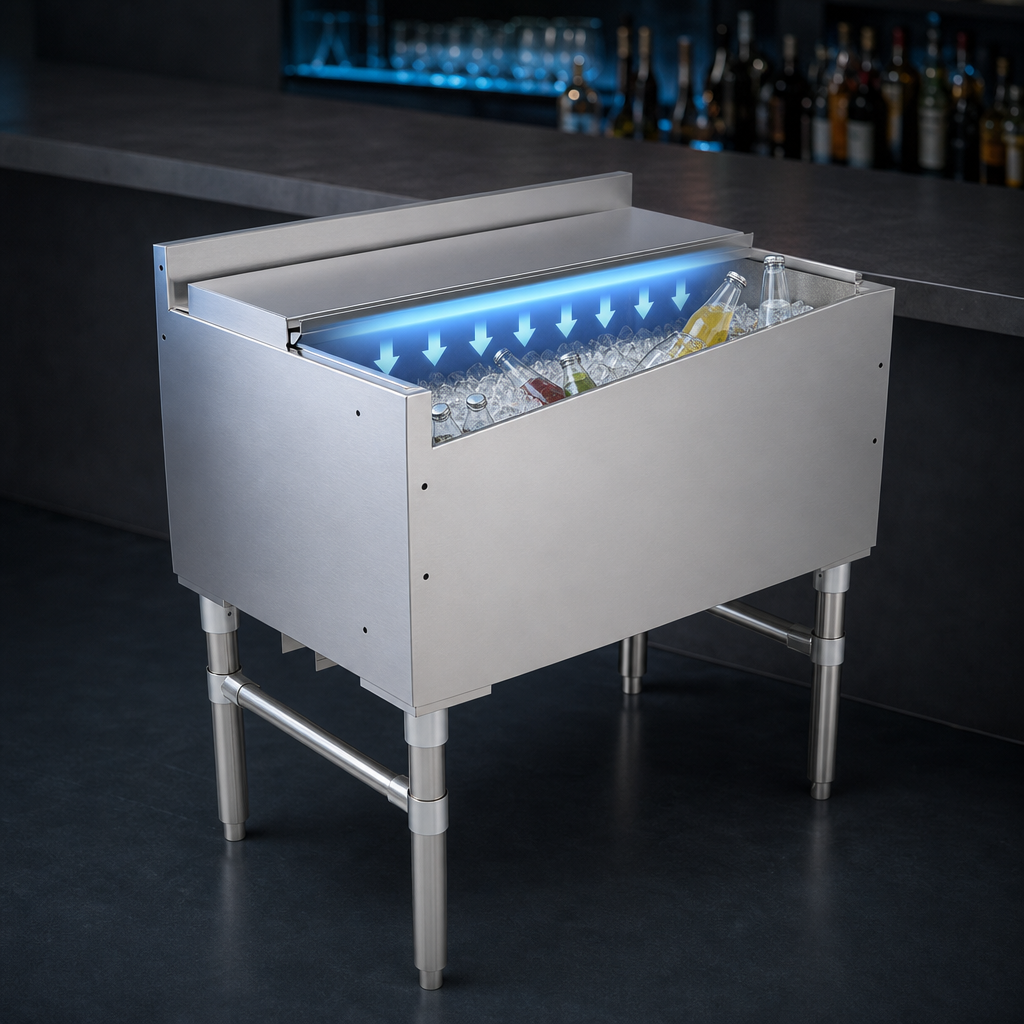

- Factory-installed 10-circuit cast aluminum cold plate for ice-cooled soda, beer or mix lines
- 2-piece stainless sliding lid keeps ice sanitary and within arm’s reach
- 3" backsplash with access plates for easy soda gun line routing
- Side threaded inserts for attaching adjacent underbar units; front inserts accept speed rails
- Bolt-on 1-5/8" dia. stainless legs with 1-1/4" front-to-back bracing for rock-solid stability
- Adjustable stainless bullet feet level the unit on uneven floors
- Satin #4 finish resists corrosion and wipes clean in seconds
- NSF listed for foodservice compliance
Technical Specifications
| Model | UBIB-2130-CP10 |
|---|---|
| Overall dimensions (W × D × H) | 30" × 21" × 32-1/2" |
| Backsplash height | 3" |
| Ice bin interior | 28" W × 18" D × 13-1/2" H (foam-insulated) |
| Cold plate | 10 circuits, cast aluminum, factory sealed |

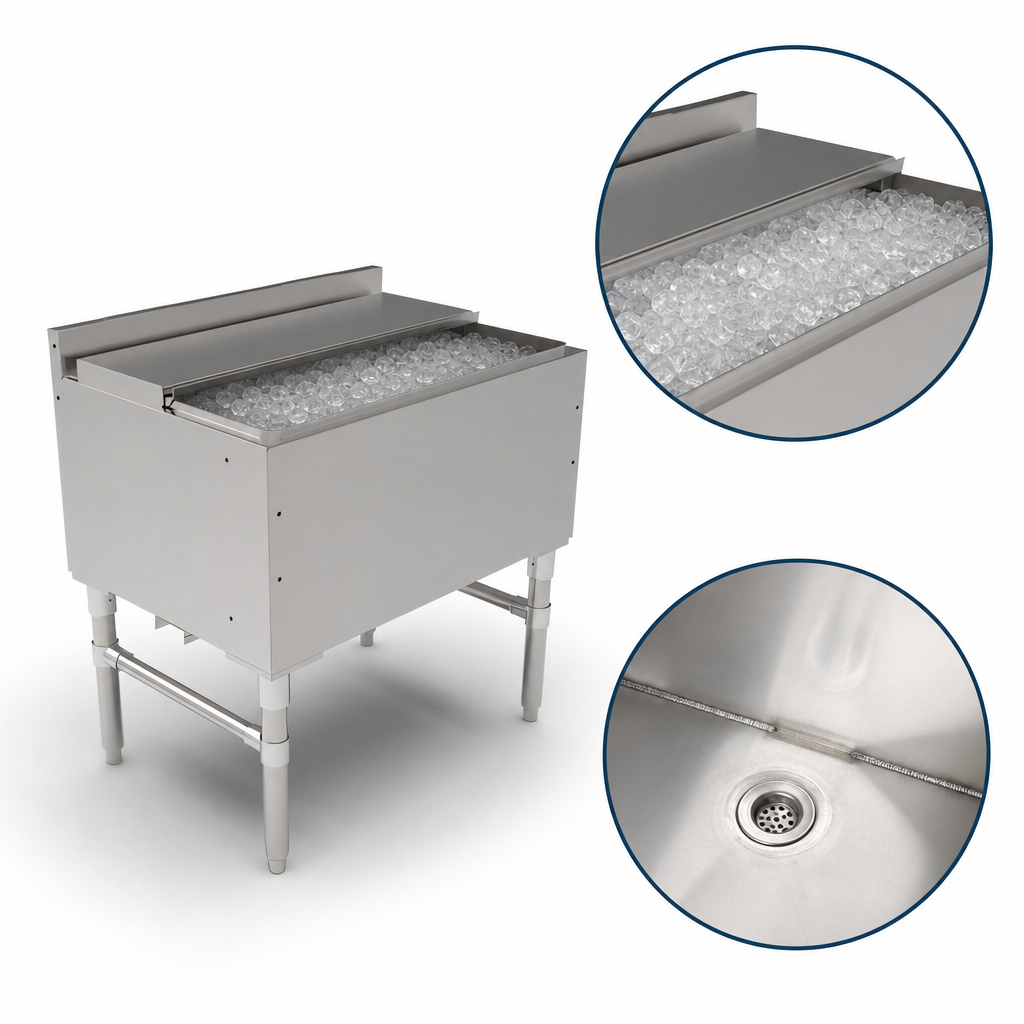

| Drain | 1-7/8" drain plug, 1" MPT × 3-1/4" long connection |
| Construction | 18 GA type 300 stainless steel, #4 satin polish |
| Legs / bracing | 1-5/8" Ø stainless legs with 1-1/4" F-B braces (bolt-on) |
| Feet | 1" adjustable stainless bullet feet |
| Weight | 135 lb (actual ship weight may vary with packaging) |
| Certification | NSF |
Popular Add-Ons (Sold Separately)
- 30" single or double speed rail (models UBSR1-30 / UBSR2-30)
- Bottle well holder with lid (model UBIBL-2130-BWH)
- Left or right side splash guards (models UBSS-21-L / UBSS-21-R)
To maintain the stainless finish, clean daily with a non-chloride stainless cleaner and a soft cloth. Avoid abrasive pads or chlorine-based chemicals.
