John Boos

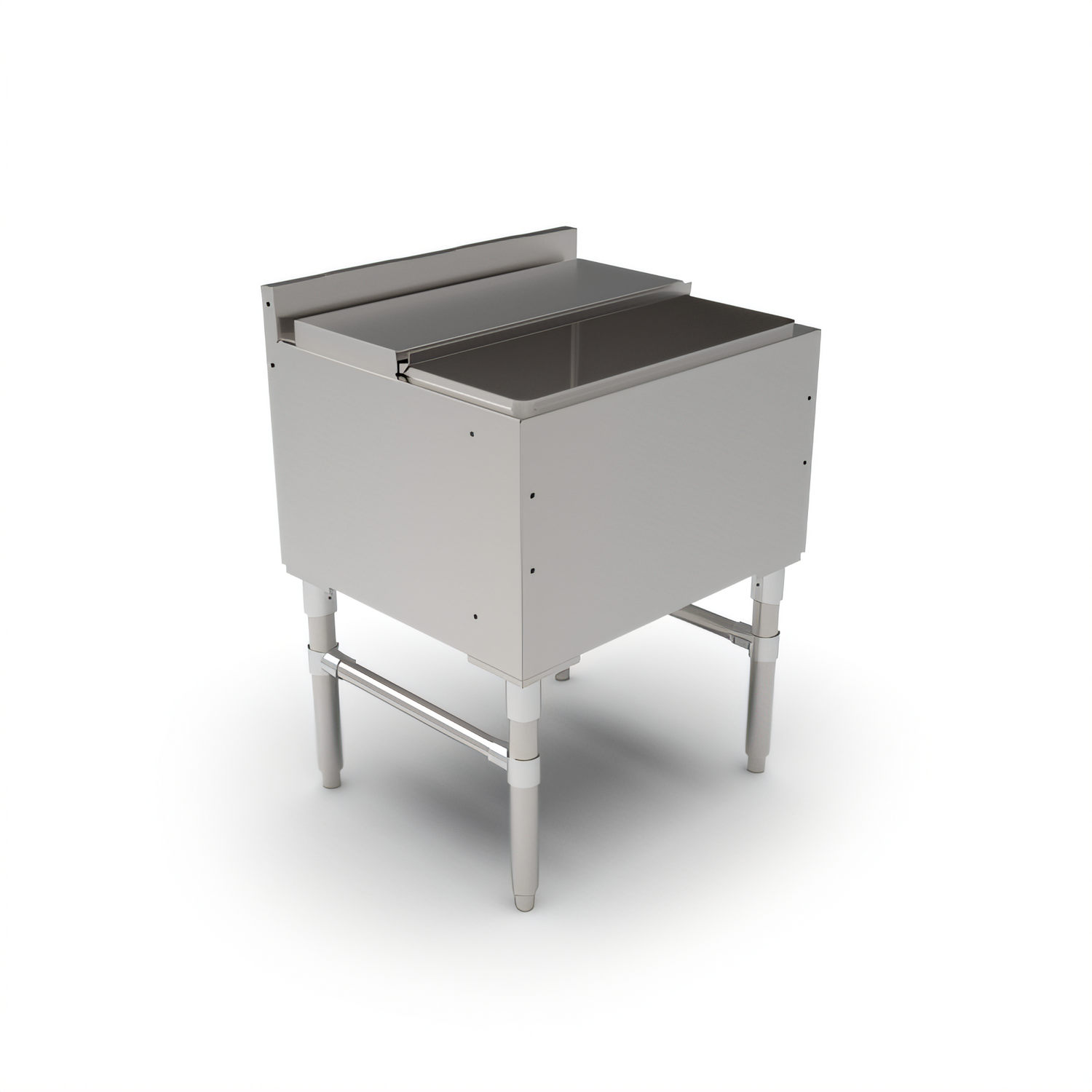

John Boos UBIB-2124-X 24-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with Sliding Lid, 3-Inch Backsplash

SKU: UBIB-2124-X
$816.00
/each Configurable
Alternative products
UBIB-2124-X Current product Current
UBIB-2130 Loading live product details…
UBIB-2136 Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Beverage Equipment Equipment Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment Underbar Ice Bins & Cocktail Stations

John Boos 24-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with Sliding Lid

22 x 18 x 13-1/2-Inch Insulated Bin, 3-Inch Backsplash, Adjustable Bullet Feet

Built for busy bar stations, this insulated underbar ice bin combines durable stainless steel construction, easy-access sliding lid, and attachment-ready features for fast service.

  • 24-inch-wide underbar ice bin/cocktail unit sized for compact bar service stations
  • Foam-insulated stainless steel bin helps preserve ice during busy shifts
  • Includes a 2-piece sliding lid and built-in drain for easy access and cleanup
  • 3-inch backsplash with access plates supports soda gun line routing
  • Stainless steel legs, side bracing, and adjustable bullet feet provide stability
  • Threaded inserts accept speed rails and allow adjacent units to bolt together
  • NSF listed for commercial foodservice use

Overall Dimensions:

24.0"W x 21.0"D x 32.5"H

Product Weight:

70.0 lb

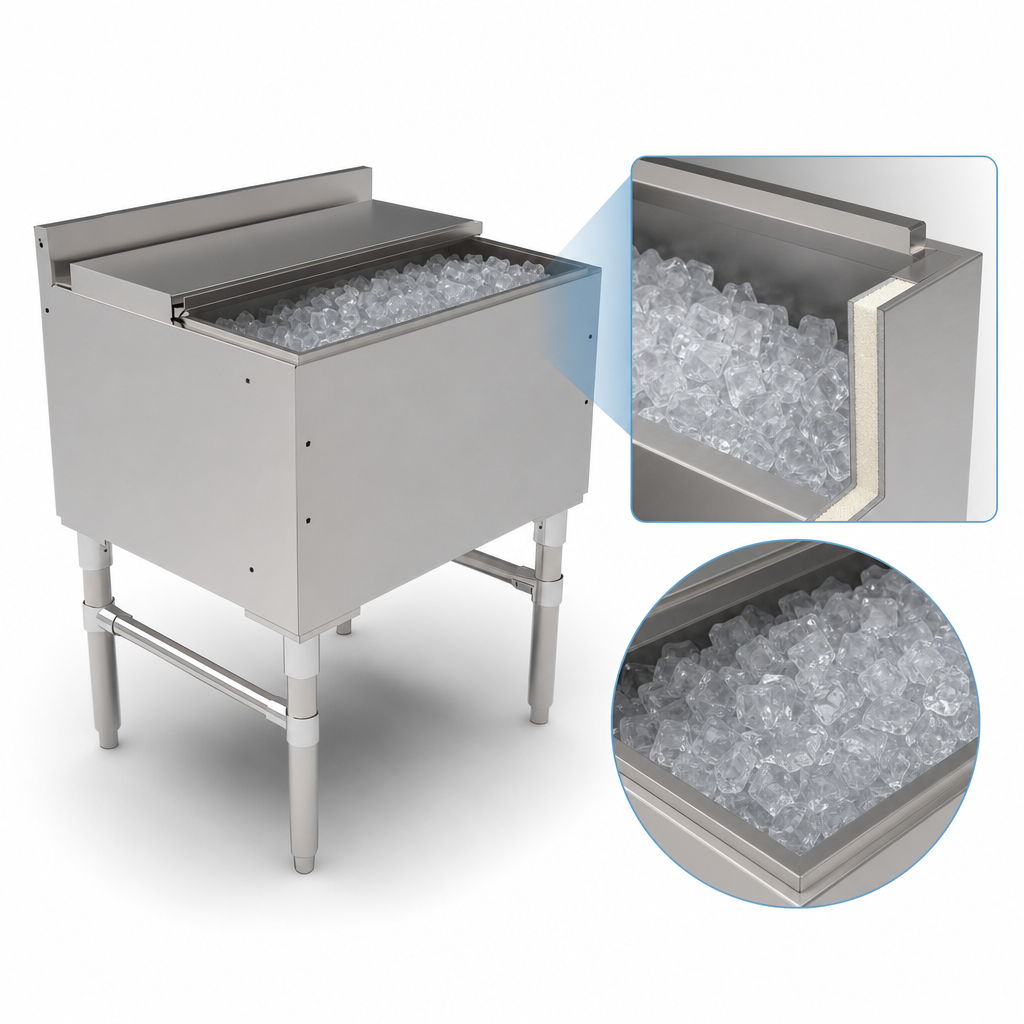

Foam-Insulated Ice Bin

Foam insulation helps keep ice colder longer during service.

Foam-Insulated Ice Bin

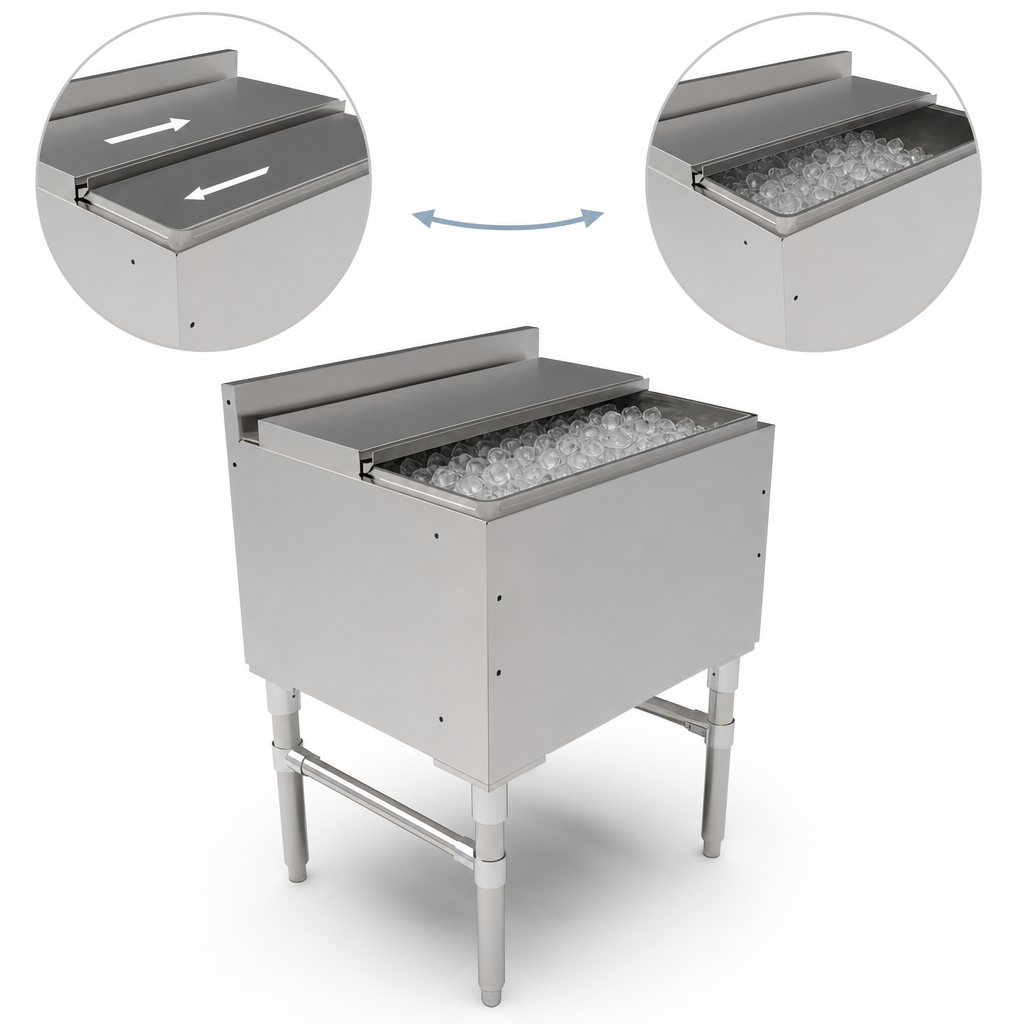

2-Piece Sliding Lid

Included lid covers the bin and slides open for convenient access.

2-Piece Sliding Lid

Stainless Steel Construction

18-gauge Type 300 stainless steel construction with #4 polish and satin finish.

Backsplash Access Plates

3-inch backsplash includes access plates for routing soda gun lines.

Accessory Mounting Inserts

Threaded side inserts and front inserts support adjacent-unit attachment and speed rail installation.

Stainless Steel Support Base

Stainless steel legs, side bracing, and adjustable bullet feet help provide a stable installation.

Built-In Drain

Includes a drain plug and 1-inch MPT drain connection for easy cleanup.

Type Ice Bin/Cocktail Unit
Style Underbar
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Ice Bin Width 22 Inches
Ice Bin Front To Back 18 Inches
Ice Bin Depth 13-1/2 Inches
Backsplash Height 3 Inches
Drain Connection Size 1 Inch MPT
Selling Unit Each
Units Per Case 1
Width 24 Inches
Depth 21 Inches
Height 33 Inches
Weight 70 Pounds

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 24 inches wide x 21 inches deep x 32-1/2 inches high.
The insulated ice bin measures 22 inches wide x 18 inches front-to-back x 13-1/2 inches deep.
Yes. A 2-piece sliding lid is included.
It includes a built-in drain with a 1-inch MPT drain connection.
Yes. It has threaded side inserts for attaching adjacent units together and front inserts for speed rail attachment.
Yes, this model is NSF listed.
