John Boos

John Boos 24-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate and Sliding Lid

SKU: UBIB-2124-CP7-X
$1,668.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

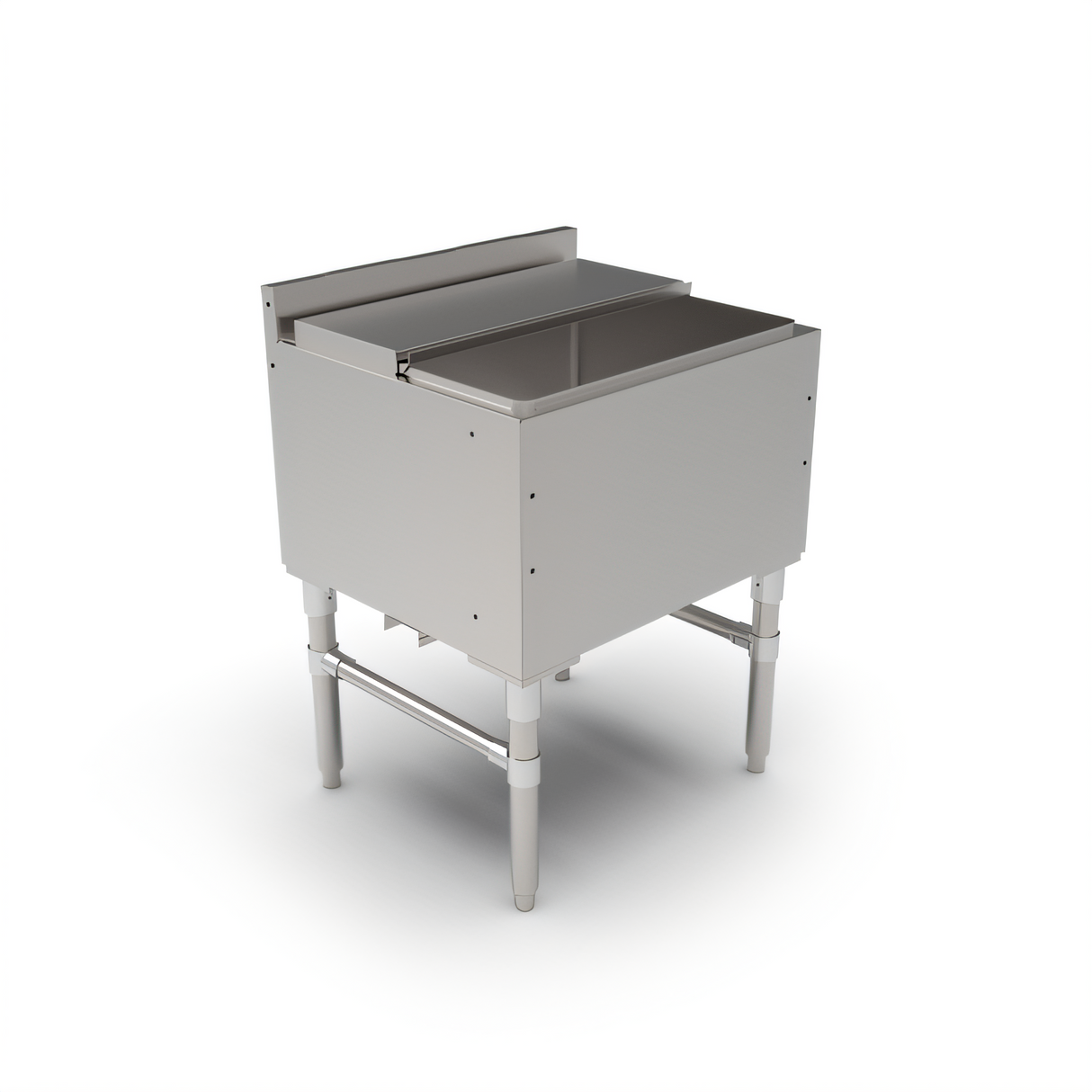

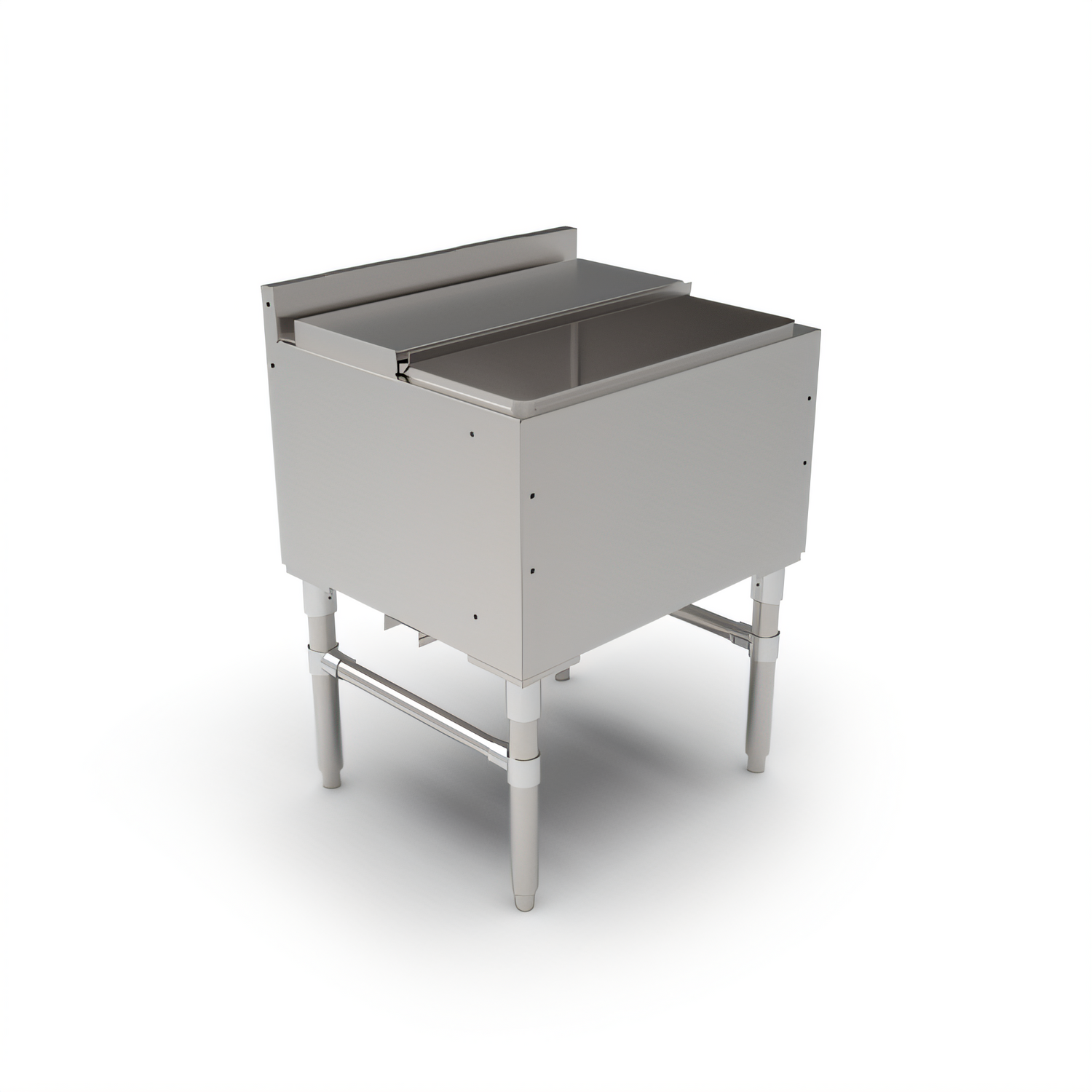

John Boos 24-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate and Sliding Lid

24 x 21 x 32-1/2 Inches, Stainless Steel, Insulated Bin with Sliding Lid

This commercial underbar ice bin keeps service moving with a foam-insulated bin, built-in 7-circuit cold plate, and durable stainless steel construction.

  • 24"W x 21"D x 32-1/2"H underbar ice bin/cocktail unit for bar service.
  • Foam-insulated ice bin includes a drain and 7-circuit cold plate.
  • 18/300 stainless steel construction with satin finish for commercial durability.
  • Includes a 2-piece sliding lid, stainless steel legs, side bracing, and adjustable bullet feet.
  • Threaded inserts, speed rail mounting points, and NSF listing support commercial installation.

Overall Dimensions:

24.0"W x 21.0"D x 32.5"H

Product Weight:

108.0 lb

Foam-Insulated Ice Bin

Helps maintain ice temperature and service readiness during busy bar shifts.

7-Circuit Cold Plate

Built-in cold plate supports chilled beverage service at the underbar station.

18/300 Stainless Steel Construction

Commercial-grade stainless steel construction with a #4 polished satin finish.

Two-Piece Sliding Lid

Includes a sliding lid to help cover ice while keeping access convenient.

Stainless Steel Legs and Side Bracing

Bolt-on stainless steel legs and bracing add strength and stability.

Adjustable Bullet Feet

Adjustable stainless steel bullet feet make leveling easier during installation.

Modular Attachment Inserts

Threaded side inserts and front inserts support adjacent unit and speed rail attachment.

Backsplash Access Plates

Access plates on top of the backsplash allow routing for soda gun lines.

Drain Assembly

Includes a drain plug and 1-inch MPT drain connection for drainage.

NSF Listed

Listed to NSF standards for commercial foodservice equipment.

Type Ice Bin/Cocktail Unit
Style Underbar
Installation Type Floor Model (With Legs)
Material Stainless Steel
Finish Satin Finish
Drain Connection Required
Drain Connection Size 1 Inch MPT, 3-1/4 Inches Long
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 108 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 24 inches wide, 21 inches deep, and 32-1/2 inches high.
The ice bin measures 22 inches wide, 18 inches front-to-back, and 13-1/2 inches deep.
Yes. It includes a 7-circuit cold plate.
It is constructed of 18/300 stainless steel with a satin finish.
Yes. A 2-piece sliding lid is included.
It includes a drain plug and a 1-inch MPT drain connection.
