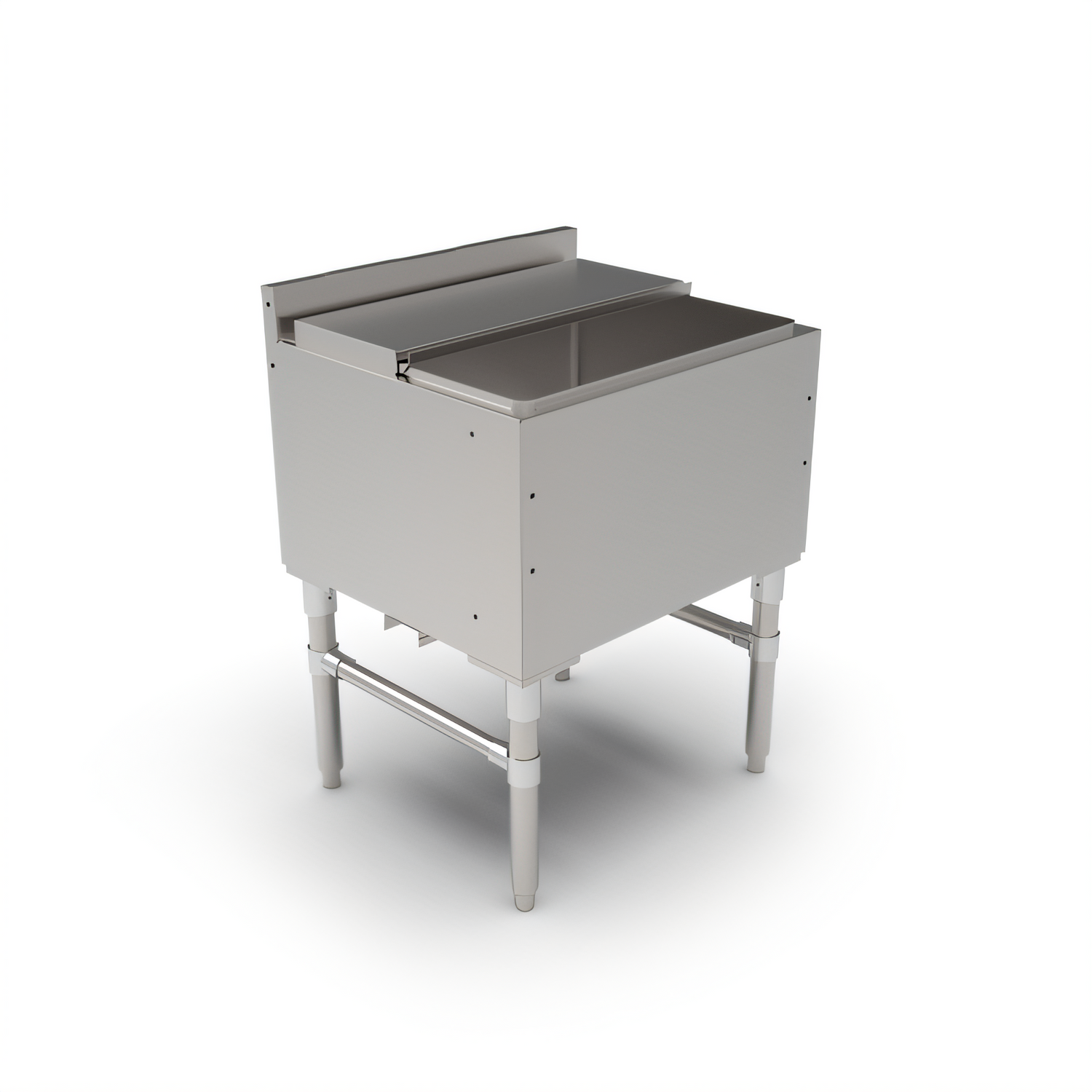

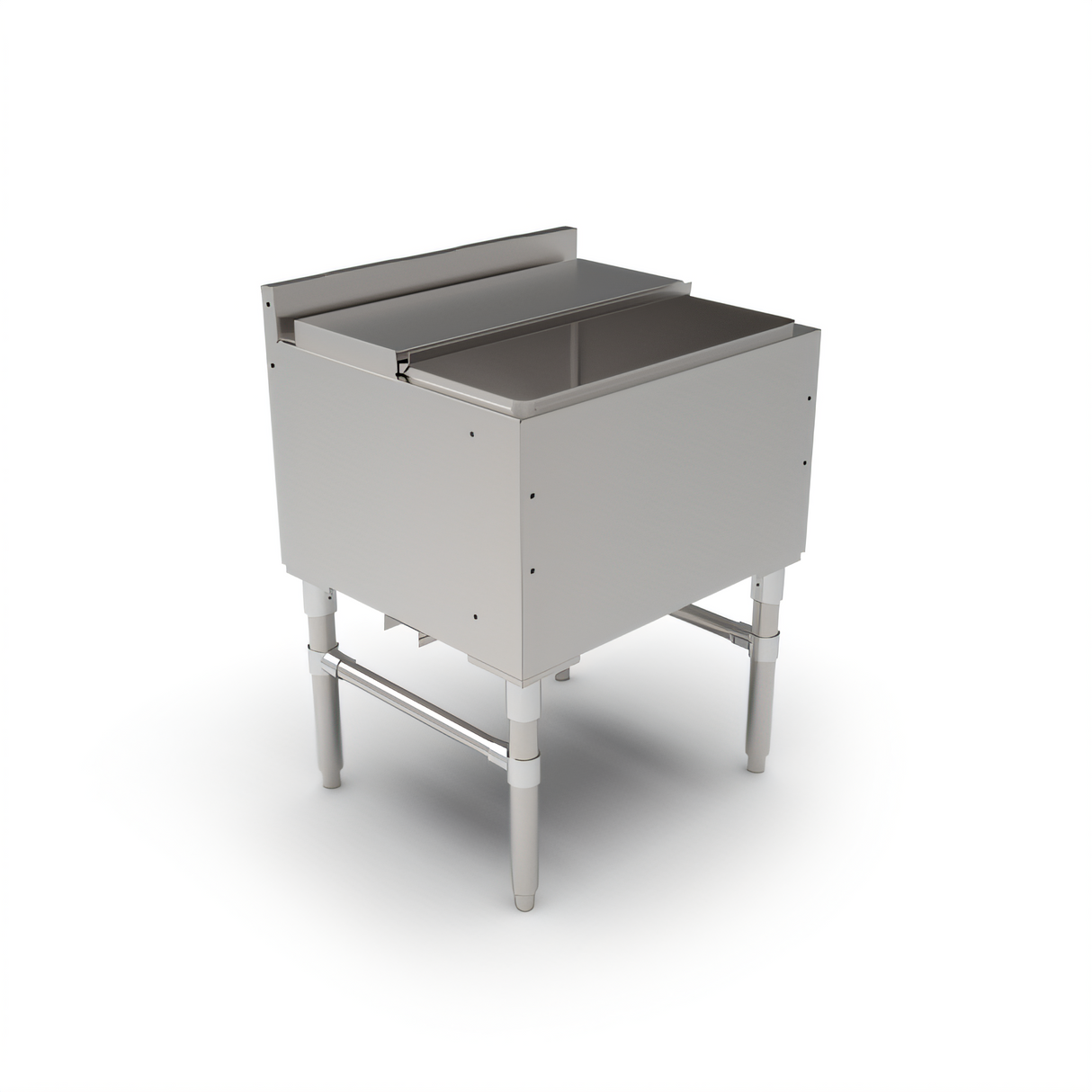

John Boos 24-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate, Stainless Steel

SKU: UBIB-2124-CP7
GTIN: 662969778804
$2,665.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment John Boos New Arrivals Restaurant Equipment Underbar Equipment

John Boos 24-Inch Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate, Stainless Steel

21-Inch Deep Insulated Bin, 3-Inch Backsplash, Sliding Lid

Built for fast-moving bar service, this insulated underbar ice bin combines a 7-circuit cold plate, stainless steel construction, and a sliding lid to help keep drinks cold and ice protected.

  • 24-inch-wide underbar ice bin/cocktail unit for bar and beverage prep stations.
  • Integrated 7-circuit cold plate supports chilled drink service.
  • Foam-insulated bin and two-piece sliding lid help preserve ice.
  • 18/300 stainless steel construction with satin finish for durability.
  • Stainless steel legs, side bracing, and adjustable bullet feet provide stable support.
  • Backsplash access plates, threaded inserts, and drain connection simplify installation.

Overall Dimensions:

24.0"W x 21.0"D x 32.5"H

Product Weight:

108.0 lb

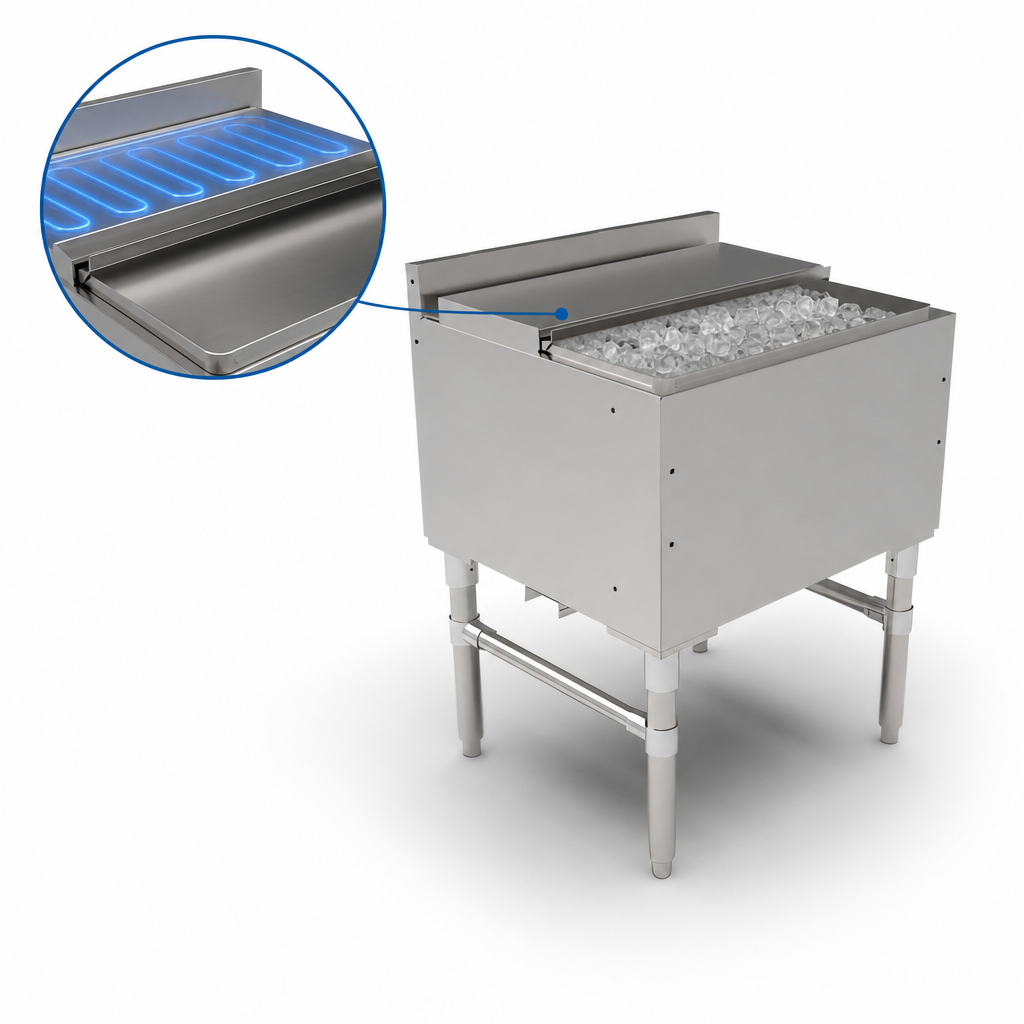

Integrated 7-Circuit Cold Plate

Built-in cold plate helps support chilled beverage service at the bar.

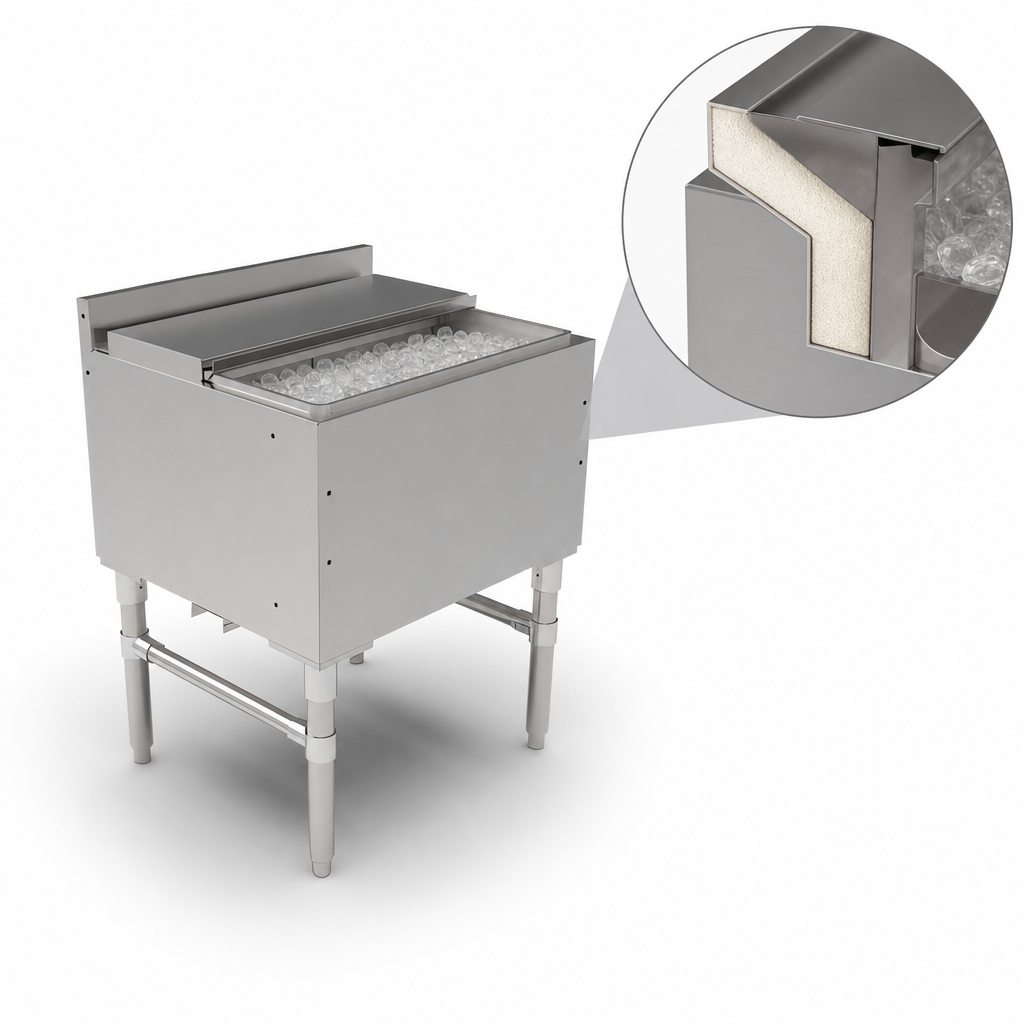

Foam-Insulated Ice Bin

Insulated bin helps minimize ice melt during busy service periods.

Two-Piece Sliding Lid

Included lid helps cover the ice bin when it is not in use.

18GA Type 300 Stainless Steel Construction

Durable stainless steel build with a #4 polish and satin finish.

3-Inch Backsplash With Access Plates

Helps contain splashes and provides line access for soda gun installation.

Stainless Steel Legs and Side Bracing

Reinforces the unit and supports attachment to adjacent underbar pieces.

Adjustable Stainless Steel Bullet Feet

Allows the unit to be leveled on uneven floors.

Drain and Mounting Provisions

Includes a drain plug and drain connection, plus threaded inserts for speed rail and adjacent unit attachment.

Type Underbar Ice Bin/Cocktail Unit
Style Cold Plate
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Drain Connection Size 1 Inch MPT
Shipping Width 24 Inches
Shipping Depth 21 Inches
Shipping Height 33 Inches
Shipping Weight 108 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download PDF Assembly instructions PDF Download

Frequently Asked Questions

The insulated ice bin measures 22 inches wide, 18 inches front to back, and 13.5 inches deep.
Yes. It includes a 7-circuit cold plate.
Yes. The bin is foam insulated to help maintain ice temperature.
It includes a 1-inch MPT drain connection and a drain plug.
Yes. Standard threaded inserts on the sides allow adjacent units to be attached together.
